Fig. 227: Flow Chart DR-16 (1.8L) (2 of 5)
Page 1066 of 1333
Fig. 228: Circuit Diagram DR-16 (1.8L)
Page 1067 of 1333
Fig. 229: Flow Chart DR-16 (1.8L) (3 of 5)
Fig. 230: Circuit Diagram DR-16 (1.8L)
Page 1068 of 1333

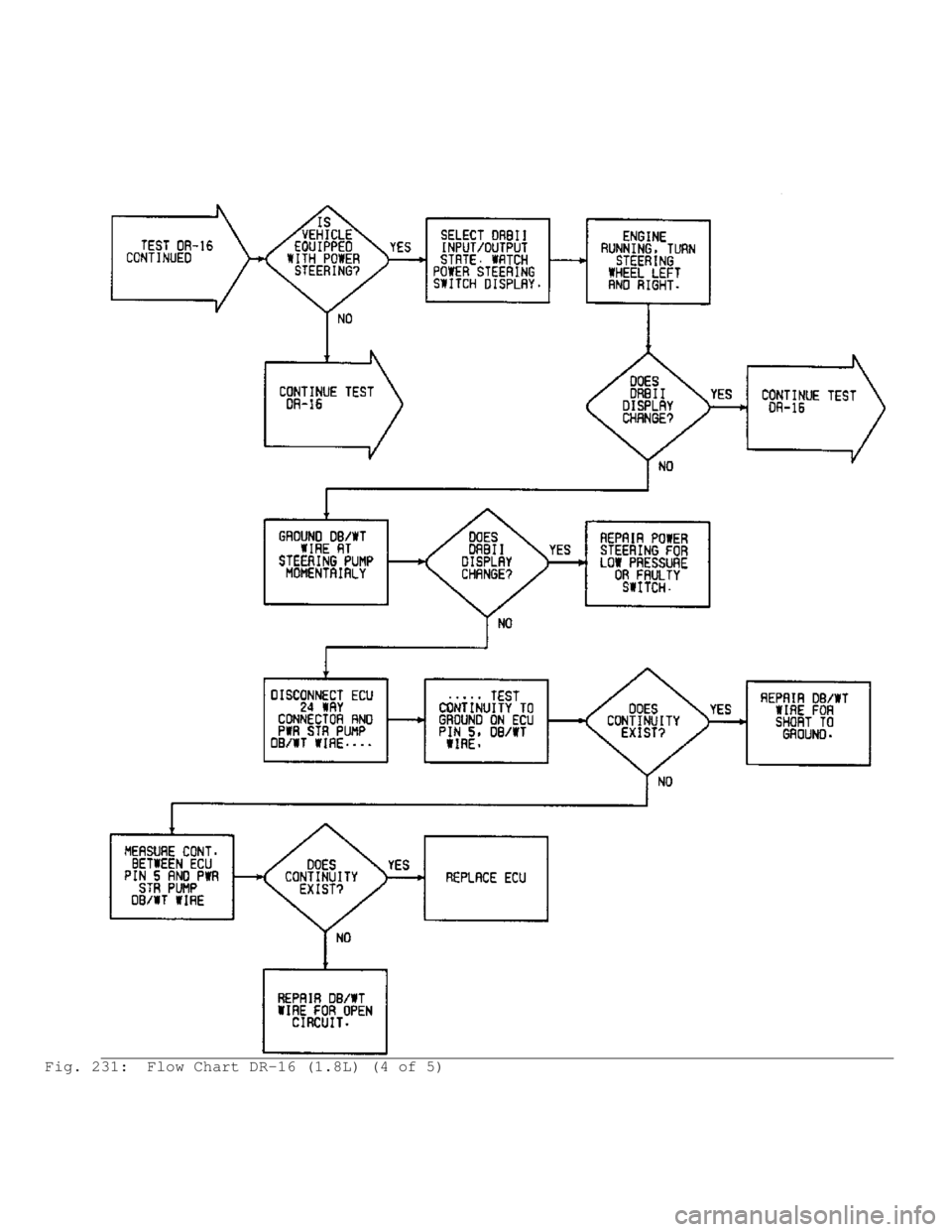

Fig. 231: Flow Chart DR-16 (1.8L) (4 of 5)
Page 1069 of 1333

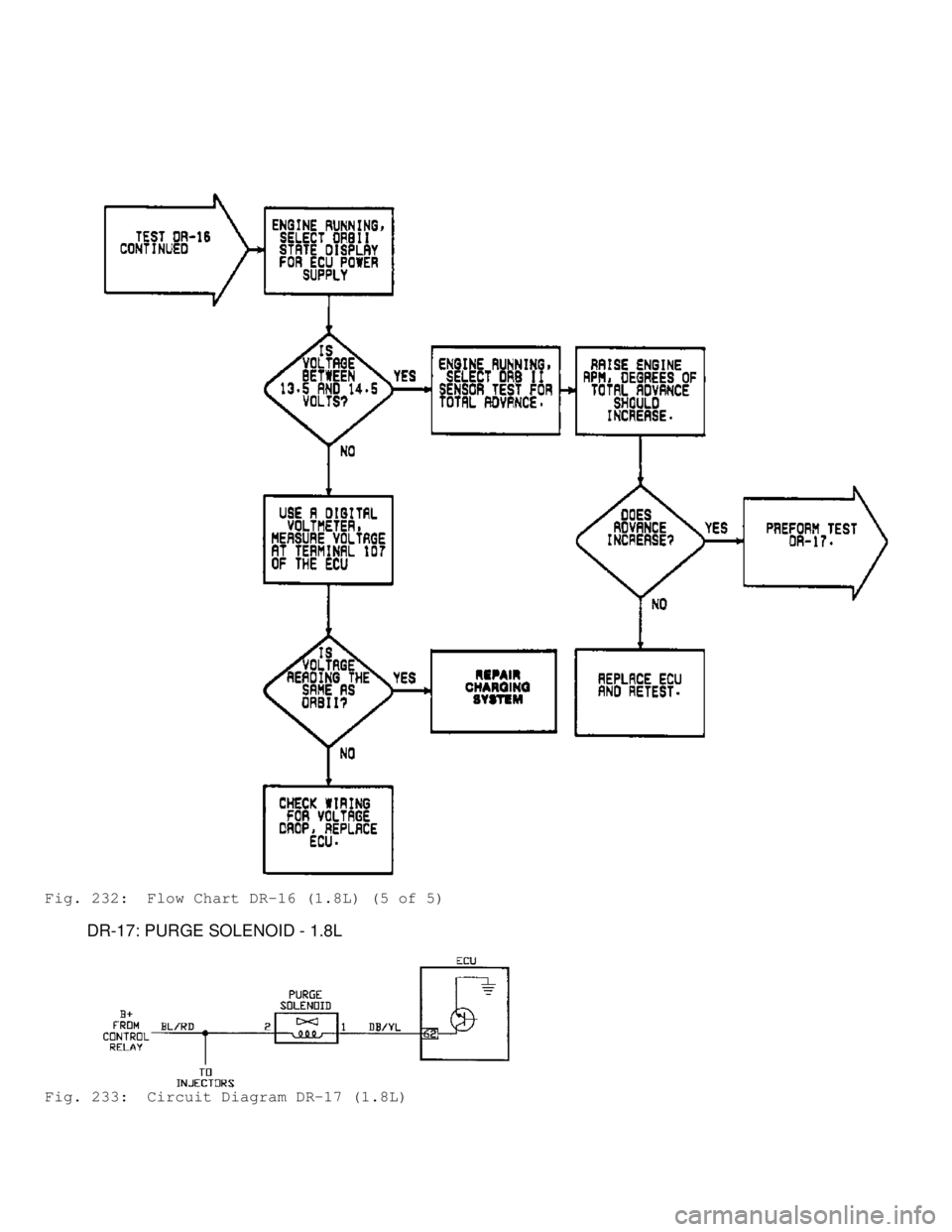

Fig. 232: Flow Chart DR-16 (1.8L) (5 of 5)
DR-17: PURGE SOLENOID - 1.8L
Fig. 233: Circuit Diagram DR-17 (1.8L)
Page 1070 of 1333

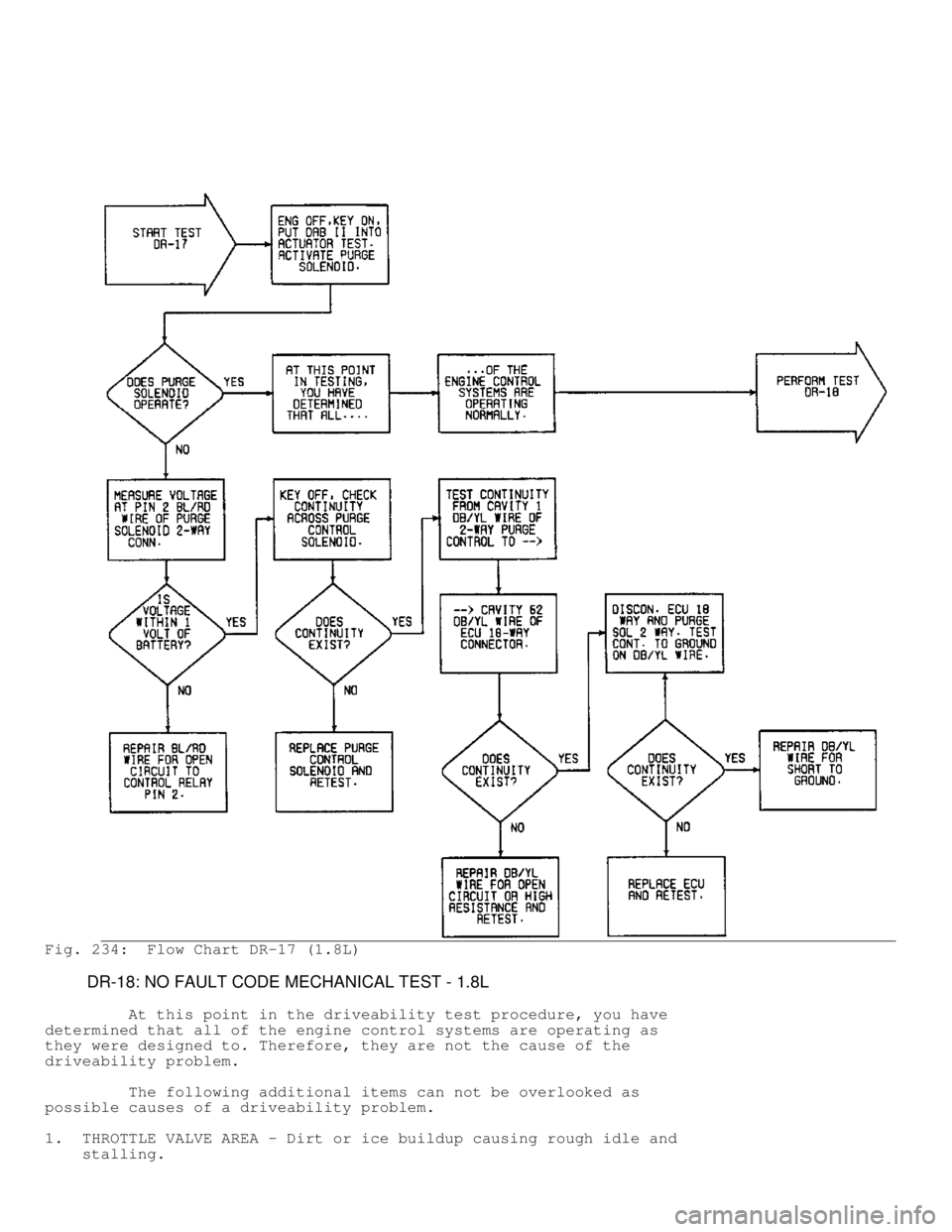

Fig. 234: Flow Chart DR-17 (1.8L)
DR-18: NO FAULT CODE MECHANICAL TEST - 1.8L
At this point in the driveability test procedure, you have
determined that all of the engine control systems are operating as
they were designed to. Therefore, they are not the cause of the
driveability problem.
The following additional items can not be overlooked as
possible causes of a driveability problem.
1. THROTTLE VALVE AREA - Dirt or ice buildup causing rough idle and
stalling.
Page 1071 of 1333

2. ENGINE IGNITION TIMING - Must be set with timing terminal
grounded.
3. ENGINE VACUUM - Must be normal for your altitude.
4. ENGINE VALVE TIMING - To specifications.
5. ENGINE COMPRESSION - To specifications.
6. ENGINE P.C.V. SYSTEM - Must flow freely.
7. ENGINE EXHAUST SYSTEM - Must be free of any restrictions.
8. POWER BRAKE BOOSTER - No internal vacuum leaks.
9. TORQUE CONVERTER CONDITION - May cause very low power at breakaway
or high speed (Only 1 condition at a time).
10. FUEL CONTAMINATION - High alcohol or water content.
11. FUEL INJECTORS - Rough idle may be caused by injector wiring not
connected to correct injector.
12. ENGINE SECONDARY IGNITION CHECK - Abnormal scope patterns.
13. TECHNICAL SERVICE BULLETINS - Any that apply to vehicle.
14. All air intake piping and vacuum hoses must be in place and
secure. The proper air filter element must be used.
15. FUEL PRESSURE - Must be correct.
Specification: With no vacuum at the regulator:
48 PSI on V6 & non-turbo 4 Cyl. engines
36 PSI on turbo engines
NS-1: IGNITION CHECK FLOW CHARTS - 2.0L

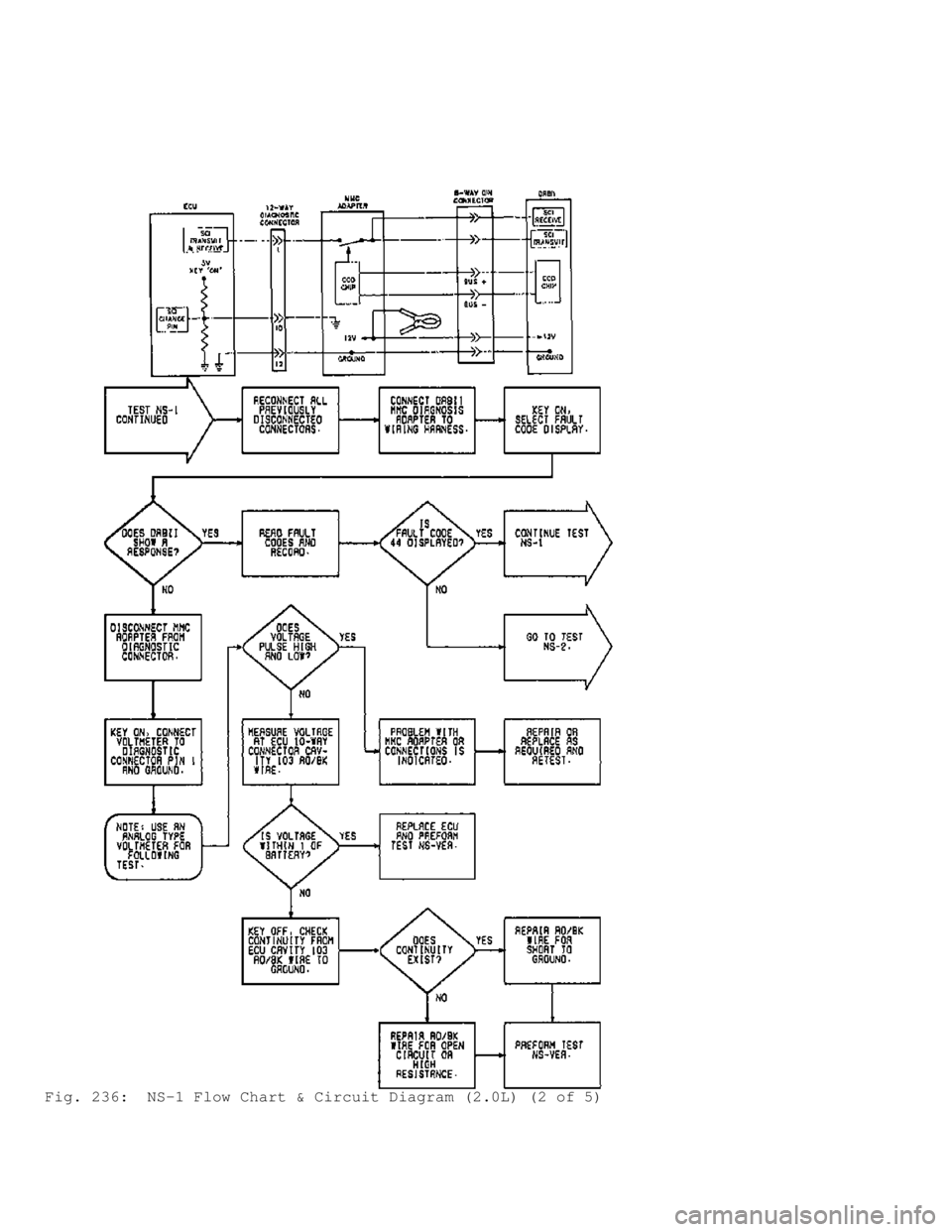

Fig. 235: NS-1 Flow Chart & Circuit Diagram (2.0L) (1 of 5)
Page 1072 of 1333
Fig. 236: NS-1 Flow Chart & Circuit Diagram (2.0L) (2 of 5)
