1991 MITSUBISHI MONTERO Service Manual

Fig. 65: Flow Chart DR-15 (1.5L)
DR-16: NO FAULT CODE SENSOR TEST - 1.5L
DR-16 NO FAULT CODE SYSTEM TEST TABLE










\









\









\









\









\









\






DRBII
EGR Temp. Display Engine Conditions
160
F ........................................... Hot Idle
350F ................................ 25 MPH at 3,500 RPM
311F ................................ 55 MPH at 3,500 RPM








\









\









\









\









\









\






Fig. 66: Circuit Diagram DR-16 (1.5L) (1 of 2)
Fig. 67: Circuit Diagram DR-16 (1.5L) (2 of 2)

Fig. 68: Flow Chart DR-16 (1.5L) (1 of 5)
DR-16 NO FAULT CODE SYSTEM TEST TABLE









\









\









\









\









\









\






Altitude Baro Reading
-1,000 Ft. ........................................ 31.01"
-900 Ft. .......................................... 30.90"

Sea Level ......................................... 29.92"
500 Ft. ........................................... 29.38"
1,000 Ft. ......................................... 28.85"
1,500 Ft. ......................................... 28.33"
2,000 Ft. ......................................... 27.82"
3,000 Ft. ......................................... 26.81"
4,000 Ft. ......................................... 25.84"
6,000 Ft. ......................................... 23.97"
8,000 Ft. ......................................... 22.22"
10,000 Ft. ........................................ 20.57"
12,000 Ft. ........................................ 19.02"
14,000 Ft. ........................................ 17.57"









\









\









\









\









\









\






Fig. 69: Flow Chart DR-16 (1.5L) (2 of 5)

Fig. 70: Flow Chart DR-16 (1.5L) (3 of 5)

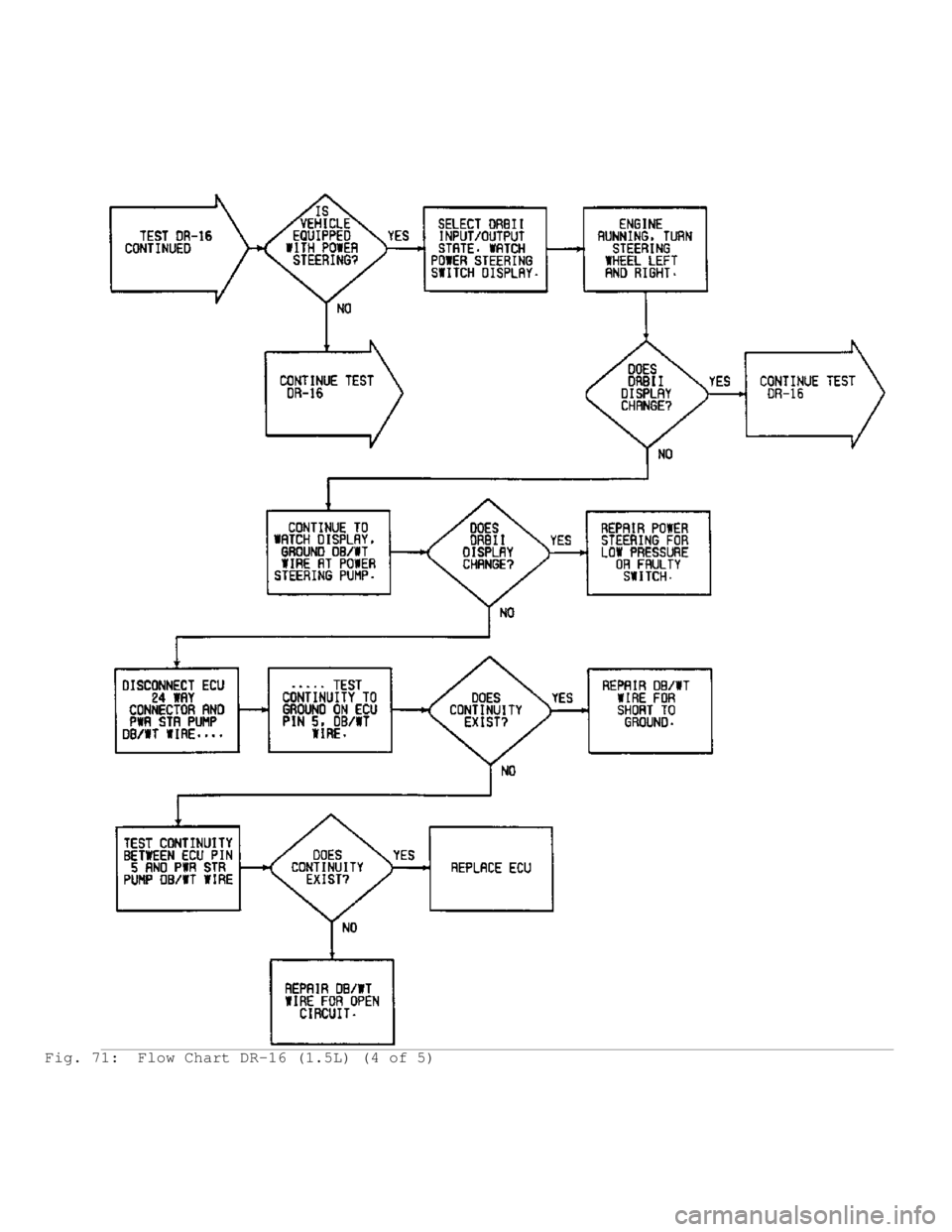

Fig. 71: Flow Chart DR-16 (1.5L) (4 of 5)

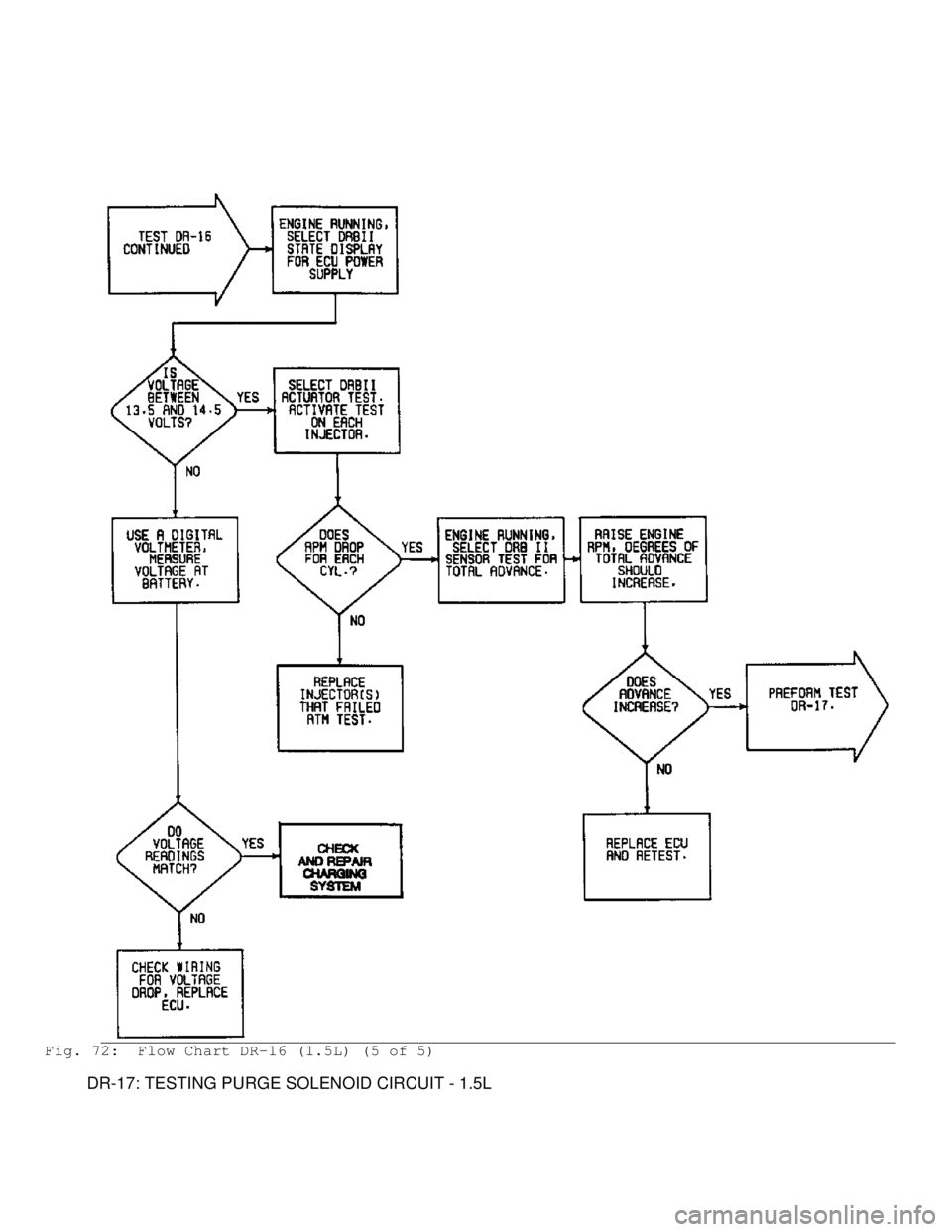

Fig. 72: Flow Chart DR-16 (1.5L) (5 of 5)
DR-17: TESTING PURGE SOLENOID CIRCUIT - 1.5L

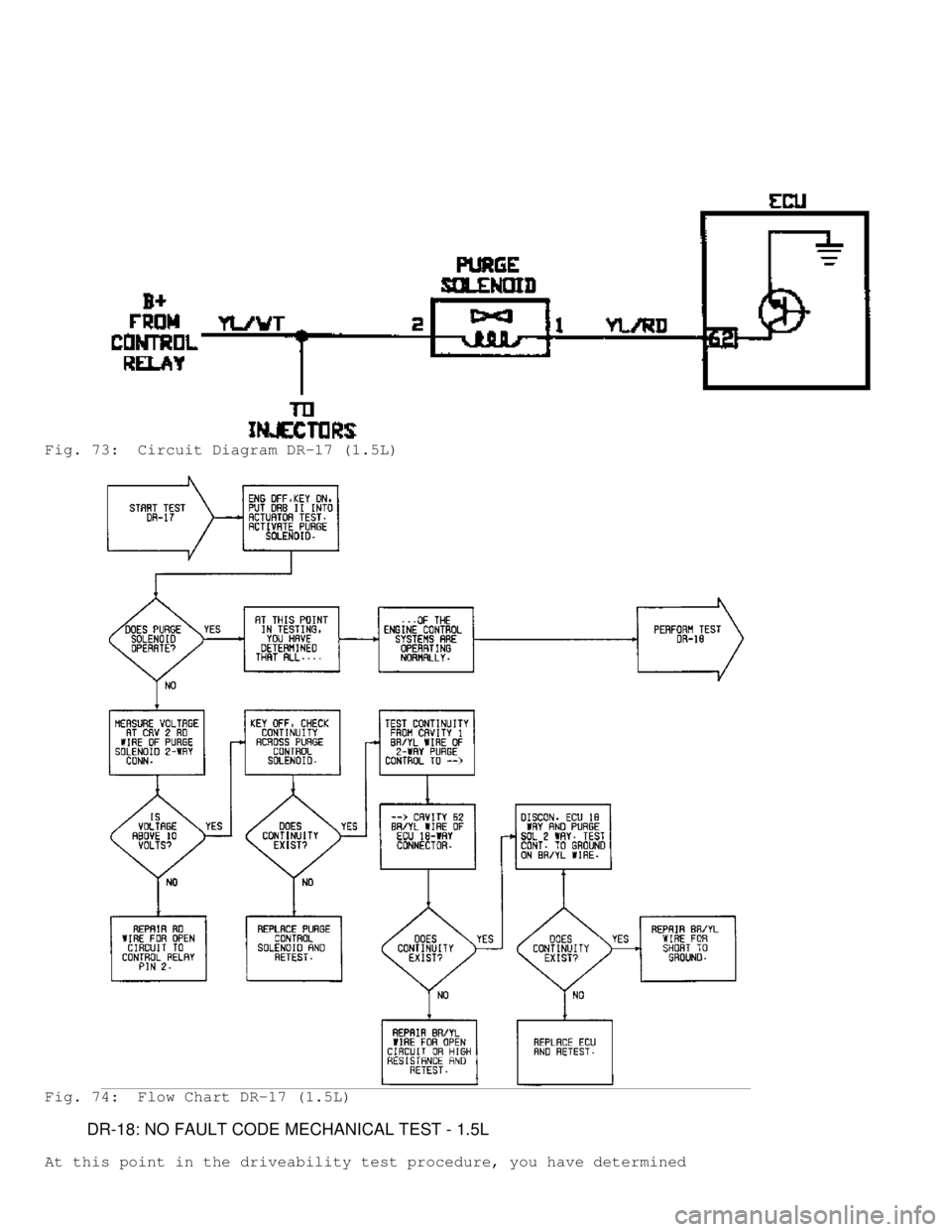

Fig. 73: Circuit Diagram DR-17 (1.5L)
Fig. 74: Flow Chart DR-17 (1.5L)
DR-18: NO FAULT CODE MECHANICAL TEST - 1.5L
At this point in the driveability test procedure, you have determined
