1991 MITSUBISHI MONTERO Service Manual

Fig. 269: DR-10 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
DR-11: CHECKING VEHICLE SPEED SENSOR - 2.0L

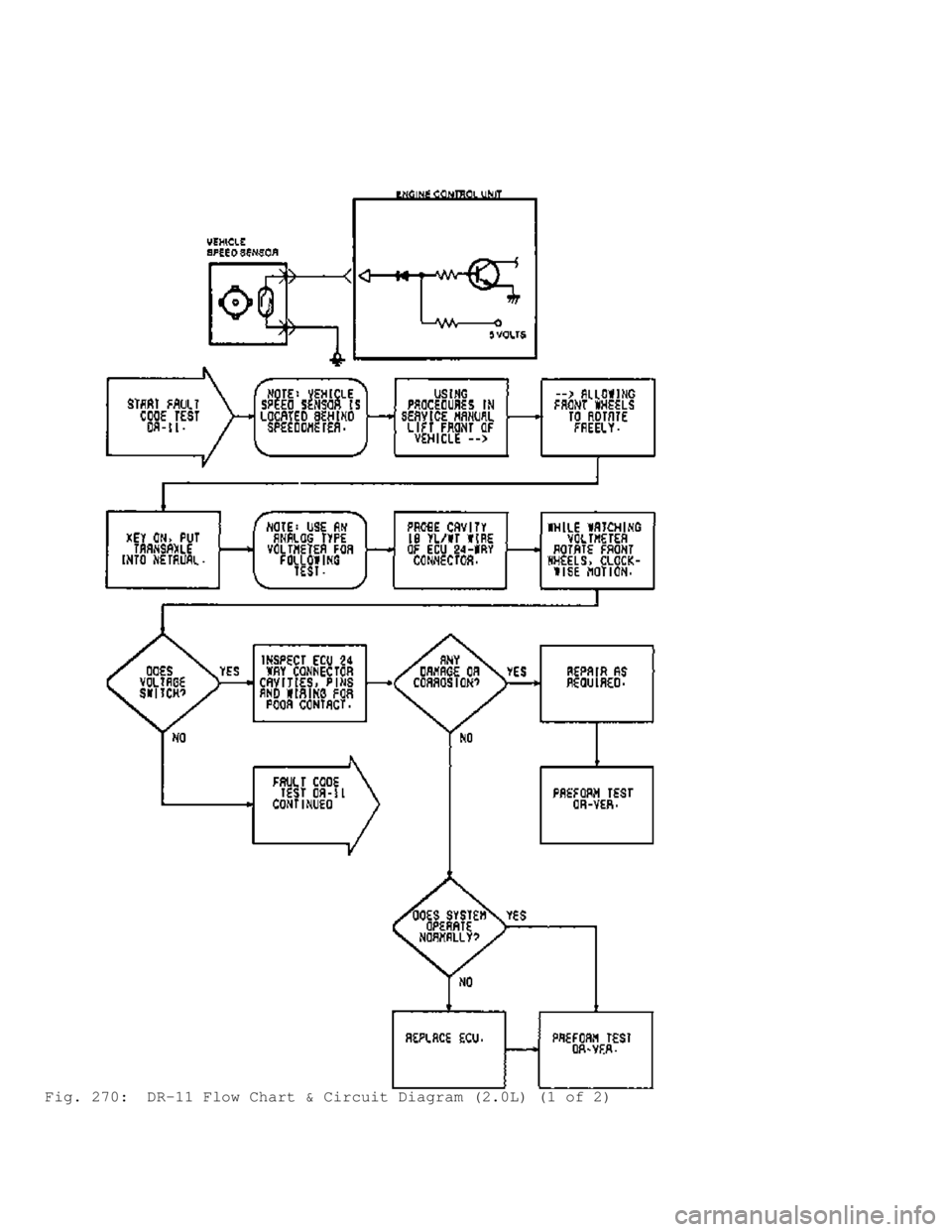

Fig. 270: DR-11 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

Fig. 271: DR-11 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
DR-12: CHECKING BAROMETRIC PRESSURE SENSOR - 2.0L TURBO

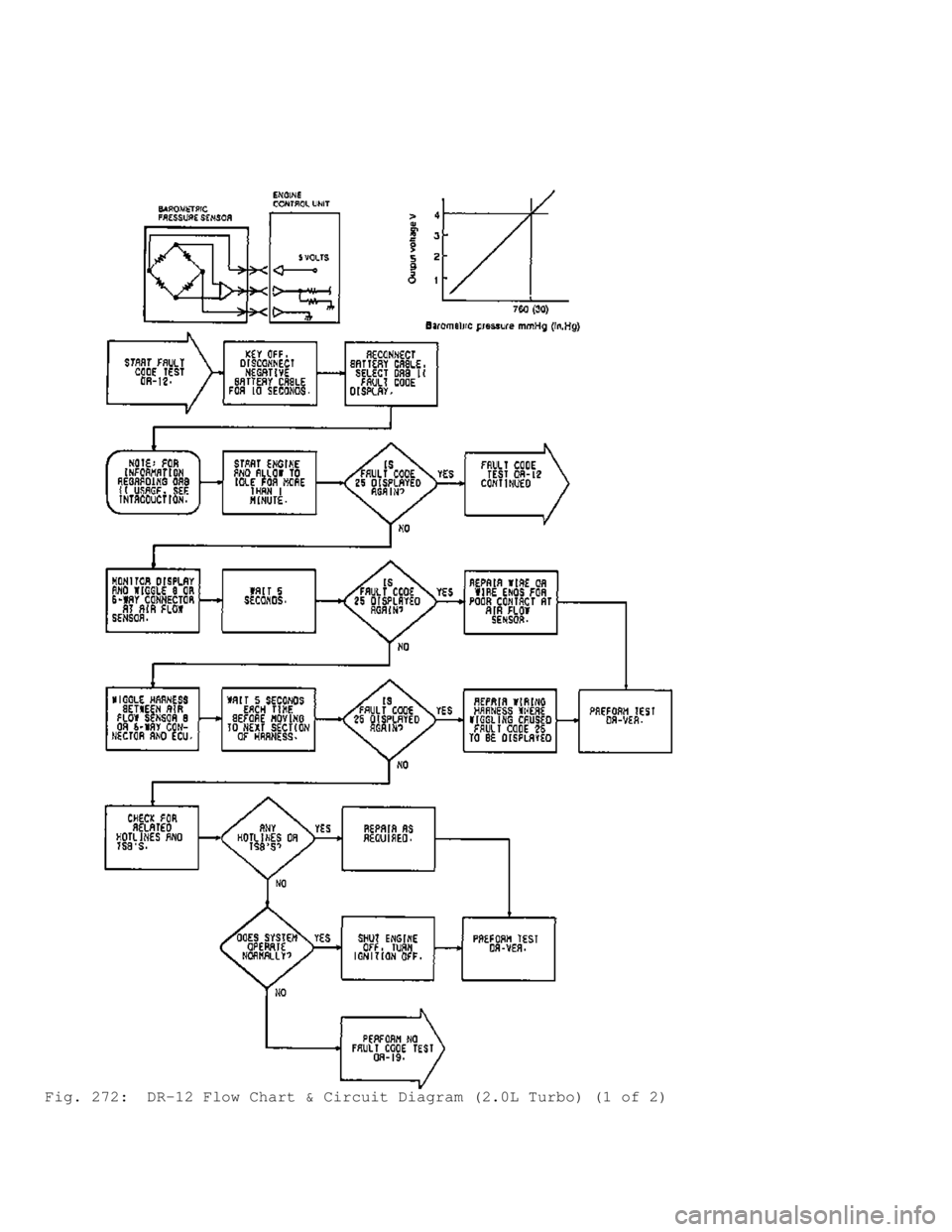

Fig. 272: DR-12 Flow Chart & Circuit Diagram (2.0L Turbo) (1 of 2)

Fig. 273: DR-12 Flow Chart & Circuit Diagram (2.0L Turbo) (2 of 2)
DR-13: CHECKING BAROMETRIC PRESSURE SENSOR - 2.0L NON-TURBO

Fig. 274: DR-13 Flow Chart & Circuit Diagram (2.0L)
DR-14: CHECKING DETONATION SENSOR - 2.0L

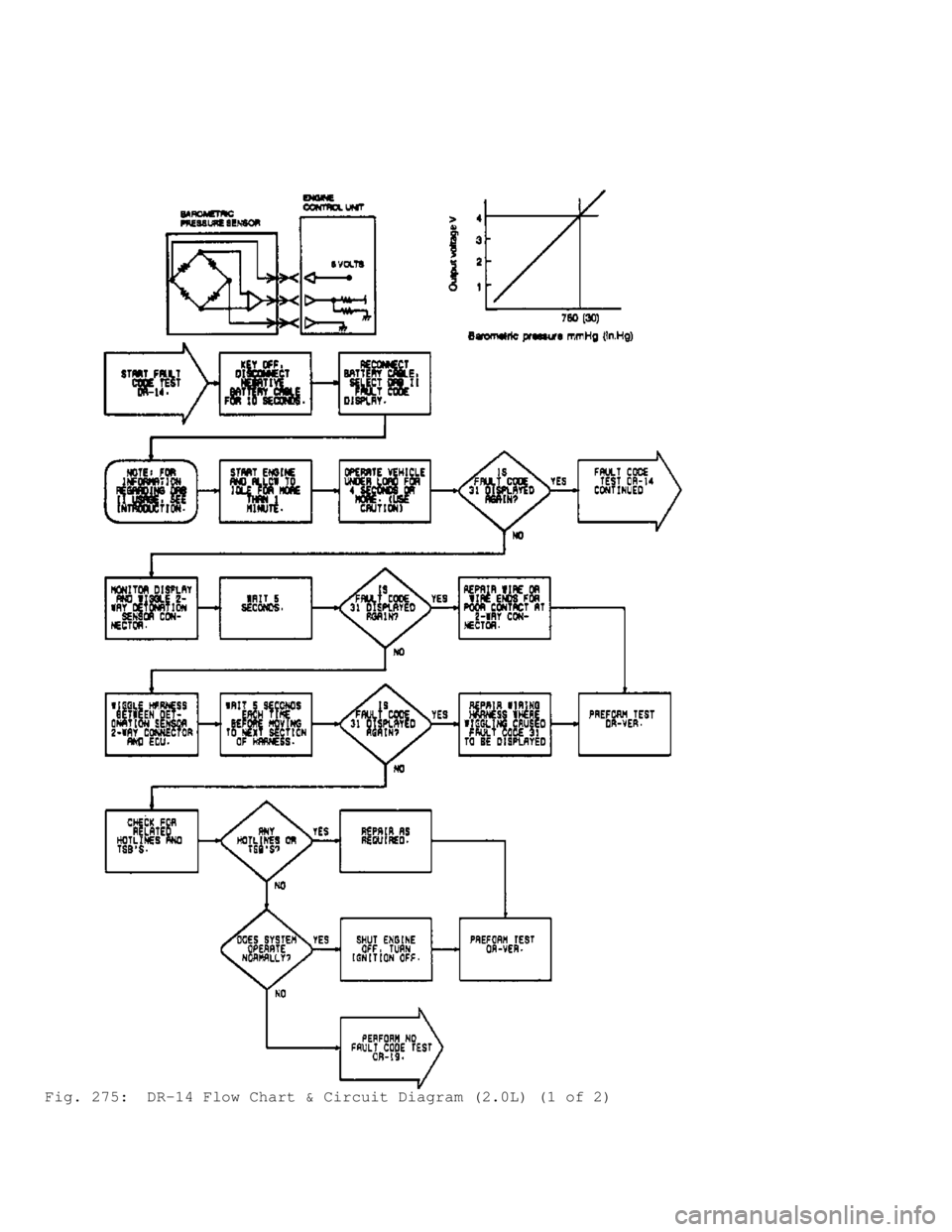

Fig. 275: DR-14 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

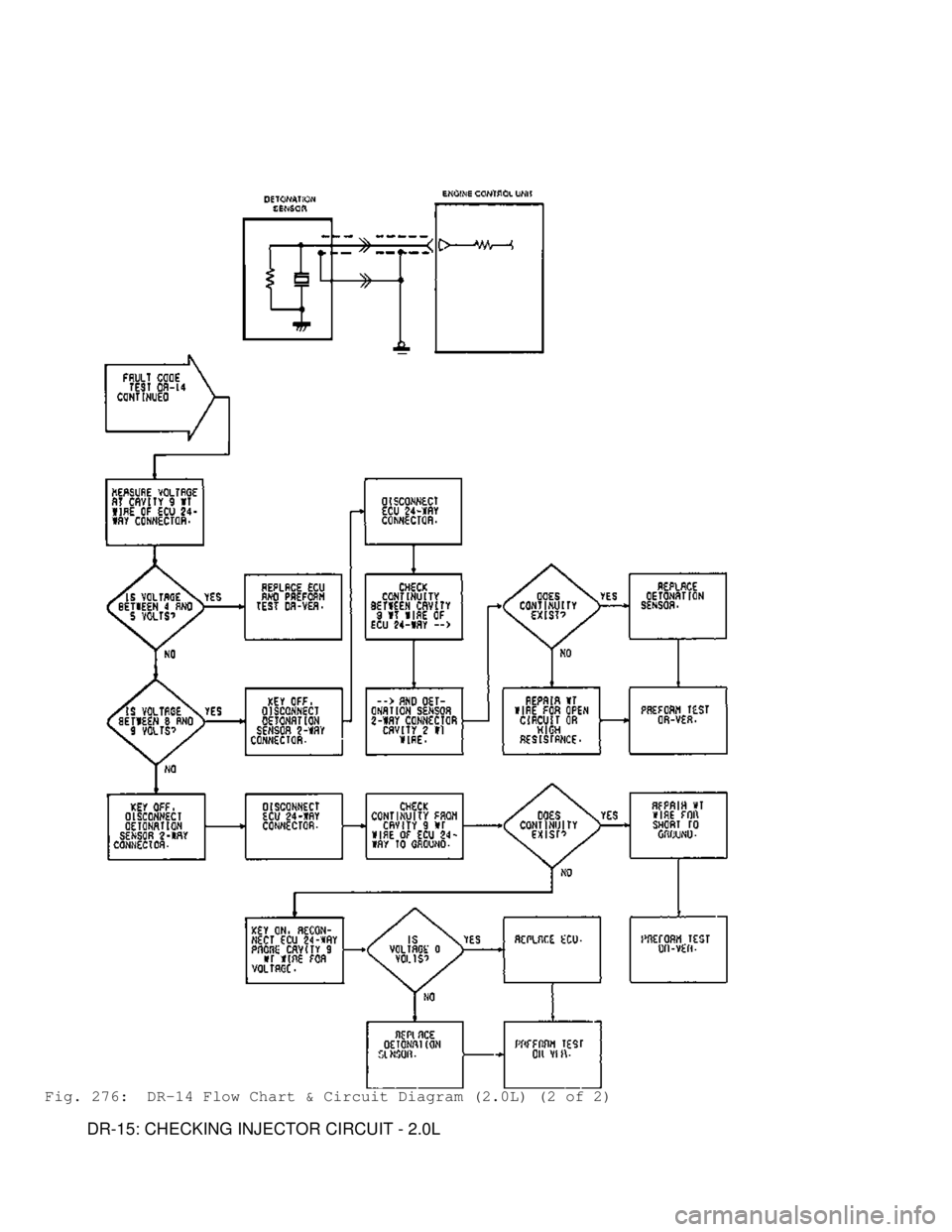

Fig. 276: DR-14 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
DR-15: CHECKING INJECTOR CIRCUIT - 2.0L
