1991 MITSUBISHI MONTERO Service Manual

Fig. 245: NS-4 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
NS-5: CHECKING CONTROL RELAY CIRCUIT - 2.0L

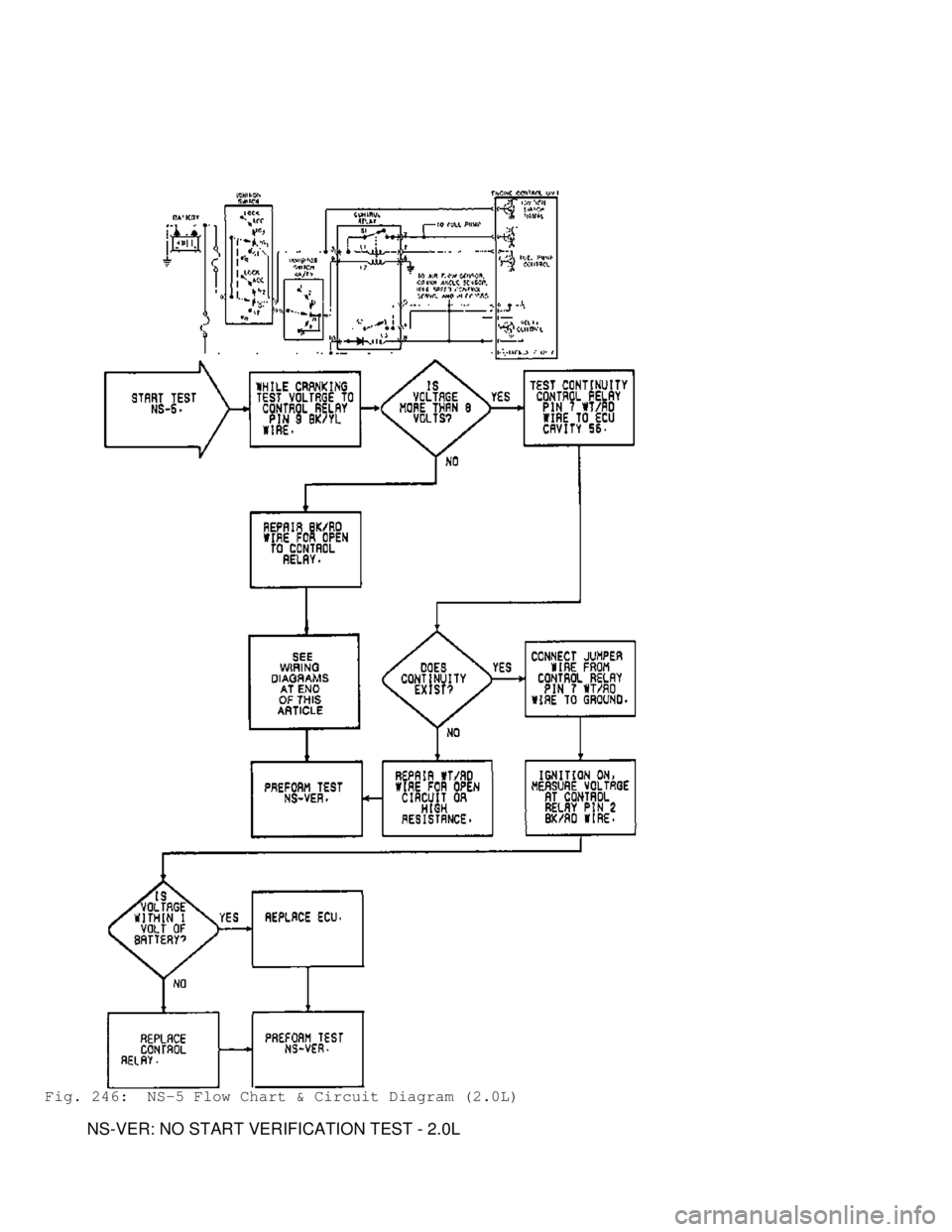

Fig. 246: NS-5 Flow Chart & Circuit Diagram (2.0L)
NS-VER: NO START VERIFICATION TEST - 2.0L

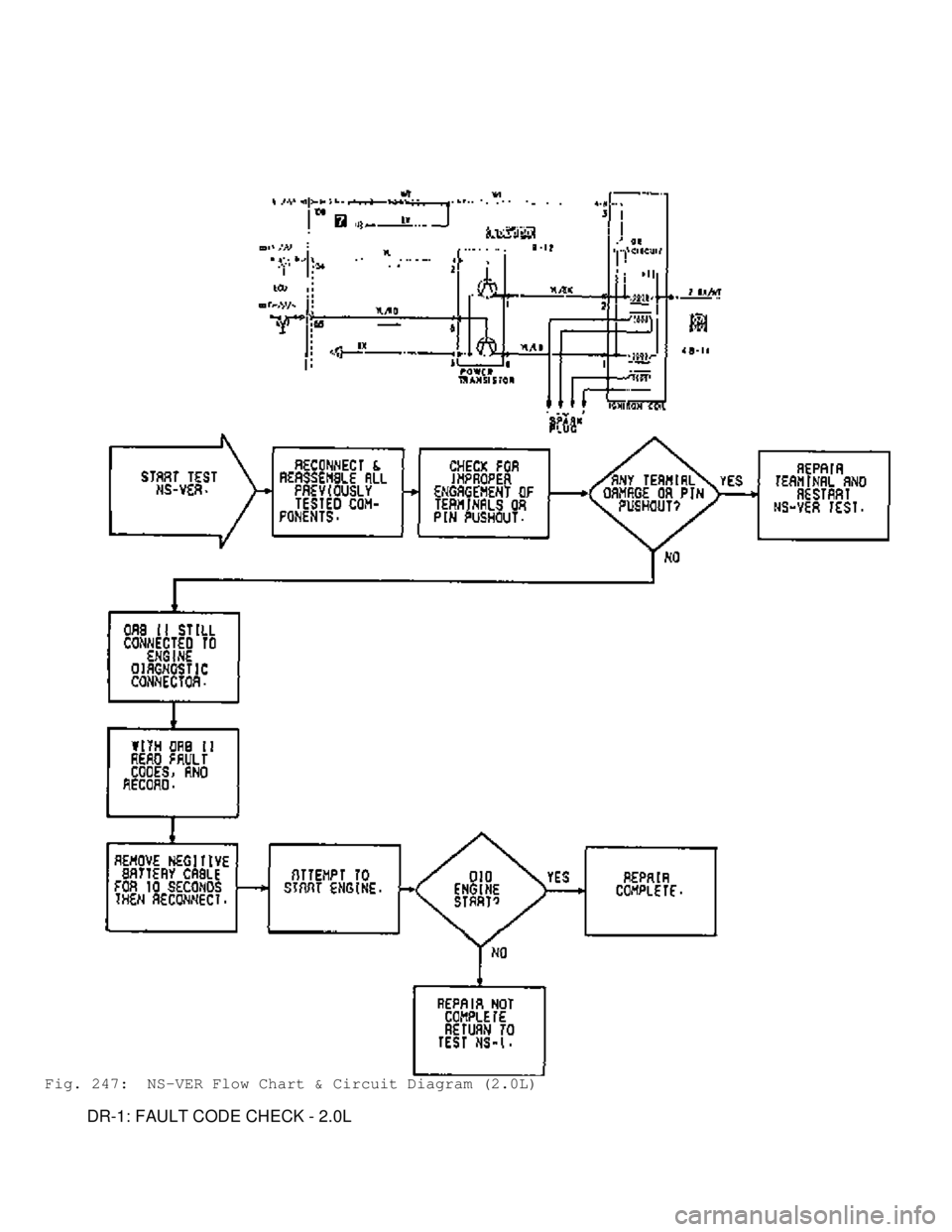

Fig. 247: NS-VER Flow Chart & Circuit Diagram (2.0L)
DR-1: FAULT CODE CHECK - 2.0L

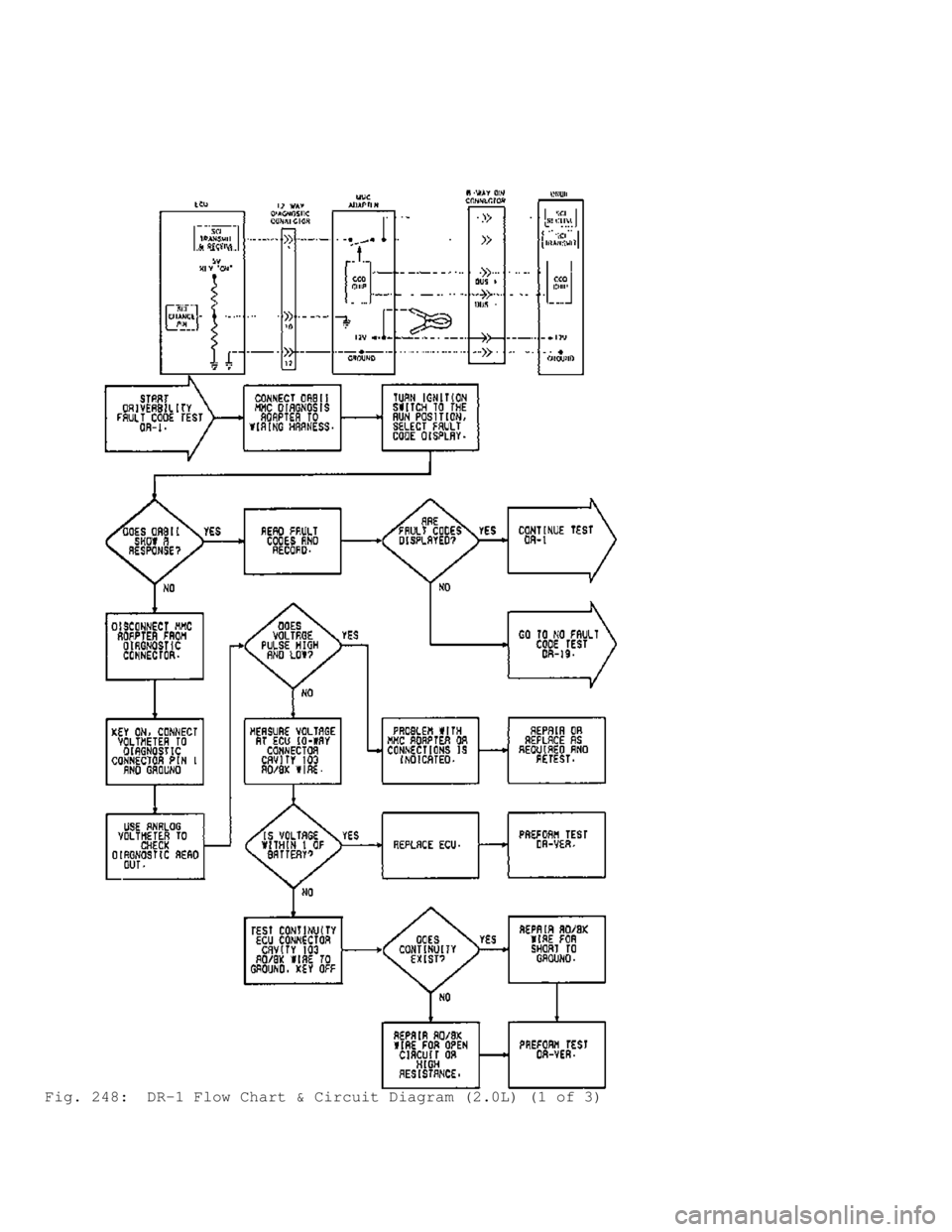

Fig. 248: DR-1 Flow Chart & Circuit Diagram (2.0L) (1 of 3)

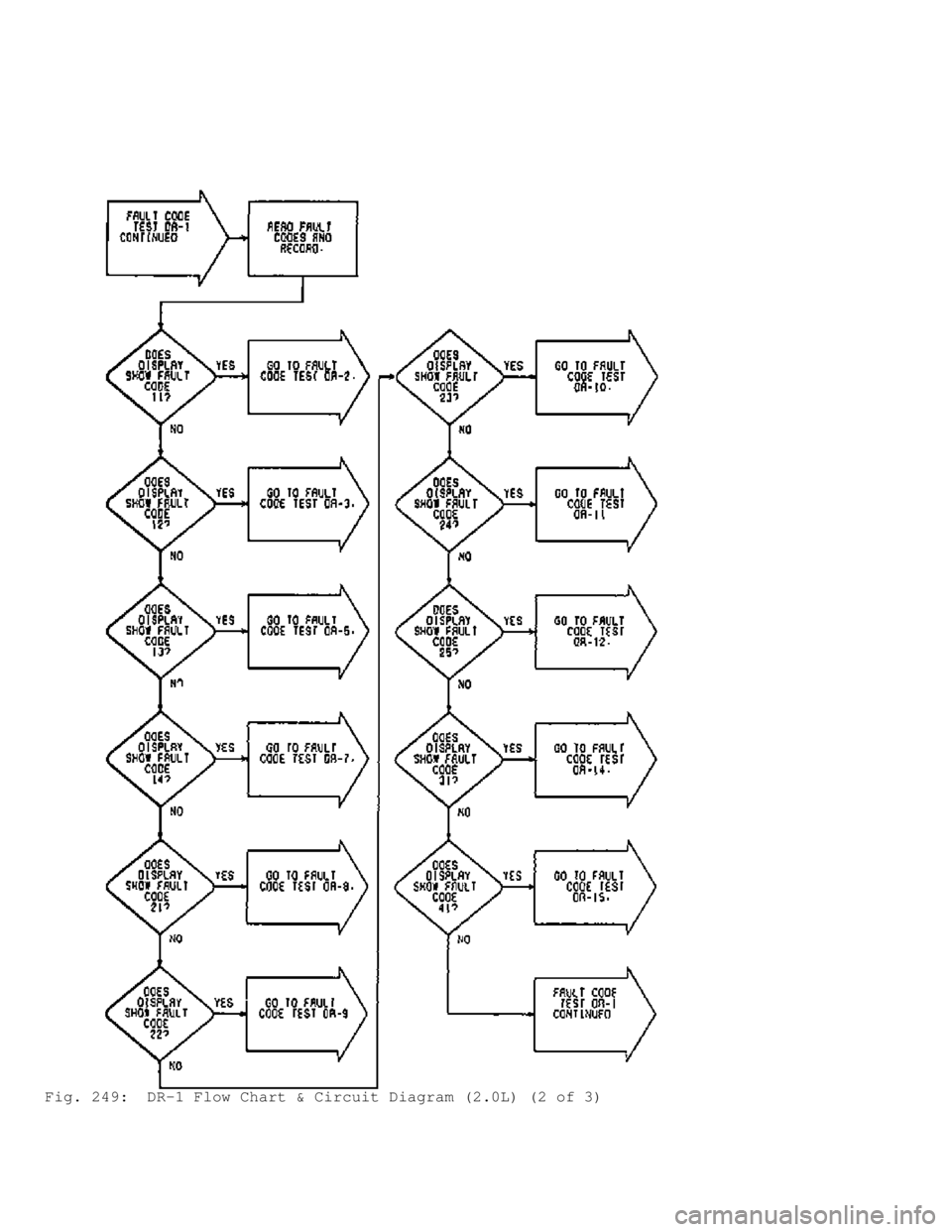

Fig. 249: DR-1 Flow Chart & Circuit Diagram (2.0L) (2 of 3)

Fig. 250: DR-1 Flow Chart & Circuit Diagram (2.0L) (3 of 3)
DR-2: CHECKING OXYGEN SENSOR - 2.0L

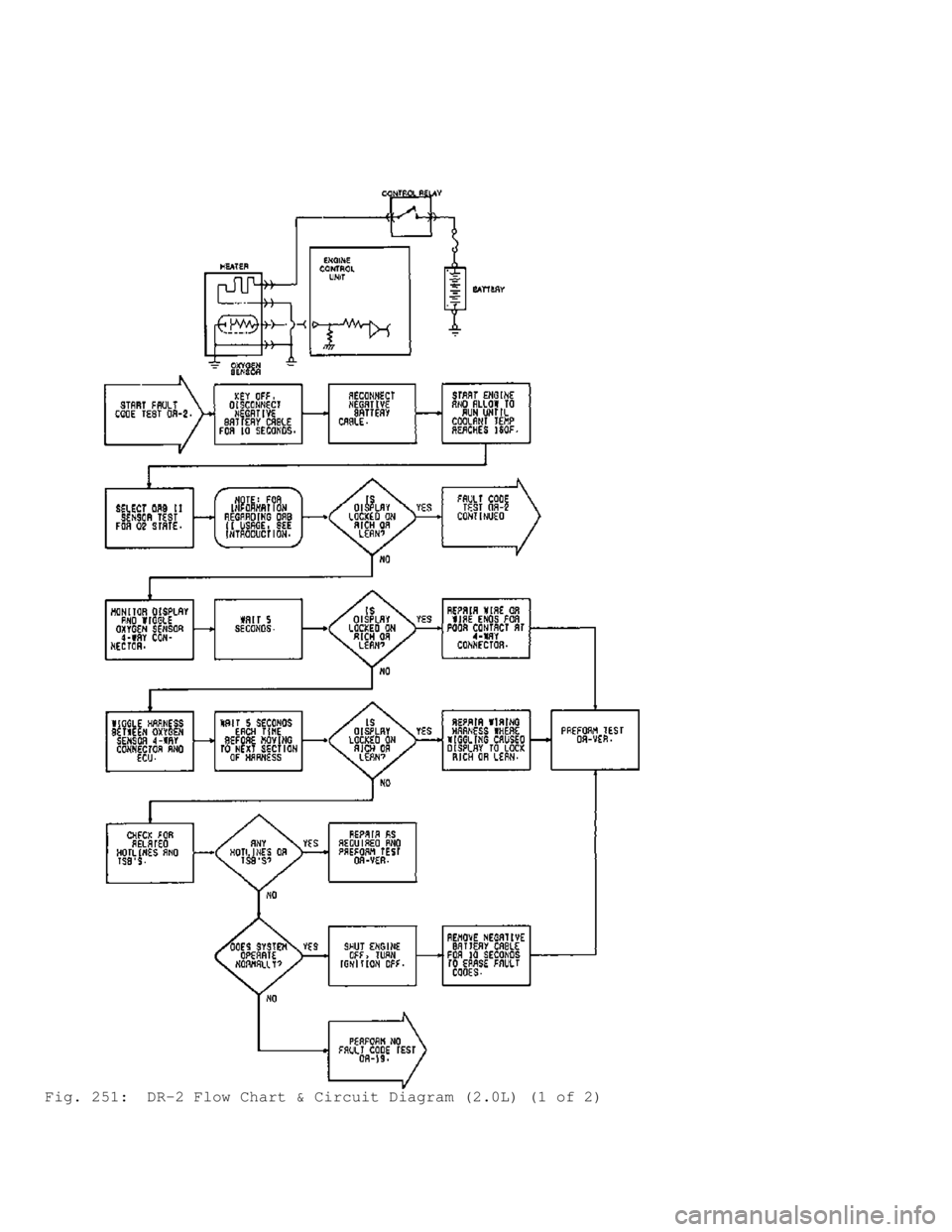

Fig. 251: DR-2 Flow Chart & Circuit Diagram (2.0L) (1 of 2)

Fig. 252: DR-2 Flow Chart & Circuit Diagram (2.0L) (2 of 2)
DR-3: CHECKING AIRFLOW SENSOR - 2.0L TURBO
