1991 MITSUBISHI MONTERO Service Manual

Fig. 7: Vacuum Diagram (Eclipse 1.8L/Calif.)
Courtesy of Mitsubishi Motor Sales of America.

Fig. 8: Vacuum Diagram (Eclipse 1.8L/Fed.)
Courtesy of Mitsubishi Motor Sales of America.
Fig. 9: Vacuum Diagram (Eclipse 2.0L & Galant VIN R/Calif.)
Courtesy of Mitsubishi Motor Sales of America.

Fig. 10: Vacuum Diagram (Eclipse 2.0L & Galant VIN R/Fed.)
Courtesy of Mitsubishi Motor Sales of America.
Fig. 11: Vacuum Diagram (Eclipse 2.0L VIN U/Calif.)
Courtesy of Mitsubishi Motor Sales of America.

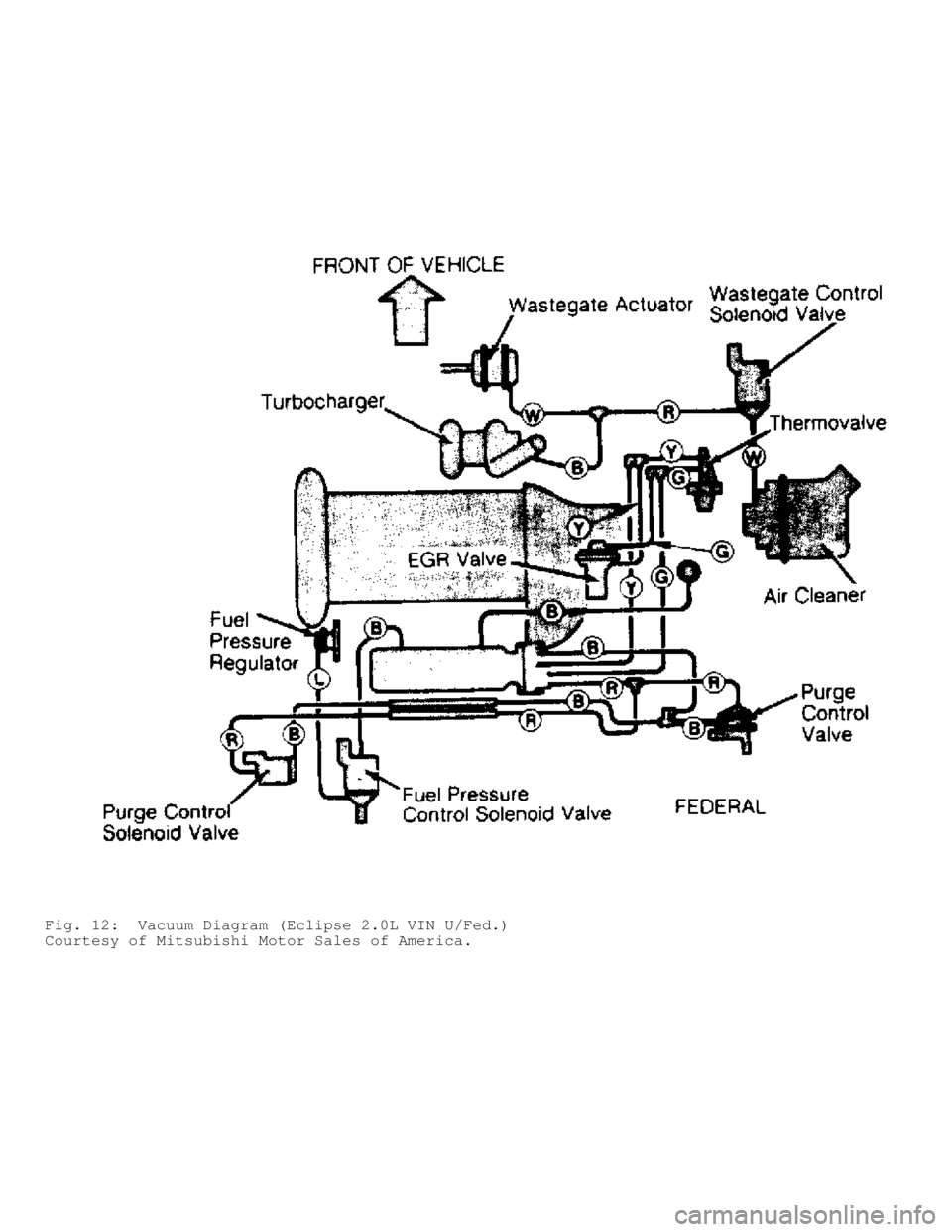

Fig. 12: Vacuum Diagram (Eclipse 2.0L VIN U/Fed.)
Courtesy of Mitsubishi Motor Sales of America.

Fig. 13: Vacuum Diagram (Galant VIN U/Fed.)
Courtesy of Mitsubishi Motor Sales of America.
Fig. 14: Vacuum Diagram (Galant VIN U/Calif.)
Courtesy of Mitsubishi Motor Sales of America.

Fig. 15: Vacuum Diagram (Galant VIN V/Calif.)
Courtesy of Mitsubishi Motor Sales of America.
Fig. 16: Vacuum Diagram (Galant VIN V/Fed.)
Courtesy of Mitsubishi Motor Sales of America.

Fig. 17: Vacuum Diagram (Montero/Calif. & Fed.)
Courtesy of Mitsubishi Motor Sales of America.
Fig. 18: Vacuum Diagram (Pickup 3.0L & Ram-50 3.0L/Fed.)
Courtesy of Mitsubishi Motor Sales of America.

Fig. 19: Vacuum Diagram (Pickup 2.4L & Ram-50 2.4L/Calif. & Fed.)
Courtesy of Mitsubishi Motor Sales of America.
Fig. 20: Vacuum Diagram (Pickup 3.0L & Ram-50 3.0L/Calif.)
Courtesy of Chrysler Motors.
