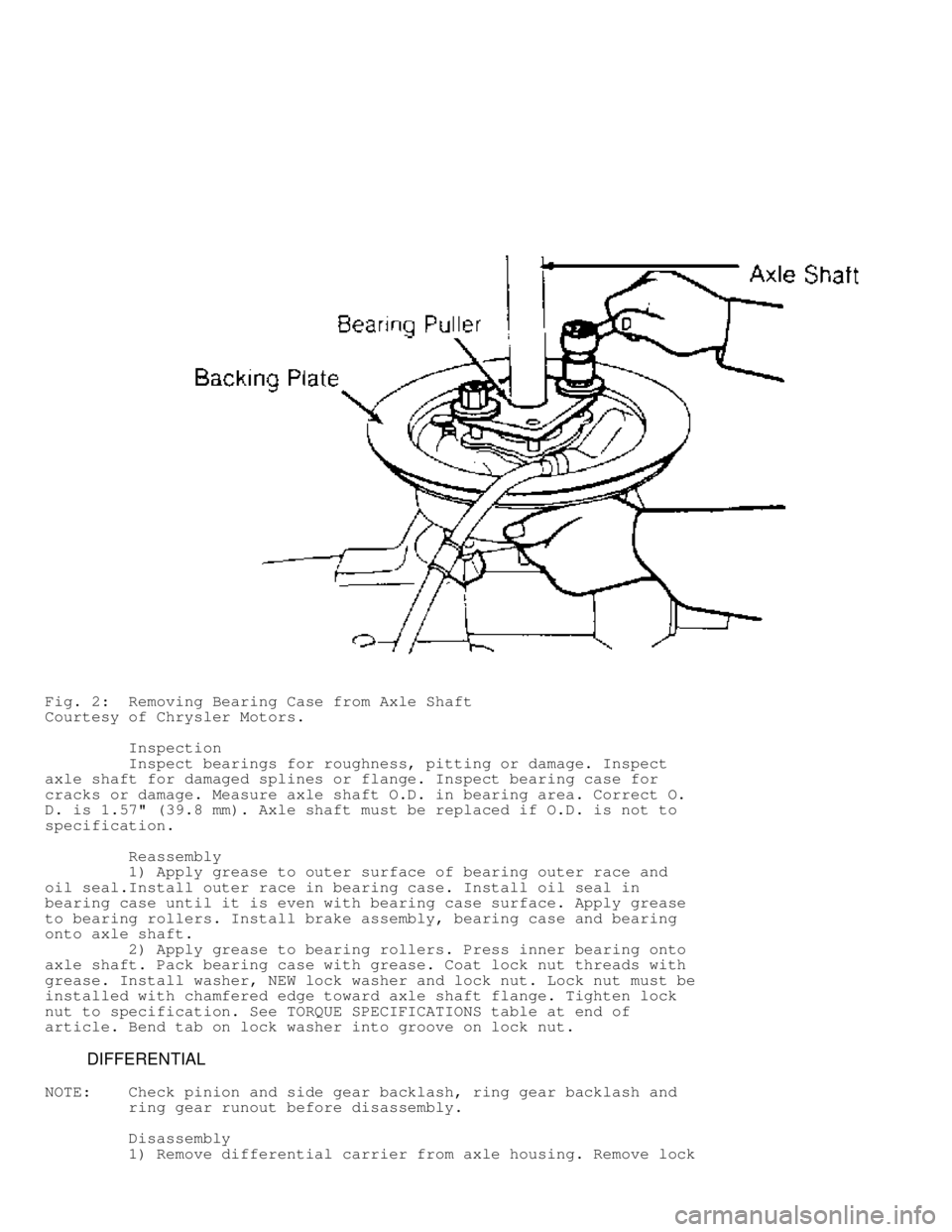

Fig. 2: Removing Bearing Case from Axle Shaft
Courtesy of Chrysler Motors.
Inspection
Inspect bearings for roughness, pitting or damage. Inspect
axle shaft for damaged splines or flange. Inspect bearing case for
cracks or damage. Measure axle shaft O.D. in bearing area. Correct O.
D. is 1.57" (39.8 mm). Axle shaft must be replaced if O.D. is not to
specification.
Reassembly
1) Apply grease to outer surface of bearing outer race and
oil seal.Install outer race in bearing case. Install oil seal in
bearing case until it is even with bearing case surface. Apply grease
to bearing rollers. Install brake assembly, bearing case and bearing
onto axle shaft.
2) Apply grease to bearing rollers. Press inner bearing onto
axle shaft. Pack bearing case with grease. Coat lock nut threads with
grease. Install washer, NEW lock washer and lock nut. Lock nut must be
installed with chamfered edge toward axle shaft flange. Tighten lock
nut to specification. See TORQUE SPECIFICATIONS table at end of
article. Bend tab on lock washer into groove on lock nut.
DIFFERENTIAL
NOTE: Check pinion and side gear backlash, ring gear backlash and
ring gear runout before disassembly.
Disassembly
1) Remove differential carrier from axle housing. Remove lock

plates and side bearing nuts. See Fig. 3. Mark bearing caps for
location. Remove bearing caps. Remove differential case assembly from
differential carrier.
CAUTION: Ensure side bearing nuts, bearing caps and side bearings
are marked for location. Components must be installed in
original location.
Fig. 3: Exploded View of Conventional Rear Differential
Courtesy of Chrysler Motors.
2) Using bearing puller, remove differential case side
bearings. Place alignment marks on ring gear and differential case for
reassembly. Loosen ring gear bolts in diagonal sequence. Remove ring
gear.
3) On conventional axles, remove drive pinion shaft lock pin
from differential case. Remove differential pinion shaft and thrust
block (if equipped). Remove pinion gears and washers. Remove side
gears and thrust spacers. Mark components for reassembly reference.
4) On limited slip units, mark differential case and
differential case cover for reassembly reference. Remove differential
case retaining screws. Separate differential case and cover. Remove
components from case. See Fig. 4. Mark components for location.

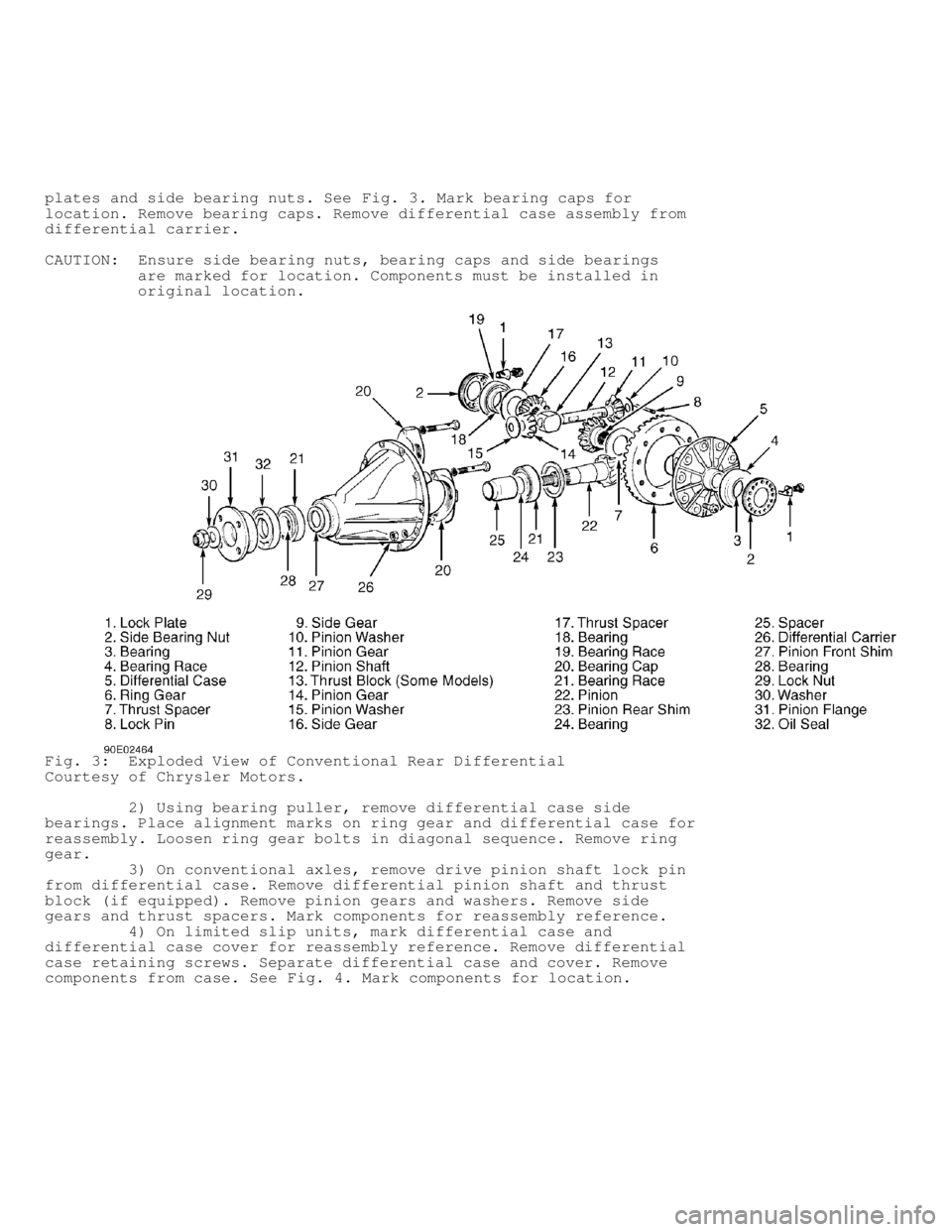

Fig. 4: Exploded View of Typical Limited Slip Differential
Courtesy of Chrysler Motors.
Drive Pinion
1) Remove pinion flange retaining nut. Scribe alignment marks
on drive pinion and pinion flange for reassembly. Using soft-faced
hammer, drive out pinion. Remove front adjusting shim and spacer from
pinion.
2) Using bearing puller, remove rear bearing from pinion.
Remove rear adjusting shim from pinion. Remove oil seal and bearing
races from differential carrier.
Inspection
1) Inspect all gears for cracked or flaking teeth. Inspect
pinion shaft for wear. Inspect pinion flange and drive pinion for
damaged splines.
2) Inspect bearings and races for roughness or flaking.
Replace worn components. On limited slip axles, inspect clutch
components and contact areas for wear or overheating. Inspect friction
plates, friction discs, spring plates and pressure rings for signs of
seizure, excessive heat, severe friction or nicks.
NOTE: Outer areas of friction surfaces will wear heavier due to
clutch plate and preload spring.
3) Using dial indicator, check friction plate and friction
disc for warpage. Replace components if beyond specification. See
FRICTION PLATE & DISC SPECIFICATIONS table.
4) Measure friction plates and disc thickness at projection
areas not within wear area. Measure plate and disc thickness in
friction surface. Difference between thickness of projections and
friction surface indicates amount of wear. Replace components if not

within specification. See FRICTION PLATE & DISC SPECIFICATIONS table.
FRICTION PLATE & DISC SPECIFICATIONS









\









\









\









\









\







Application In. (mm)
Warpage Limit ......................... .003 (.08)
Wear Limit ............................ .004 (.10)









\









\









\









\









\







DIFFERENTIAL OVERHAUL
CASE ASSEMBLY (CONVENTIONAL)
1) Install thrust spacers, side gears, pinion washers and
pinion gears in differential case. DO NOT install thrust block (if
equipped) at this time.
2) Install pinion shaft without lock pin. Check pinion and
side gear backlash. Install wooden wedge to lock side gears. Using
dial indicator, measure gear backlash. See Fig. 5.
3) Backlash must be within specification. See PINION & SIDE
GEAR BACKLASH SPECIFICATIONS table. Adjust backlash by using different
side gear spacers. Ensure both sides are equally shimmed.
PINION & SIDE GEAR BACKLASH SPECIFICATIONS









\









\









\









\









\









\

Application In. (mm)
4-Cylinder Engine
Standard .................. .0004-.0030 (.010-.076)
Wear Limit ............................. .008 (.20)
V6 Engine
Standard ......................... 0-.0030 (0-.076)
Wear Limit ............................. .008 (.20)









\









\









\









\









\









\

Fig. 5: Checking Pinion & Side Gear Backlash
Courtesy of Chrysler Motors.
4) Install thrust block (if equipped) once correct backlash
is obtained. Install pinion shaft lock pin from back side of ring

gear. Securely stake pin in 2 places. Ensure adhesive is removed from
ring gear mounting bolts and gear mounting surface. Clean internal
threads with tap.
5) Ensure alignment marks on differential case and ring gear
are aligned. Apply Loctite 271 to bolts and install ring gear on
differential case. Tighten bolts in diagonal sequence to
specification. See TORQUE SPECIFICATIONS table at the end of this
article.
CASE ASSEMBLY (LIMITED SLIP)
1) Assemble 2 friction discs and 2 friction plates; assemble
plate, disc, plate and disc. Measure assembly thickness. Assemble
discs and plates to give standard difference of .002" (.05 mm) between\
the 2 sides.
2) Assemble spring plates and spring discs with one on each
side. Measure assembly thickness. Assemble disc and plates to obtain
minimum difference in thickness between each assembly.
3) Assemble clutch assemblies, pressure rings, pinion gears,
side gears and pinion shaft. Measure overall width of assembly plus
spring plates and spring discs. This measurement is "C". See Fig. 6.

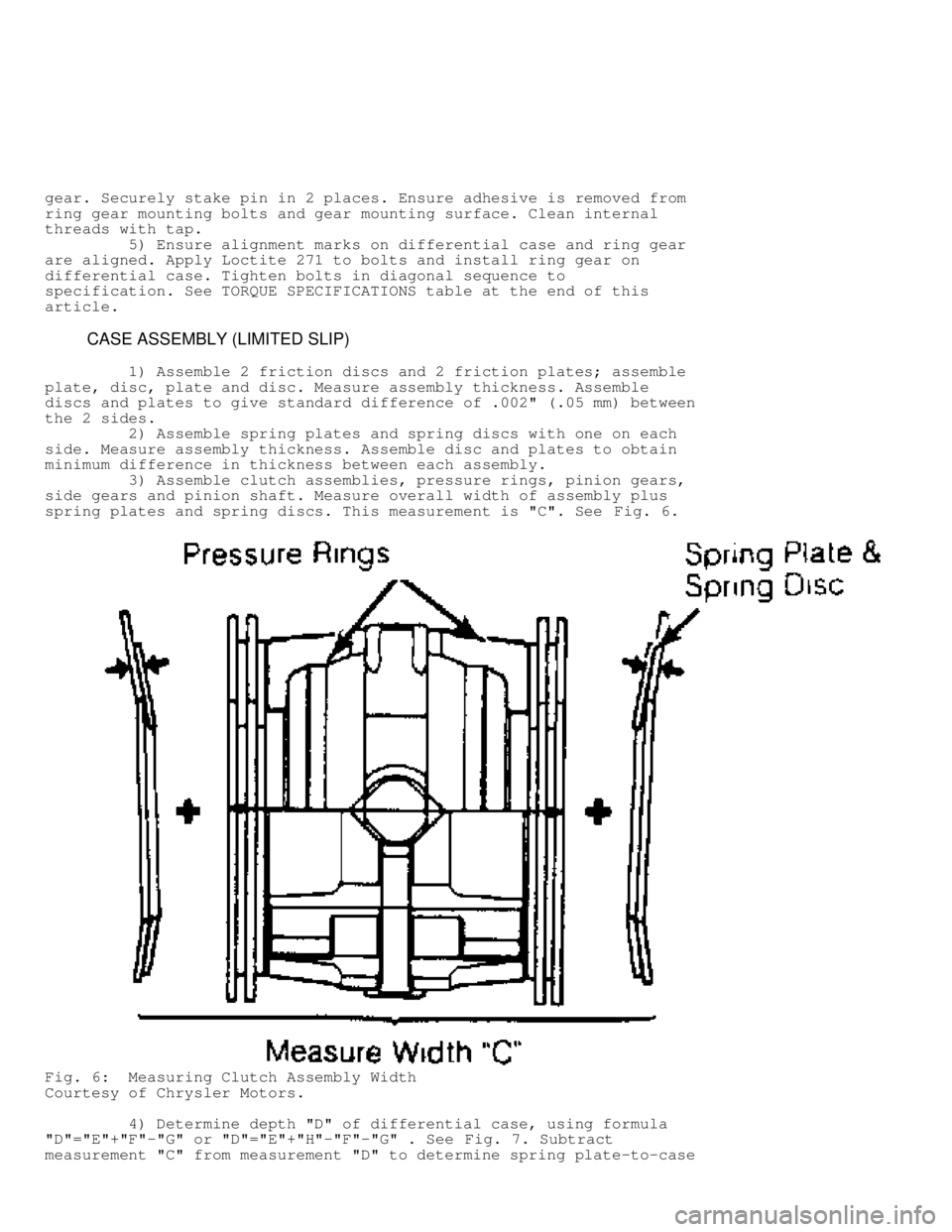

Fig. 6: Measuring Clutch Assembly Width
Courtesy of Chrysler Motors.
4) Determine depth "D" of differential case, using formula
"D"="E"+"F"-"G" or "D"="E"+"H"-"F"-"G" . See Fig. 7. Subtract
measurement "C" from measurement "D" to determine spring plate-to-case

clearance. Adjust spring disc thickness to obtain proper spring plate-
to-case clearance. Correct clearance is .0024-.0079" (.060-.200 mm).

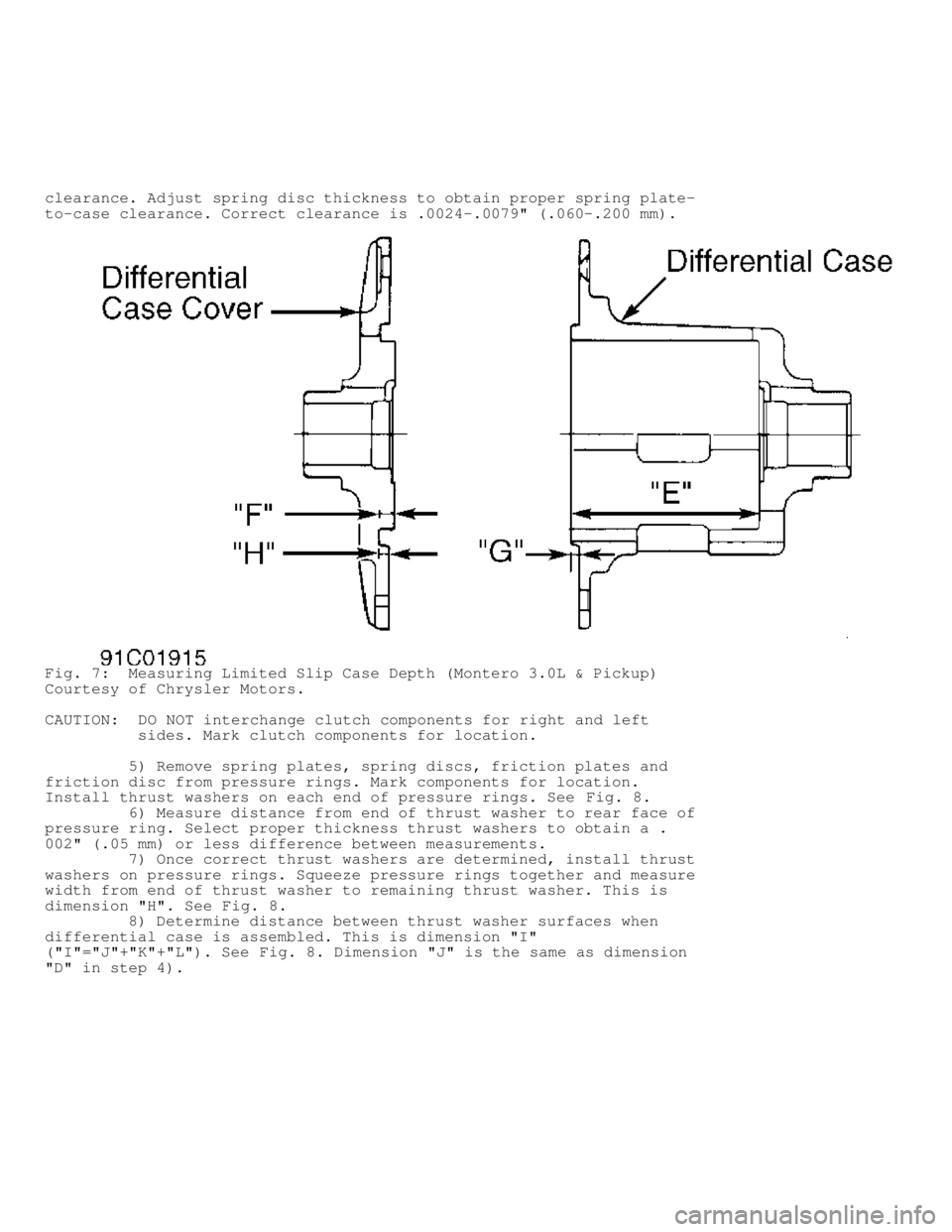

Fig. 7: Measuring Limited Slip Case Depth (Montero 3.0L & Pickup)
Courtesy of Chrysler Motors.
CAUTION: DO NOT interchange clutch components for right and left
sides. Mark clutch components for location.
5) Remove spring plates, spring discs, friction plates and
friction disc from pressure rings. Mark components for location.
Install thrust washers on each end of pressure rings. See Fig. 8.
6) Measure distance from end of thrust washer to rear face of
pressure ring. Select proper thickness thrust washers to obtain a .
002" (.05 mm) or less difference between measurements.
7) Once correct thrust washers are determined, install thrust
washers on pressure rings. Squeeze pressure rings together and measure
width from end of thrust washer to remaining thrust washer. This is
dimension "H". See Fig. 8.
8) Determine distance between thrust washer surfaces when
differential case is assembled. This is dimension "I"
("I"="J"+"K"+"L"). See Fig. 8. Dimension "J" is the same as dimension
"D" in step 4).

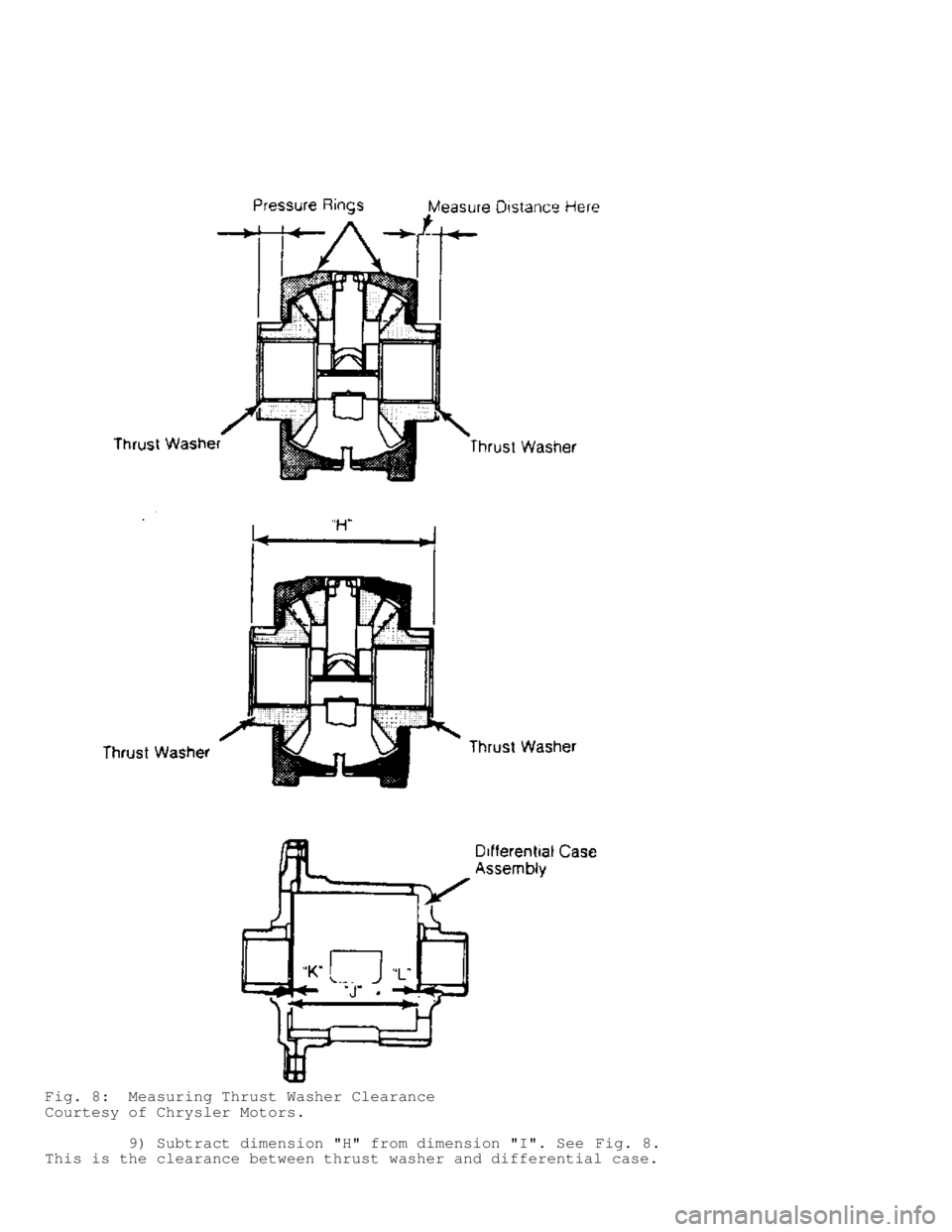

Fig. 8: Measuring Thrust Washer Clearance
Courtesy of Chrysler Motors.
9) Subtract dimension "H" from dimension "I". See Fig. 8.
This is the clearance between thrust washer and differential case.

Thrust washer must be changed to obtain correct specification. Correct
clearance is .002-.008" (.05-.20 mm).
10) Select thrust washers to obtain correct clearance from
pressure ring face and end of thrust washer surface. Thrust washers
are available in 3 sizes.
11) Apply gear oil and friction modifier to all components.
Install components in differential case. Ensure assembly order and
direction of clutch components are correct. See Fig. 9.

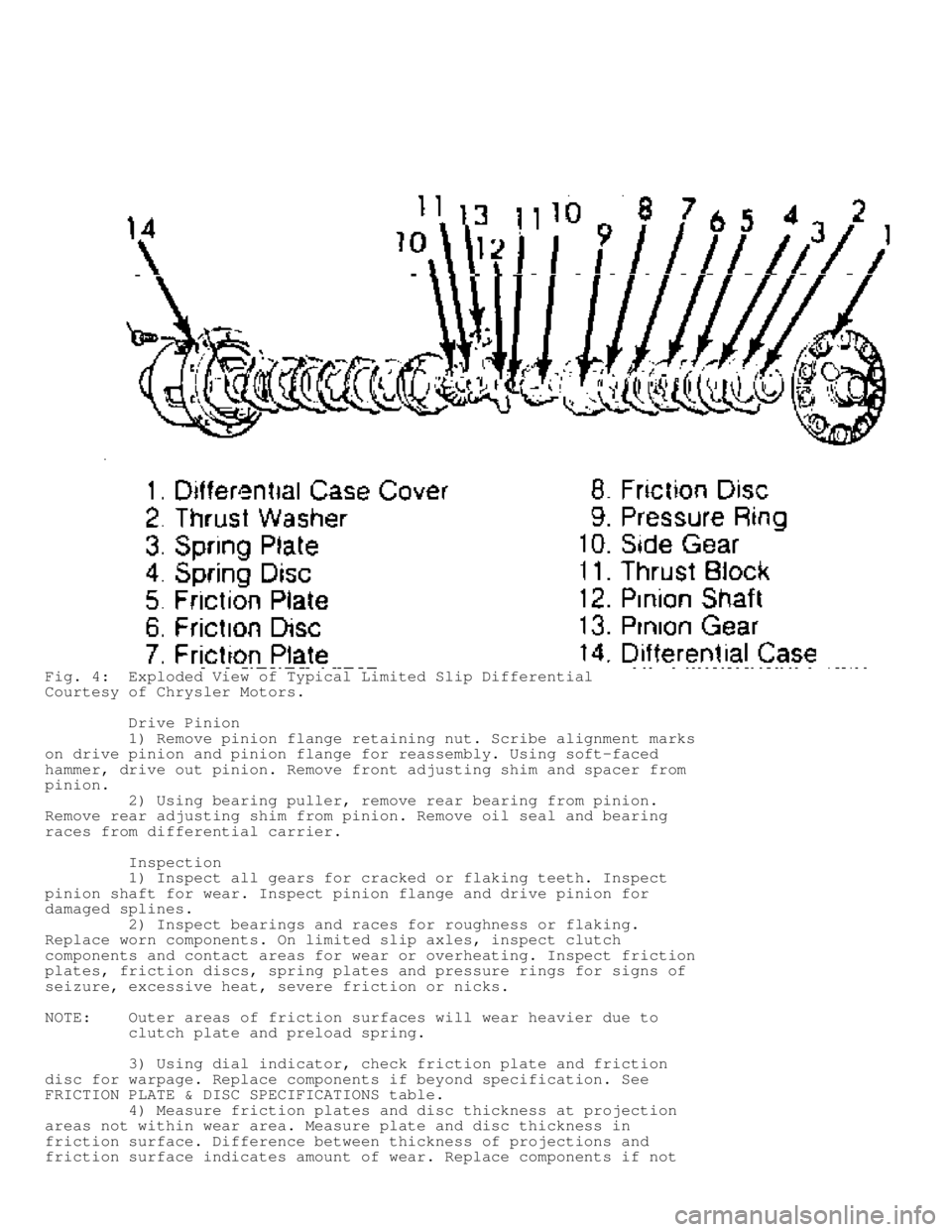

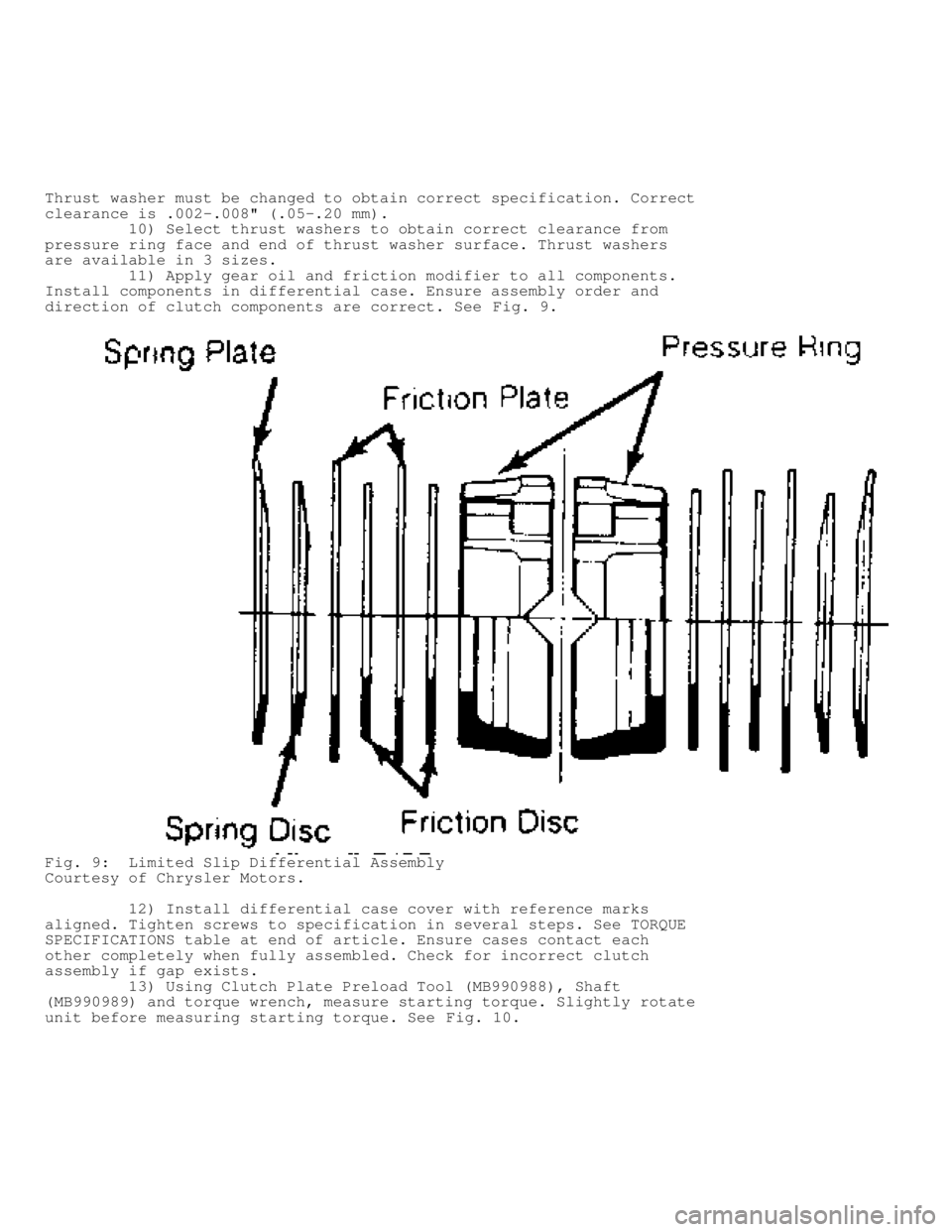

Fig. 9: Limited Slip Differential Assembly
Courtesy of Chrysler Motors.
12) Install differential case cover with reference marks
aligned. Tighten screws to specification in several steps. See TORQUE
SPECIFICATIONS table at end of article. Ensure cases contact each
other completely when fully assembled. Check for incorrect clutch
assembly if gap exists.
13) Using Clutch Plate Preload Tool (MB990988), Shaft
(MB990989) and torque wrench, measure starting torque. Slightly rotate\
unit before measuring starting torque. See Fig. 10.
