article, see appropriate HEATER SYSTEM article in the AIR
CONDITIONING & HEAT Section.
A/C SWITCH
Removal & Installation (Colt Vista)
From back side of control panel, push right control panel
clip right while pushing control panel out of dash panel. Allow
control panel to hang. Remove side bracket. Press temperature switch
control assembly left, and then remove A/C switch. To install, reverse
removal procedure.
Removal & Installation (Montero)
Remove lap heater duct. Remove glove box stoppers and glove
box. Remove heater control knobs. Remove center panel screw hole
plugs, and remove screws. Remove center panel. Disconnect center panel
wiring harness. Remove A/C switch. To install, reverse removal
procedure.
Removal & Installation (Pickup & Ram-50)
Remove heater control knobs. Remove glove box. Remove center
panel mounting screws. Use a trim stick to remove upper side of panel.
Remove A/C switch assembly mounting screws. Pull switch assembly
toward vehicle interior. Remove switch. To install, reverse removal
procedure.
COMPRESSOR
Removal & Installation (Colt Vista)
Discharge A/C system using approved refrigerant
recovery/recycling equipment. Disconnect high tension cable from
ignition coil. Remove distributor cap. Loosen idler pulley adjusting
bolt, and remove belt. Disconnect compressor electrical connector.
Remove high and low pressure lines and "O" rings from compressor.
Remove compressor mounting bolts. Remove compressor. To install,
reverse removal procedure.
Removal & Installation (Montero, Pickup & Ram-50)
DischargeA/C system using approved refrigerant
recovery/recycling equipment. Loosen idler pulley, and remove belt.
Disconnect compressor electrical connector. Disconnect high and low
pressure lines from compressor. Remove compressor mounting bolts.
Remove compressor. To install, reverse removal procedure.
CONDENSER
Removal & Installation (Colt Vista)
Discharge A/C system using approved refrigerant
recovery/recycling equipment. Remove front grille and grille brackets.
Remove front end cover and condenser harness. Disconnect electrical
fan connector. Slowly disconnect pressure lines from condenser. Remove
2 condenser mounting bolts. Lift up and remove condenser from vehicle.
To install, reverse removal procedure.
Removal & Installation (Montero)
Discharge A/C system using approved refrigerant
recovery/recycling equipment. Remove radiator grille. Slowly
disconnect pressure lines from condenser. Disconnect condenser fan
motor connector. Remove condenser fan mounting bolts and motor. Remove
condenser mounting bolts. Remove condenser from vehicle. To install,
reverse removal procedure.
Removal & Installation (Pickup & Ram-50)
Colt, Colt 200, Mirage & Summit
Remove defogger timer from junction block under left side of
instrument panel. Connect a battery and test light to defogger timer
terminals. See Fig. 3. Apply battery voltage to terminal No. 7 for 5-7
seconds. Ensure test light illuminates for approximately 10 seconds.
Reapply battery voltage to terminal No. 7. Test light should go off
when voltage is applied again.
Colt Vista
With ignition switch in ON position, apply battery voltage to
terminal No. 2 of defogger timer. Timer should operate for
approximately 11 seconds then stop. See Fig. 3.
Eclipse & Galant
Remove defogger timer from interior relay block. Connect
battery voltage and test light to timer. See Fig. 3. Ensure test light
illuminates for approximately 11 seconds when battery voltage is
applied to terminal No. 4. Reapply battery voltage to terminal No. 4
and observe test light. Test light should go off.
Fig. 3: Identifying Defogger Timer Terminals
Courtesy of Chrysler Motors.
GRID TEST
1) Start engine and operate at 2000 RPM. Ensure battery is
fully charged. Turn defogger switch to ON position. Using a voltmeter,
check voltage at center section of each grid wire. If voltage is
approximately 6 volts, grid wire is okay. If voltage is approximately
12 volts, an open is present in the negative circuit. Move probe
slowly toward the negative terminal to determine location of open
circuit.
2) If voltage is zero volt, an open is present in the
positive circuit. Move probe slowly toward the positive terminal to
Brake On/Off (BOO) Switch ................... Cruise Control Systems\
Engine Performance
Shift Interlock Systems
Buzzer Module ...................................... Warning Systems
Camshaft Position (CMP) Sensor .................. Engine Performance\
Central Control Module ........................... Anti-Theft System
Clockspring ............................... Air Bag Restraint System
Cruise Control Systems
Steering Column Switches
Clutch Pedal Position Switch .............................. Starters
Clutch Start Switch ....................................... Starters
Combination Meter ......................... Analog Instrument Panels
Constant Control Relay Module (CCRM) ............ Engine Performance\
Electric Cooling Fans
Convenience Center .............................. Power Distribution
Illumination/Interior Lights
Convertible Top Motor ........................ Power Convertible Top
Convertible Top Switch ....................... Power Convertible Top
Crankshaft Position (CKP) Sensor ................ Engine Performance\
Cruise Control Module ....................... Cruise Control Systems
Cruise Control Switch ....................... Cruise Control Systems
Condenser Fan Relay(s) ....................... Electric Cooling Fans\
Data Link Connector (DLC) ....................... Engine Performance\
Daytime Running Lights Module ............... Daytime Running Lights
Exterior Lights
Defogger Relay ................................ Rear Window Defogger
Diagnostic Energy Reserve Module (DERM) ... Air Bag Restraint System\
Discriminating Sensor (Air Bag) ........... Air Bag Restraint System\
Distributor ..................................... Engine Performance
Door Lock Actuators ............................... Power Door Locks
Remote Keyless Entry
Door Lock Relay(s) ................................ Power Door Locks\
Electrochromic Mirror ................................ Power Mirrors
Electronic Level Control (ELC)
Height Sensor .............................. Electronic Suspension
Electronic Level Control (ELC) Module ........ Electronic Suspension\
Engine Coolant Temperature (ECT)
Sending Unit ............................ Analog Instrument Panels
Engine Coolant Temperature (ECT) Sensor ......... Engine Performance\
Engine Control Module ........................... Engine Performance
Generators & Regulators
Starters
ETACS ECU .......................................... Warning Systems
Power Windows
Remote Keyless Entry
Evaporative (EVAP) Emissions Canister ........... Engine Performance\
EVAP Canister Purge Solenoid .................... Engine Performance
EVAP Canister Vent Solenoid ..................... Engine Performance
Exhaust Gas Recirculation (EGR) Valve ........... Engine Performance\
Fuel Tank Vacuum Sensor ......................... Engine Performance
Fog Lights ....................................... Headlight Systems
Daytime Running Lights
Fog Light Relay .................................. Headlight Systems
Daytime Running Lights
Fuel Door Release Solenoid ................. Power Fuel Door Release
Fuel Gauge Sending Unit ................... Analog Instrument Panels
Fuel Injectors .................................. Engine Performance
Fuel Pump ....................................... Engine Performance
Fuel Pump Relay ................................. Engine Performance
Power Distribution
Fuse/Relay Block ................................ Power Distribution
Fusible Links ................................... Power Distribution
Generators & Regulators
Starters
Generator .................................. Generators & Regulators
Engine Performance
Power Distribution
Generic Electronic Module (GEM) ............... Body Control Modules\
Electronic Suspension
Glow Plug Relay ................................. Engine Performance
Glow Plugs ...................................... Engine Performance
Grounds ........................................ Ground Distribution
Headlight Door Module .............................. Headlight Doors
Headlight Relay .................................. Headlight Systems
Daytime Running Lights
Headlights ....................................... Headlight Systems
Daytime Running Lights
Heated Oxygen Sensor(s) (HO2S) .................. Engine Performan\
ce
Heated Windshield Control Module ................ Heated Windshields
Height Sensor ................................ Electronic Suspension
Horns ..................................... Steering Column Switches
Horn Relay ................................ Steering Column Switches
Idle Air Control (IAC) Motor/Valve .............. Engine Performance\
Ignition Coil(s) ................................ Engine Performance\
Ignition Key Lock Cylinder ....................... Anti-Theft System
Ignition Module ................................. Engine Performance
Ignition Switch ................................. Power Distribution
Engine Performance
Generators & Regulators
Starters
Illuminated Entry Module .............. Illumination/Interior Lights
Illumination Lights ................... Illumination/Interior Lights
Impact Sensor ............................. Air Bag Restraint System
Inertia Fuel Shutoff Switch ..................... Engine Performance
Inhibit Relay ............................................. Starters
Instrument Cluster ........................ Analog Instrument Panels
Intake Air Temperature (IAT) Sensor ............. Engine Performance\
Interior Lights ....................... Illumination/Interior Lights
Interlock Switch .......................................... Starters
Junction Block .................................. Power Distribution
Keyless Entry Receiver ........................ Remote Keyless Entry
Key Reminder Switch ....................................... Starters
Knock Sensor .................................... Engine Performance
Lamp Control Module ................................ Exterior Lights
License Plate Lamp ................................. Exterior Lights
Lighting Control Module ................... Lighting Control Modules
Anti-Theft System
Daytime Running Lights
Headlight Systems
Lower Relay .................................. Power Convertible Top
Malfunction Indicator Light (MIL) ............... Engine Performance\
Instrument Panels
Manifold Absolute Pressure (MAP) Sensor ......... Engine Performance\
Mass Airflow (MAF) Sensor ....................... Engine Performance\
Mega Fuse .................................. Generators & Regulators
Memory Seat/Mirror Module ........................... Memory Systems
Mirror Defogger ............................... Rear Window Defogger
Moon Roof Motor .................................... Power Moon Roof
Moon Roof Relay .................................... Power Moon Roof
Multi-Function Control Module ...................... Warning Systems
Neutral Safety Switch ..................................... Starters
Oil Level Switch ................................ Engine Performance
Oil Pressure Switch/Sending Unit .......... Analog Instrument Panels
Engine Performance
Overhead Console .................................. Overhead Console
Oxygen Sensor(s) (O2S) .......................... Engine Performan\
ce

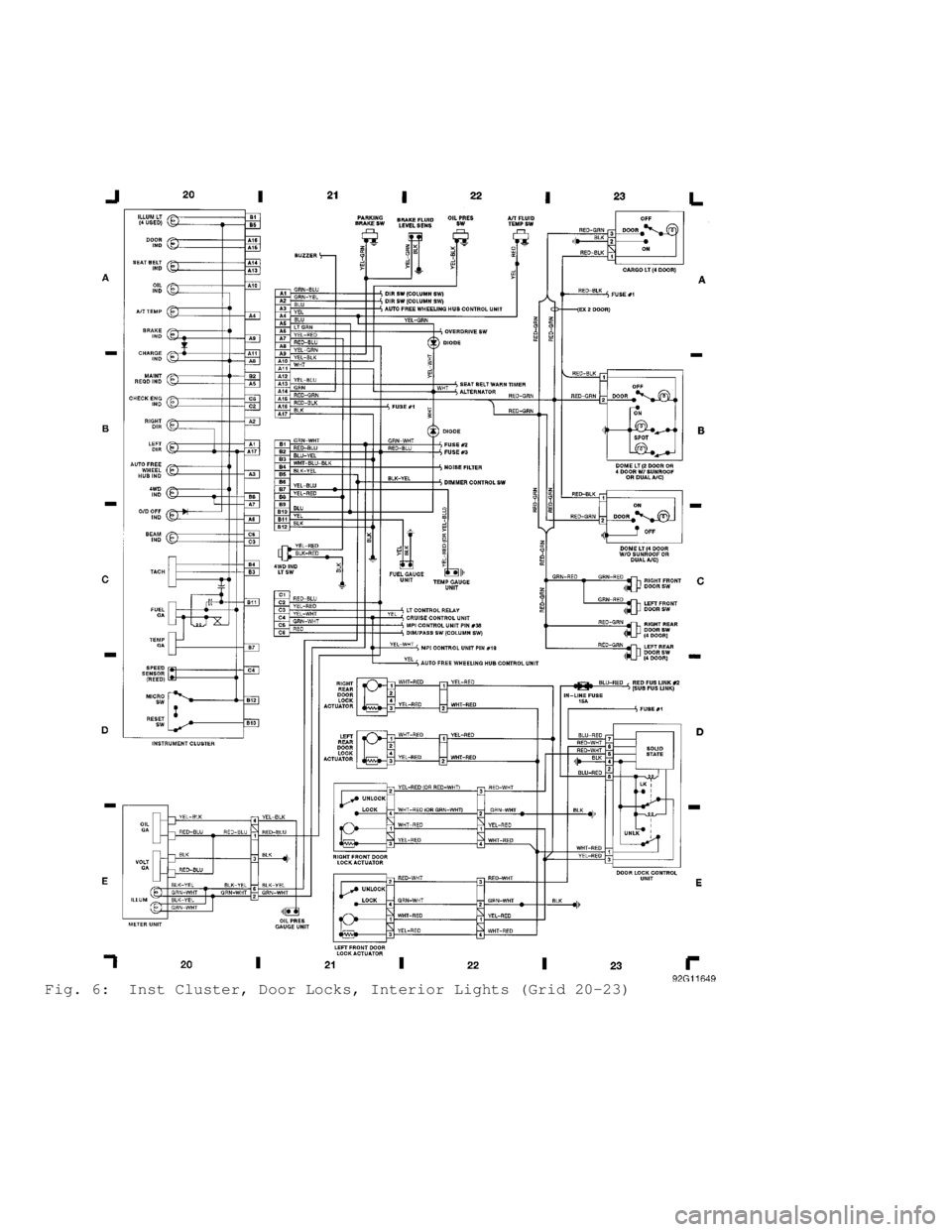

Fig. 6: Inst Cluster, Door Locks, Interior Lights (Grid 20-23)
