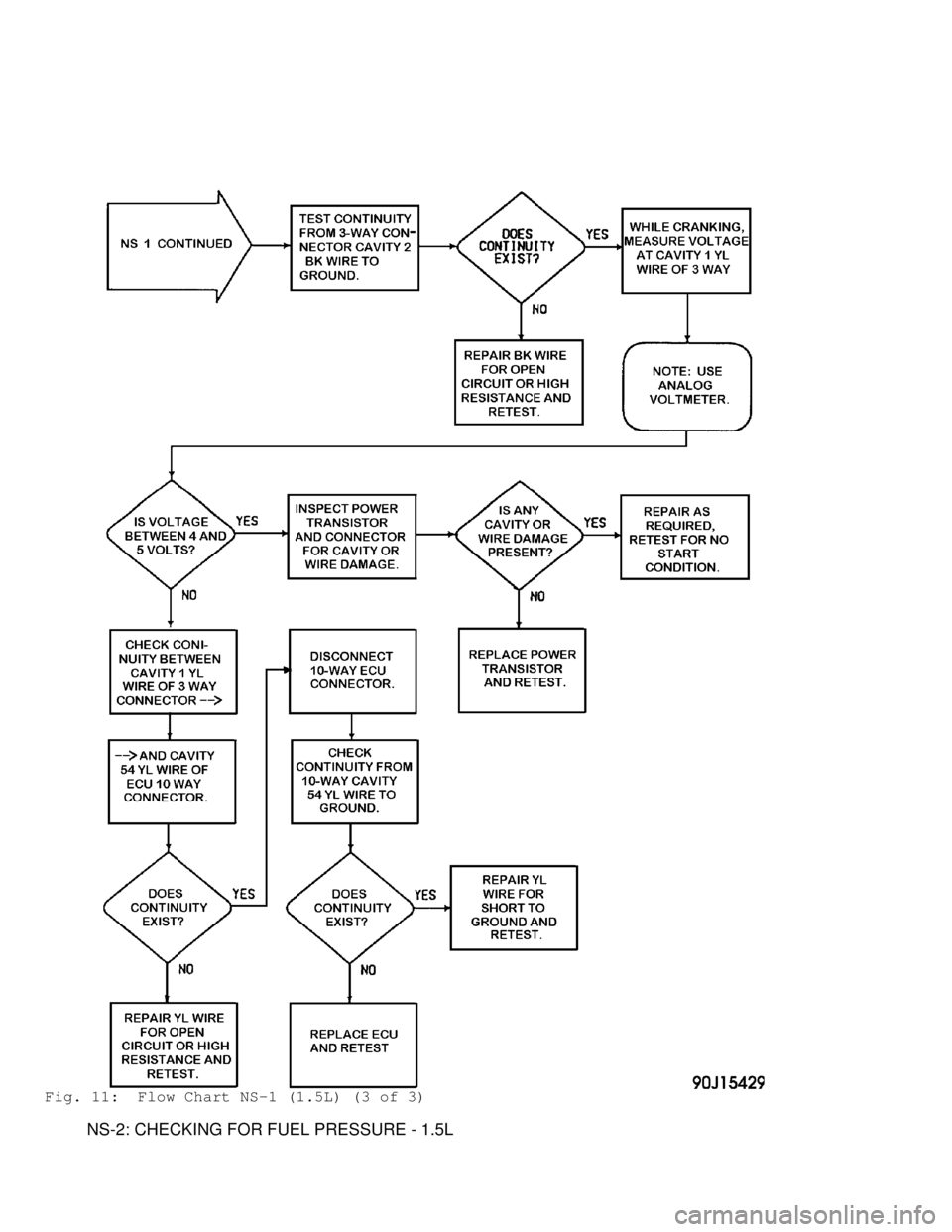

Fig. 11: Flow Chart NS-1 (1.5L) (3 of 3)
NS-2: CHECKING FOR FUEL PRESSURE - 1.5L

Fig. 12: Circuit Diagram NS-2 (1.5L)

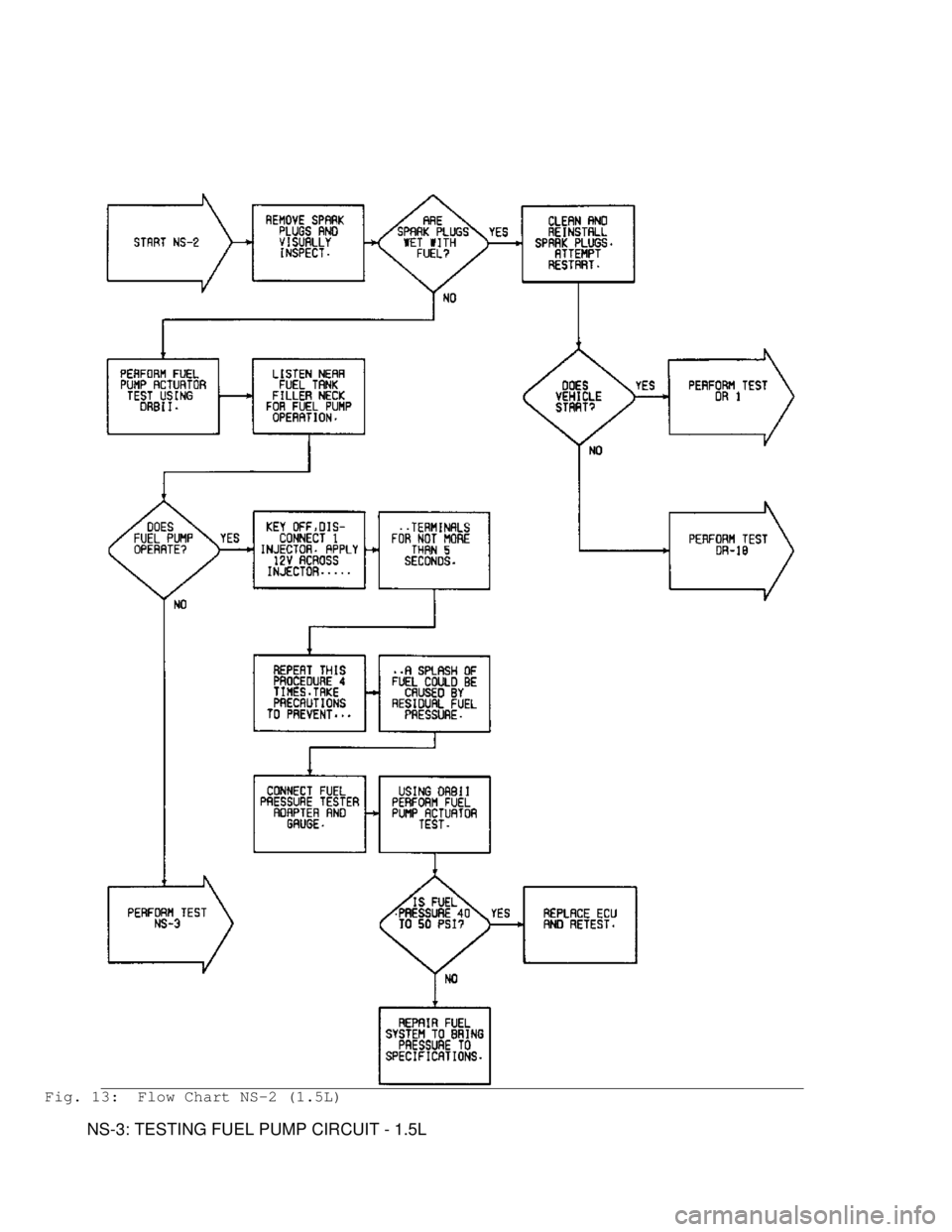

Fig. 13: Flow Chart NS-2 (1.5L)
NS-3: TESTING FUEL PUMP CIRCUIT - 1.5L

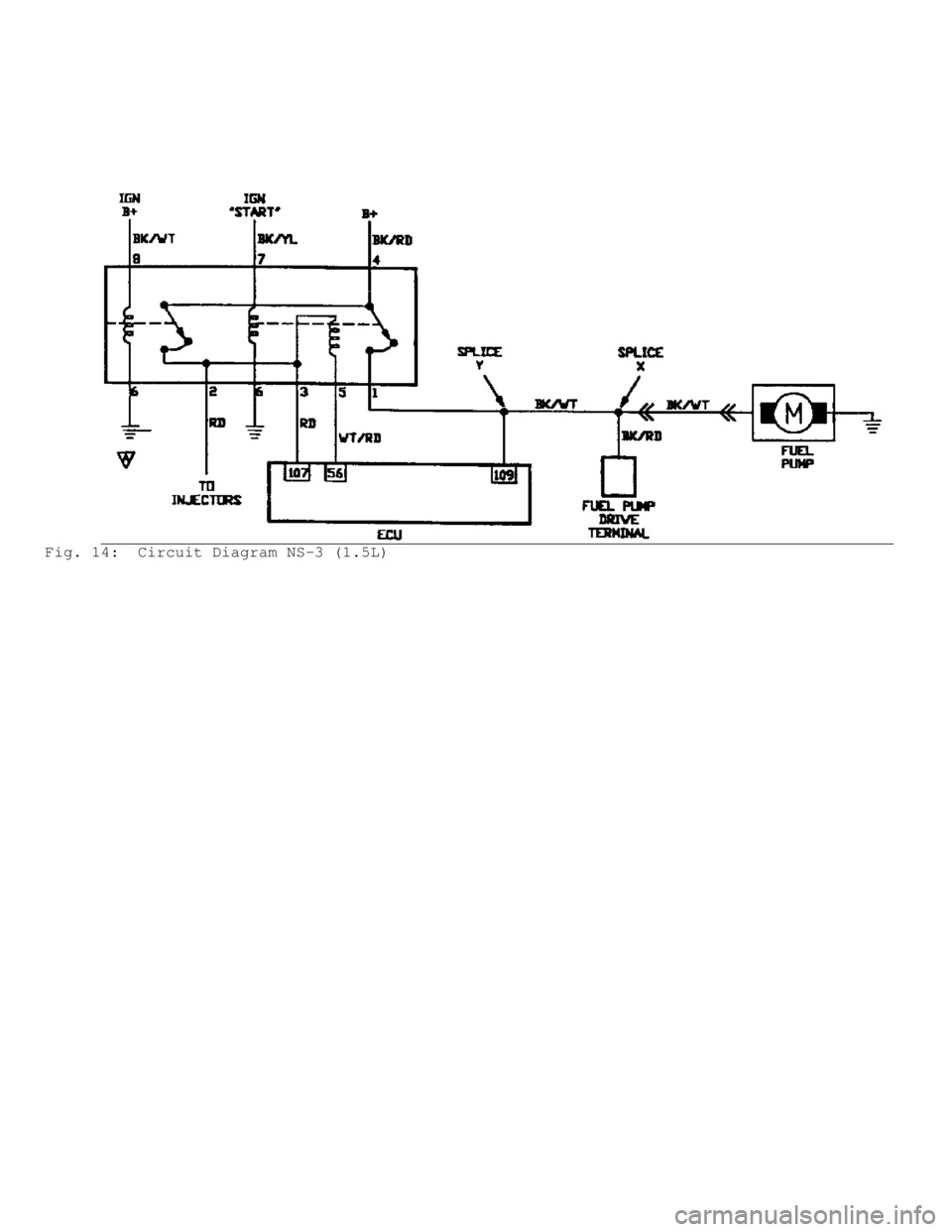

Fig. 14: Circuit Diagram NS-3 (1.5L)

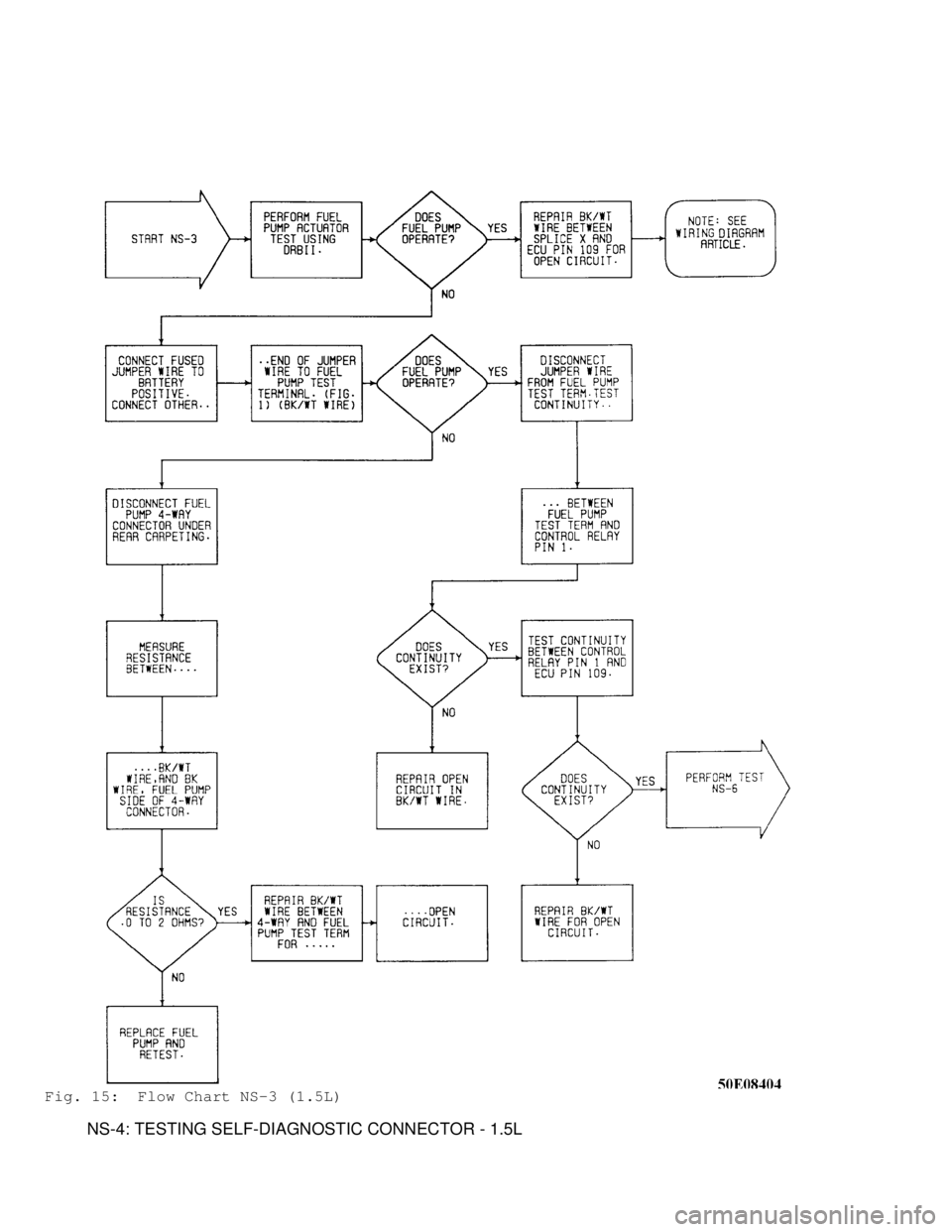

Fig. 15: Flow Chart NS-3 (1.5L)
NS-4: TESTING SELF-DIAGNOSTIC CONNECTOR - 1.5L

Fig. 16: Circuit Diagram NS-4 (1.5L)
Fig. 17: Flow Chart NS-4 (1.5L)
NS-5: TESTING CRANK ANGLE SENSOR CIRCUIT - 1.5L

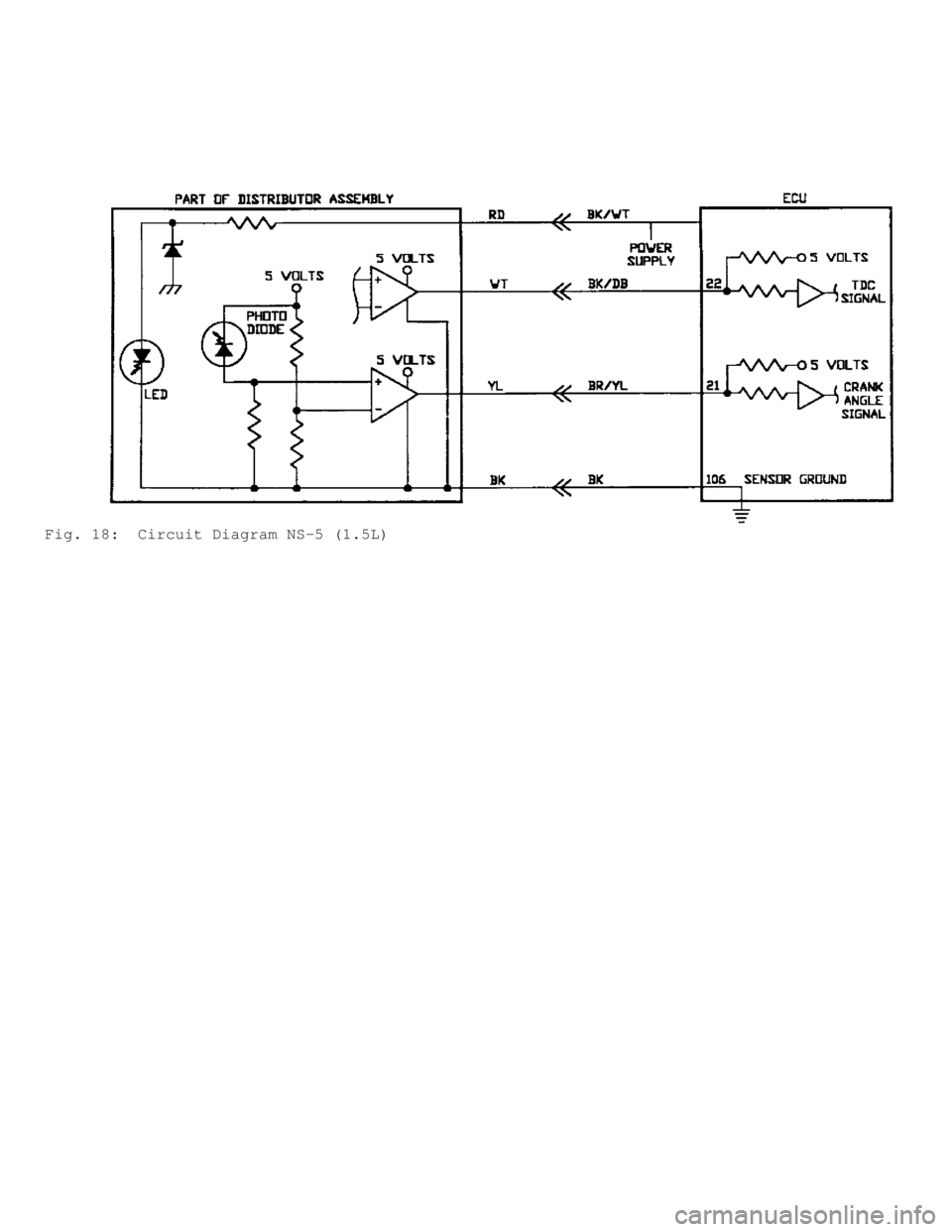

Fig. 18: Circuit Diagram NS-5 (1.5L)

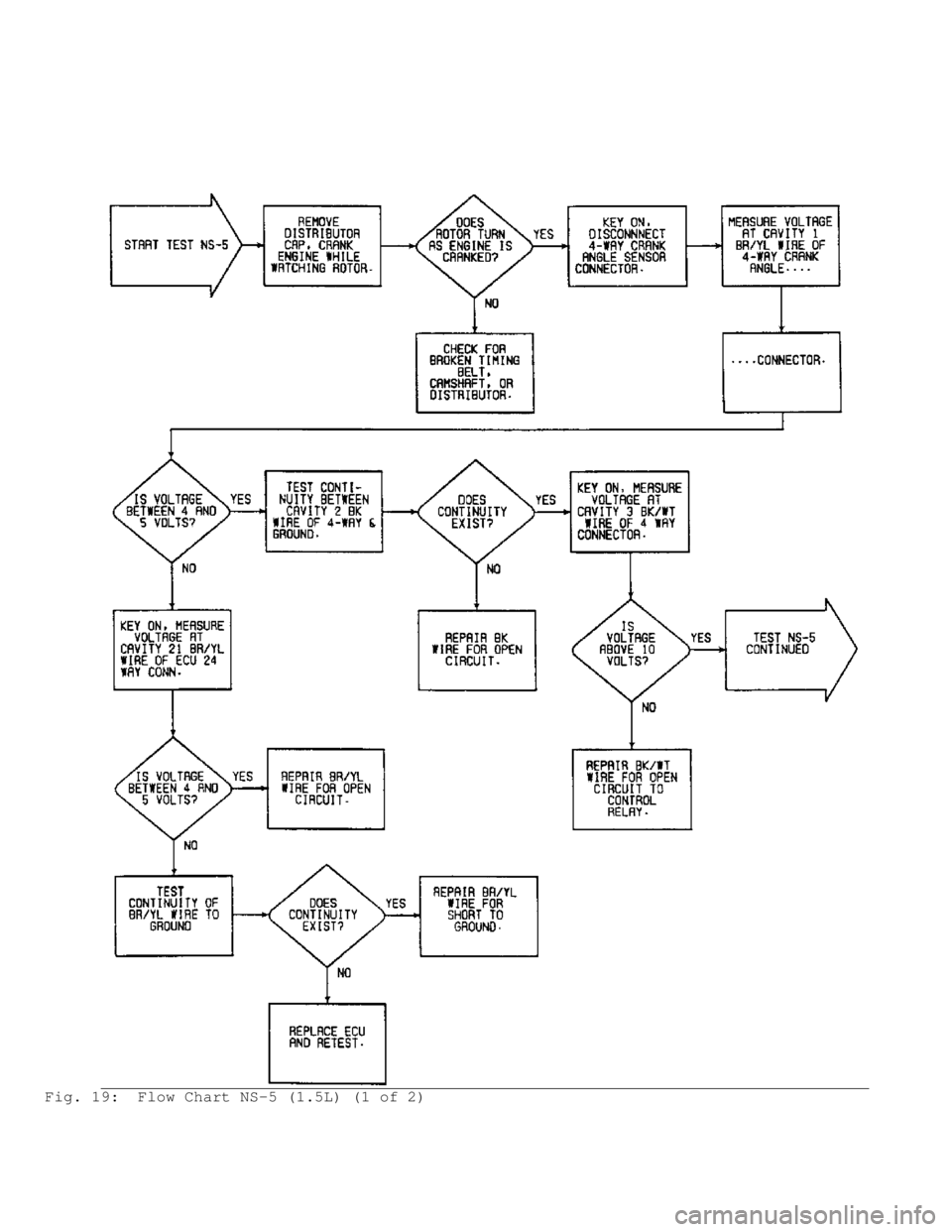

Fig. 19: Flow Chart NS-5 (1.5L) (1 of 2)
