1991 MITSUBISHI MONTERO Service Manual

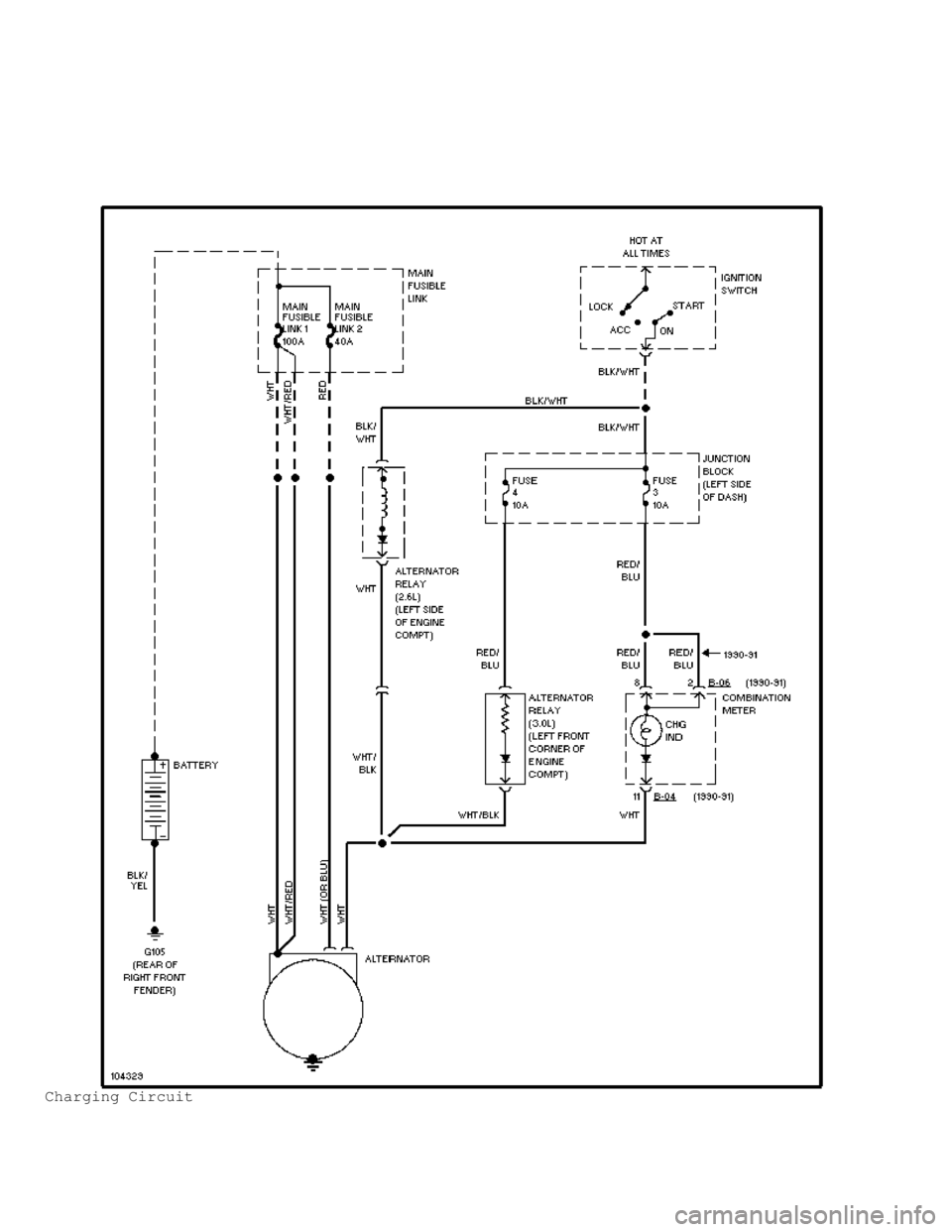

Charging Circuit

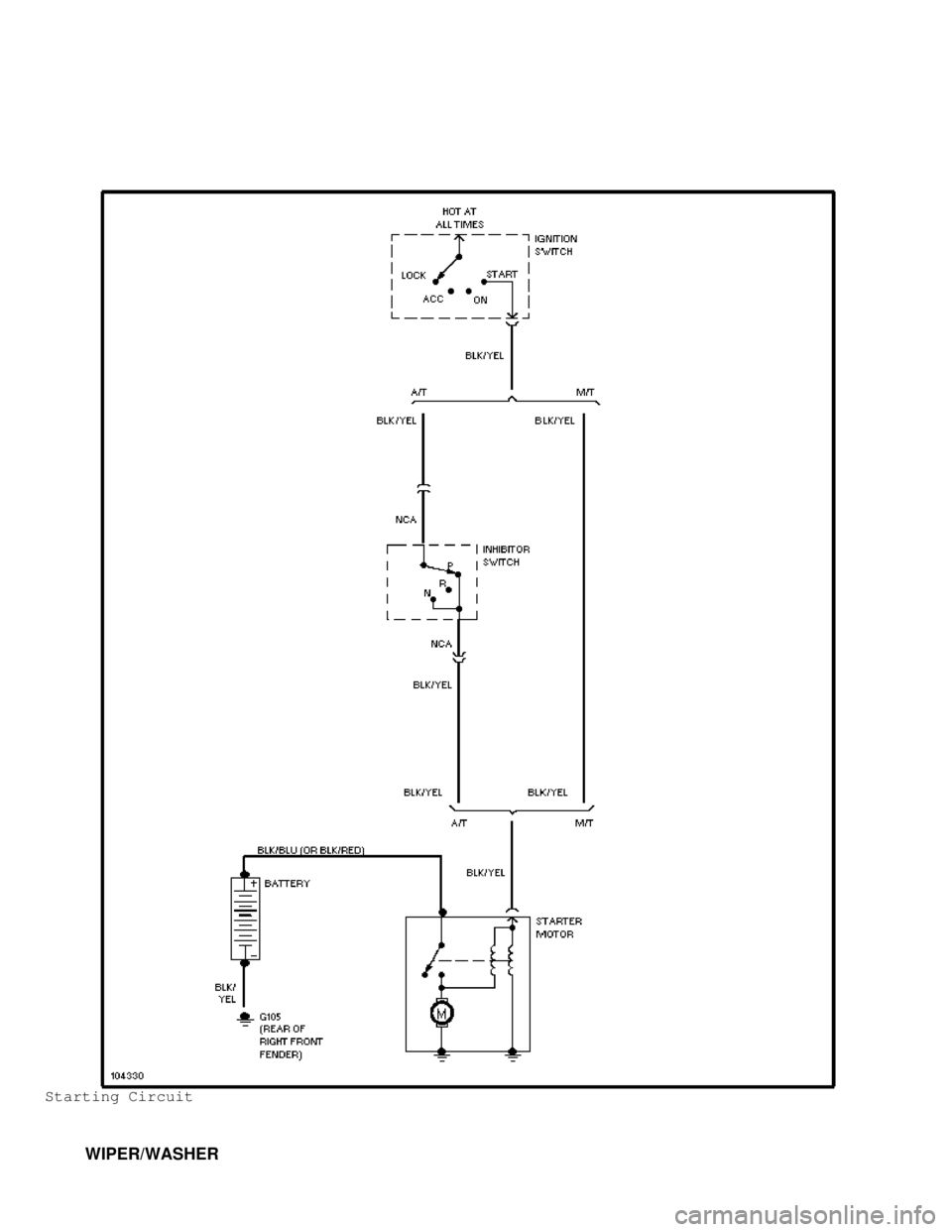

Starting Circuit
WIPER/WASHER

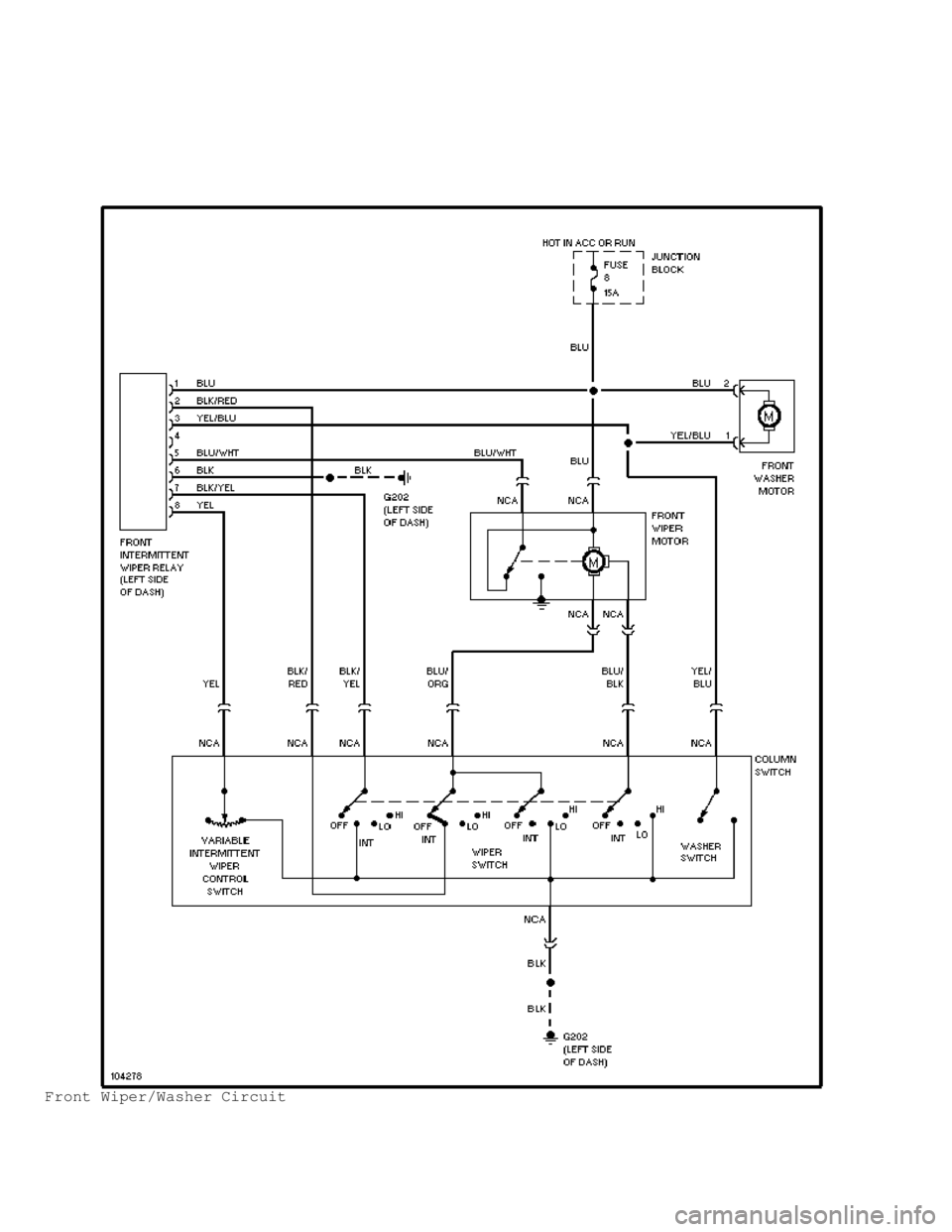

Front Wiper/Washer Circuit

Headlamp Washer Circuit

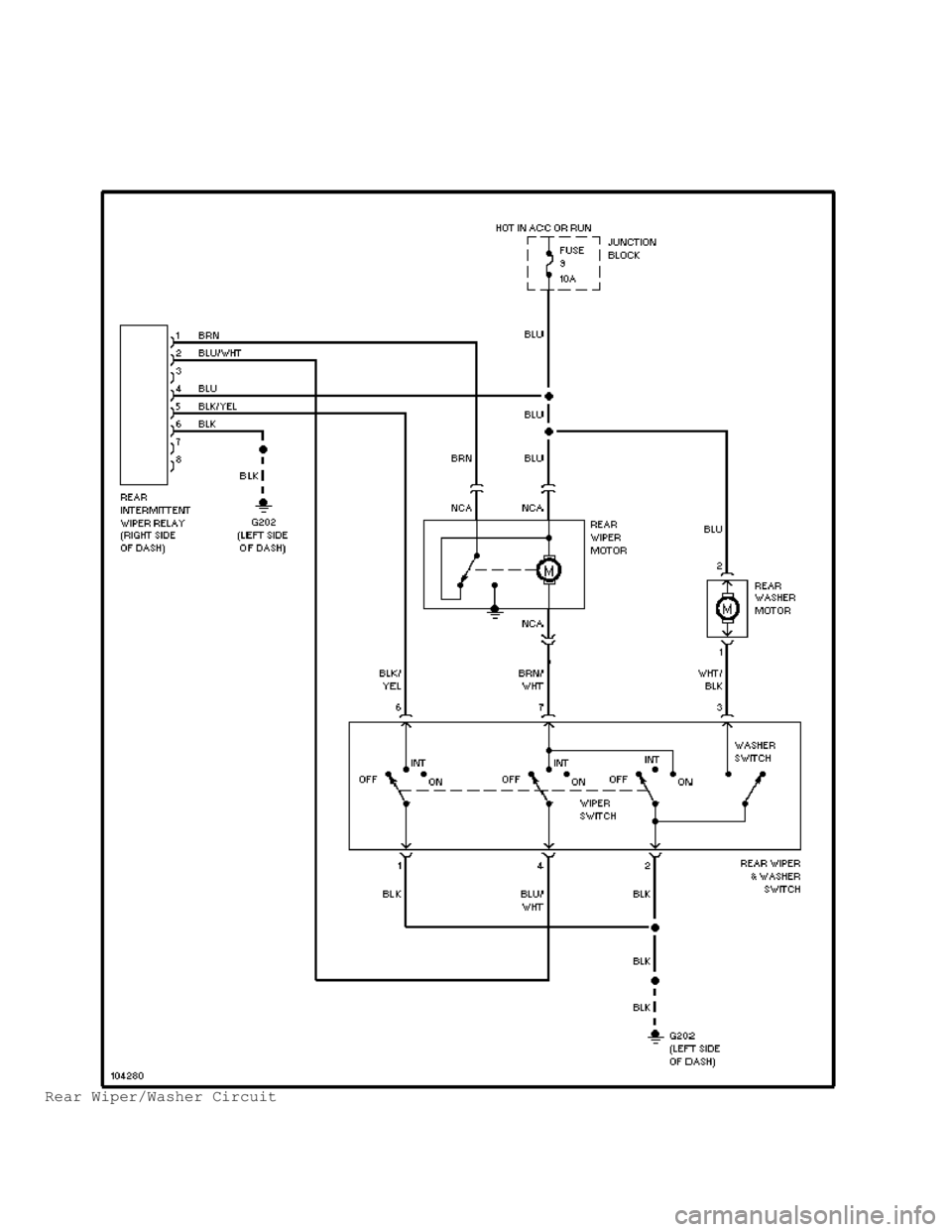

Rear Wiper/Washer Circuit

\003
G - T E STS W /C O DES
1991 Mitsubishi Montero
1990-91 ENGINE PERFORMANCE
Chrysler Motors/Mitsubishi Self-Diagnostics
Dodge; Colt, Colt Vista, Colt Wagon
Eagle; Summit
Mitsubishi; Eclipse, Galant, Mirage, Montero, Precis (1990)
Plymouth; Colt, Colt Vista, Colt Wagon
INTRODUCTION
If no faults were found while performing F - BASIC TESTING,
proceed with self-diagnostics. If no fault codes or only pass codes
are present after entering self-diagnostics, proceed to H - TESTS W/O
CODES article for diagnosis by symptom (i.e. ROUGH IDLE, NO START,
etc.).
SELF-DIAGNOSTIC SYSTEM
Use Chrysler Motors code charts when using Chrysler's
Diagnostic Readout Box (DRB-II). If DRB-II is not available or if
working on a Mitsubishi Motors vehicle, system diagnosis can only be
accomplished using a voltmeter or appropriate scan tester. To diagnose
Chrysler Motors and Mitsubishi models using a voltmeter, see
ENTERING ON-BOARD DIAGNOSTICS (USING VOLTMETER) in this article.
SYSTEM DIAGNOSIS
SYSTEM DIAGNOSIS DESCRIPTION
NOTE: Chrysler Motors recommends using DRB-II to diagnose system.
Voltmeter usage has limited diagnostic capabilities but can
be used if DRB-II is not available or if working on a
Mitsubishi Motors vehicle.
The Engine Control Unit (ECU) monitors several different
engine control system circuits. If an abnormal input signal occurs, a
fault code is stored in ECU memory and given a fault code number. Each
circuit has its own fault number and message. A specific fault code
indicates a particular system failure, but it DOES NOT indicate that
cause of failure is necessarily within system. A fault code DOES NOT
condemn any specific component; it simply points out a probable
malfunctioning area. If a critical fault code is set, the ECU will
turn on CHECK ENGINE light. All fault codes except speed sensor are
considered critical.
Fault codes can be confirmed by using a voltmeter on Chrysler
Motors and Mitsubishi models or Chrysler's Diagnostic Readout Box
(DRB-II) on Chrysler Motors vehicles. See
ENTERING ON-BOARD DIAGNOSTICS (USING VOLTMETER) or ENTERING ON-BOARD
DIAGNOSTICS (USING DRB-II) in this article. By using the DRB-II, the
self-diagnostic capabilities of this system can simplify testing and
reduce diagnostic time.
System malfunctions encountered are identified as either hard
failures or intermittent failures as determined by the ECU.
HARD FAILURES
Hard failures cause CHECK ENGINE light to illuminate and
remain on until the malfunction is repaired. If light comes on and

remains on (light may flash) during vehicle operation, cause of
malfunction must be determined by using DIAGNOSTIC FAULT CHARTS (if
testing with voltmeter) or diagnostic CODE CHARTS (if testing with
DRB-II). If a sensor fails, ECU will use a substitute value in its
calculations to continue engine operation. In this condition, vehicle
is functional, but loss of good driveability may result.
INTERMITTENT FAILURES
Intermittent failures may cause CHECK ENGINE light to flicker
or illuminate and go out after the intermittent fault goes away.
However, the corresponding trouble code will be retained in ECU
memory. If related fault does not reoccur within a certain time frame,
related trouble code will be erased from ECU memory. Intermittent
failures may be caused by a sensor, connector or wiring related
problems. See INTERMITTENTS in H - TESTS W/O CODES article.
PRETEST INSPECTION
Before proceeding with diagnosis, the following precautions
must be followed:
* Vehicle must have a fully charged battery and functional
charging system.
* Visually inspect connectors and circuit wiring being worked
on.
* DO NOT disconnect battery or ECU. This will erase any fault
codes stored in ECU.
* DO NOT cause short circuits when performing electrical tests.
This will set additional fault codes, making diagnosis of original
problem more difficult.
* DO NOT use a test light in place of a voltmeter.
* When checking for spark, ensure coil wire is NO more than
1/4" from ground. If coil wire is more than 1/4" from ground,
damage to vehicle electronics and/or ECU may result.
* DO NOT prolong testing of fuel injectors. Engine may
hydrostatically (liquid) lock.
* When a vehicle has multiple fault codes, always repair lowest
number fault code first.
* If DRB-II is being used to diagnose system, always perform
verification test after repairs are made.
ENTERING ON-BOARD DIAGNOSTICS (USING VOLTMETER)
1) Before entering on-board diagnostics, refer to PRETEST
INSPECTION in this article. Turn ignition switch to OFF position.
Locate self-diagnostic connector. See SELF-DIAGNOSTIC TEST CONNECTOR
LOCATION table. Using an analog voltmeter, connect voltmeter positive
lead to self-diagnostic connector terminal No. 1 and negative lead to
terminal No. 12 (ground). See Fig. 6.
2) Turn ignition switch to ON position and disclosure of ECU
memory will begin. If 2 or more systems are non-functional, they are
indicated by order of increasing code number. Indication is made by
12-volt pulses of voltmeter pointer. A constant repetition of short
12-volt pulses indicates system is normal. If system is abnormal,
voltmeter will pulse between zero and 12 volts.
3) Signals will appear on voltmeter as long and short 12-volt
pulses. Long pulses represent tens; short pulses represent ones. For
example 4 long pulses and 3 short pulses indicates Code 43. See

Figs. 1 and 2. After recording abnormal code(s), perform necessary
repair.
4) After repair, turn ignition off and disconnect negative
battery cable for 10 seconds to erase ECU memory. Reconnect power
supply and repeat self-diagnostics to confirm repair.
SELF-DIAGNOSTIC TEST CONNECTOR LOCATION TABLE









\









\









\









\









\









\






Application Location
Colt, Colt 200, Colt Wagon & Summit
1.5L ................................ Next to fuse block
1.6L .................................. Right kick panel
Colt Wagon & Colt Vista
1.8L & 2.0L SOHC .................... Next to fuse block
Eclipse ............................... Next to fuse block
Galant ................................... Left kick panel
Mirage ................................... Left kick panel
Montero .......................... Inside top of glove box
Precis ................................... Left kick panel









\









\









\









\









\









\






Fig. 1: Diagnostic Fault Chart (1 of 2)
Courtesy of Mitsubishi Motor Sales of America.
