1991 MITSUBISHI MONTERO Service Manual

Fig. 151: Flow Chart DR-16 (1.6L) (3 of 3)
DR-17: NO FAULT CODE SENSOR TESTS - 1.6L

Fig. 152: Circuit Diagram DR-17 (1.6L)

Fig. 153: Flow Chart DR-17 (1.6L) (1 of 6)

Fig. 154: Circuit Diagram DR-17 (1.6L)
Fig. 155: Circuit Diagram DR-17 (1.6L)

Fig. 156: Flow Chart DR-17 (1.6L) (2 of 6)

Fig. 157: Circuit Diagram DR-17 (1.6L)

Fig. 158: Flow Chart DR-17 (1.6L) (3 of 6)

Fig. 159: Circuit Diagram DR-17 (1.6L)

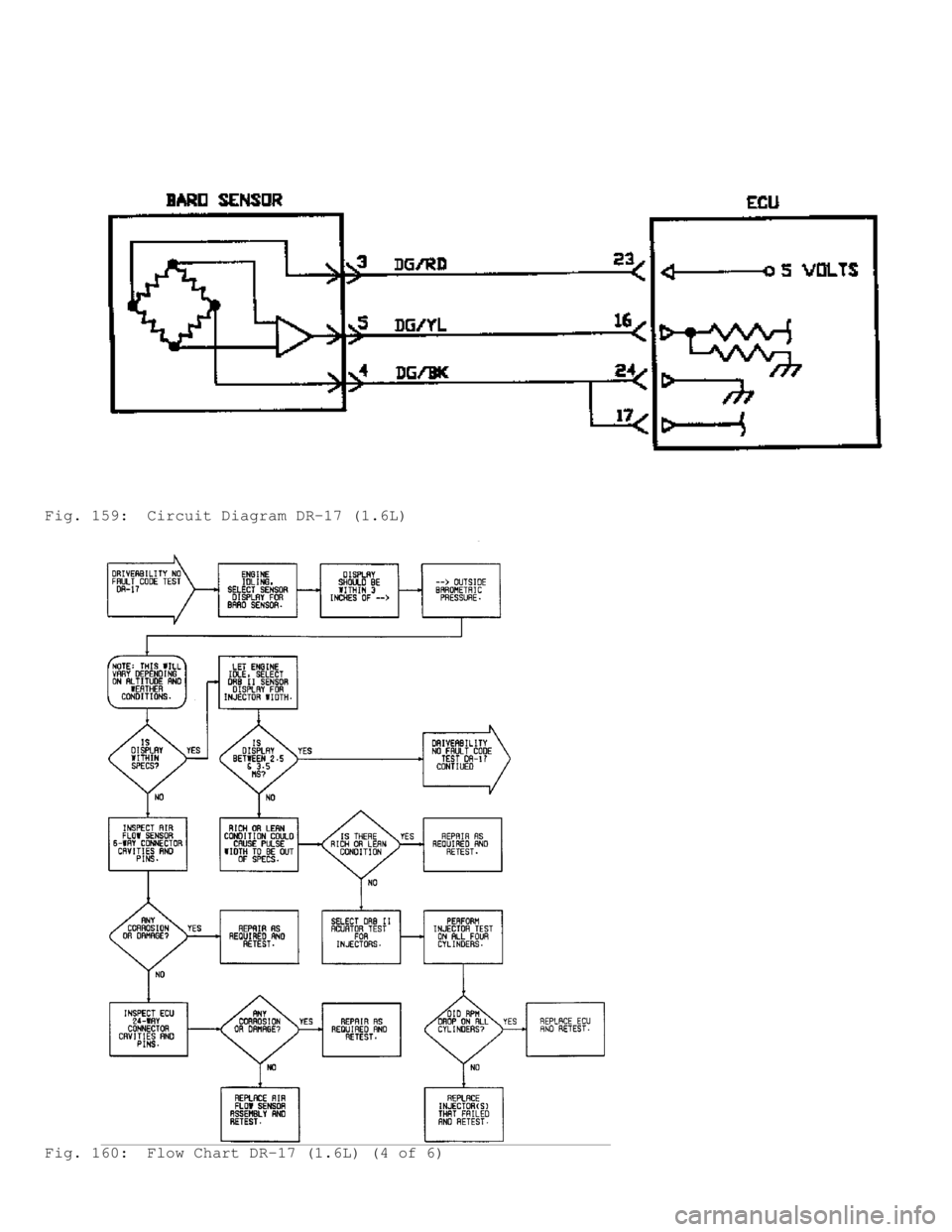

Fig. 160: Flow Chart DR-17 (1.6L) (4 of 6)
