Loose or worn wheel See WHEEL ALIGNMENT
bearings
Loose or worn tie rod ends See SUSPENSION
Worn upper ball joints See Ball Joint Checking
in SUSPENSION
Worn shock absorbers Replace shock absorbers
Worn strut bushings Replace strut bushings









\









\









\









\









\









\









\







Car Pulls to Mismatched or uneven tires Check tire condition
One Side
Broken or sagging springs See SUSPENSION
Loose or worn strut See SUSPENSION
bushings
Improper wheel alignment See WHEEL ALIGNMENT
Improper rear axle Check rear axle
alignment alignment
Power steering gear See STEERING
unbalanced
Front brakes dragging See BRAKES









\









\









\









\









\









\









\







Abnormal Tire Unbalanced tires Check tire balance &
Wear rotation
Sagging or broken springs See SUSPENSION
Incorrect front end See WHEEL ALIGNMENT
alignment
Faulty shock absorbers Replace chock absorbers









\









\









\









\









\









\









\







Scuffed Tires Toe-In incorrect See WHEEL ALIGNMENT
Suspension arm bent or See appropriate
twisted SUSPENSION article









\









\









\









\









\









\









\







Springs Bottom Bent or broken springs See SUSPENSION
or Sag
Leaking or worn shock Replace shock absorbers
absorbers
Frame misalignment Check frame for damage









\









\









\









\









\









\









\







Spring Noises Loose "U" Bolts See SUSPENSION
Loose or worn bushings See SUSPENSION
Worn or missing interliners See SUSPENSION









\









\









\









\









\









\









\







Shock Absorber Loose shock mountings Check & tighten
Noise mountings
Worn bushings Replace bushings

Air in system Bleed air from system
Undercoating on shocks Remove undercoating









\









\









\









\









\









\









\







Car Leans or Loose stabilizer bar See SUSPENSION
Sways on Corners
Faulty shocks or mountings Replace shocks or
mountings
Broken or sagging springs See SUSPENSION









\









\









\









\









\









\









\







Shock Absorbers Worn seals or reservoir See SUSPENSION
Leaking tube crimped









\









\









\









\









\









\









\







Broken Springs Loose "U" bolts See SUSPENSION
Inoperative shock absorbers Replace shock absorbers









\









\









\









\









\









\









\







WHEEL ALIGNMENT TROUBLE SHOOTING
NOTE: This is GENERAL information. This article is not intended
to be specific to any unique situation or individual vehicle
configuration. The purpose of this Trouble Shooting
information is to provide a list of common causes to
problem symptoms. For model-specific Trouble Shooting,
refer to SUBJECT, DIAGNOSTIC, or TESTING articles available
in the section(s) you are accessing.
BASIC WHEEL ALIGNMENT TROUBLE SHOOTING CHART









\









\









\









\









\









\









\







CONDITION POSSIBLE CAUSE CORRECTION








\









\









\









\









\









\









\







Premature Tire Improper tire inflation Check tire pressure
Wear
Front alignment out of See ALIGNMENT SPECS in
tolerance WHEEL ALIGNMENT section
Suspension components worn See SUSPENSION section
Steering system components See STEERING section
worn
Improper standing height See WHEEL ALIGNMENT
Uneven or sagging springs See SUSPENSION section
Bent wheel See WHEEL ALIGNMENT
Improper torsion bar See SUSPENSION section
adjustment
Loose or worn wheel See WHEEL BEARING ADJ.
bearings in SUSPENSION section
Worn or defective shock Replace shock absorbers
Tires out of balance Check tire balance









\









\









\









\









\









\









\







Pulls to One Improper tire inflation Check tire pressure
Side
Brake dragging See BRAKE section

Mismatched tires See WHEEL ALIGNMENT
Broken or sagging spring See SUSPENSION section
Broken torsion bar See SUSPENSION section
Power steering valve not See STEERING section
centered
Front alignment out of See WHEEL ALIGNMENT
tolerance section
Defective wheel bearing See WHEEL BEARINGS in
SUSPENSION section
Uneven sway bar links See SUSPENSION section
Frame bent Check for frame damage
Steering system bushing See STEERING section
worn









\









\









\









\









\









\









\







Hard Steering Idler arm bushing too tight See STEERING LINKAGE
in STEERING section
Ball joint tight or seized See SUSPENSION section
Steering linkage too tight See STEERING LINKAGE in
STEERING section
Power steering fluid low Add proper amount of
fluid
Power steering drive belt See STEERING section
loose
Power steering pump See STEERING section
defective
Steering gear out of See STEERING section
adjustment
Incorrect wheel alignment See WHEEL ALIGNMENT
Damaged steering gear See STEERING section
Damaged suspension See SUSPENSION section
Bent steering knuckle or See SUSPENSION section
supports









\









\









\









\









\









\









\







Vehicle Strut rod or control arm See SUSPENSION section
"Wanders" bushing worn
Loose or worn wheel See WHEEL BEARINGS in
bearings SUSPENSION section
Improper tire inflation Check tire pressure
Stabilizer bar missing or See SUSPENSION section
defective

Wheel alignment out of See Adjustment in
tolerance WHEEL ALIGNMENT section
Broken spring See SUSPENSION section
Defective shock absorbers Replace shock absorbers
Worn steering & suspension See SUSPENSION section
components









\









\









\









\









\









\









\







Front End Shimmy Tire out of balance/round Check tire balance
Excessive wheel runout See WHEEL ALIGNMENT
Insufficient or improper See WHEEL ALIGNMENT
caster section
Worn suspension or steering See SUSPENSION section
components
Defective shock absorbers Replace shock absorber
Wheel bearings worn or See WHEEL BEARING ADJ.
loose in SUSPENSION section
Power steering reaction See STEERING section
Bracket loose
Steering gear box (rack) See STEERING section
mounting loose
Steering gear adjustment See STEERING section
loose
Worn spherical joints See SUSPENSION section









\









\









\









\









\









\









\







Toe-In Not Lower control arm bent See SUSPENSION section
Adjustable
Frame bent Check frame for damage









\









\









\









\









\









\









\







Camber Not Control arm bent See SUSPENSION section
Adjustable
Frame bent Check frame for damage
Hub & bearing not seated See SUSPENSION section
properly









\









\









\









\









\









\









\

\003
M - V A C UUM D IA G RAM S

1991 M it s u bis h i M onte ro
1991 ENGINE PERFORMANCE
Vacuum Diagrams
Chrysler Motors: Colt, Colt 200, Colt Vista,
Ram-50, Stealth, Summit
Mitsubishi: Eclipse, Galant, Mirage, Montero,
Pickup, 3000GT
INTRODUCTION
This article contains underhood views or schematics of vacuum
hose routing. Use these vacuum diagrams during the visual inspection
in F - BASIC TESTING article in the ENGINE PERFORMANCE Section. This
will assist in identifying improperly routed vacuum hoses, which cause
driveability and/or computer-indicated malfunctions.
Fig. 1: Vacuum Diagram (Colt, Colt 200, Mirage 1.5L & Summit/Calif.)
Courtesy of Chrysler Motors.

Fig. 2: Vacuum Diagram (Colt, Colt 200, Mirage 1.5L & Summit/Fed.)
Courtesy of Chrysler Motors.

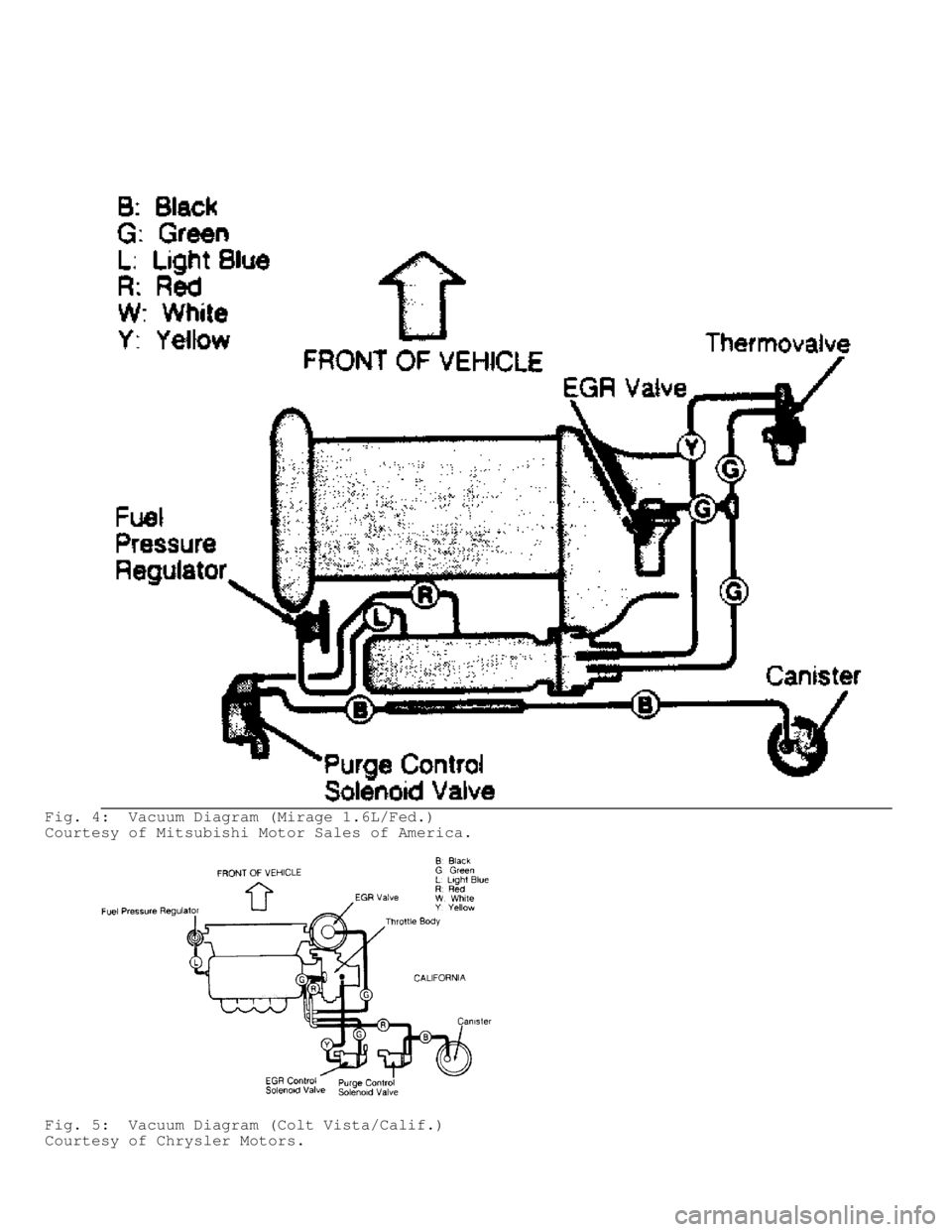

Fig. 3: Vacuum Diagram (Mirage 1.6L/Calif.)
Courtesy of Mitsubishi Motor Sales of America.

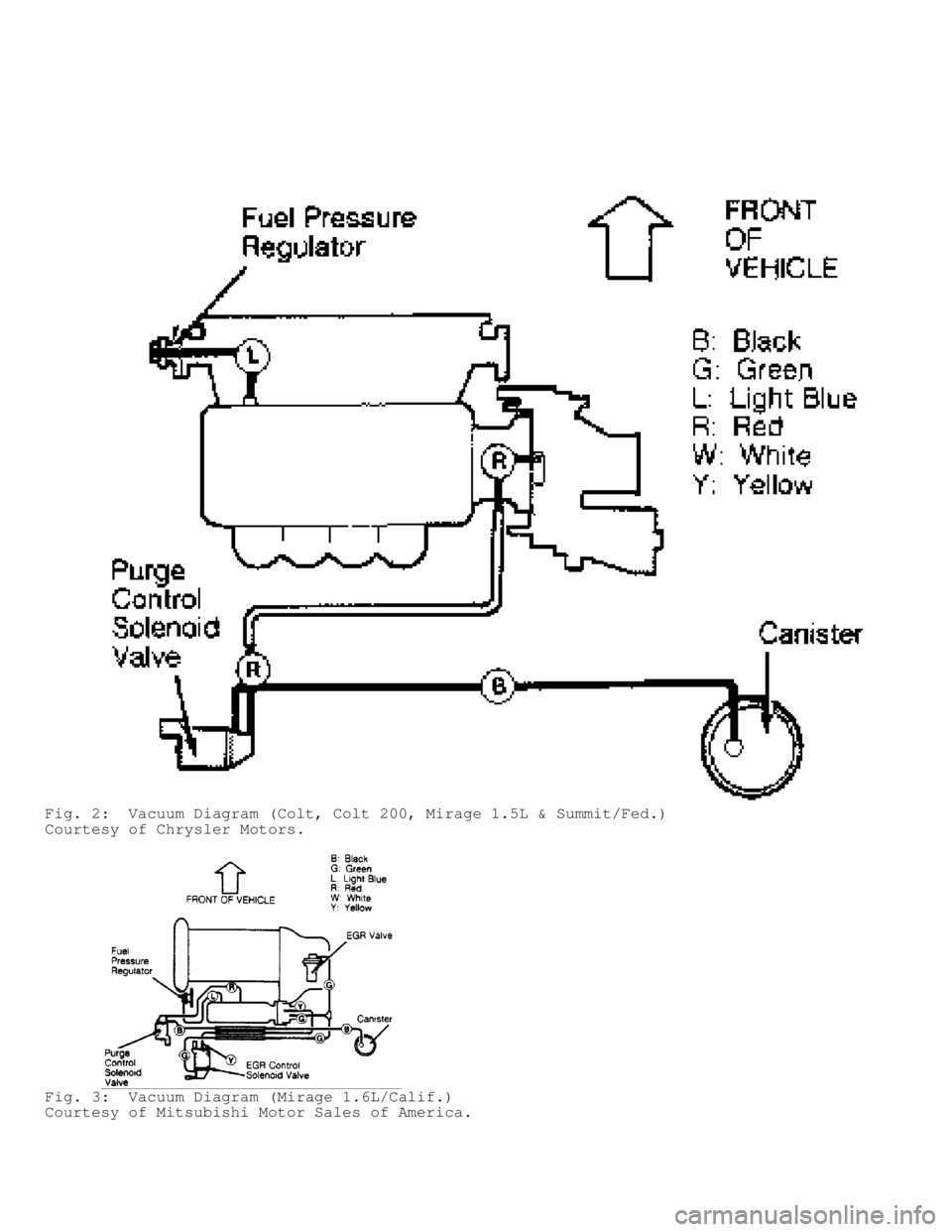

Fig. 4: Vacuum Diagram (Mirage 1.6L/Fed.)
Courtesy of Mitsubishi Motor Sales of America.

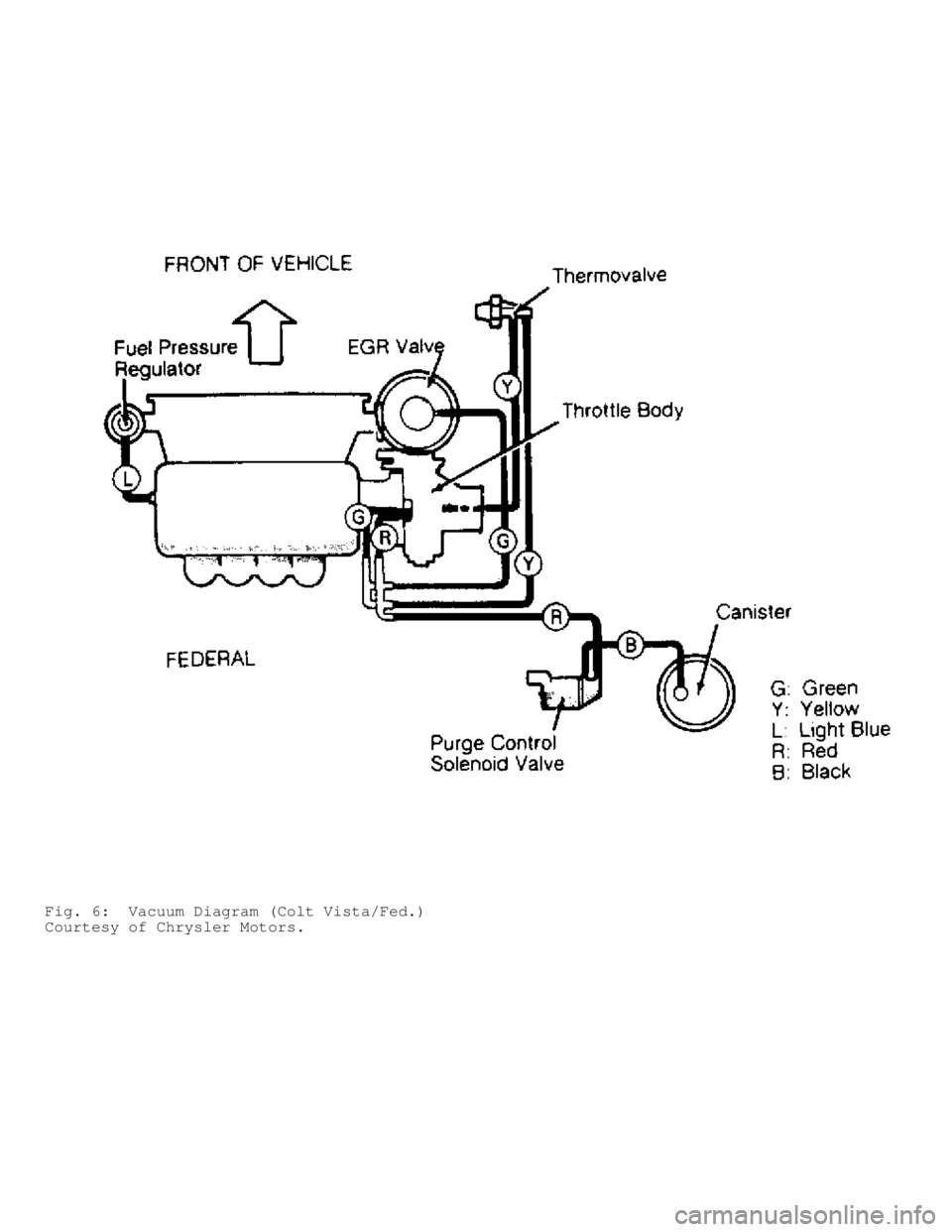

Fig. 5: Vacuum Diagram (Colt Vista/Calif.)
Courtesy of Chrysler Motors.

Fig. 6: Vacuum Diagram (Colt Vista/Fed.)
Courtesy of Chrysler Motors.
