1991 MITSUBISHI MONTERO Service Manual

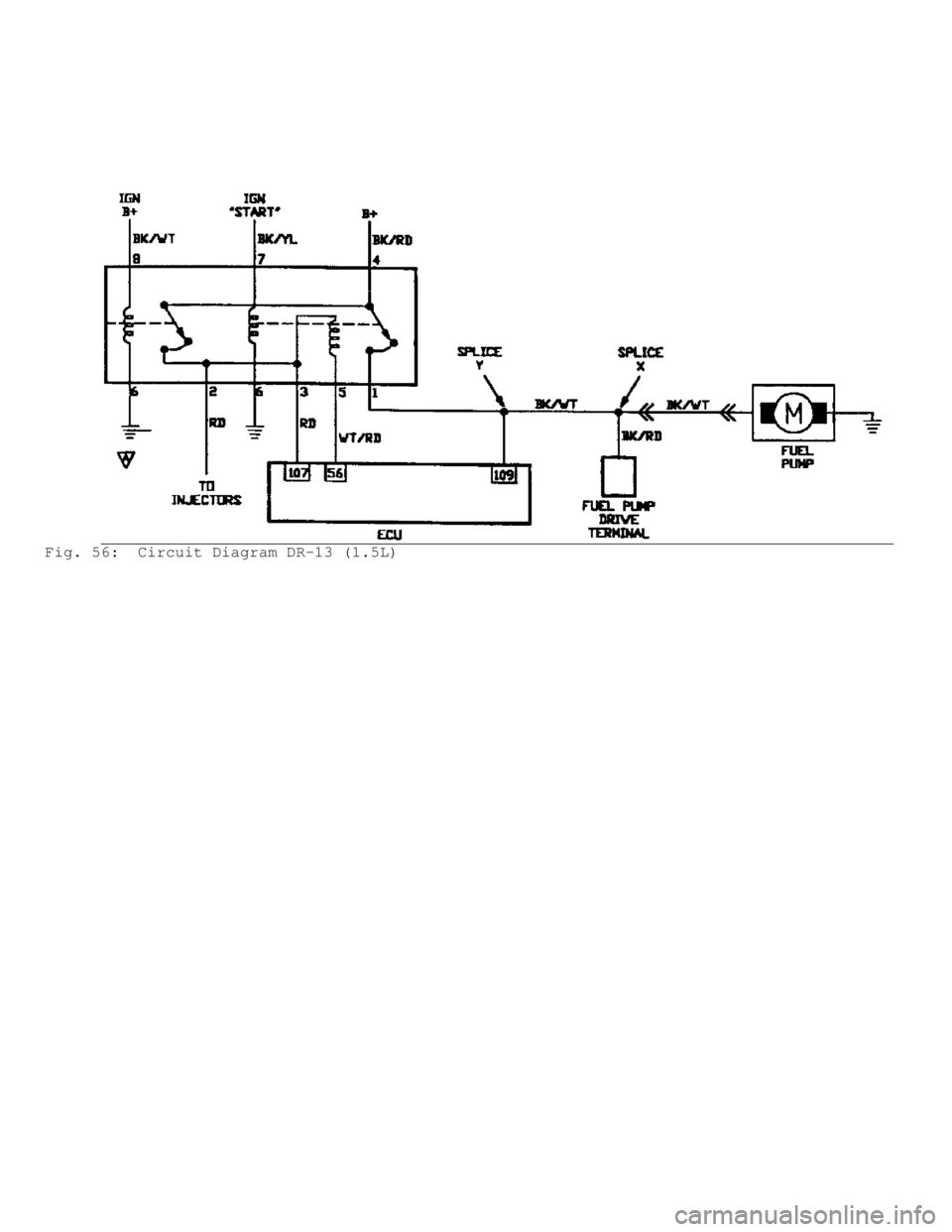

Fig. 56: Circuit Diagram DR-13 (1.5L)

Fig. 57: Flow Chart DR-13 (1.5L)
DR-14: CODE 43 EGR TEMPERATURE SENSOR CIRCUIT - 1.5L

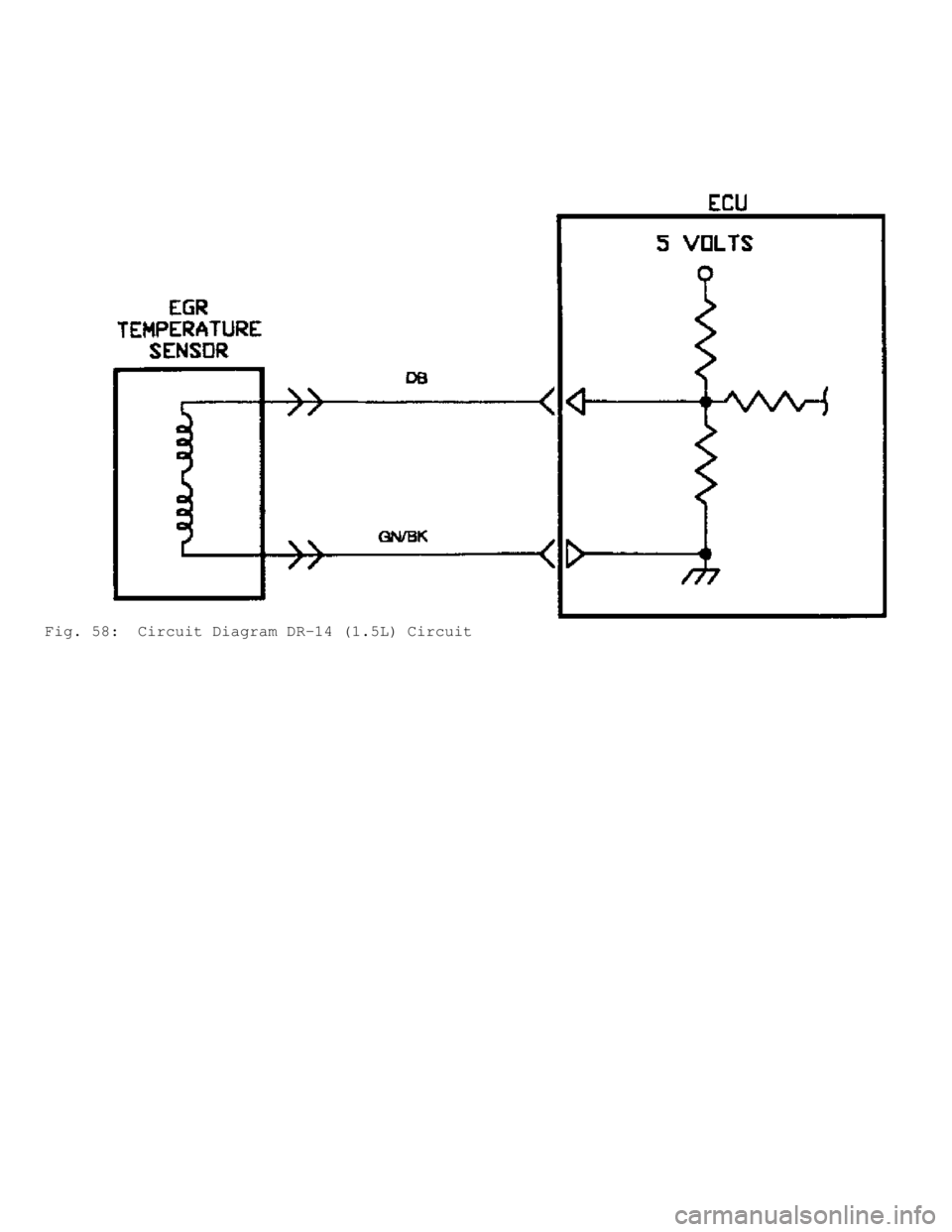

Fig. 58: Circuit Diagram DR-14 (1.5L) Circuit

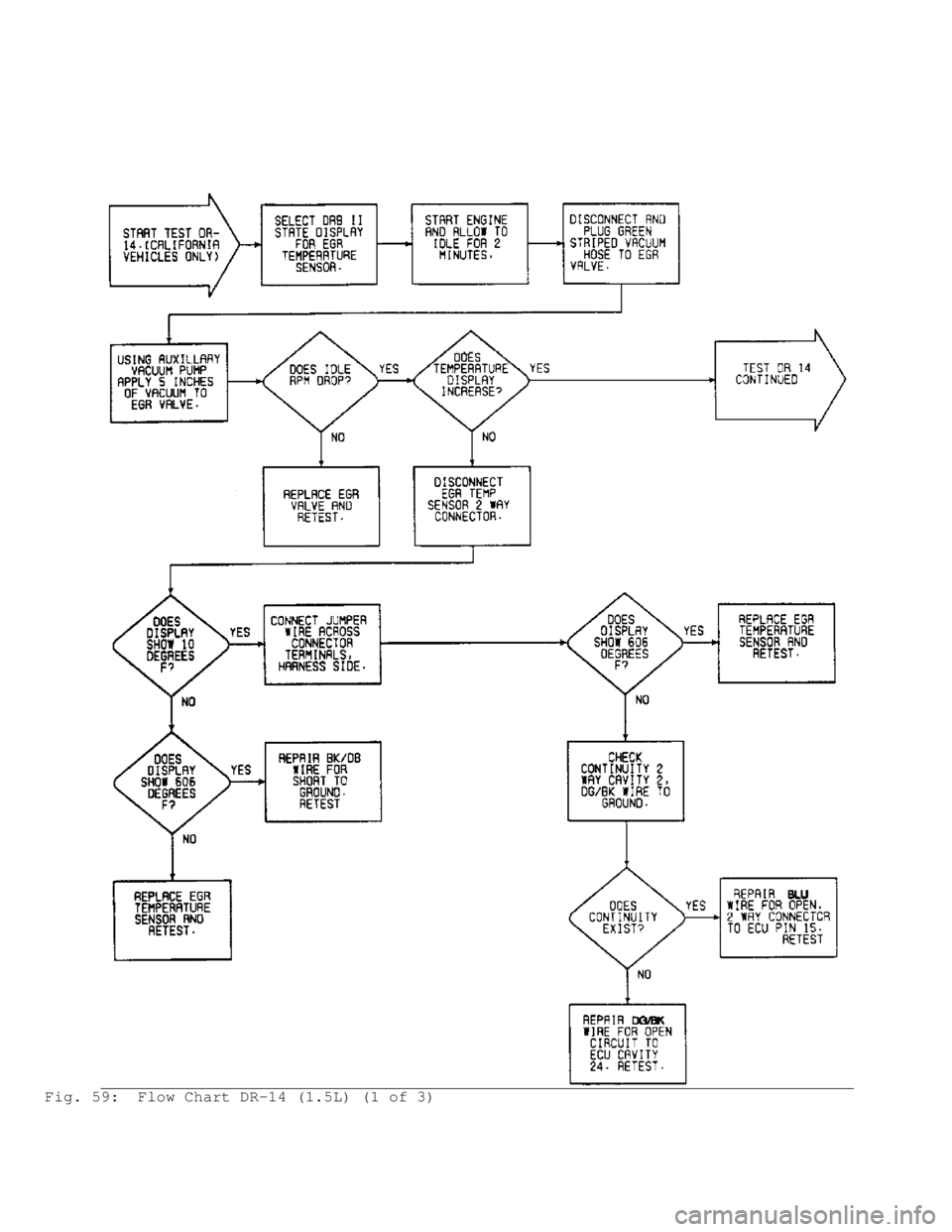

Fig. 59: Flow Chart DR-14 (1.5L) (1 of 3)

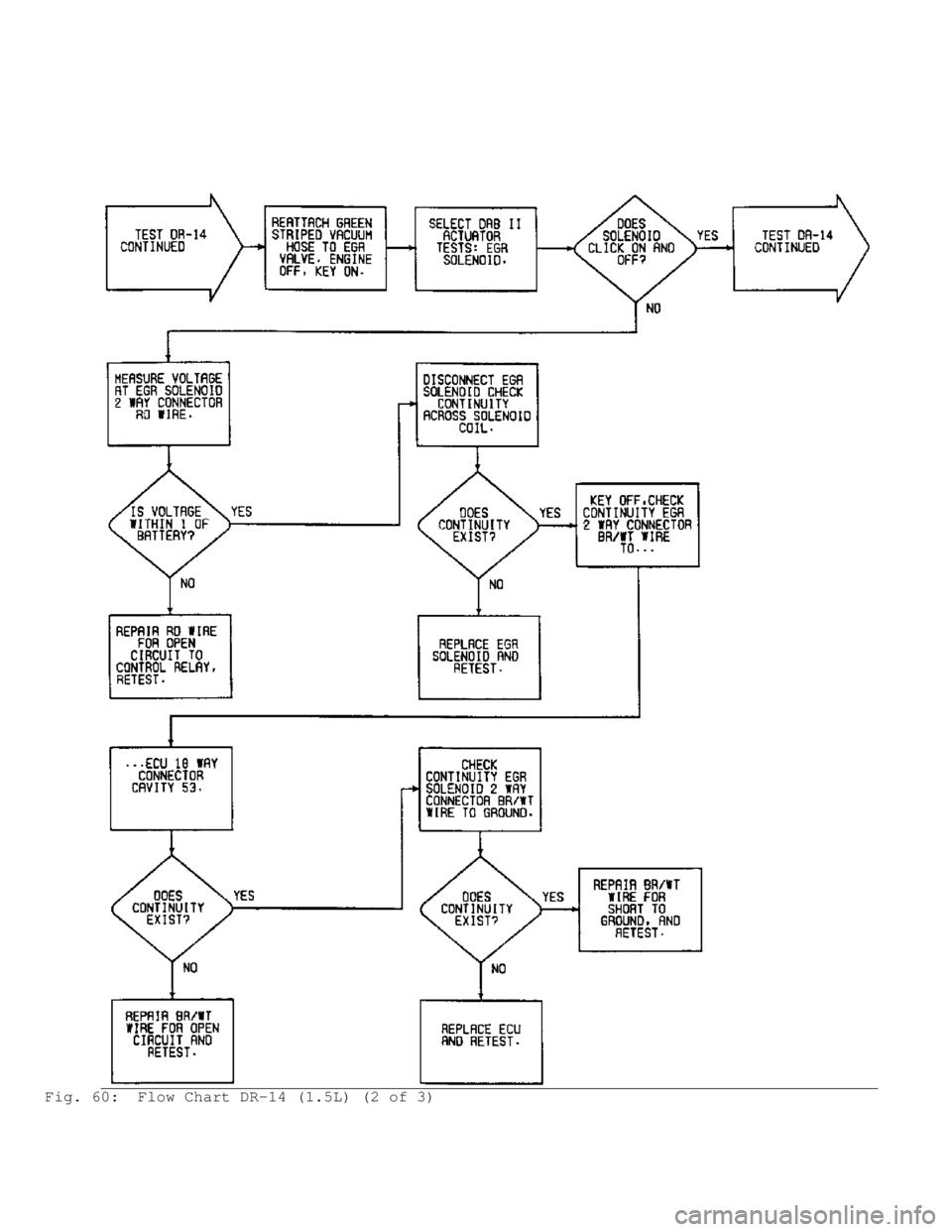

Fig. 60: Flow Chart DR-14 (1.5L) (2 of 3)

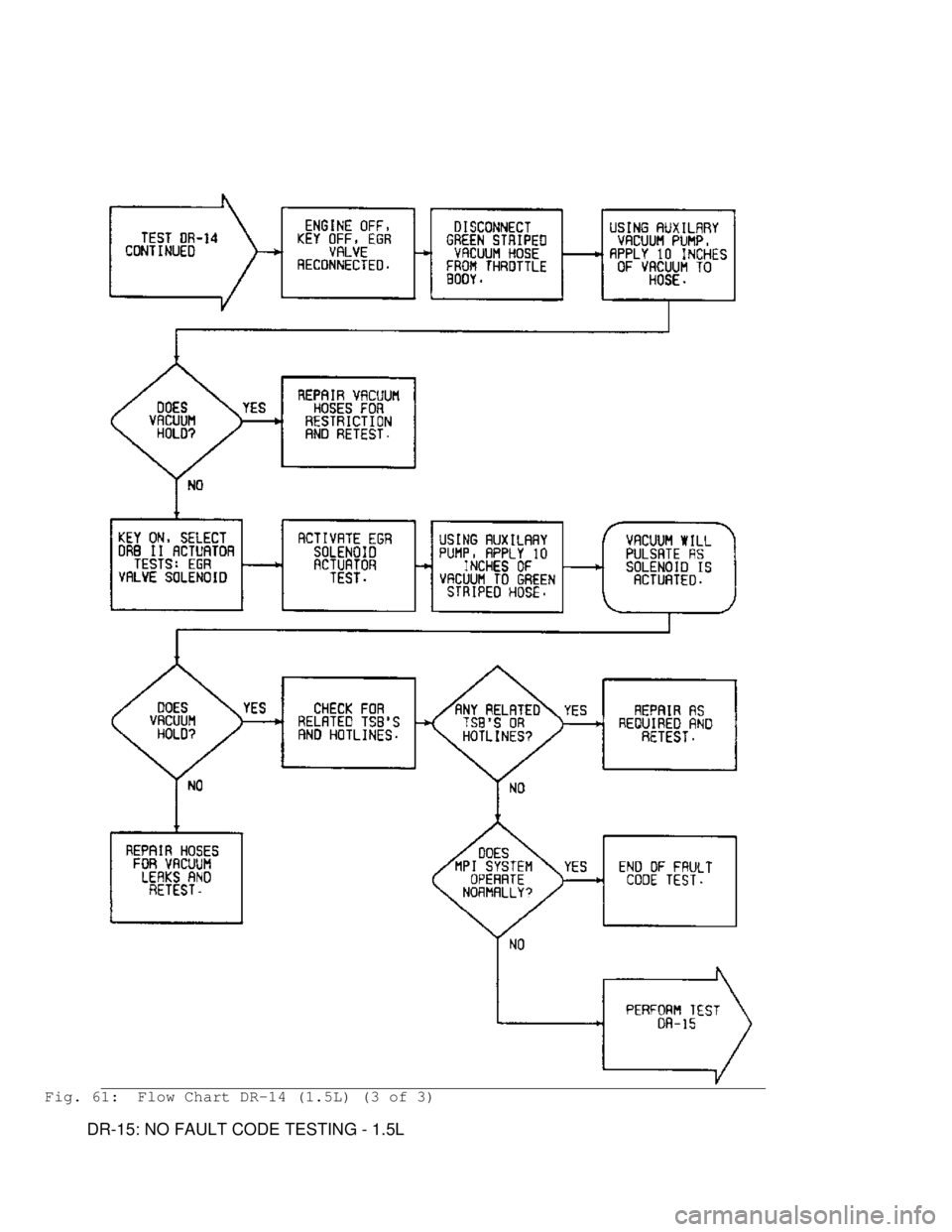

Fig. 61: Flow Chart DR-14 (1.5L) (3 of 3)
DR-15: NO FAULT CODE TESTING - 1.5L

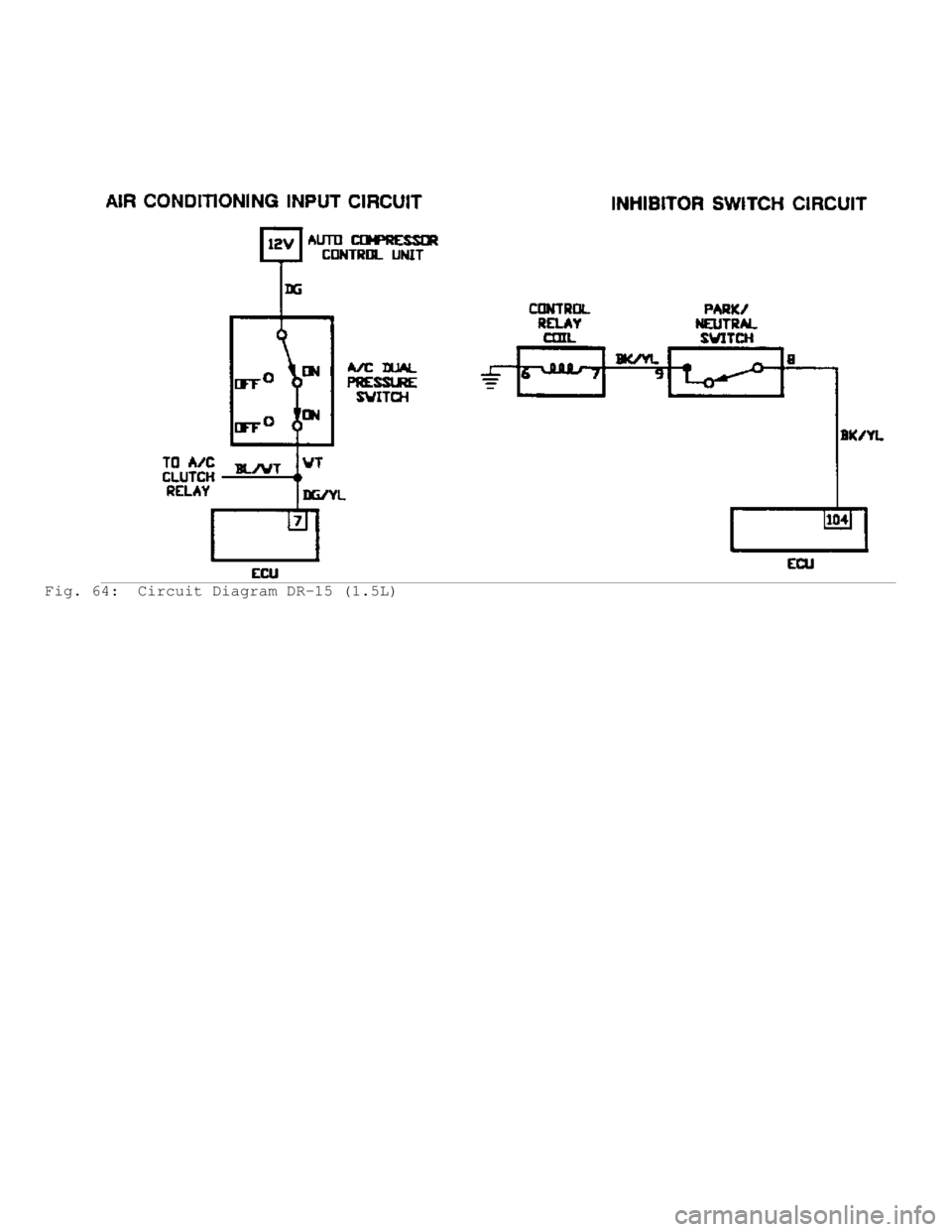

Fig. 62: Circuit Diagram DR-15 (1.5L)

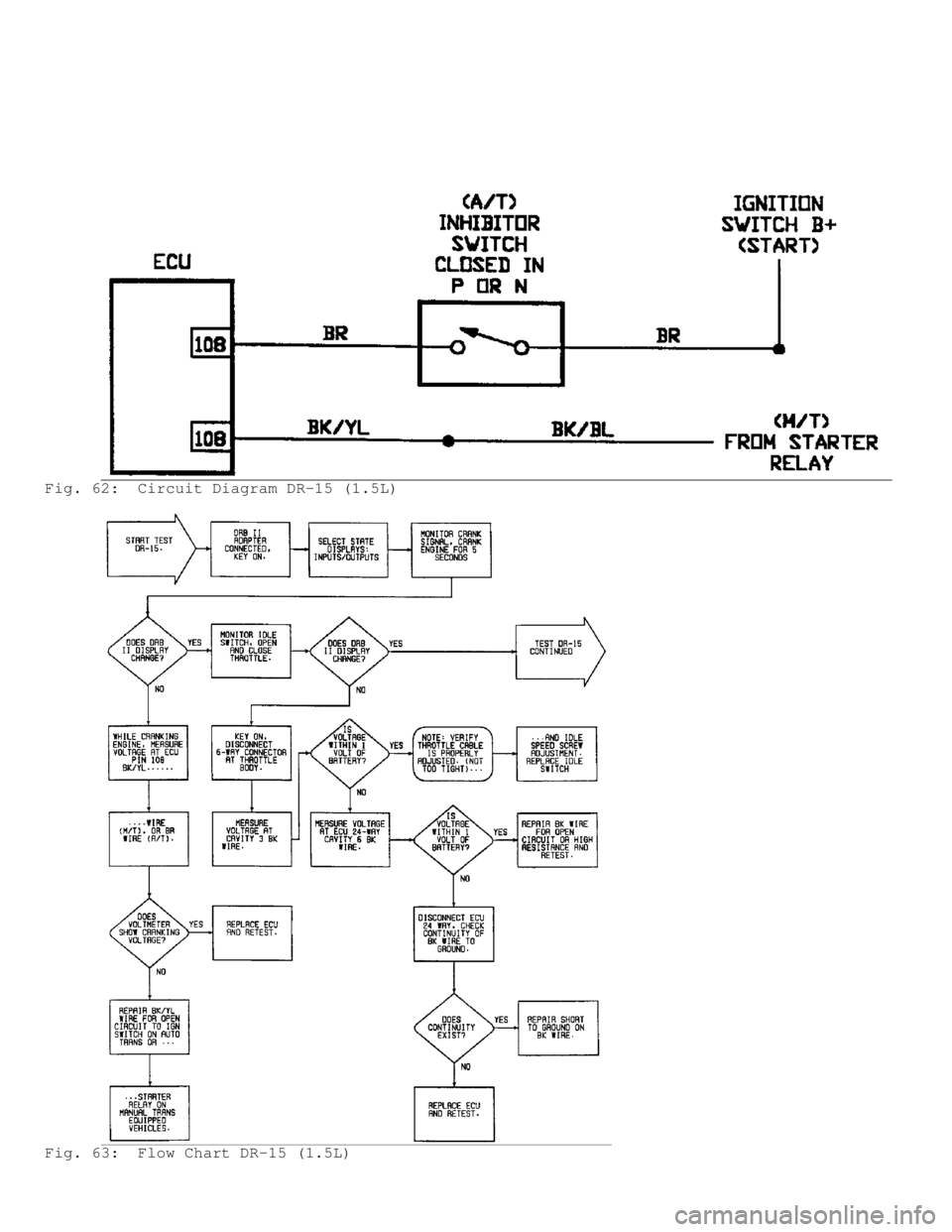

Fig. 63: Flow Chart DR-15 (1.5L)

Fig. 64: Circuit Diagram DR-15 (1.5L)
