1991 MITSUBISHI MONTERO Service Manual

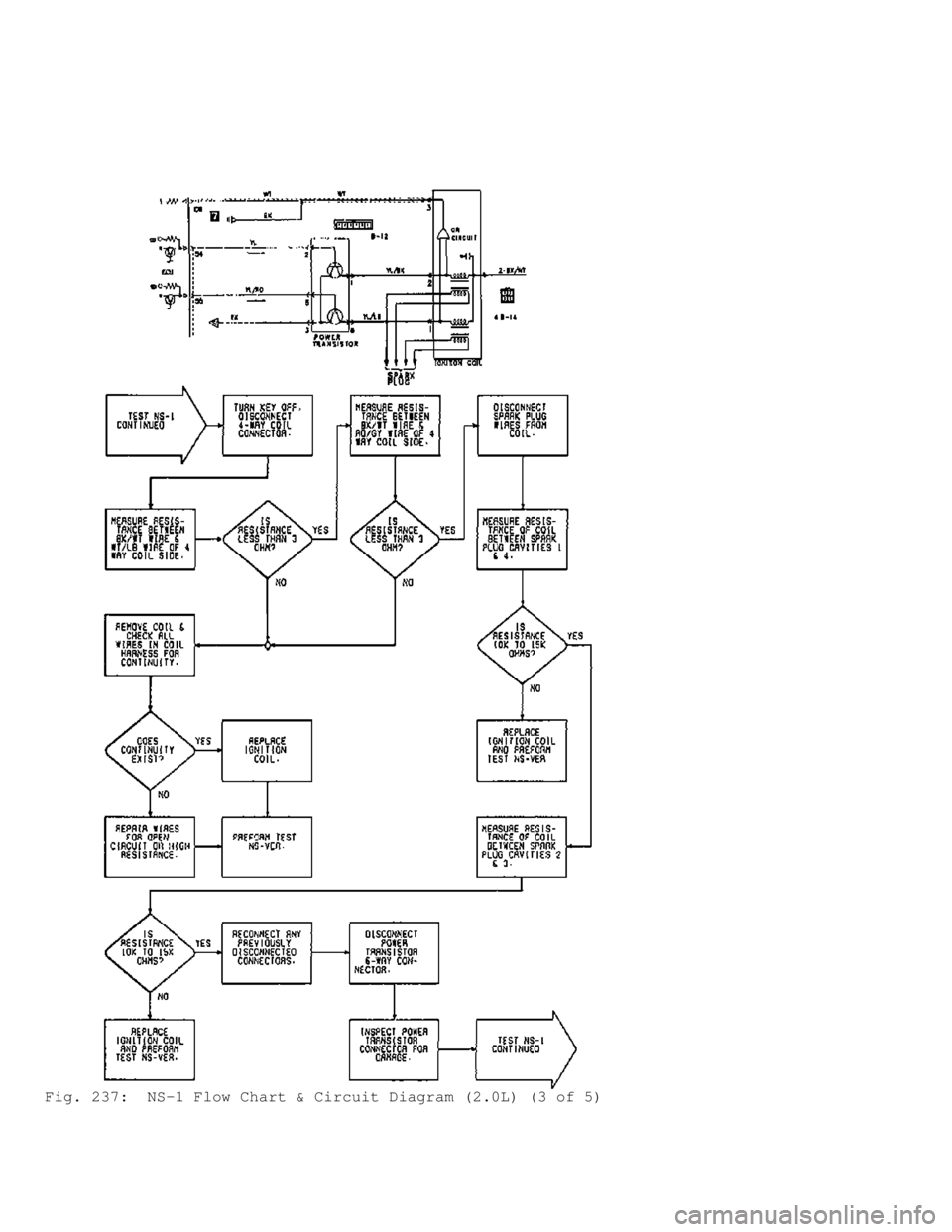

Fig. 237: NS-1 Flow Chart & Circuit Diagram (2.0L) (3 of 5)

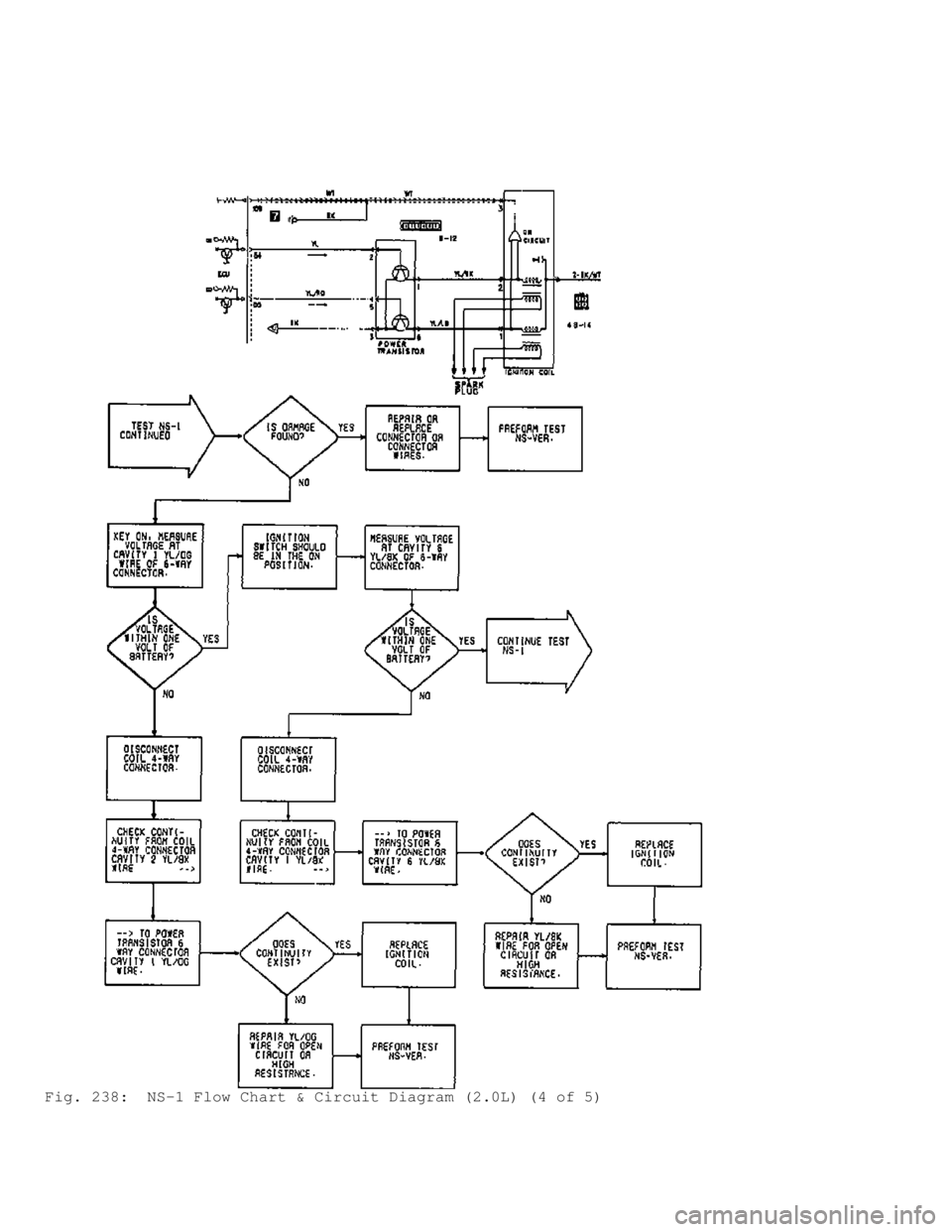

Fig. 238: NS-1 Flow Chart & Circuit Diagram (2.0L) (4 of 5)

Fig. 239: NS-1 Flow Chart & Circuit Diagram (2.0L) (5 of 5)
NS-2: CHECKING CRANK ANGLE SENSOR - 2.0L

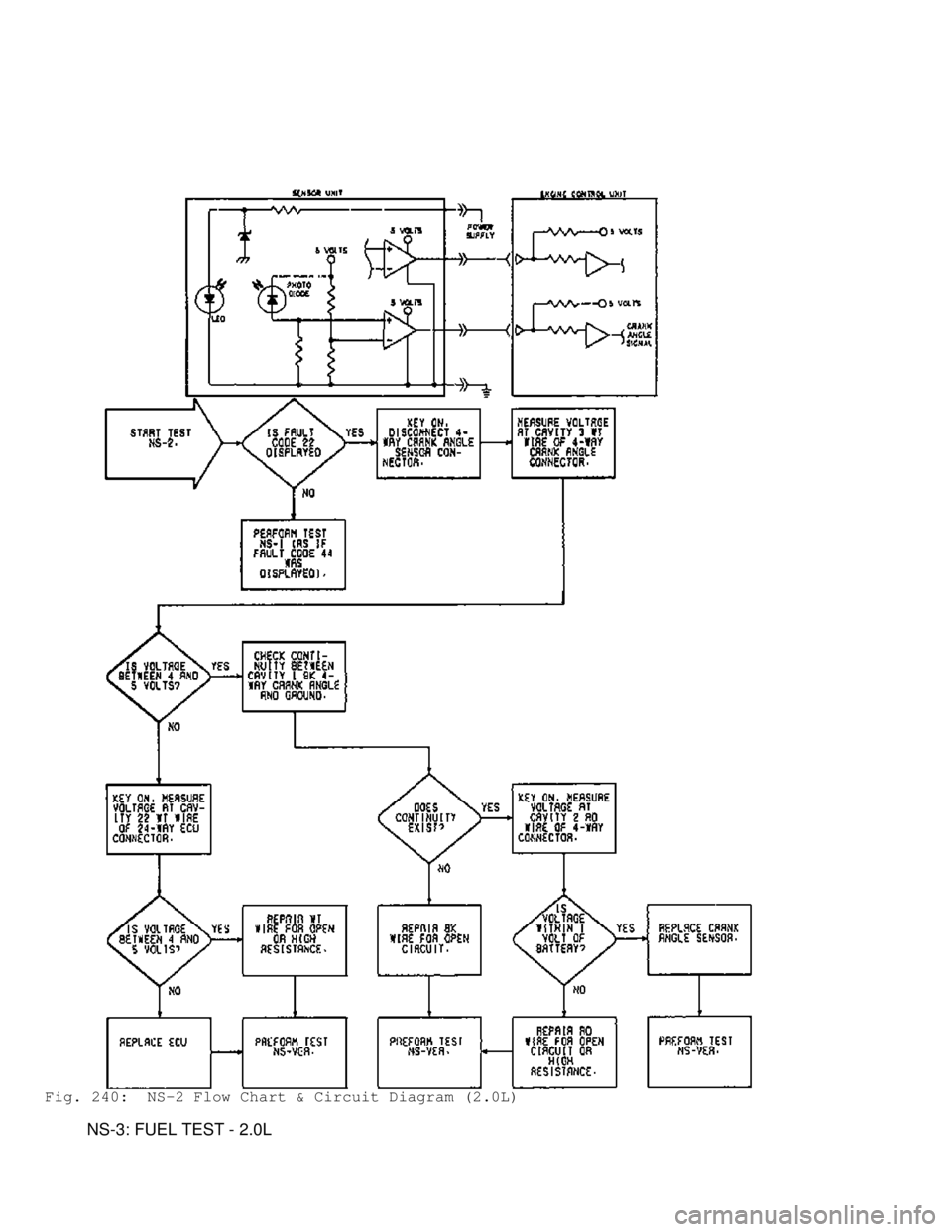

Fig. 240: NS-2 Flow Chart & Circuit Diagram (2.0L)
NS-3: FUEL TEST - 2.0L

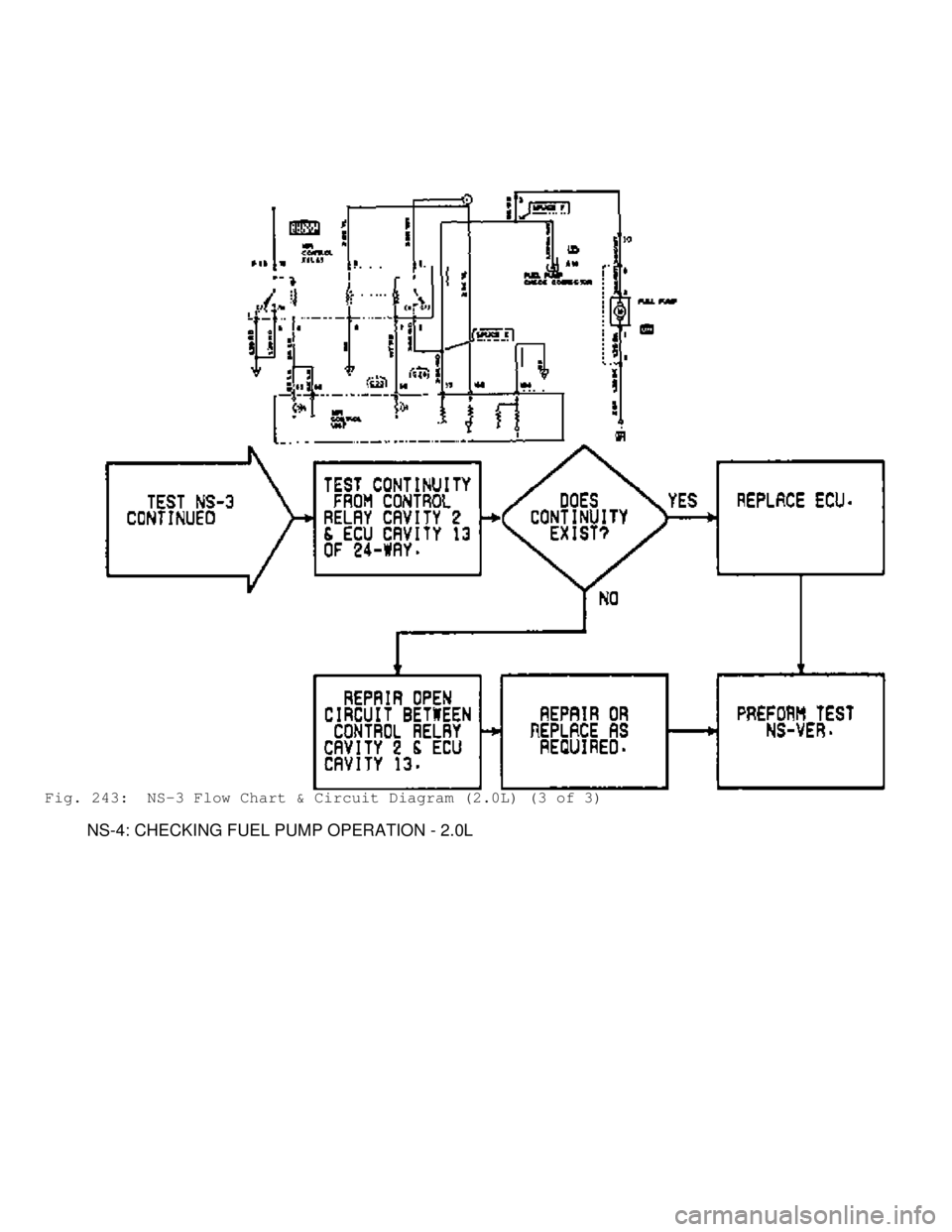

Fig. 241: NS-3 Flow Chart & Circuit Diagram (2.0L) (1 of 3)

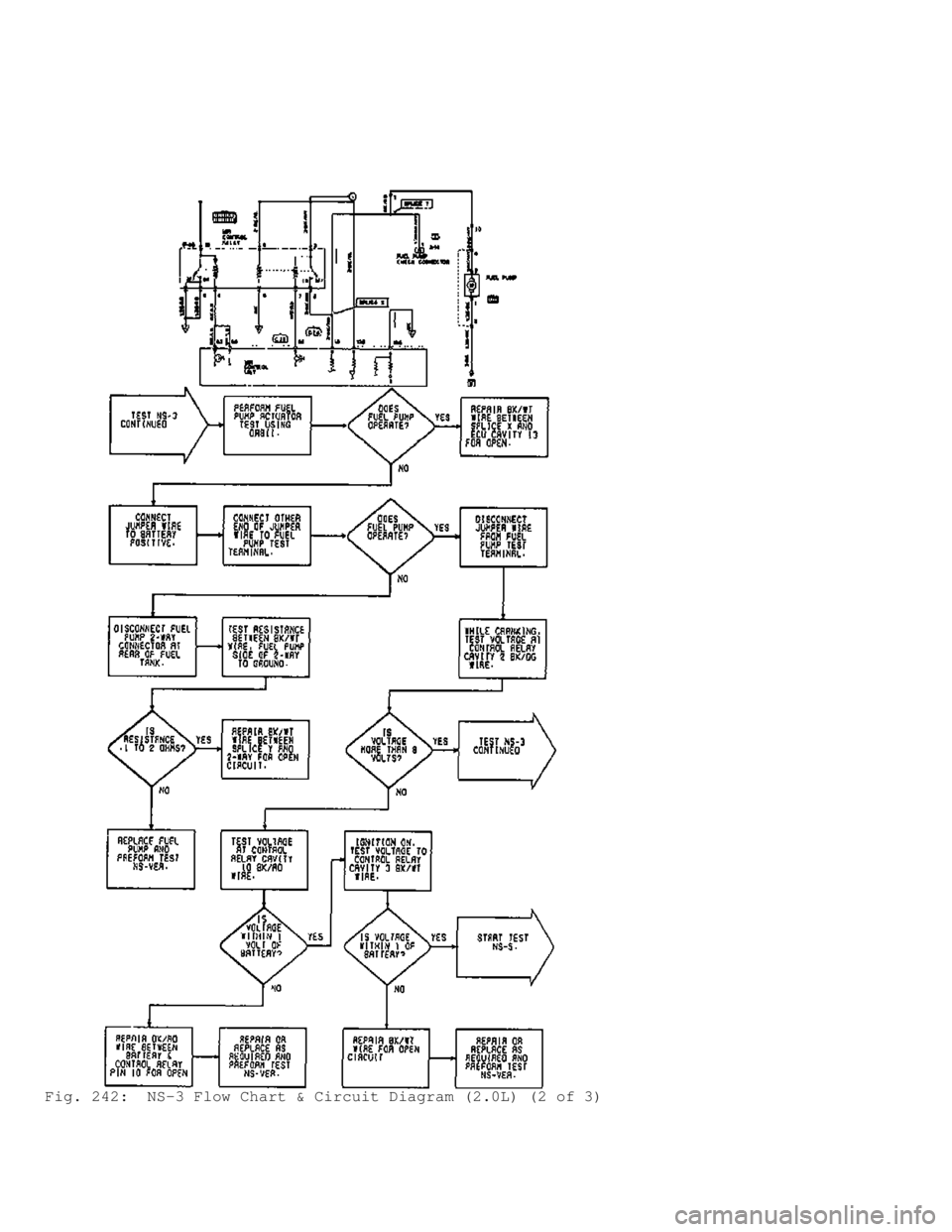

Fig. 242: NS-3 Flow Chart & Circuit Diagram (2.0L) (2 of 3)

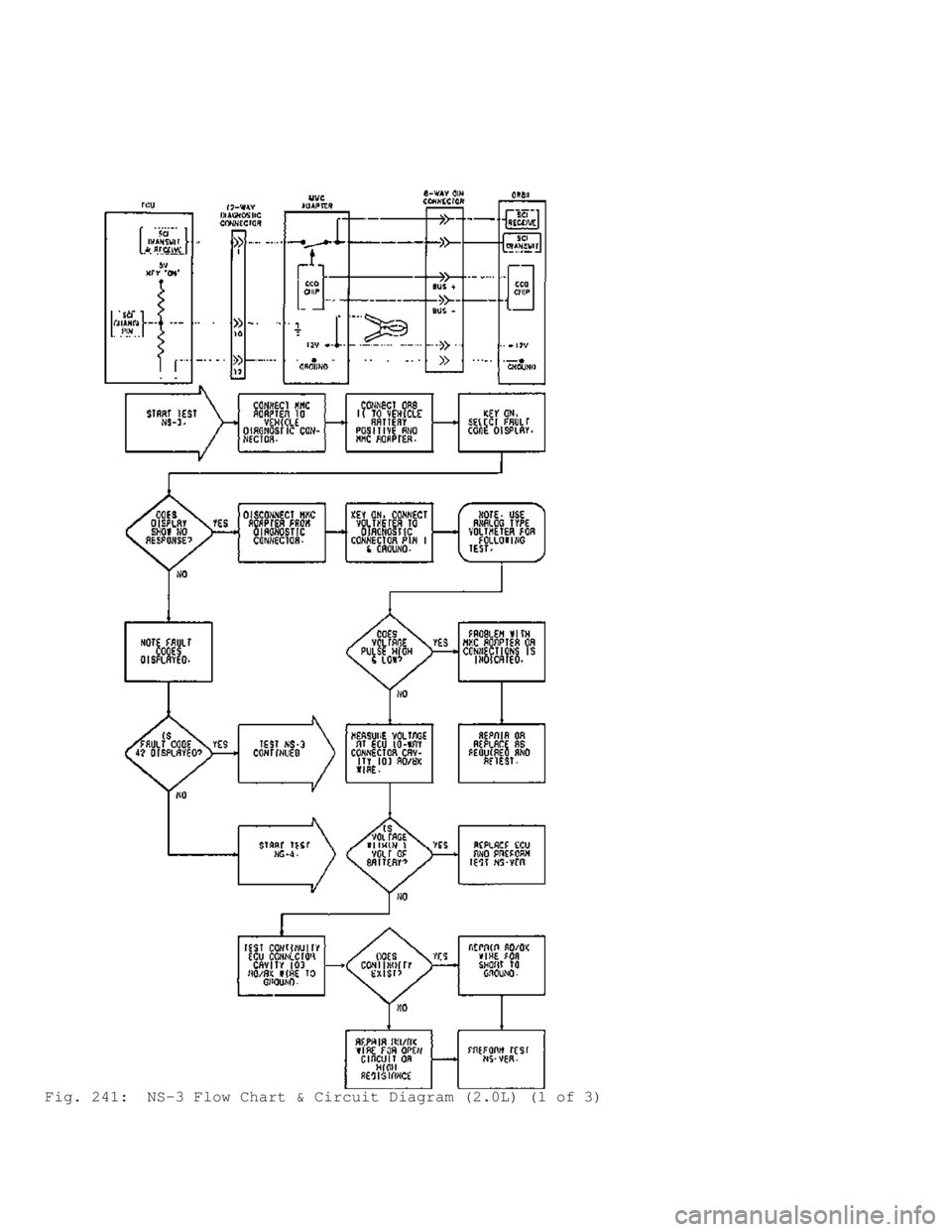

Fig. 243: NS-3 Flow Chart & Circuit Diagram (2.0L) (3 of 3)
NS-4: CHECKING FUEL PUMP OPERATION - 2.0L

Fig. 244: NS-4 Flow Chart & Circuit Diagram (2.0L) (1 of 2)
