Page 665 of 1333

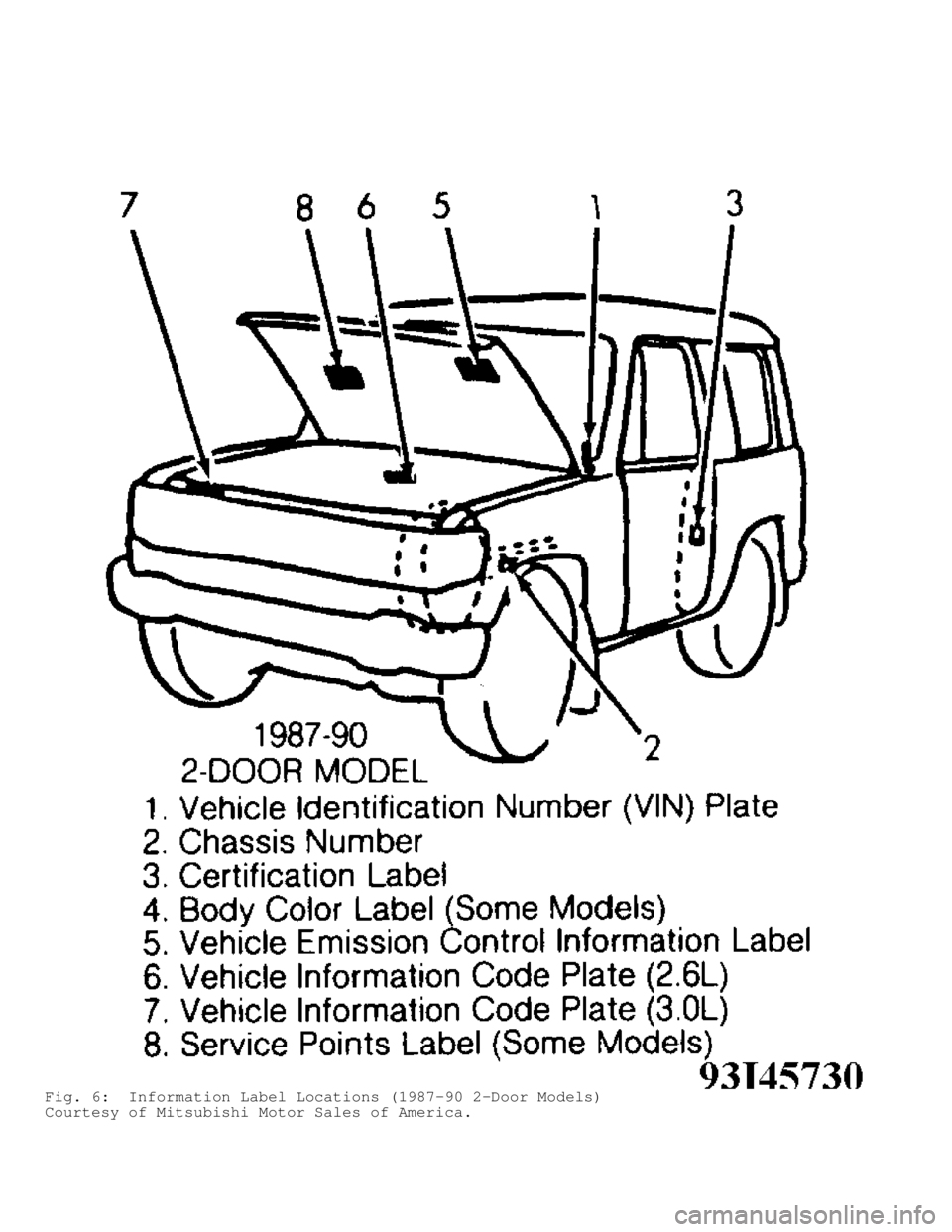

MITSUBISHI MONTERO 1991 Service Manual Fig. 6: Information Label Locations (1987-90 2-Door Models)
Courtesy of Mitsubishi Motor Sales of America.

Page 666 of 1333

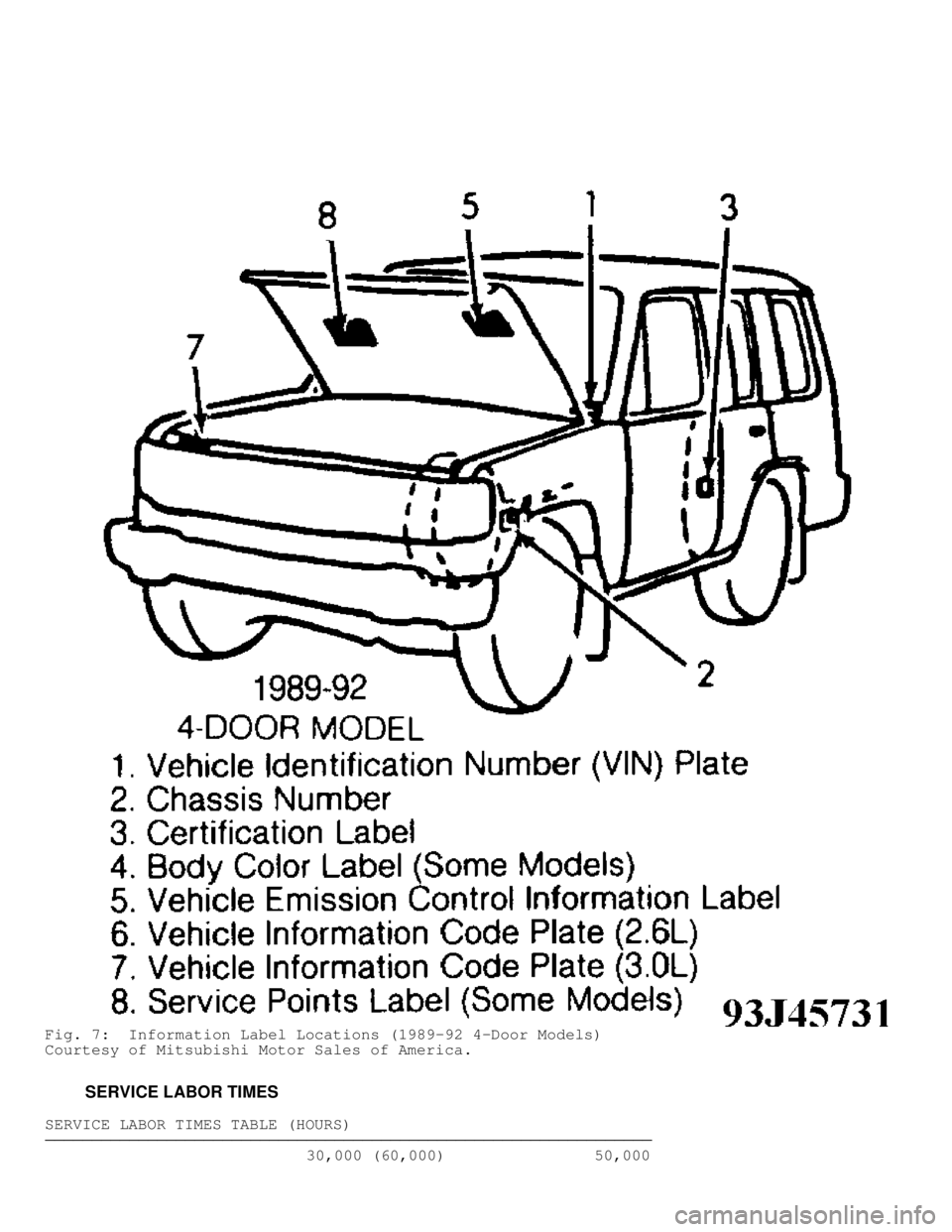

$MITSUBISHI MONTERO 1991 Service Manual Fig. 7: Information Label Locations (1989-92 4-Door Models) Courtesy of Mitsubishi Motor Sales of America. SERVICE LABOR TIMES SERVICE LABOR TIMES TABLE (HOURS)\$

Page 667 of 1333

MITSUBISHI MONTERO 1991 Service Manual Application Mile Service Mile Service
1983-86 2.6L 4-Cylinder
Automatic Transmission .... 7.9 (8.2) ................. 5.2
Manual Transmission ....... 6.9 (7.2) .

Application Mile Service Mile Service
1983-86 2.6L 4-Cylinder
Automatic Transmission .... 7.9 (8.2) ................. 5.2
Manual Transmission ....... 6.9 (7.2) ................. 5.2
1987-90 2.6L 4-Cylinder
Automatic Transmission .... 7.9 (8.9) ................. 2.6
Manual Transmission ....... 6.9 (7.9) ................. 2.6
1989-96 3.0L V6
Automatic Transmission .... 6.1 (10.6) ................ 2.6
Manual Transmission ....... 5.1 (9.6) ................. 2.6
\
\
\
\
\
\
\

LUBRICATION SPECIFICATIONS
LUBRICATION SPECIFICATIONS TABLE\
\
\
\
\
\
\

Application Fluid Specifications
Brake & Clutch Fluid ........................... DOT 3 Or DOT 4
Engine Coolant ............. Ethylene-Glycol Antifreeze Coolant
Engine Oil ( 1)
Minimum Temperature
Greater Than 32
\bF (0\bC) ..... SAE 20W-40 Or 20W-50 API SG/CD
Greater Than -10\bF (-23\bC) .. SAE 10W-30 Or 10W-40 API SG/CD
Maximum Temperature
Less Than 60
\bF (16\bC) ......... SAE 5W-30 Or 5W-40 API SG/CD
Front Axle & Conventional Rear Axle
Minimum Temperature
Greater Than -10
\bF (-23\bC) ..... SAE 85W-90, 80W-90 API GL-5
Maximum Temperature
Less Than -30
\bF (-34\bC) ................... SAE 75W API GL-5
Power Steering Fluid ........................... Dexron-IIE ATF
Rear Axle (With Limited
Slip Differential) ........... Hypoid Gear Oil (8149630EX) Or
Equivalent
Transmission
Automatic .................................... Dexron-IIE ATF
Manual Transaxle &
Transfer Case (4WD) ........... SAE 75W-85W, 75W-90 API GL-5
( 1) - Since temperature ranges for different oil grades overlap,
brief fluctuations in outside temperatures are no cause for
concern.
\
\
\
\
\
\
\

FLUID CAPACITIES
FLUID CAPACITIES TABLE\
\
\
\
\
\
\

Application Quantity
A/C System R-12 Refrigerant
1983-87 .......................................... 24-26 Ozs.
1988-91 ............................................. 32 Ozs.
1992-93 ............................................. 28 Ozs.
A/C System R-134a Refrigerant ( 1)
1994-96 .......................................... 21-23 Ozs.
Automatic Transmission
1984-86 ................................. ( 2) 7.2 Qts. (6.8L)
1987-93 ..................................... 7.6 Qts. (7.2L)
1994-96 (3.0L SOHC) ......................... 7.6 Qts. (7.2L)

Page 668 of 1333

MITSUBISHI MONTERO 1991 Service Manual 1994-96 (3.0L DOHC & 3.5L) .................. 9.0 Qts. (8.5L)
Cooling System
1983-88 ..................................... 8.5 Qts. (8.0L)
1989-96
2.6L ..................................

1994-96 (3.0L DOHC & 3.5L) .................. 9.0 Qts. (8.5L)
Cooling System
1983-88 ..................................... 8.5 Qts. (8.0L)
1989-96
2.6L ....................................... 9.7 Qts. (9.2L)
3.0L ...................................... 10.0 Qts. (9.5L)
3.5L ...................................... 10.0 Qts. (9.5L)
Differential
1983-88 ..................................... 1.9 Qts. (1.8L)
1989-93
2.6L ....................................... 1.9 Qts. (1.8L)
3.0L ....................................... 2.7 Qts. (2.6L)
1994-96
3.0L & 3.5L ................................ 2.7 Qts. (2.6L)
Engine Oil
1983-86 ..................................... 6.0 Qts. (5.8L)
1987 ........................................ 5.2 Qts. (5.0L)
1988 ........................................ 5.0 Qts. (4.8L)
1989-91 ..................................... 5.5 Qts. (5.3L)
1992-96 ..................................... 5.2 Qts. (4.9L)
Power Steering ................................ 1.1 Qts. (1.0L)
Fuel Tank
1983-88 .................................... 15.9 Gals. (60L)
1989-90
2.6L 2-Door ............................... 15.9 Gals. (60L)
3.0L 2-Door ............................... 19.9 Gals. (75L)
2.6L & 3.0L 4-Door .......................... 24 Gals. (92L)
1991-96 ...................................... 24 Gals. (92L)
Manual Transmission
1983-91 ..................................... 2.3 Qts. (2.2L)
1992 ........................................ 2.4 Qts. (2.3L)
1993-96 ..................................... 2.6 Qts. (2.5L)
Transfer Case
1983-91 ..................................... 2.3 Qts. (2.2L)
1992-96 ..................................... 2.4 Qts. (2.3L)
(1) - Use of R12 in a R134a system will result in SEVERE DAMAGE.
( 2) - 1983 model equipped with manual transmission only.
\
\
\
\
\
\
\

WHEEL & TIRE SPECIFICATIONS
Tire specifications are imprinted on the tire side wall. The
recommended cold tire inflation pressures are listed on a label
attached to the rear face of the driver's door. These pressures
provide the best combination of ride comfort, tire wear and stability
under normal conditions.
CAUTION: DO NOT mix tires of different design such as radial ply
with bias or bias-belted tires. Mixing tire types will
adversely affect road handling and may lead to loss of
vehicle control. When using snow tires, they must be used
in set of four for maneuverability and safety. DO NOT use
tire chains on front wheels.
TIRE & WHEEL SPECIFICATIONS TABLE
\
\
\
\
\
\

Wheel Size Tire Size
1983-86
15 x 6JJ (Steel) .............................. 215 SR15
1987-88

Page 669 of 1333

MITSUBISHI MONTERO 1991 Service Manual 15 x 6JJ (Steel) ........................... P225/75 R15
1989-1996
15 x 6JJ (Steel) ........................... P225/75 R15
15 x 6JJ (Steel or Aluminum) ............... P235/75 R15
15 X

15 x 6JJ (Steel) ........................... P225/75 R15
1989-1996
15 x 6JJ (Steel) ........................... P225/75 R15
15 x 6JJ (Steel or Aluminum) ............... P235/75 R15
15 X 7JJ (Aluminum) ........................ 31-10.50R15
\
\
\
\
\
\

TIRE INFLATION SPECIFICATIONS TABLE\
\
\
\
\
\

Application Pressure
psi (kg/cm )
1983-88
Front ( 1) ..................................... 26 (1.8)
Rear .......................................... 34 (2.3)
Rear ...................................... ( 2) 26 (1.8)
1989-91
Front ( 1) ..................................... 26 (1.8)
Rear .......................................... 35 (2.4)
Rear ...................................... ( 2) 26 (1.8)
1992-96
P235/75R15
Front ........................................ 26 (1.8)
Rear ......................................... 35 (2.4)
31-10.50R15
Front ........................................ 29 (2.1)
Rear ......................................... 40 (2.8)
( 1) - No chain clearance.
( 2) - Inflation pressure for better ride comfort when
driving with no cargo.
\
\
\
\
\
\

WHEEL TIGHTENING
WHEEL TIGHTENING SPECIFICATIONS TABLE\
\
\
\
\
\

Application Ft. Lbs. (N.m.)
1983 ....................................... 50-57 (70-80)
1984-96 .................................. 72-87 (100-120)
\
\
\
\
\
\

BATTERY SPECIFICATIONS
CAUTION: When battery is disconnected, vehicles equipped with
computers may lose memory data. When battery power is
restored, driveability problems may exist on some vehicles.
These vehicles may require a relearn procedure. See
COMPUTER RELEARN PROCEDURES article in the GENERAL
INFORMATION Section.
Battery is maintenance-free and does not normally require
additional water. However, under severe conditions it is advisable to
check battery fluid periodically. Use only distilled water to fill
battery cell should it become necessary to add water. Charge condition
can be checked by a visual test indicator on top of battery.
BATTERY REPLACEMENT SPECIFICATIONS TABLE
\
\
\
\
\
\

Application BCI Group Number

Page 670 of 1333

MITSUBISHI MONTERO 1991 Service Manual 2.6L Engine ........................................... 45
2.6L Optional ......................................... 45
3.0L V6 ........................................... (1) 24
3.5L V6 ........

2.6L Engine ........................................... 45
2.6L Optional ......................................... 45
3.0L V6 ........................................... (1) 24
3.5L V6 ........................................... ( 1) 24
( 1) - Check hood clearance on 1986 and newer models.
\
\
\
\
\
\

CAUTIONS & WARNINGS
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) AIR BAG SYSTEM
NOTE: See the AIR BAG RESTRAINT SYSTEM article in the
ACCESSORIES/SAFETY EQUIPMENT Section.
The SRS has no user-servicable parts. Always have servicing
done by an authorized dealer.
When performing maintenance on air bag equipped vehicles
always observe proper safety precautions.
WARNING: To avoid injury from accidental air bag deployment, read and
carefully follow all warnings and service precautions. See
appropriate AIR BAG RESTRAINT SYSTEM article in the
ACCESSORIES/SAFETY EQUIPMENT section.
CAUTION: Disconnect negative battery cable before servicing any air
bag system, steering column or passenger side dash
component. After any repair, turn ignition key to the ON
position from passenger's side of vehicle in case of
accidental air bag inflation
ANTI-LOCK BRAKE SYSTEM (ABS)
CAUTION: Never mix different diameter tires. On loose or uneven
surfaces, the ABS system may require longer stopping
distances than conventional brake systems. Exercise caution
when removing mud or snow from the wheels so as not to
damage the ABS wiring or speed sensors.
BATTERY WARNING
WARNING: When battery is disconnected, vehicles equipped with
computers may lose memory data. When battery power is
restored, driveability problems may exist on some vehicles.
These vehicles may require a relearn procedure. See
appropriate COMPUTER RELEARN PROCEDURES article in the
GENERAL INFORMATION section below.
REPLACING BLOWN FUSES
Before replacing a blown fuse, remove ignition key, turn off
all lights and accessories to avoid damaging the electrical system. Be
sure to use fuse with the correct indicated amperage rating. The use
of an incorrect amperage rating fuse may result in a dangerous
electrical system overload.
BRAKE PAD WEAR INDICATOR
Indicator will cause a squealing or scraping noise, warning
that brake pads need replacement.

Page 671 of 1333

MITSUBISHI MONTERO 1991 Service Manual CATALYTIC CONVERTER
Continued operation of vehicle with a severe malfunction
could cause converter to overheat, resulting in possible damage to
converter and vehicle.
COOLAN

CATALYTIC CONVERTER
Continued operation of vehicle with a severe malfunction
could cause converter to overheat, resulting in possible damage to
converter and vehicle.
COOLANT (PROPYLENE-GLYCOL FORMULATIONS)
CAUTION: To avoid possible damage to vehicle use only ethylene-glycol
based coolants with a mixture ratio from 44-68% anti-freeze.
DO NOT use 100% anti-freeze as it will cause the formation
of cooling system deposits. This results in coolant
temperatures of over 300
\b F (149\bC) which can melt plastics.
100% anti-freeze has a freeze point of only -8\b F (-22\bC).
CAUTION: Propylene-Glycol Mixtures has a smaller temperature range
than Ethylene-Glycol. The temperature range (freeze-boil)
of a 50/50 Anti-Freeze/Water Mix is as follows:
Propylene-Glycol -26
\b F (-32\bC) - 257\b F (125\bC)
Ethylene-Glycol -35\b F (-37\bC) - 263\b F (128\bC)
CAUTION: Propylene-Glycol/Ethylene-Glycol Mixtures can cause the
destabilization of various corrosion inhibitors. Also
Propylene-Glycol/Ethylene-Glycol has a different specific
gravity than Ethylene-Glycol coolant, which will result in
inaccurate freeze point calculations.
ELECTROSTATIC DISCHARGE SENSITIVE (ESD) PARTS
WARNING: Many solid state electrical components can be damaged by
static electricity (ESD). Some will display a warning label,
but many will not. Discharge personal static electricity by
touching a metal ground point on the vehicle prior to
servicing any ESD sensitive component.
ENGINE OIL
CAUTION: Never use non-detergent or straight mineral oil.
FUEL SYSTEM SERVICE
WARNING: Relieve fuel system pressure prior to servicing any fuel
system component (fuel injection models).
HALOGEN BULBS
WARNING: Halogen bulbs contain pressurized gas which may explode if
overheated. DO NOT touch glass portion of bulb with bare
hands. Eye protection should be worn when handling or working
around halogen bulbs.
RADIATOR CAP
CAUTION: Always disconnect the fan motor when working near the
radiator fan. The fan is temperature controlled and could
start at any time even when the ignition key is in the OFF
position. DO NOT loosen or remove radiator cap when cooling
system is hot.
RADIATOR FAN

Page 672 of 1333

MITSUBISHI MONTERO 1991 Service Manual WARNING: Keep hands away from radiator fan. Fan is controlled by a
thermostatic switch which may come on or run for up to
15 minutes even after engine is turned off.
WARRAN

WARNING: Keep hands away from radiator fan. Fan is controlled by a
thermostatic switch which may come on or run for up to
15 minutes even after engine is turned off.
WARRANTY INFORMATION
CAUTION: Always refer to customer's copy of warranty information for
specific model application and/or coverage limitations.
NEW VEHICLE LIMITED WARRANTY
Covers all manufacturer-installed parts and components for
any repairs, replacements or adjustments needed to correct defects in
materials or workmanship under normal use and maintenance for 36
months or 36,000 miles, whichever comes first, from date of delivery
to the first retail buyer or first date of use.
POWERTRAIN LIMITED WARRANTY
Upon expiration of New Vehicle Limited Warranty, this
warranty covers powertrain against defects in materials or workmanship
up to a maximum of 36 months or 50,000 miles, whichever occurs first.
On 1991-96 models, warranty period is extended to 5 years or 60,000
miles, whichever occurs first. See copy of warranty for specific
components covered.
BATTERY WARRANTY
Covers replacement of original battery for 12 months or 12,
000 miles, whichever occurs first.
AIR CONDITIONER WARRANTY
Covers manufacturer's air conditioners for 36 months or 36,
000 miles, whichever occurs first. Air conditioner refrigerant charge
is covered for the first 12 months or 12,000 miles, whichever occurs
first. On 1992-96 models, refrigerant is covered only as part of a
warranty repair.
ANTI-CORROSION PERFORATION LIMITED WARRANTY
Covers any body sheet metal panel found to have developed
perforation (rust-through) due to corrosion for 5 years regardless of
mileage. Outer panel coverage extends to 7 years or 100,000 miles,
whichever occurs first, on 1992-96 models.
EMISSION SYSTEM DEFECT WARRANTY (EXCEPT CALIFORNIA)
Warrants that the vehicle was designed, built and equipped to
conform at the time of sale with all applicable U.S. emission
standards. Covers any repairs needed to correct defects in materials
or workmanship which would cause the vehicle not to meet these
standards for 5 years or 50,000 miles, whichever occurs first.
EMISSION SYSTEM PERFORMANCE WARRANTY (EXCEPT CALIFORNIA)
Covers all repairs, adjustments, or replacements if vehicle
has been maintained in accordance with the prescribed scheduled
maintenance instructions and fails to conform to applicable emission
standards and such failure results or will result in the vehicle owner
having to bear any penalty or other sanctions under local, state or

Load next 8 pages

Page: < prev 1-10 ... 633-640 641-648 649-656 657-664 665-672 673-680 681-688 689-696 697-704 ... 1336 next >

engine oil capacity sat nav turn signal key fob battery refrigerant type oil pressure
