1991 MITSUBISHI MONTERO Service Manual

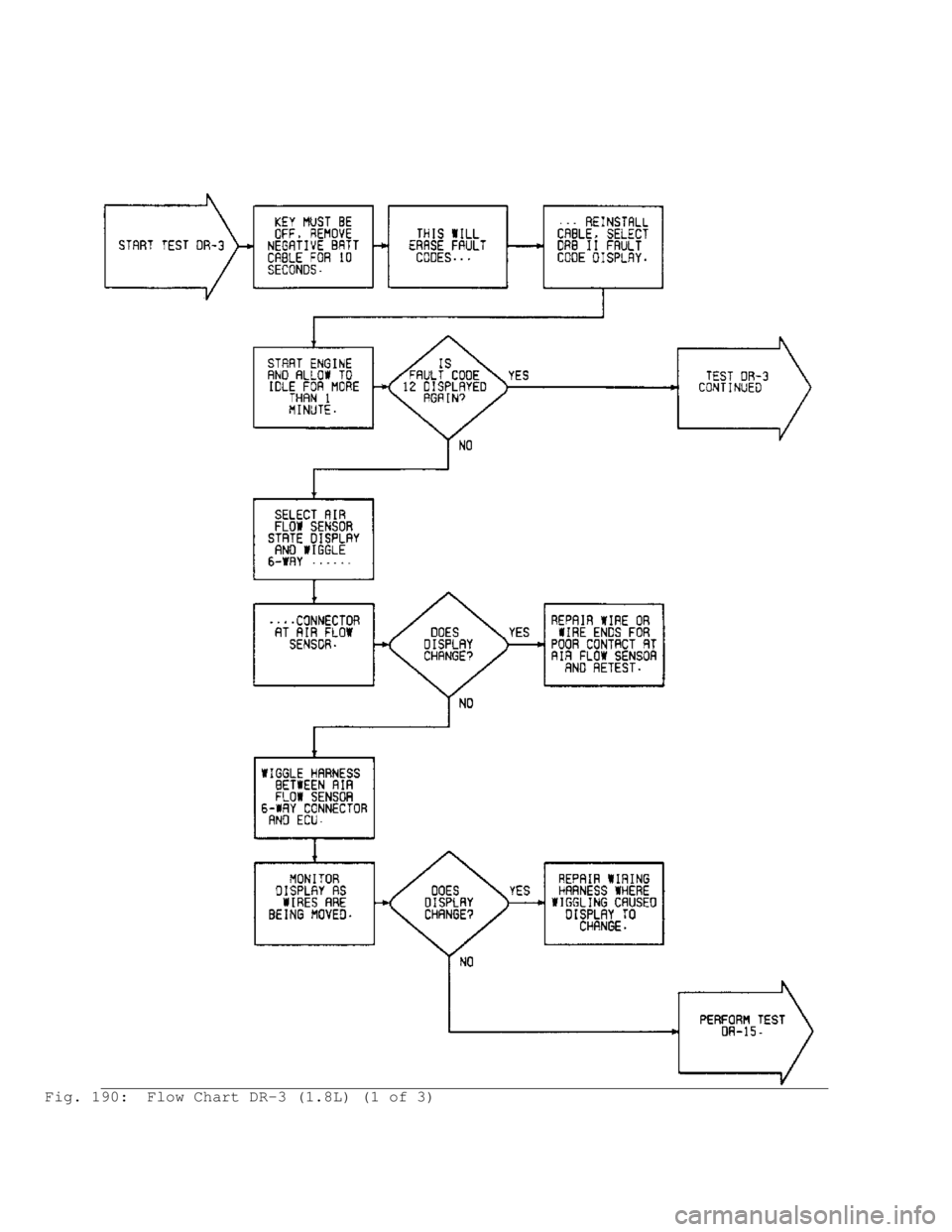

Fig. 190: Flow Chart DR-3 (1.8L) (1 of 3)

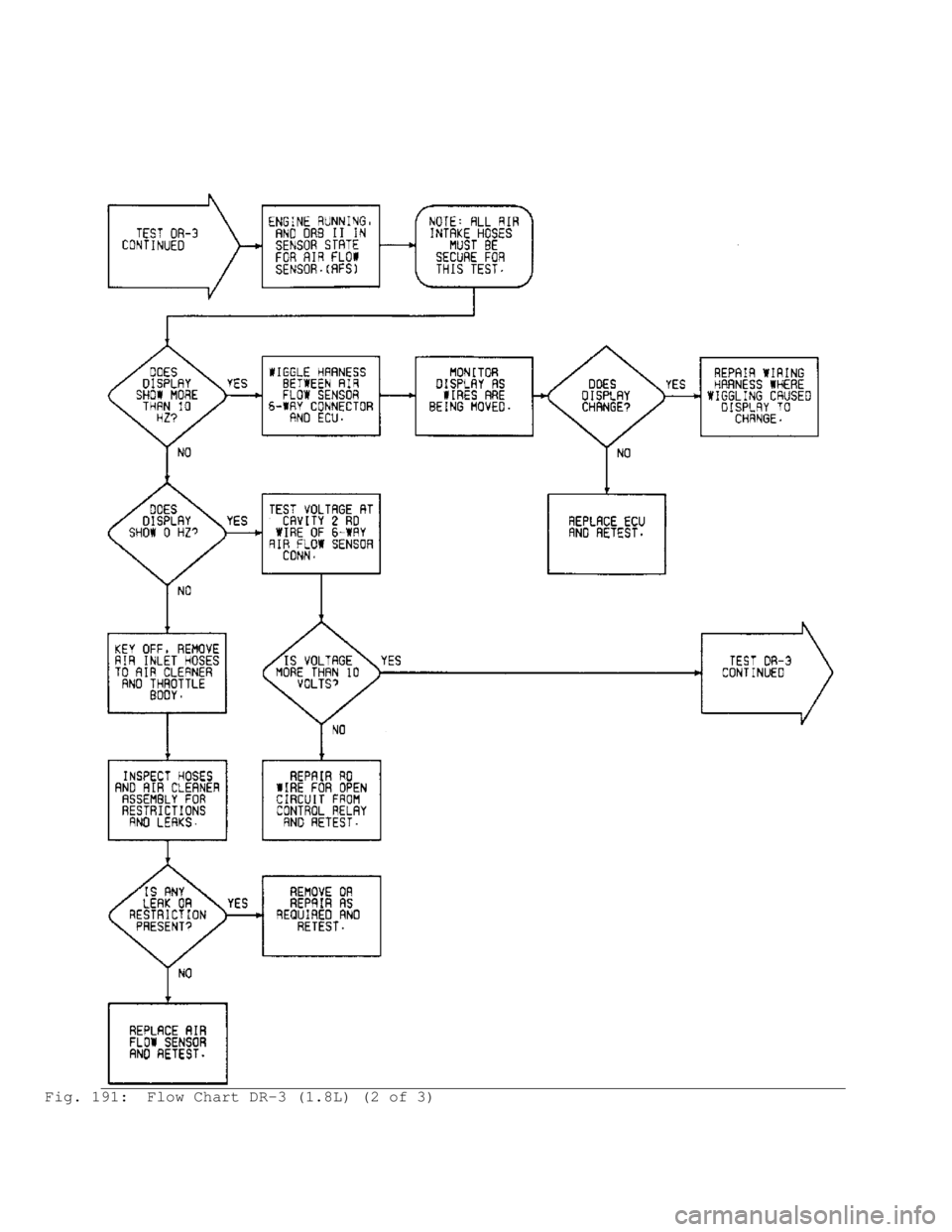

Fig. 191: Flow Chart DR-3 (1.8L) (2 of 3)

Fig. 192: Flow Chart DR-3 (1.8L) (3 of 3)
DR-4: CODE 13 INTAKE AIR TEMP. SENSOR CIRCUIT - 1.8L

Fig. 193: Circuit Diagram DR-4 (1.8L)
Fig. 194: Flow Chart DR-4 (1.8L)
DR-5: CODE 14 THROTTLE POSITION SENSOR CIRCUIT - 1.8L

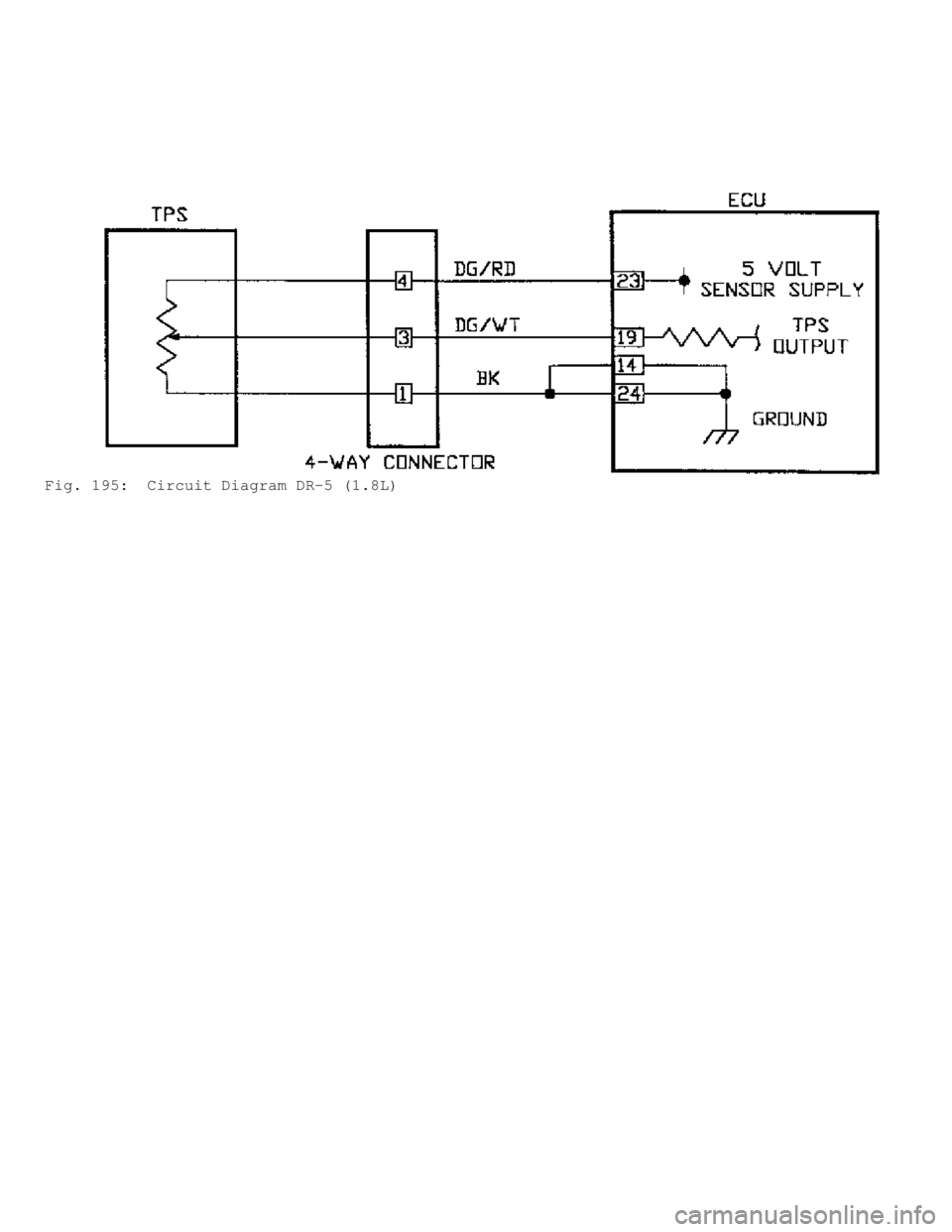

Fig. 195: Circuit Diagram DR-5 (1.8L)

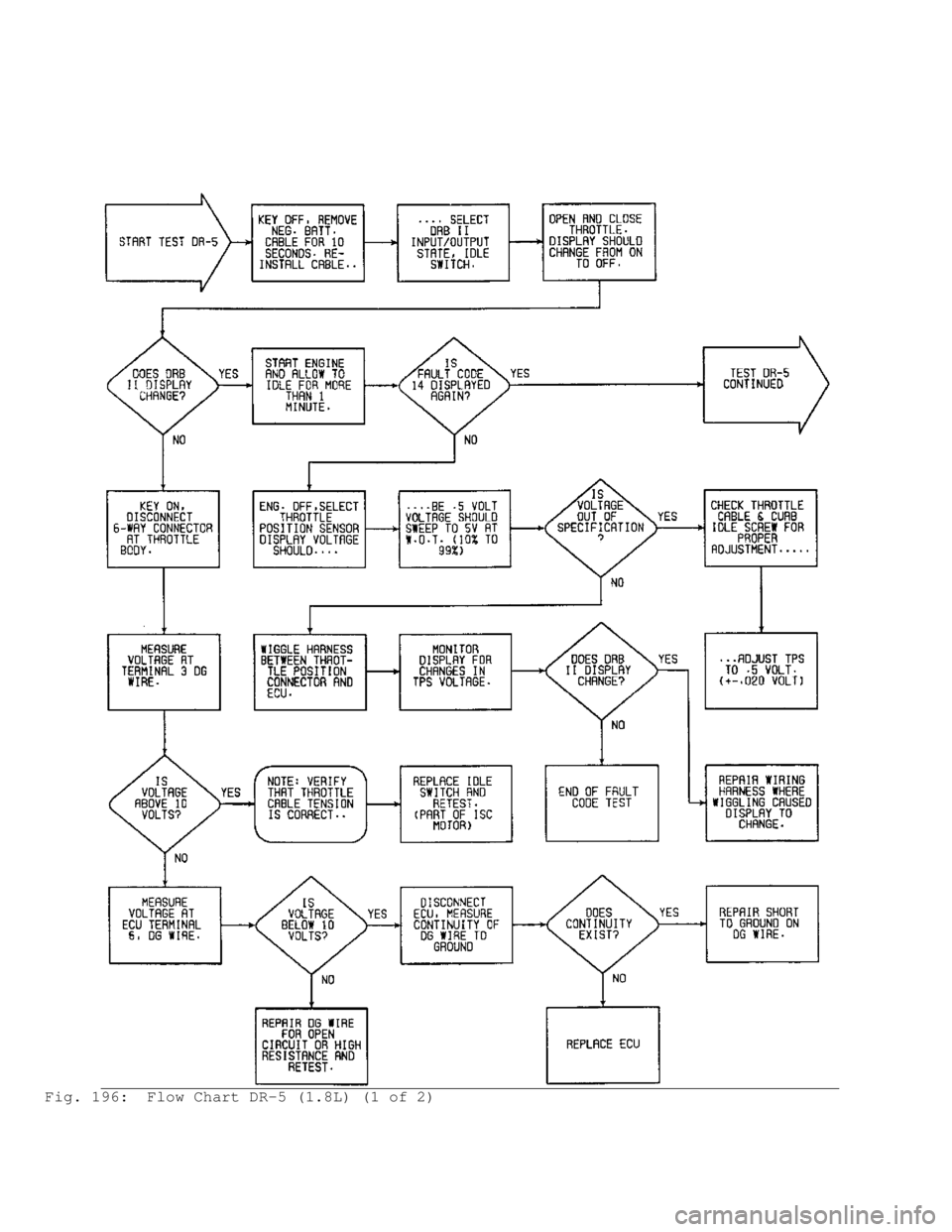

Fig. 196: Flow Chart DR-5 (1.8L) (1 of 2)

Fig. 197: Flow Chart DR-5 (1.8L) (2 of 2)
DR-6: CODE 15 MOTOR POSITION SENSOR CIRCUIT - 1.8L

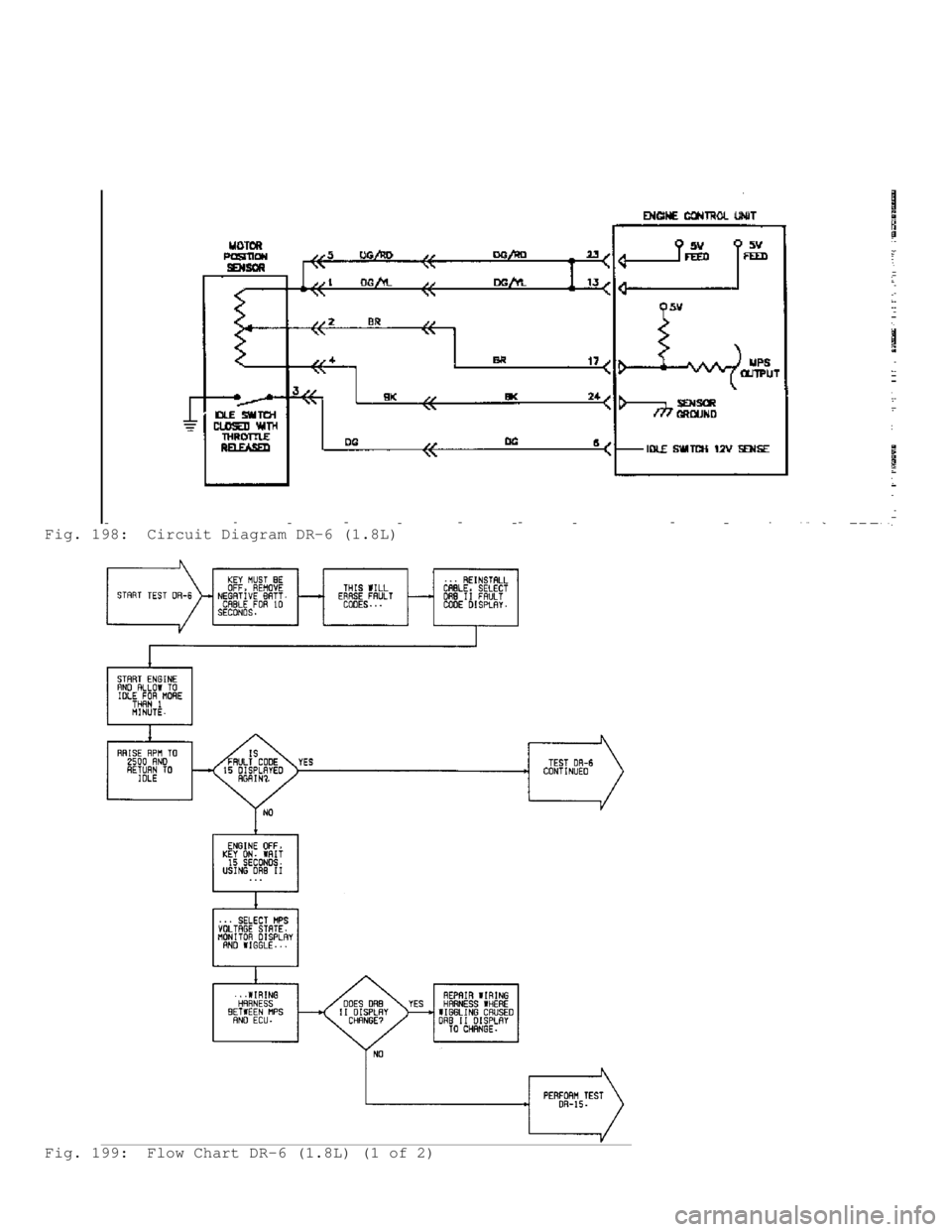

Fig. 198: Circuit Diagram DR-6 (1.8L)
Fig. 199: Flow Chart DR-6 (1.8L) (1 of 2)
