Page 3121 of 4083

SCS-38
< SYMPTOM DIAGNOSIS >
SUSPENSION CONTROL SYSTEM DOES NOT LOWER
SUSPENSION CONTROL SYSTEM DOES NOT LOWER
DescriptionINFOID:0000000001732007
The suspension control system does not lower the vehicle in accordance with ride height changes.
Diagnosis ProcedureINFOID:0000000001732008
1.SUSPENSION CONTROL UNIT PO WER AND GROUND INSPECTION
Check the suspension control unit power and ground supply. Refer to SCS-17, "
SUSPENSION CONTROL
UNIT : Diagnosis Procedure".
Does the suspension control unit power and ground pass inspection?
YES >> GO TO 2
NO >> Repair or replace the malfunctioning part.
2.CHECK HEIGHT SENSOR SIGNAL INPUT
CONSULT-III DATA MONITOR
1. Turn ignition ON.
2. Select "HEIGT SEN" of AI R LEVELIZER data monitor item.
3. Check the monitor status.
Is the height sensor voltage normal?
YES >> GO TO 3
NO >> Check height sensor signal circuit. Refer to SCS-22, "
Diagnosis Procedure" .
3.EXHAUST VALVE SOLENOID CIRCUIT INSPECTION
Check the exhaust valve solenoid circuit. Refer to SCS-23, "
Component Function Check".
Does the exhaust valve solenoid circuit pass inspection?
YES >> Inspect for a restriction in the system . repair or replace the malfunctioning part.
NO >> Repair or replace the malfunctioning part. HEIGT SEN
: 0.2V - 4.8V
Revision: March 2010 2008 QX56
Page 3122 of 4083

PRECAUTIONSSCS-39
< PRECAUTION >
C
DF
G H
I
J
K L
M A
B
SCS
N
O P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000004900823
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the battery, and wait at least 3 minutes before performing any service.
Precaution for Rear SuspensionINFOID:0000000001732010
• When installing the rubber bushings, the final tightening must be done under unladen condition and with thetires on level ground. Oil will shorten the life of the rubber bushings, so wipe off any spilled oil immediately.
• Unladen condition means the fuel tank, engine coolant and lubricants are at the full specification. The spare tire, jack, hand tools, and mats are in their designated positions.
• After installing suspension components, check the wheel alignment.
• Caulking nuts are not reusable. Always use new caulking nuts for installation. New caulking nuts are pre-
oiled, do not apply any additional lubrication.
Revision: March 2010 2008 QX56
Page 3123 of 4083

SE-1
BODY INTERIOR
C
DE
F
G H
I
K L
M
SECTION SE
A
B
SE
N
O P
CONTENTS
SEAT
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
INSPECTION AND ADJUSTMENT .....................5
Preliminary Check ............................................... ......5
FUNCTION DIAGNOSIS ...............................6
THIRD ROW POWER FOLDING SEAT ......... .....6
System Description ............................................. ......6
Component Parts Location ........................................7
Component Description .............................................7
COMPONENT DIAGNOSIS ..........................8
POWER SEAT .....................................................8
Wiring Diagram — Passenger Side — ................ ......8
HEATED SEAT ...................................................12
Description ..............................................................12
Wiring Diagram .......................................................13
THIRD SEAT ......................................................18
Power Supply and Ground Circuit Check for Third
Row Power Folding Seat Control Unit ................. ....
18
Third Row Power Folding Seat Switch ....................19
Third Row Power Folding Seat Motor .....................19
ECU DIAGNOSIS .........................................21
THIRD ROW POWER FOLDING SEAT CON-
TROL UNIT .........................................................
21
Reference Value ................................................. ....21
Wiring Diagram .......................................................23
DTC Index ...............................................................28
Fail Safe ..................................................................29
SYMPTOM DIAGNOSIS ..............................30
THIRD ROW POWER FOLDING SEAT ......... ....30
Symptom Table ................................................... ....30
NONE OF THE THIRD ROW POWER FOLD-
ING SEATS WILL OPERATE WITH ANY
SWITCH. ............................................................
31
None of the Third Row Power Folding Seats Will
Operate With Any Third Row Power Folding Seat
Switch .................................................................. ....
31
ONLY ONE THIRD ROW POWER FOLDING
SEAT WILL OPERATE. ....................................
32
Only One Third Row Power Folding Seat Will Op-
erate .................................................................... ....
32
THIRD ROW POWER FOLDING SEAT WILL
OPERATE IN ONLY ONE DIRECTION. ...........
34
Third Row Power Folding Seat Will Operate in
Only One Direction .............................................. ....
34
THIRD ROW POWER FOLDING SEAT WILL
STOP SHORT OF IT’S FULLY UP OR DOWN
POSITION. .........................................................
35
Third Row Power Folding Seat Stops Short of its
Fully Up or Down Position .......................................
35
THIRD ROW POWER FOLDING SEAT
MAKES EXCESSIVE NOISE WHILE MOV-
ING. ...................................................................
36
Third Row Power Folding Seat Makes Excessive
Noise While Moving ............................................. ....
36
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................
37
Work Flow ................................................................37
Generic Squeak and Rattle Troubleshooting ...........39
Diagnostic Worksheet ..............................................41
PRECAUTION ..............................................43
PRECAUTIONS .................................................43
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ....
43
Revision: March 2010 2008 QX56
Page 3124 of 4083

SE-2
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ..................................
43
Precaution for Work ................................................44
PREPARATION ...........................................45
PREPARATION .............................................. ...45
Special Service Tool ............................................ ...45
Commercial Service Tool .......................................45
ON-VEHICLE REPAIR ................................46
FRONT SEAT ................................................. ...46
Exploded View ..................................................... ...46
Removal and Installation ........................................49
SECOND SEAT .................................................50
Exploded View ..................................................... ...50
Removal and Installation ........................................54
THIRD SEAT ......................................................55
W/O Power Folding ............................................. ...55
Exploded View ........................................................55
LH Side Seat ..........................................................58
RH Side Seat ....................................................... ...59
Power Folding .........................................................60
Exploded View ........................................................60
LH Side Seat ...........................................................62
Power seat cross beam ..........................................63
RH Side Seat ..........................................................67
DISASSEMBLY AND ASSEMBLY ............68
FRONT SEAT ................................................. ...68
Exploded View ..................................................... ...68
Disassembly and Assembly ....................................71
SECOND SEAT .................................................74
Disassembly and Assembly ................................. ...74
THIRD SEAT ......................................................79
W/O Power Folding .............................................. ...79
Exploded View ........................................................79
LH Side Seat ...........................................................82
Power Folding .........................................................83
Exploded View ........................................................83
LH Side Seat ...........................................................86
Revision: March 2010 2008 QX56
Page 3125 of 4083
DIAGNOSIS AND REPAIR WORKFLOWSE-3
< BASIC INSPECTION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

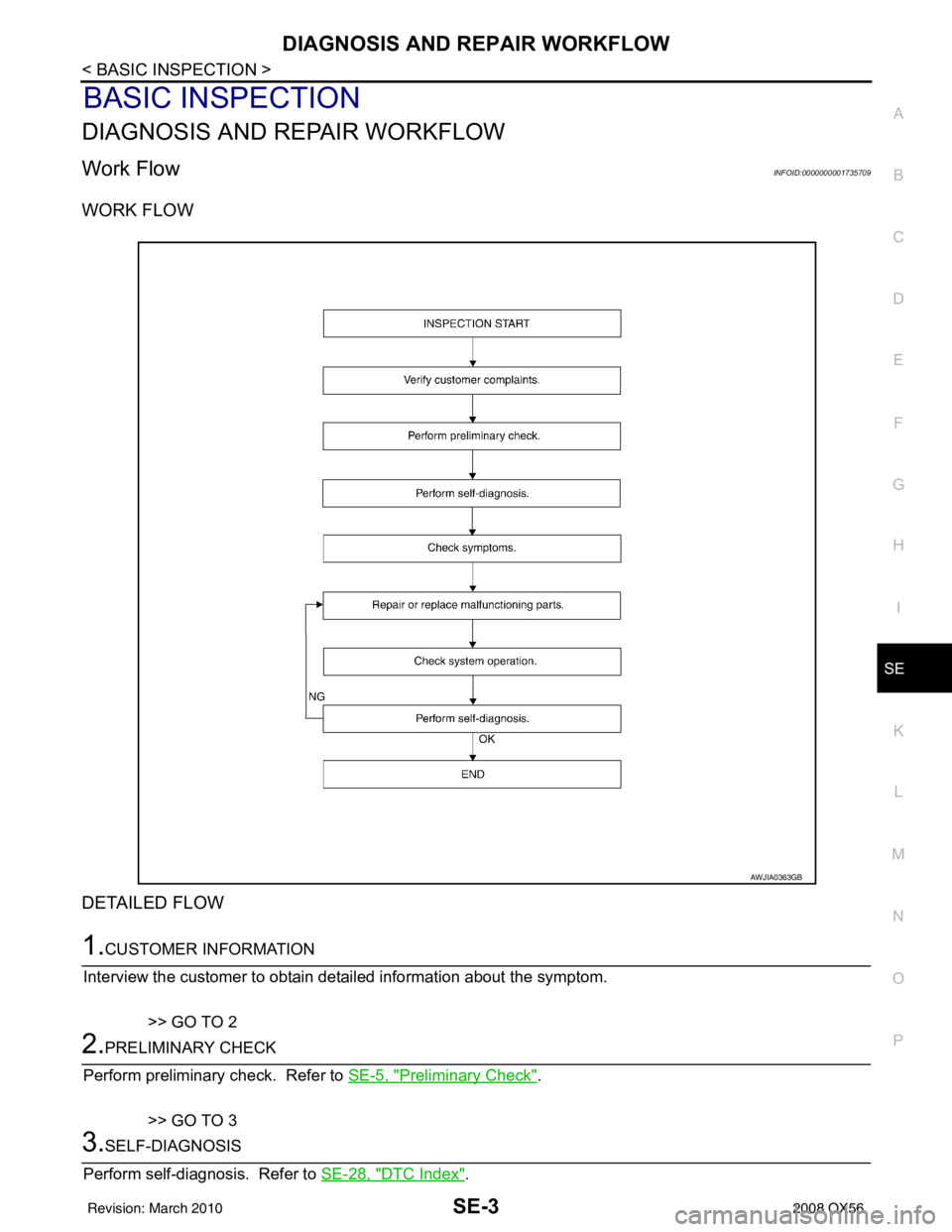

BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001735709
WORK FLOW
DETAILED FLOW
1.CUSTOMER INFORMATION
Interview the customer to obtain detailed information about the symptom.
>> GO TO 2
2.PRELIMINARY CHECK
Perform preliminary check. Refer to SE-5, "
Preliminary Check".
>> GO TO 3
3.SELF-DIAGNOSIS
Perform self-diagnosis. Refer to SE-28, "
DTC Index".
AWJIA0363GB
Revision: March 2010 2008 QX56
Page 3126 of 4083
SE-4
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
>> GO TO 4
4.SYMPTOM
Check for symptoms. Refer to SE-30, "
Symptom Table".
>> GO TO 5
5.MALFUNCTIONING PARTS
Repair or replace the applicable parts.
>> GO TO 6
6.SYSTEM OPERATION
Check system operation.
>> GO TO 7
7.SELF-DIAGNOSIS
Perform self-diagnosis. Refer to SE-28, "
DTC Index".
Are any fault codes indicated?
YES >> GO TO 5
NO >> Inspection End.
Revision: March 2010 2008 QX56
Page 3127 of 4083

INSPECTION AND ADJUSTMENTSE-5
< BASIC INSPECTION >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
INSPECTION AND ADJUSTMENT
Preliminary CheckINFOID:0000000001735710
1.FOREIGN OBJECTS
Check the following:
• objects on or behind the seats that could cause binding
• objects under the seats that may be in terfering with the seat’s moving parts
Are there any foreign objects that could be causing interference with the seats?
YES >> Remove objects.
NO >> GO TO 2.
2.WIRING CONNECTIONS
1. Disconnect third row power folding seat c ontrol unit and seat motor harness connectors.
2. Check terminals for damage or loose connections.
3. Reconnect harness connectors.
Are any connectors damaged or loose?
YES >> Repair or replace damaged parts.
NO >> GO TO 3.
3.POWER AND GROUND
Check power supply and ground circuits for third row power folding seat control unit. Refer to SE-18, "
Power
Supply and Ground Circuit Check for Third Row Power Folding Seat Control Unit".
Is the inspection result normal?
YES >> Refer to SE-28, "DTC Index".
NO >> Repair or replace as necessary.
Revision: March 2010 2008 QX56
Page 3128 of 4083

SE-6
< FUNCTION DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT
FUNCTION DIAGNOSIS
THIRD ROW POWER FOLDING SEAT
System DescriptionINFOID:0000000001735711
The third row power folding seat system is capable of allowing a user to fold up or down either the left or right
third row seat using a set of front or rear mounted switches.
THIRD ROW POWER FOLDIN G SEAT CONTROL UNIT
The third row power folding seat control unit is located in the control
unit/cross beam assembly underneath the LH third row seat. It
receives signals from the third row power folding seat switches, TCM
and the Hall effect switches mounted in the LH and RH seat motors.
The control unit has self-diagnosis capability through chime codes
and may be accessed by turning the ignition switch ON and OFF
three times. The control unit drives the LH and RH seat motors to
fold them up and down.
THIRD ROW POWER FOLDING SEAT SWITCH
The third row power folding seat switches are located in pairs on the
luggage side finisher RH. A switch must be held in order for the seat
to move.
THIRD ROW POWER FOLDING SEAT MOTORS
The third row power folding seat motors are located in the seat
motor/hinge assembly. There are two motors, one for LH and one
for RH seat folding operations. Power and ground are provided to
the motors by the third row power fo lding seat control unit. The con-
trol unit reverses polarity to the motors to raise or lower the seat.
The motors also contain Hall effe ct switches. These switches send
signals back to the control unit which help it determine fully open and
closed positions.
ALJIA0085ZZ
ALJIA0086ZZ
ALJIA0087ZZ
Revision: March 2010 2008 QX56
