Page 3761 of 4083

INFINITI QX56 2008 Factory Service Manual TM-214 < REMOVAL AND INSTALLATION > TRANSMISSION ASSEMBLY REMOVAL AND INSTALLATION TRANSMISSION ASSEMBLY Removal and Installation (2WD)INFOID:0000000004917498 COMPONENTS REMOVAL CAUTION: When removing

Page 3762 of 4083

INFINITI QX56 2008 Factory Service Manual TRANSMISSION ASSEMBLYTM-215 < REMOVAL AND INSTALLATION > CEF G H I J K L M A B TM N O P 8. Remove crankshaft position sens or (POS) from A/T assembly. CAUTION: • Do not subject it to impact by dropp

Page 3763 of 4083

INFINITI QX56 2008 Factory Service Manual TM-216 < REMOVAL AND INSTALLATION > TRANSMISSION ASSEMBLY • When installing transmission to the engine, attach the bolts in the order as shown.CAUTION: • When replacing an engine or transmission

Page 3764 of 4083

INFINITI QX56 2008 Factory Service Manual TRANSMISSION ASSEMBLYTM-217 < REMOVAL AND INSTALLATION > CEF G H I J K L M A B TM N O P REMOVAL CAUTION: When removing the A/T assembly from engine, firs t remove the crankshaft position sensor (POS)

Page 3765 of 4083

INFINITI QX56 2008 Factory Service Manual TM-218 < REMOVAL AND INSTALLATION > TRANSMISSION ASSEMBLY 8. Remove crankshaft position sensor (POS) from A/T assembly.CAUTION: • Do not subject it to impact by dropping or hitting it. • Do not di

Page 3766 of 4083

INFINITI QX56 2008 Factory Service Manual TRANSMISSION ASSEMBLYTM-219 < REMOVAL AND INSTALLATION > CEF G H I J K L M A B TM N O P • After inserting a torque converter to a transmission, be sure to check dimension A to ensure it is within sp

Page 3767 of 4083

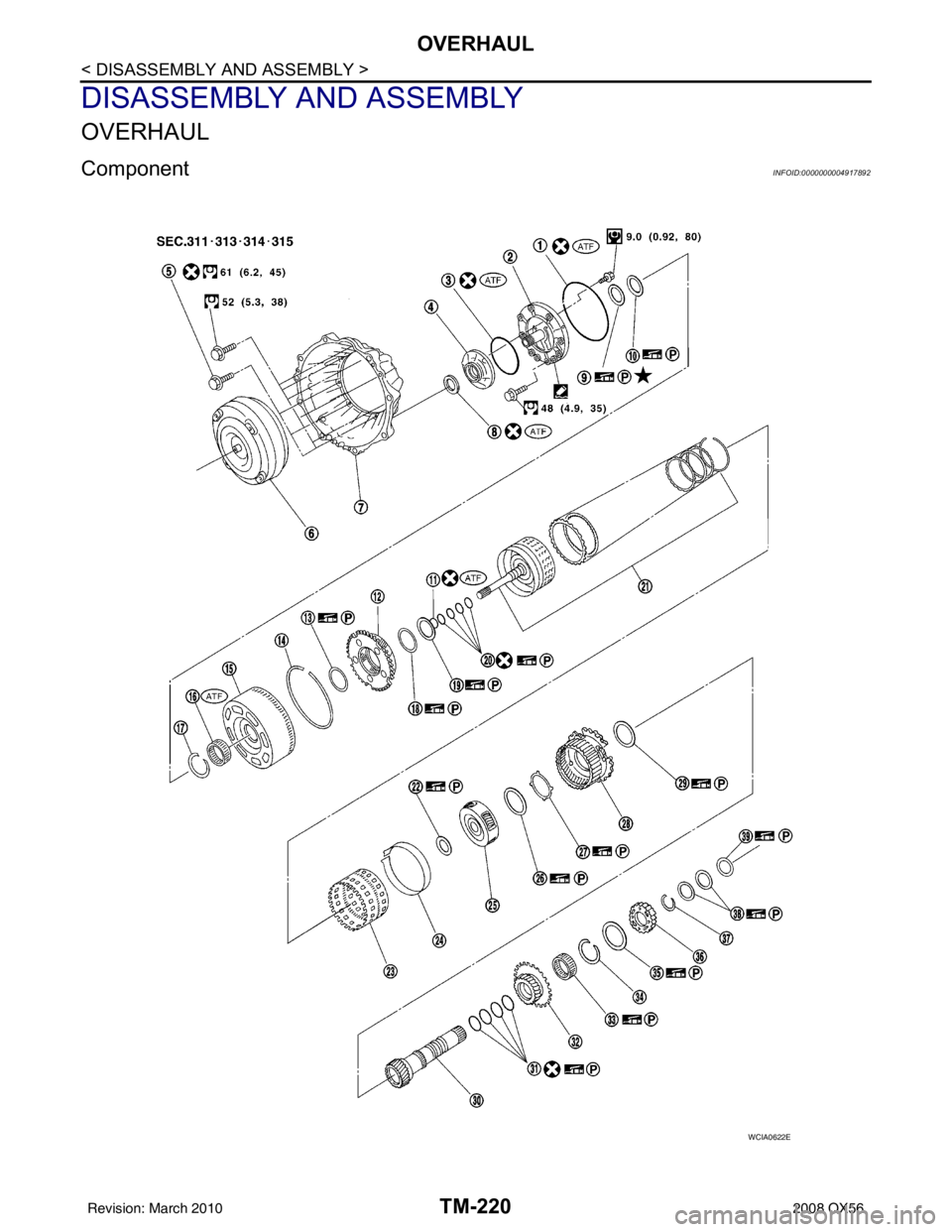

INFINITI QX56 2008 Factory Service Manual TM-220 < DISASSEMBLY AND ASSEMBLY > OVERHAUL DISASSEMBLY AND ASSEMBLY OVERHAUL ComponentINFOID:0000000004917892 WCIA0622E Revision: March 20102008 QX56

Page 3768 of 4083

INFINITI QX56 2008 Factory Service Manual OVERHAULTM-221 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P : Apply Liquid Gasket (Three Bond 1215) or the equivalent. 1. O-ring 2. Oil pump cover3. O-ring 4. Oil pump housing 5. Self-s
