Page 2513 of 4083

INFINITI QX56 2008 Factory Service Manual LAN-18 < BASIC INSPECTION >[CAN FUNDAMENTAL] DIAGNOSIS AND REPAIR WORKFLOW Interview Sheet (Example) COLLECT DATA Collect CONSULT-III Data Print out or save the following CONSULT-III data. • SELF-DI

Page 2514 of 4083

INFINITI QX56 2008 Factory Service Manual LAN DIAGNOSIS AND REPAIR WORKFLOWLAN-19 < BASIC INSPECTION > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N Some items may not be needed depending on CAN system type of vehicle. Create On-board Diagn

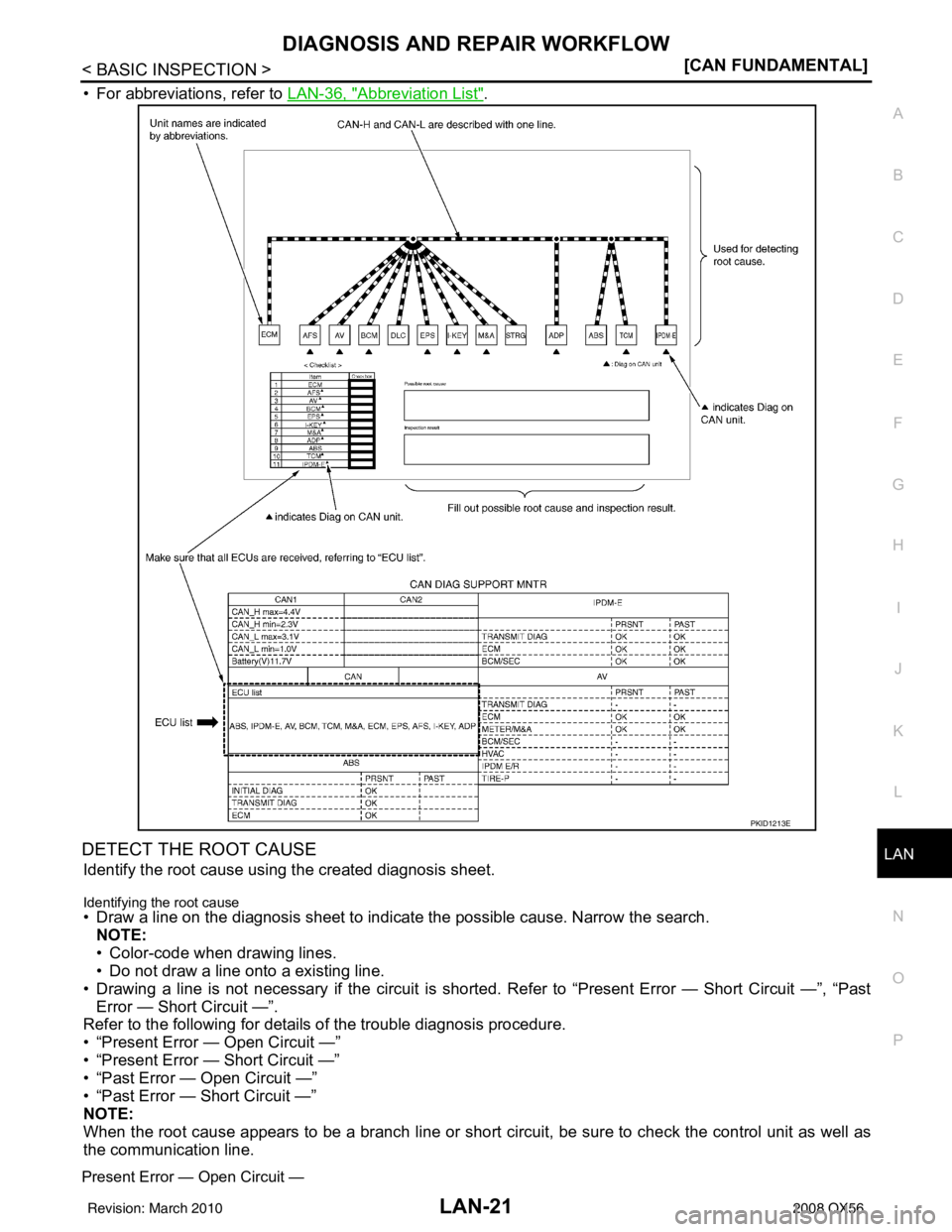

Page 2515 of 4083

INFINITI QX56 2008 Factory Service Manual LAN-20 < BASIC INSPECTION >[CAN FUNDAMENTAL] DIAGNOSIS AND REPAIR WORKFLOW For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-III is not available.) CR

Page 2516 of 4083

INFINITI QX56 2008 Factory Service Manual LAN DIAGNOSIS AND REPAIR WORKFLOWLAN-21 < BASIC INSPECTION > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N • For abbreviations, refer to LAN-36, "Abbreviation List". DETECT THE ROOT CAUSE Identif

Page 2517 of 4083

INFINITI QX56 2008 Factory Service Manual LAN-22 < BASIC INSPECTION >[CAN FUNDAMENTAL] DIAGNOSIS AND REPAIR WORKFLOW Identify the error circuit using information from t he “CAN DIAG SUPPORT MNTR” (“ECU list” included). 1. ECU list: Ch

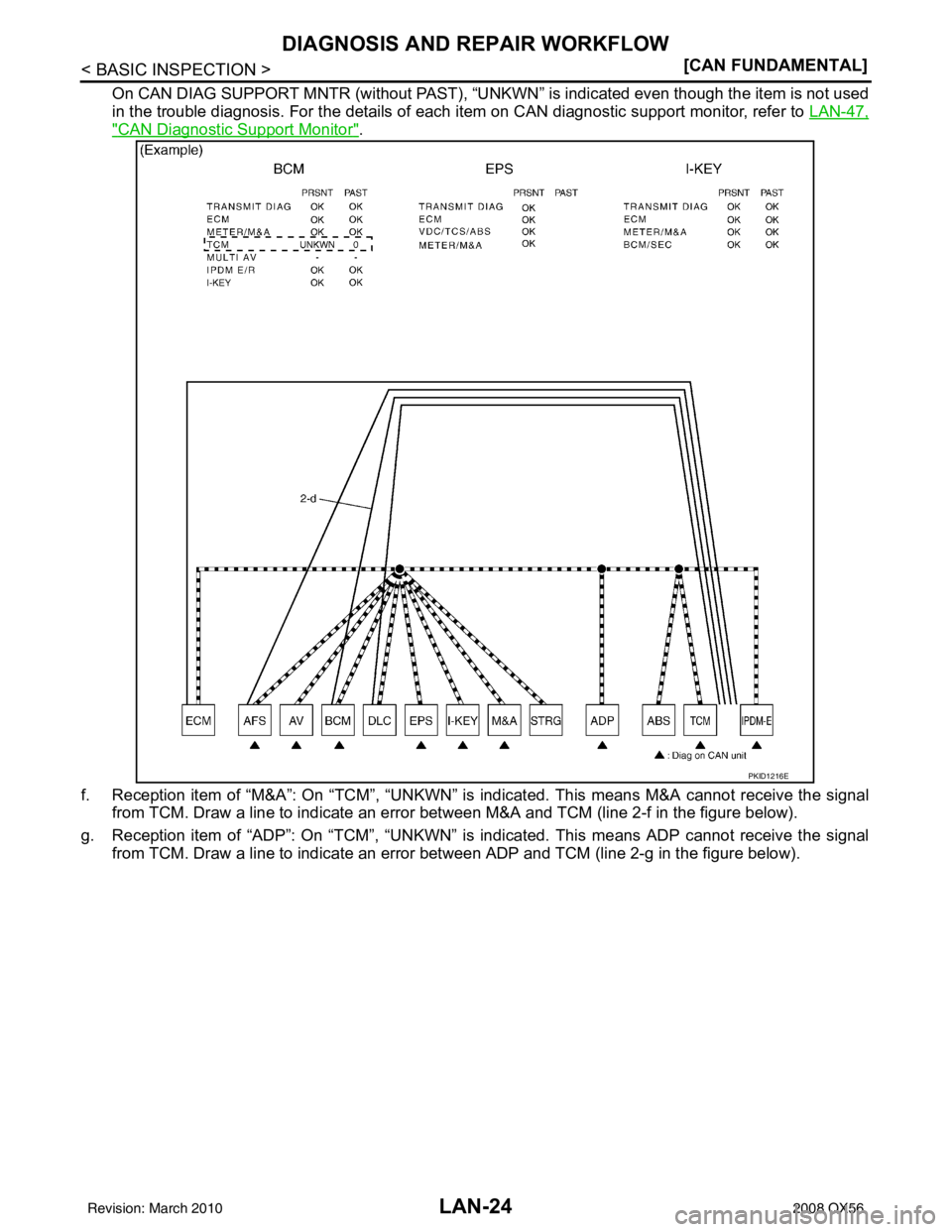

Page 2518 of 4083

INFINITI QX56 2008 Factory Service Manual LAN DIAGNOSIS AND REPAIR WORKFLOWLAN-23 < BASIC INSPECTION > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N c. Reception item of “AV”: “UNKWN” is not indicated. This indicates normal communic

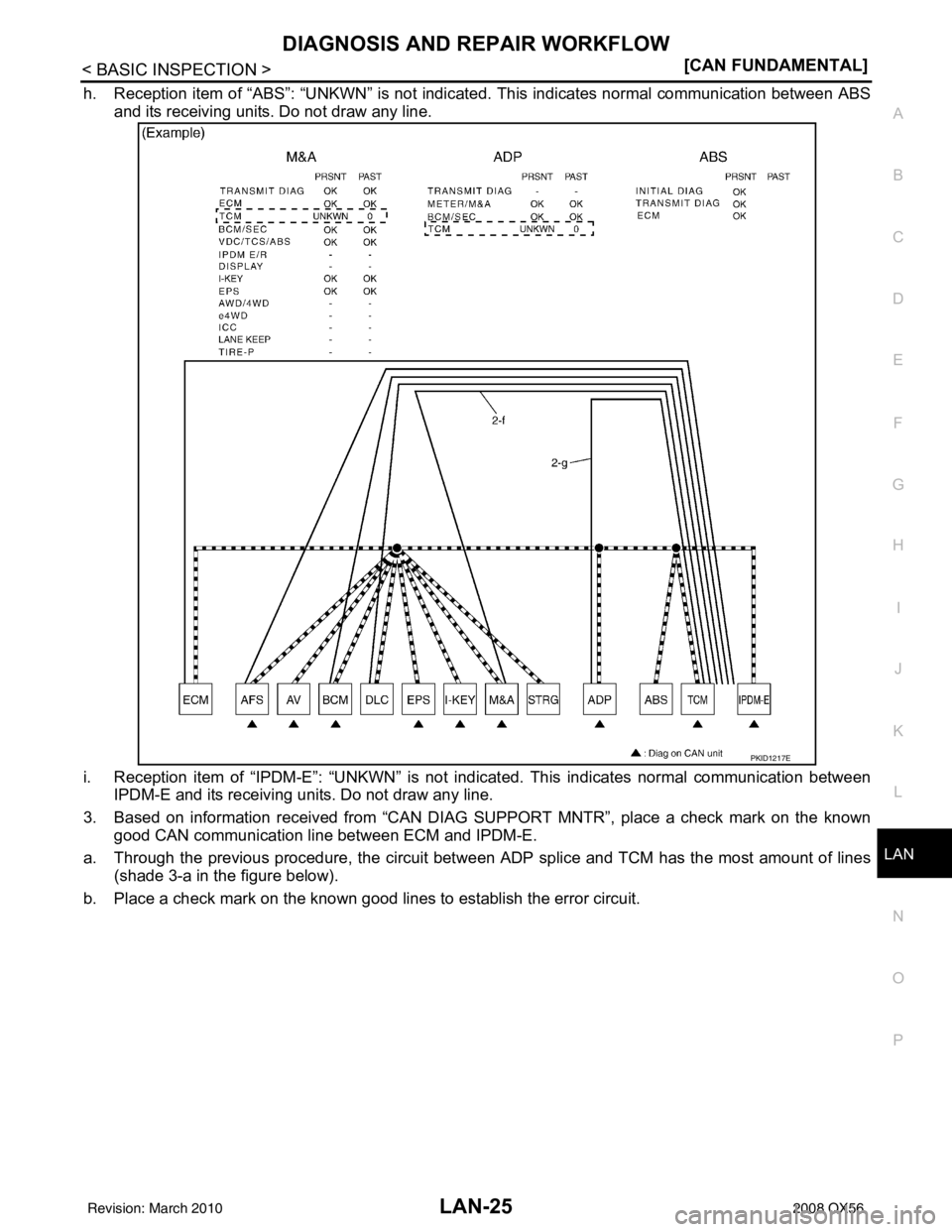

Page 2519 of 4083

INFINITI QX56 2008 Factory Service Manual LAN-24 < BASIC INSPECTION >[CAN FUNDAMENTAL] DIAGNOSIS AND REPAIR WORKFLOW On CAN DIAG SUPPORT MNTR (without PAST), “UNK WN” is indicated even though the item is not used in the trouble diagnosis.

Page 2520 of 4083

INFINITI QX56 2008 Factory Service Manual LAN DIAGNOSIS AND REPAIR WORKFLOWLAN-25 < BASIC INSPECTION > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N h. Reception item of “ABS”: “UNKWN” is not indicated. This indicates normal communi
