2008 INFINITI QX56 Factory Service Manual

wiring diagram overheating wheel service reset octane spark plugs replace

Page 1273 of 4083

INFINITI QX56 2008 Factory Service Manual FRONT OIL SEALDLN-243
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
ON-VEHICLE REPAIR
FRONT OIL SEAL
Removal and InstallationINFOID:0000000001604459
REMOVAL
1. Remove

Page 1274 of 4083

INFINITI QX56 2008 Factory Service Manual DLN-244
< ON-VEHICLE REPAIR >[REAR FINAL DRIVE: R230]
FRONT OIL SEAL
1. Apply multi-purpose grease to the lips of the new front oil seal.
Then drive the new front oil seal in evenly until it becomes f

DLN-244
< ON-VEHICLE REPAIR >[REAR FINAL DRIVE: R230]
FRONT OIL SEAL
1. Apply multi-purpose grease to the lips of the new front oil seal.
Then drive the new front oil seal in evenly until it becomes flush
with the gear carrier using Tool.
CAUTION:
• Do not reuse front oil seal.
• Do not incline the new front oil seal when installing.
• Apply multi-purpose grease to the lips of the new front oilseal.
2. Install the companion flange to the drive pinion while aligning the matching marks.
3. Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut. Then adjust the
drive pinion lock nut tightening torque using Tool A, and check
the total preload torque using Tool B.
• The total preload torque should be within the total preloadtorque specification. When not replacing the collapsible
spacer, it should also be equal to the measurement taken dur-
ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).
• If the total preload torque is low, tighten the drive pinion lock nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total pre-
load torque is met.
CAUTION:
• Do not reuse drive pinion lock nut.
• Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut.
• Adjust the drive pinion lock nut tightening torque to the
lower limit first. Do not exceed the drive pinion lock nut
specified torque. Refer to DLN-251, "
Disassembly and Assembly".
• Do not loosen drive pinion lock nu t to adjust the total preload torque. If the total preload torque
exceeds the specifications, replace the collapsible spacer and tighten it again to adjust. Refer to
DLN-251, "
Disassembly and Assembly".
• After adjustment, rotate drive pinion back and fo rth 2 to 3 times to check for unusual noise, rota-
tion malfunction, and other malfunctions.
4. Installation of the remaining components is in the reverse order of removal. CAUTION:
Check the differential gear oil level after installation. Refer to DLN-242, "
Checking Differential Gear
Oil".
Tool number : ST15310000 ( — )
PDIA0565E
Tool number A: KV40104000 ( — )
B: ST3127S000 (J-25765-A)
Total preload torque: Refer to DLN-268, "
Inspection
and Adjustment".
WDIA0380E
Revision: March 2010 2008 QX56

Page 1275 of 4083

INFINITI QX56 2008 Factory Service Manual SIDE OIL SEALDLN-245
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P

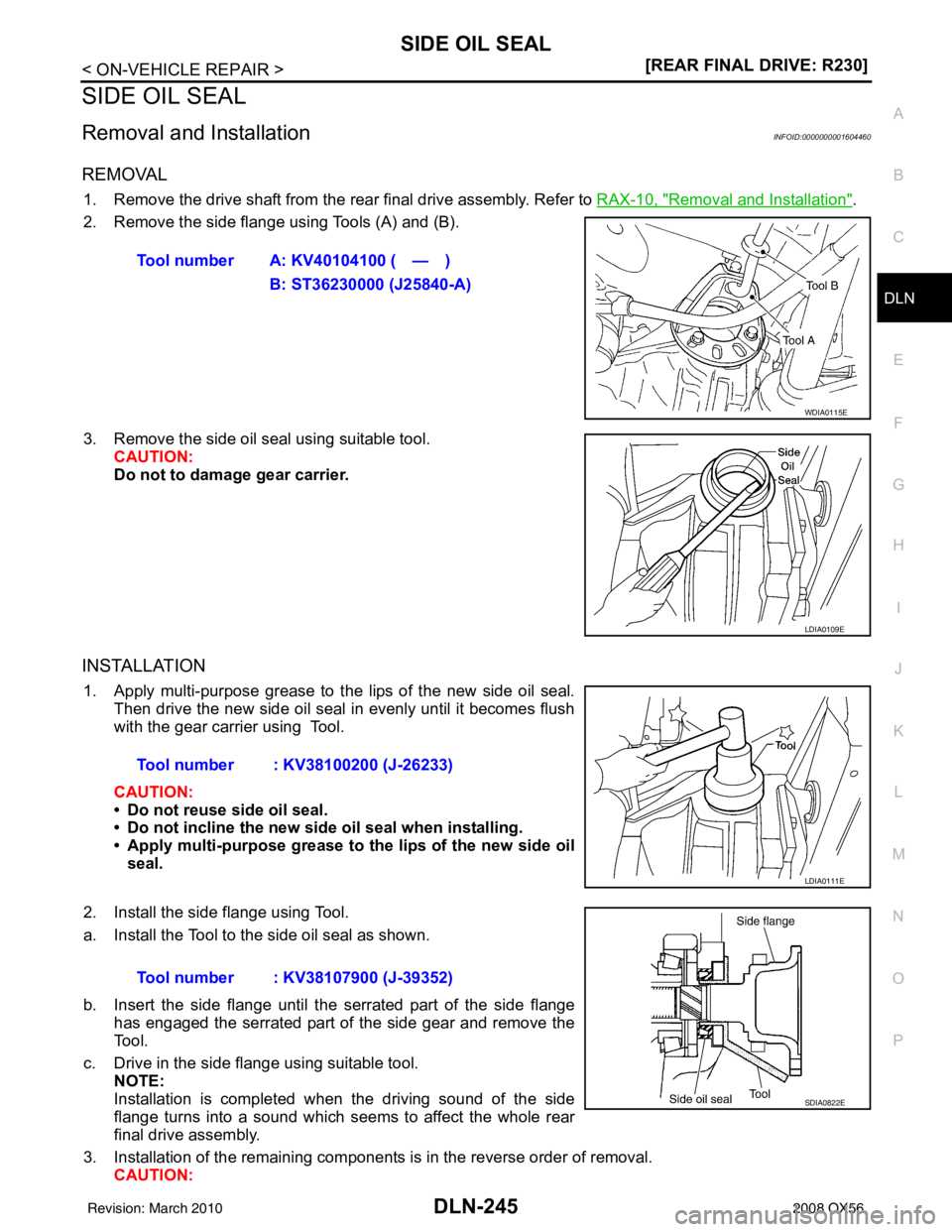

SIDE OIL SEAL
Removal and InstallationINFOID:0000000001604460
REMOVAL
1. Remove the drive shaft fro

Page 1276 of 4083

INFINITI QX56 2008 Factory Service Manual DLN-246
< ON-VEHICLE REPAIR >[REAR FINAL DRIVE: R230]
SIDE OIL SEAL
Check the differential gear oil level
after installation. Refer to DLN-242, "Checking Differential Gear
Oil".
Revision: March 2010

Page 1277 of 4083

INFINITI QX56 2008 Factory Service Manual CARRIER COVERDLN-247
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
CARRIER COVER
Removal and InstallationINFOID:0000000001604461
REMOVAL
1. Remove the rear final driv

Page 1278 of 4083

INFINITI QX56 2008 Factory Service Manual DLN-248
< REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
REMOVAL AND INSTALLATION
REAR FINAL DRIVE
Removal and InstallationINFOID:0000000001604462
REMOVAL
1. Remove the spare tire

Page 1279 of 4083

INFINITI QX56 2008 Factory Service Manual REAR FINAL DRIVEDLN-249
< REMOVAL AND INSTALLATION > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
7. Place a suitable jack under the rear final drive assembly. CAUTION:
Do not place the j

Page 1280 of 4083

INFINITI QX56 2008 Factory Service Manual DLN-250
< REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
REAR FINAL DRIVE BREATHER
• Fill the rear final drive assembly with differential gear oil
after installation. Refer to
