Page 4025 of 4083

WW-28
< COMPONENT DIAGNOSIS >
REAR WIPER MOTOR CIRCUIT
REAR WIPER MOTOR CIRCUIT
Component Function CheckINFOID:0000000001735588
1. CHECK REAR WIPER ON OPERATION
CONSULT-III ACTIVE TEST
1. Select "RR WIPER" of BCM active test item.
2. While operating the test item, check rear wiper operation.
Is rear wiper operation normal?
YES >> Rear wiper motor circuit is normal.
NO >> Refer to WW-28, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001735589
1. CHECK REAR WIPER MOTOR OUTPUT VOLTAGE
CONSULT-III ACTIVE TEST
1. Turn the ignition switch OFF.
2. Disconnect rear wiper motor.
3. Turn the ignition switch ON.
4. Select "RR WIPER" of BCM active test item.
5. While operating the test item, check voltage between BCM har-
ness connector and ground.
Is the measurement value normal?
YES >> GO TO 2
NO >> GO TO 3
2. CHECK REAR WIPER MOTOR GROUND CIRCUIT
1. Turn the ignition switch OFF.
2. Check continuity between rear wiper motor harness connector and ground.
Does continuity exist?
YES >> Replace rear wiper motor. Refer to WW-83, "Rear Wiper
Motor".
NO >> Repair or replace harness.
3. CHECK GLASS HATCH AJAR SWITCH CIRCUIT
1. Disconnect BCM harness connector M19.
2. Turn ignition switch OFF. ON : Rear wiper ON operation
OFF : Stop the rear wiper.
Te r m i n a l s Te s t i t e m
Vo l ta g e
(Approx.)
(+)
(−)
BCM
REAR WIPER
Connector Terminal
M19 54
Ground ON Battery voltage
55 OFF0V
WKIA1417E
Rear wiper motor
GroundContinuity
Connector Terminal
D704 3
Ye s
5
WKIA1416E
Revision: March 2010 2008 QX56
Page 4026 of 4083

REAR WIPER MOTOR CIRCUITWW-29
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
3. Make sure hatch glass is closed
4. Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> GO TO 4.
NO >> Repair harness if shorted. If not, refer to DLK-125,
"Diagnosis Procedure".
4. CHECK REAR WIPER MOTOR OPEN CIRCUIT
1. Check continuity between BCM harness connector and rear wiper motor harness connector.
Does continuity exist?
YES >> GO TO 5
NO >> Repair or replace harness.
5. CHECK REAR WIPER MOTOR SHORT CIRCUIT
Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> Repair or replace harness.
NO >> Replace BCM. Refer to BCS-55, "
Removal and Installa-
tion".
BCM
GroundContinuity
Connector Terminal
M19 42 No
WKIA1414E
BCMRear wiper motor
Continuity
Connector Terminal Connector Terminal
M19 54
D704 6
Ye s
55 4
WKIA1413E
BCM
GroundContinuity
Connector Terminal
M19 54
No
55
ALLIA0449ZZ
Revision: March 2010 2008 QX56
Page 4027 of 4083

WW-30
< COMPONENT DIAGNOSIS >
REAR WIPER AUTO STOP SIGNAL CIRCUIT
REAR WIPER AUTO STOP SIGNAL CIRCUIT
Component Function CheckINFOID:0000000001735590
1. CHECK REAR WIPER (AUTO STOP) OPERATION
CONSULT-III DATA MONITOR
1. Select "WIPER" of BCM data monitor item.
2. Operate the rear wiper.
3. Check that "RR WIPER STOP" changes to "O N" and "OFF" linked with the wiper operation.
Is the status of item normal?
YES >> Rear wiper auto stop signal circuit is normal.
NO >> Refer to WW-30, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001735591
1. CHECK REAR WIPER MOTOR AUTO STOP CIRCUITS
1. Turn ignition switch OFF.
2. Disconnect BCM and rear wiper motor.
3. Check continuity between BCM harness connector terminals and rear wiper motor harness connector terminals.
Is inspection result normal?
YES >> GO TO 2
NO >> Repair or replace harness.
2. CHECK AUTO STOP CIRCUITS FOR SHORT TO GROUND
Check continuity between BCM harness connector terminals and
ground.
Is inspection result normal?
YES >> Replace BCM. Refer to BCS-55, "Removal and Installa-
tion".
NO >> Repair or replace harness.
Monitor item ConditionMonitor status
RR WIPER STOP Rear wiper motor Stop position
ON
Except stop position OFF
BCM Rear wiper motor
Continuity
Connector Terminal Connector Terminal
M18 26 D7041
Ye s
M19 44 2
WKIA1415E
BCM
GroundContinuity
Connector Terminal
M18 26 No
M19 44
WKIA1421E
Revision: March 2010 2008 QX56
Page 4028 of 4083
FRONT WIPER AND WASHER SYSTEMWW-31
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
FRONT WIPER AND WASHER SYSTEM
Wiring DiagramINFOID:0000000001735592
AALWA0071GB
Revision: March 2010 2008 QX56
Page 4029 of 4083
WW-32
< COMPONENT DIAGNOSIS >
FRONT WIPER AND WASHER SYSTEM

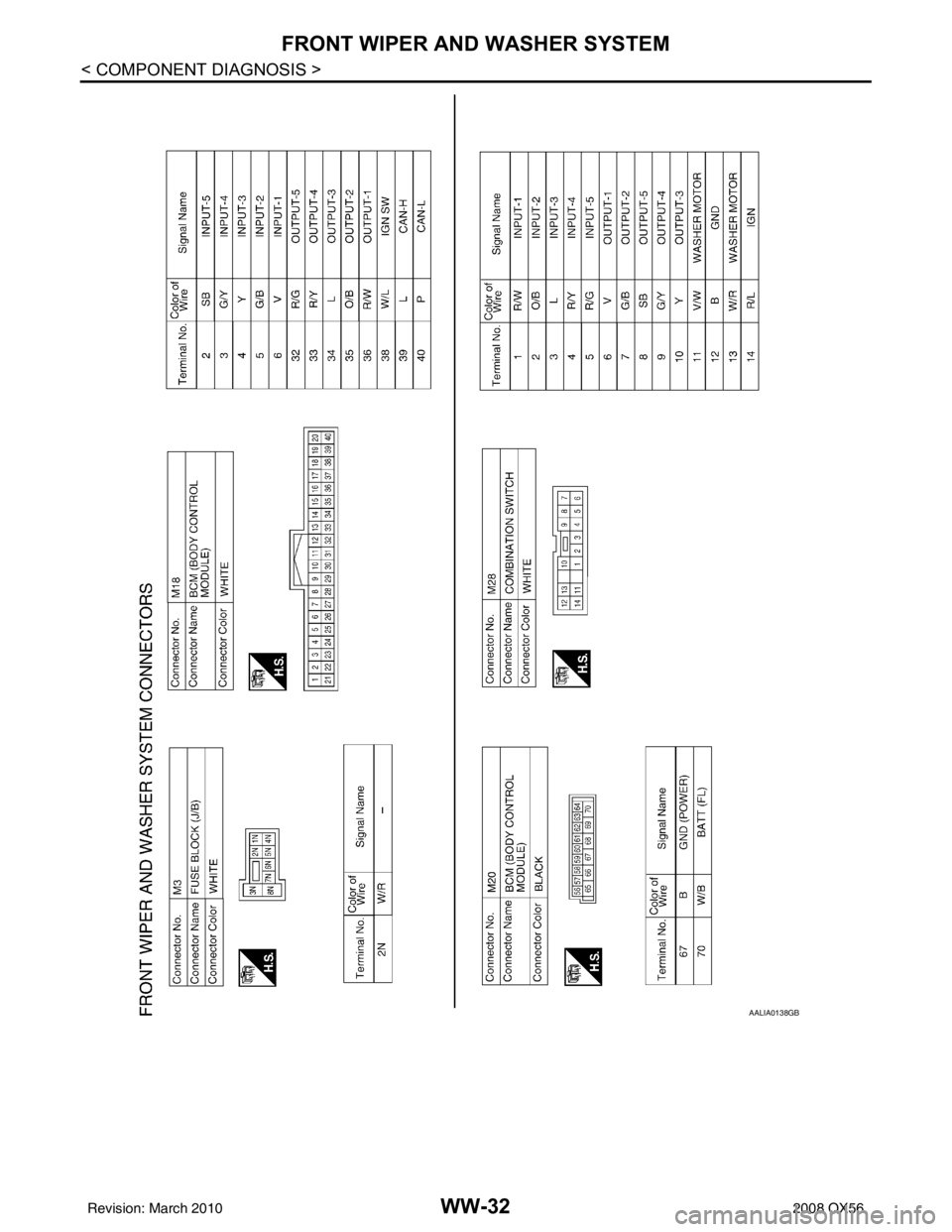

AALIA0138GB
Revision: March 20102008 QX56
Page 4030 of 4083
FRONT WIPER AND WASHER SYSTEMWW-33
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

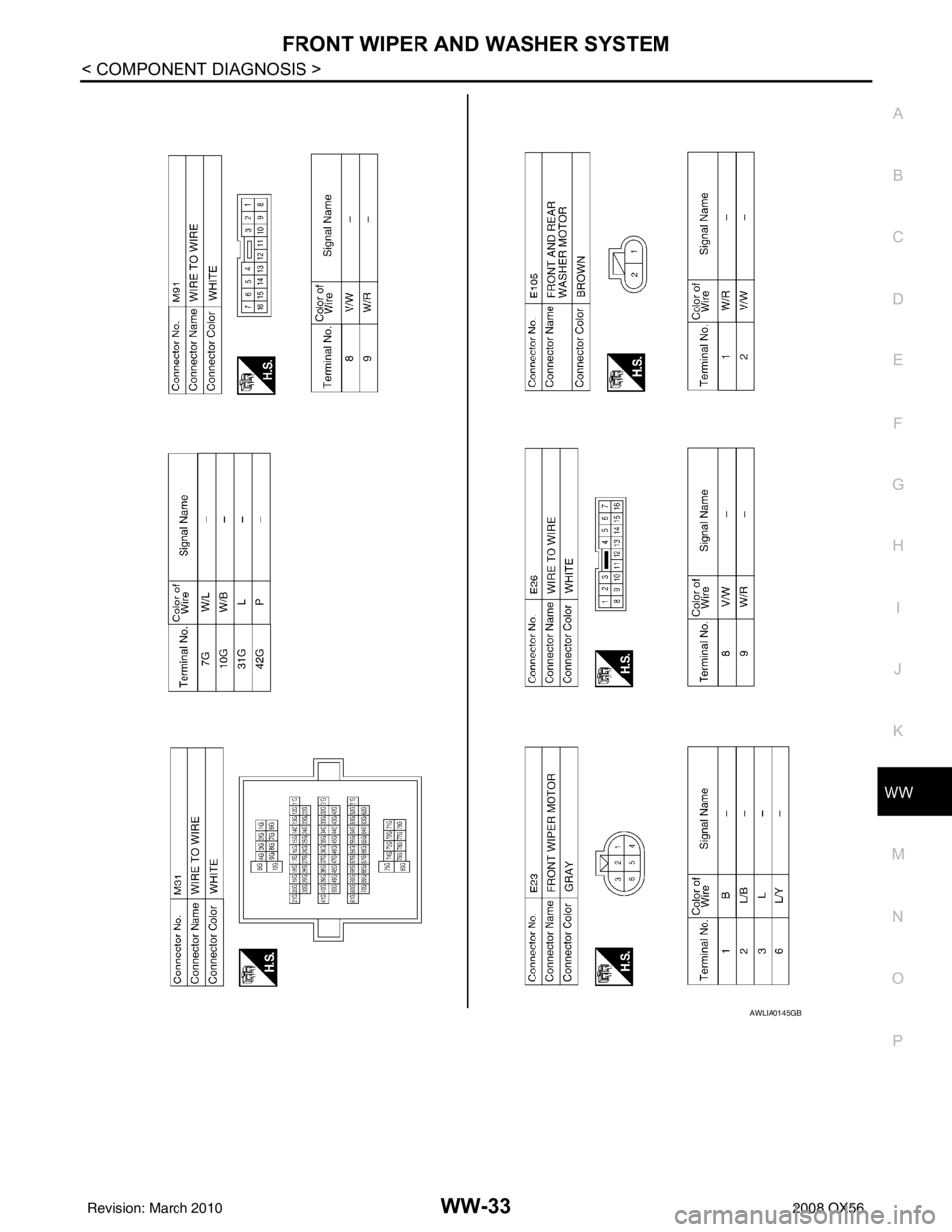

AWLIA0145GB
Revision: March 2010 2008 QX56
Page 4031 of 4083
WW-34
< COMPONENT DIAGNOSIS >
FRONT WIPER AND WASHER SYSTEM

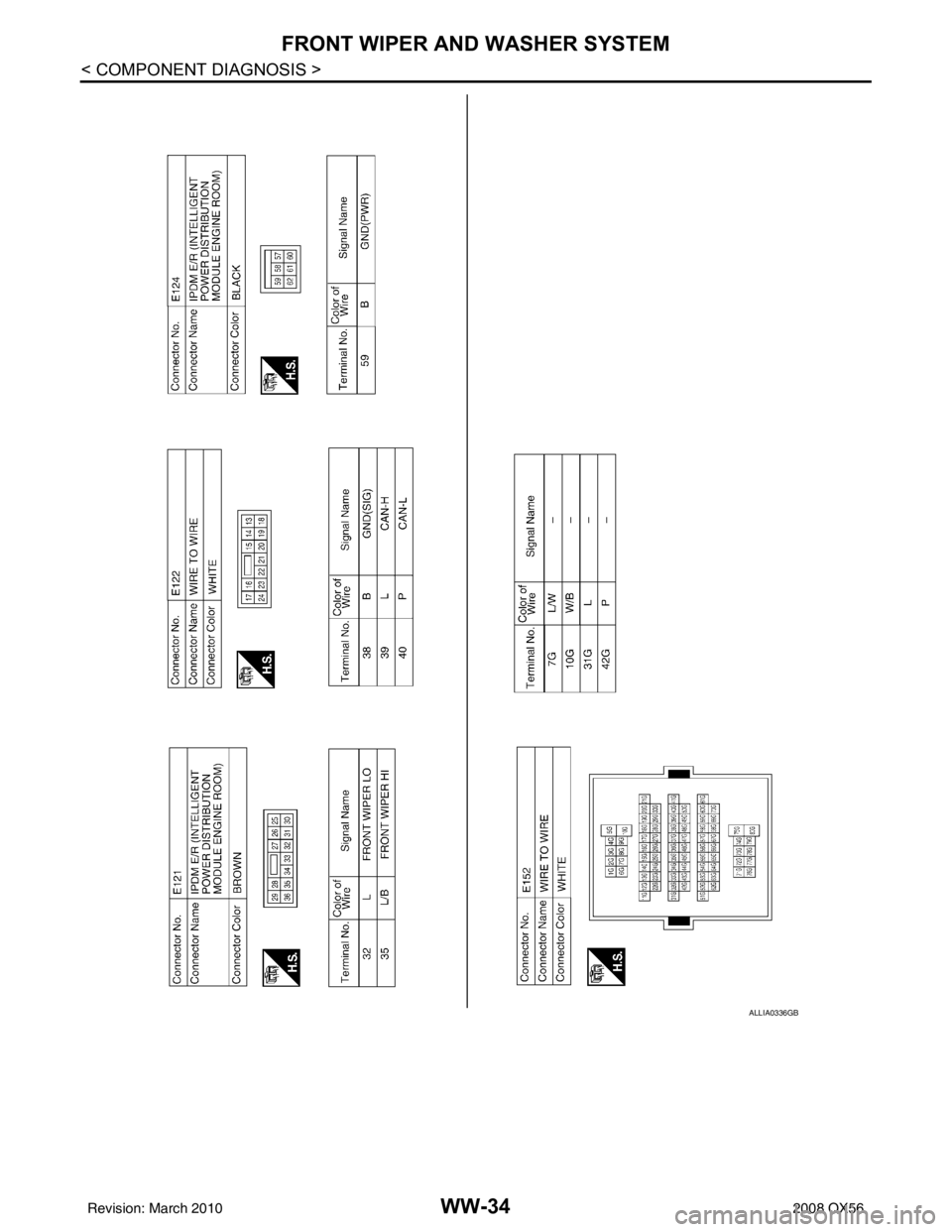

ALLIA0336GB
Revision: March 20102008 QX56
Page 4032 of 4083
REAR WIPER AND WASHER SYSTEMWW-35
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
REAR WIPER AND WASHER SYSTEM
Wiring DiagramINFOID:0000000001735593
AWLWA0022GB
Revision: March 2010 2008 QX56
