Page 2825 of 4083
PG-58
< COMPONENT DIAGNOSIS >
HARNESS
REAR DOOR LH HARNESS
AWMIA0109GB
D201 W/18 : To B6 D206 W/2 : Rear step lamp LH
D203 W/8 : Rear power window switch LH D207 W/2 : Rear door speaker LH
D204 GR/6 : Rear power window motor LH D208 BR/2 : Rear door tweeter LH
D205 B/6 : Rear door lock actuator LH D209 W/18 : Rear power window control unit LH
Revision: March 2010 2008 QX56
Page 2826 of 4083
PG
HARNESSPG-59
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
REAR DOOR RH HARNESS
AWMIA0110GB
D301 W/18 : To B106
D306 W/2 : Rear step lamp RH
D303 W/8 : Rear power window switch RHD307 W/2 : Rear door speaker RH
D304 GR/6 : Rear power wi ndow motor RHD308 BR/2 : Rear door tweeter RH
D305 B/6 : Rear door lock actuator RH D309 W/18 : Rear power window control unit RH
Revision: March 2010 2008 QX56
Page 2827 of 4083
PG-60
< COMPONENT DIAGNOSIS >
HARNESS

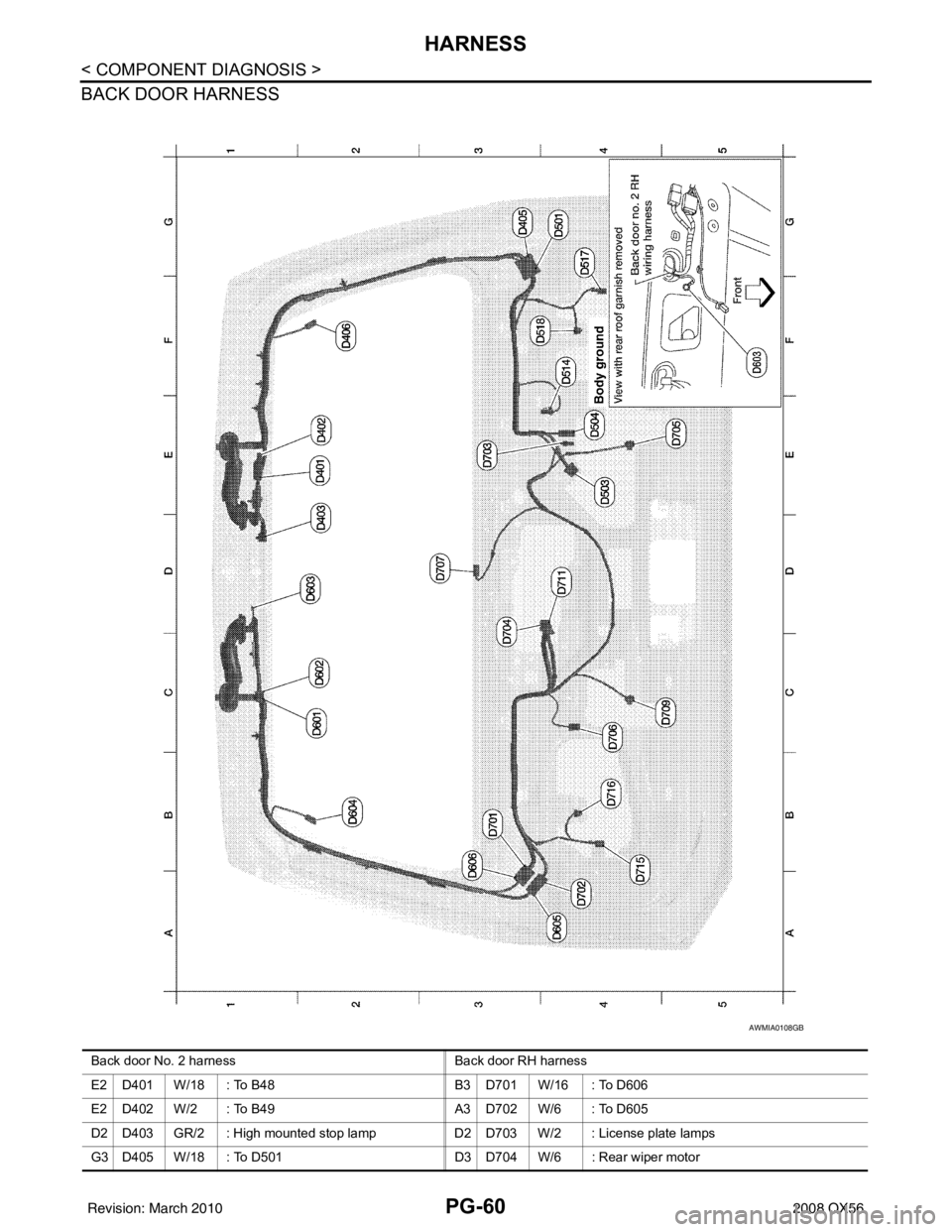

BACK DOOR HARNESS
AWMIA0108GB
Back door No. 2 harnessBack door RH harness
E2 D401 W/18 : To B48 B3 D701 W/16 : To D606
E2 D402 W/2 : To B49 A3 D702 W/6 : To D605
D2 D403 GR/2 : High mounted stop lamp D2 D703 W/2 : License plate lamps
G3 D405 W/18 : To D501 D3 D704 W/6 : Rear wiper motor
Revision: March 2010 2008 QX56
Page 2828 of 4083
PG
HARNESSPG-61
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
F2 D406 B/1 : Rear window defogger
D2 D705 GR/8 : Back-up lamp LH
Back door LH harness C4 D706 W/4 : Back door and glass hatch switch assembly
G3 D501 W/18 : To D405 D2 D707 B/1 : Glass hatch ajar switch
E4 D503 W/8 : Back door latch D3 D708 W/4 : Back door lock actuator
E4 D504 W/4 : Rear view camera B4 D709 GR/8 : Back-up lamp RH
F4 D514 BR/2 : Back door warning chime B4 D710 W/4 : Glass hatch switch
F4 D517 BR/2 : Pinch strip LH B4 D711 W/4 : Glass hatch lock actuator
F4 D518 BR/2 : Back door speaker LH B4 D715 BR/2 : Pinch strip RH
Back door No. 2 RH harness B4 D716 BR/2 : Back door speaker RH
C2 D601 W/6 : To B140
C2 D602 W/16 : To B139
D2 D603 — : Body ground
B2 D604 B/1 : Rear window defogger
A3 D605 W/6 : To D702
B3 D606 W/16 : To D701
Revision: March 2010 2008 QX56
Page 2829 of 4083
PG-62
< COMPONENT DIAGNOSIS >
ELECTRICAL UNITS LOCATION
ELECTRICAL UNITS LOCATION
Electrical Units LocationINFOID:0000000001744675
ENGINE COMPARTMENT
ABMIA0164GB
Revision: March 20102008 QX56
Page 2830 of 4083
PG
ELECTRICAL UNITS LOCATIONPG-63
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
PASSENGER COMPARTMENT
AAMIA0216GB
Revision: March 2010
2008 QX56
Page 2831 of 4083
PG-64
< COMPONENT DIAGNOSIS >
ELECTRICAL UNITS LOCATION
PASSENGER COMPARTMENT
AAMIA0227GB
Revision: March 20102008 QX56
Page 2832 of 4083
PG
HARNESS CONNECTORPG-65
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
HARNESS CONNECTOR
DescriptionINFOID:0000000001744676
HARNESS CONNECTOR (TAB-LOCKING TYPE)
• The tab-locking type connectors help prevent accidental looseness or disconnection.
• The tab-locking type connectors are disconnected by pushi
ng or lifting the locking tab(s). Refer to the figure
below.
Refer to the next page for description of the slide-locking type connector.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
[Example]
HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
• A new style slide-locking type connector is used on certain systems and components, especially those related to OBD.
• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec- tion.
SEL769DA
