INFINITI QX56 2008 Factory Service Manual TM-270 < DISASSEMBLY AND ASSEMBLY > ASSEMBLY 5. Install manual plate (with parking rod) to manual shaft. 6. Install retaining pin into the manual plate and manual shaft. a. Align pinhole of the manual

Page 3818 of 4083

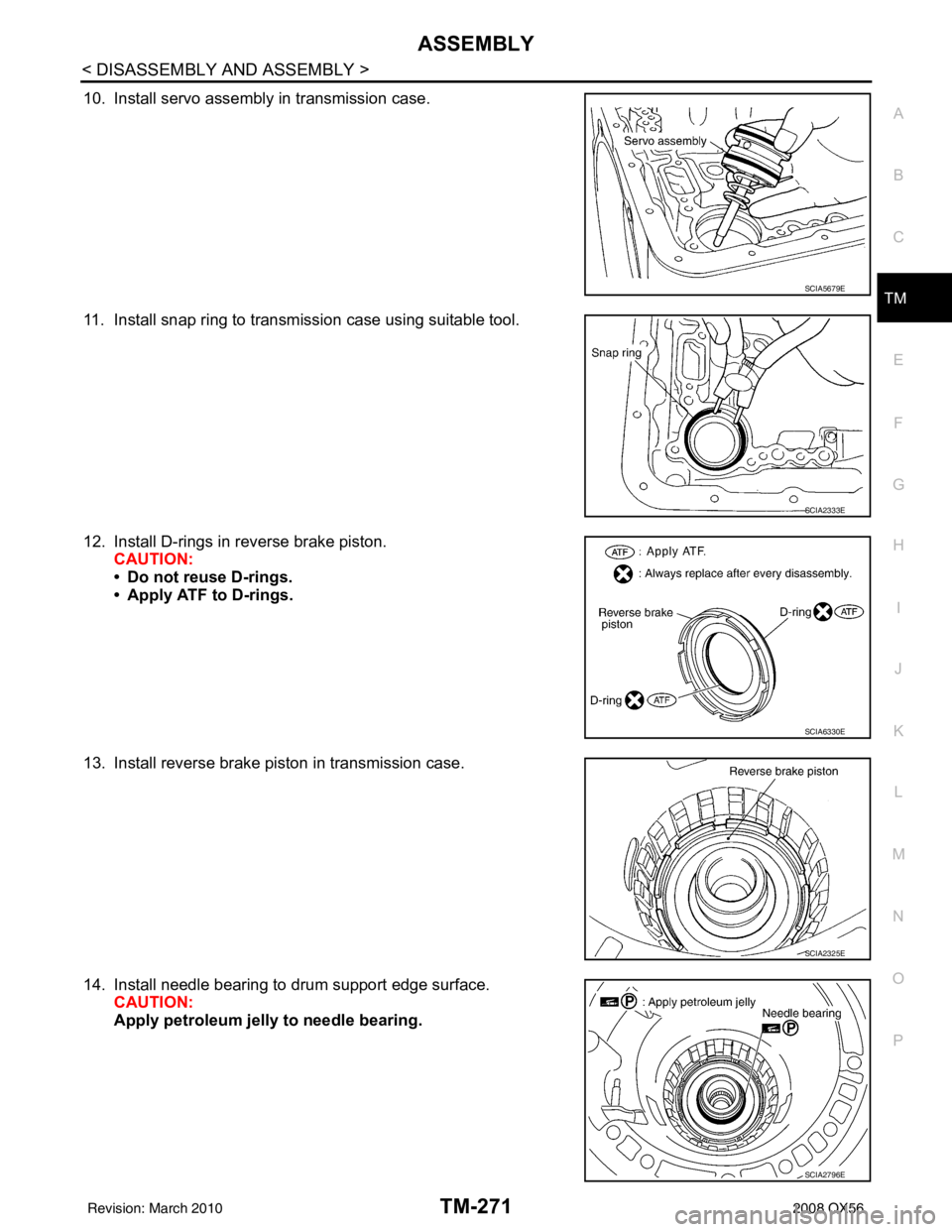

INFINITI QX56 2008 Factory Service Manual ASSEMBLYTM-271 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P 10. Install servo assembly in transmission case. 11. Install snap ring to transmission case using suitable tool. 12. Install

Page 3819 of 4083

INFINITI QX56 2008 Factory Service Manual TM-272 < DISASSEMBLY AND ASSEMBLY > ASSEMBLY 15. Install seal rings to drum support.CAUTION: • Do not reuse seal rings. • Apply petroleum jelly to seal rings. 16. Install spring retainer and retur

Page 3820 of 4083

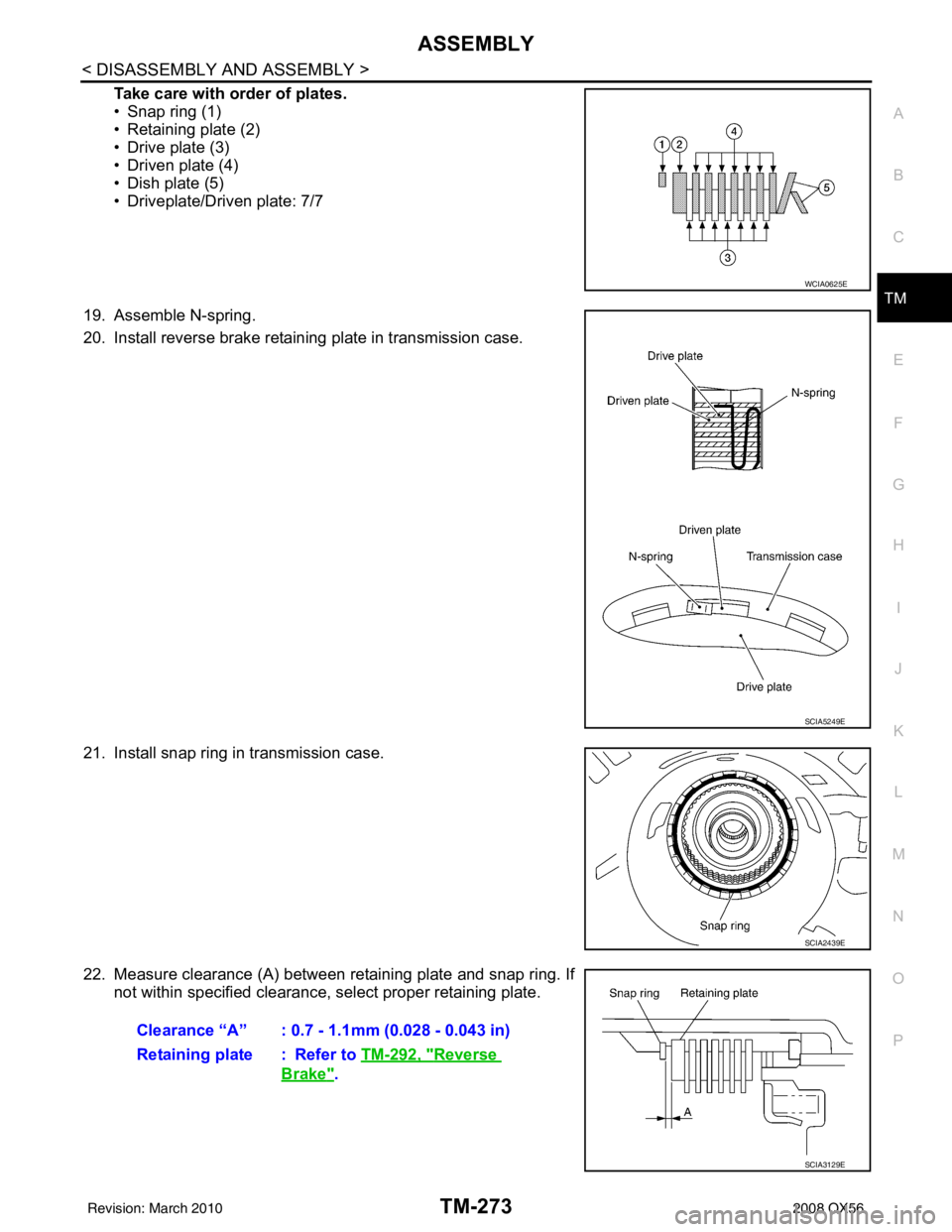

INFINITI QX56 2008 Factory Service Manual ASSEMBLYTM-273 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P Take care with order of plates. • Snap ring (1) • Retaining plate (2) • Drive plate (3) • Driven plate (4) • Dish p

Page 3821 of 4083

INFINITI QX56 2008 Factory Service Manual TM-274 < DISASSEMBLY AND ASSEMBLY > ASSEMBLY 23. Install needle bearing to transmission case.CAUTION: • Take care with the direction of needle bearing. Refer toTM-229, " Location of Adjusting Shims,

Page 3822 of 4083

INFINITI QX56 2008 Factory Service Manual ASSEMBLYTM-275 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P 27. Install parking pawl (with return spring) and pawl shaft to rear extension (2WD models) or adapter case (4WD models). 28.

Page 3823 of 4083

INFINITI QX56 2008 Factory Service Manual TM-276 < DISASSEMBLY AND ASSEMBLY > ASSEMBLY 32. Install output shaft in transmission case.CAUTION: Do not mistake front of shaft for rear because both sides look similar (thinner end is front side).

Page 3824 of 4083

INFINITI QX56 2008 Factory Service Manual ASSEMBLYTM-277 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P iii. Install brackets (1) and rear extension assembly bolts, self seal- ing bolts (2) and tighten to specified torque. CAUTI
