Page 3153 of 4083

NONE OF THE THIRD ROW POWER FOLDING SEATS WILL OPERATE WITH
ANY SWITCH.
SE-31
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
NONE OF THE THIRD ROW POWER FOLDING SEATS WILL OPERATE
WITH ANY SWITCH.
None of the Third Row Power Folding Seats Will Operate With Any Third Row Power
Folding Seat Switch
INFOID:0000000001735726
1.PRELIMINARY CHECK
Perform preliminary check. Refer to SE-5, "
Preliminary Check".
Are inspection results normal?
YES >> GO TO 2.
NO >> Perform repairs as necessary.
2.THIRD ROW POWER FOLDING SEAT SWITCH GROUND
1. Turn ignition switch OFF.
2. Disconnect any third row power folding seat switch connector.
3. Check continuity between third row power folding seat switch harness connector terminal 4 and ground.
Is there continuity?
YES >> GO TO 3.
NO >> Repair ground circuit.
3.TRANSMISSION RANGE SWITCH SIGNAL
1. Confirm A/T selector lever is in PARK position.
2. Turn ignition switch ON.
3. Check voltage between third row power folding seat control unit harness connector B401 terminal 7 and ground.
Is there battery voltage?
YES >> Replace third row power folding seat control unit. Refer to SE-63, "Power seat cross beam".
NO >> Repair circuit as necessary.
ALJIA0116ZZ
Terminals Ignition switch
(+)
(-)ON
Third row power
folding seat
control unit Te r m i n a l N o .
B401 7Ground Battery voltage
ALJIA0278ZZ
Revision: March 2010 2008 QX56
Page 3154 of 4083

SE-32
< SYMPTOM DIAGNOSIS >
ONLY ONE THIRD ROW POWER FOLDING SEAT WILL OPERATE.
ONLY ONE THIRD ROW POWER FOLDING SEAT WILL OPERATE.
Only One Third Row Power Folding Seat Will OperateINFOID:0000000001735727
1.PRELIMINARY CHECK
Perform preliminary check. Refer to SE-5, "
Preliminary Check".
Are inspection results normal?
YES >> GO TO 2.
NO >> Perform repairs as necessary.
2.THIRD ROW POWER FOLDING SEAT
Determine which seat is malfunctioning.
Is the affected seat the LH (60%) side?
YES >> GO TO 3.
NO >> GO TO 4.
3.THIRD ROW POWER FOLDING SEAT SWITCH (DRIVER)
1. Turn ignition switch OFF.
2. Disconnect either the front or rear third row power folding seat switch driver side connector.
3. Check continuity between the third row power folding seat
switch driver side harness connector B164 or B165 terminal 4
and ground.
4. Check continuity between any third row power folding seat switch driver side harness connector B164 or B165 terminal 2, 3
and third row power folding seat control unit harness connector
B401 terminals 4, 12.
Are inspection results normal?
YES >> GO TO 5.
NO >> Repair circuits as necessary.
4.THIRD ROW POWER FOLDING SEAT SWITCH (PASSENGER)
1. Turn ignition switch OFF.
2. Disconnect either the front or rear third row power folding seat switch passenger side connector.
Te r m i n a l s
Continuity
(+)
(-)
Third row power
folding seat
switch driver side Te r m i n a l N o .
B164 or B165 4Ground Yes
ALJIA0116ZZ
Terminals Continuity
AB
Connector Terminal Connector Terminal
B401 4
B164 or B165 3
Ye s
12 2
AWJIA0245ZZ
Revision: March 2010 2008 QX56
Page 3155 of 4083

ONLY ONE THIRD ROW POWER FOLDING SEAT WILL OPERATE.SE-33
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P

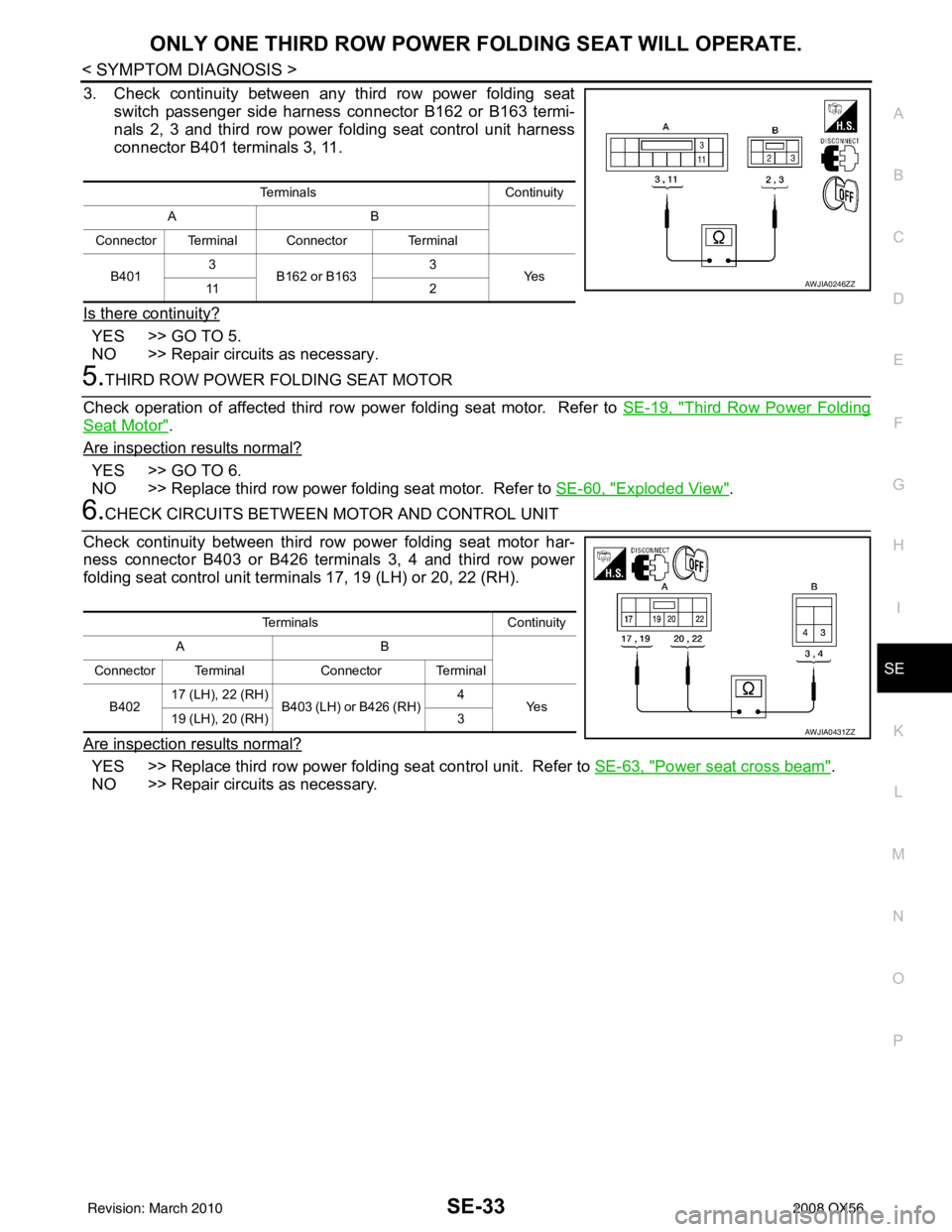

3. Check continuity between any third row power folding seat switch passenger side harness connector B162 or B163 termi-
nals 2, 3 and third row power folding seat control unit harness
connector B401 terminals 3, 11.
Is there continuity?
YES >> GO TO 5.
NO >> Repair circuits as necessary.
5.THIRD ROW POWER FOLDING SEAT MOTOR
Check operation of affected third row power folding seat motor. Refer to SE-19, "
Third Row Power Folding
Seat Motor".
Are inspection results normal?
YES >> GO TO 6.
NO >> Replace third row power folding seat motor. Refer to SE-60, "
Exploded View".
6.CHECK CIRCUITS BETWEEN MOTOR AND CONTROL UNIT
Check continuity between third row power folding seat motor har-
ness connector B403 or B426 terminals 3, 4 and third row power
folding seat control unit terminals 17, 19 (LH) or 20, 22 (RH).
Are inspection results normal?
YES >> Replace third row power folding seat control unit. Refer to SE-63, "Power seat cross beam".
NO >> Repair circuits as necessary.
Terminals Continuity
AB
Connector Terminal Connector Terminal
B401 3
B162 or B163 3
Ye s
11 2
AWJIA0246ZZ
Terminals Continuity
AB
Connector Terminal Connector Terminal
B402 17 (LH), 22 (RH)
B403 (LH) or B426 (RH) 4
Ye s
19 (LH), 20 (RH) 3
AWJIA0431ZZ
Revision: March 2010 2008 QX56
Page 3156 of 4083

SE-34
< SYMPTOM DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT WILL OPERATE IN ONLY ONE DIREC-
TION.
THIRD ROW POWER FOLDING SEAT WILL OPERATE IN ONLY ONE DI-
RECTION.
Third Row Power Folding Seat Will Operate in Only One DirectionINFOID:0000000001735728
1.PRELIMINARY CHECK
Perform preliminary check. Refer to SE-5, "
Preliminary Check".
Are inspection results normal?
YES >> GO TO 2.
NO >> Perform repairs as necessary.
2.THIRD ROW POWER FOLDING SEAT
Determine which seat is malfunctioning.
Is the affected seat the LH (60%) side?
YES >> GO TO 3.
NO >> GO TO 4.
3.THIRD ROW POWER FOLDING SEAT SWITCH (DRIVER)
1. Turn ignition switch OFF.
2. Disconnect any third row power foldi ng seat switch driver side connector.
3. Check continuity between third row power folding seat switch
driver side harness connector B164 or B165 terminal 2, 3 and
third row power folding seat control unit harness connector B401
terminals 4, 12.
Is there continuity?
YES >> Replace third row power folding seat control unit. Refer to SE-63, "Power seat cross beam".
NO >> Repair circuits as necessary.
4.THIRD ROW POWER FOLDING SEAT SWITCH (PASSENGER)
1. Turn ignition switch OFF.
2. Disconnect either the front or rear third row power folding seat switch passenger side connector.
3. Check continuity between third row power folding seat switch
passenger side harness connector B162 or B163 terminals 2, 3
and third row power folding seat control unit harness connector
B401 terminals 3, 11.
Is there continuity?
YES >> Replace third row power folding seat control unit. Refer to SE-63, "Power seat cross beam"
NO >> Repair circuits as necessary.
TerminalsContinuity
AB
Connector Terminal Connector Terminal
B401 4
B164 or B165 3
Ye s
12 2
AWJIA0247ZZ
Terminals Continuity
AB
Connector Terminal Connector Terminal
B401 3
B162 or B163 3
Ye s
11 2
AWJIA0248ZZ
Revision: March 2010 2008 QX56
Page 3157 of 4083

THIRD ROW POWER FOLDING SEAT WILL STOP SHORT OF IT’S FULLY UP
OR DOWN POSITION.
SE-35
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
THIRD ROW POWER FOLDING SEAT WI LL STOP SHORT OF IT’S FULLY
UP OR DOWN POSITION.
Third Row Power Folding Se at Stops Short of its Fully Up or Down Position
INFOID:0000000001735729
1.PRELIMINARY CHECK
Perform preliminary check. Refer to SE-5, "
Preliminary Check".
Are inspection results normal?
YES >> GO TO 2.
NO >> Perform repairs as necessary.
2.CHECK HISTORY
Check to see if a previous normal seat foldi ng operation was interrupted due to low voltage condition.
Was voltage interrupted?
YES >> Perform learn procedure by operating affected seat until seat reaches full open/closed position.
NO >> GO TO 3.
3.THIRD ROW POWER FOLDING SEAT MOTOR
1. Turn ignition switch OFF.
2. Disconnect third row power folding seat motor harness connec- tor and third row power folding seat control unit harness connec-
tor.
3. Check continuity between third row power folding seat motor
harness connector B403 (LH) or B426 (RH) terminals 1, 2 and
third row power folding seat control unit harness connector ter-
minals 10, 15 (LH) or 9, 15 (RH).
Is there continuity?
YES >> Replace affected third row power folding seat motor. Refer to SE-60, "Exploded View".
NO >> Repair circuits as necessary.
Te r m i n a l s Continuity
Connector Terminal Connector Terminal
A: B401 9 (RH)
C: B426 (RH)
1
Ye s
10 (LH)
C: B403 (LH)
B: B402 15 (LH/RH) C: B426 (RH)
2
C: B403 (LH)
AWJIA0432ZZ
Revision: March 2010 2008 QX56
Page 3158 of 4083
SE-36
< SYMPTOM DIAGNOSIS >
THIRD ROW POWER FOLDING SEAT MAKES EXCESSIVE NOISE WHILE MOV-
ING.
THIRD ROW POWER FOLDING SEAT MAKES EXCESSIVE NOISE WHILE
MOVING.
Third Row Power Folding Seat Ma kes Excessive Noise While MovingINFOID:0000000001735730
1.PRELIMINARY CHECK
Perform preliminary check. Refer to SE-5, "
Preliminary Check".
Are inspection results normal?
YES >> Inspect shaft assembly for binding. If OK, replace affected third row power folding seat motor. Refer to SE-60, "
Exploded View".
NO >> Perform repairs as necessary.
Revision: March 2010 2008 QX56
Page 3159 of 4083

SQUEAK AND RATTLE TROUBLE DIAGNOSESSE-37
< SYMPTOM DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
SE
N
O P
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Work FlowINFOID:0000000001606202
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interv iew to document the facts and conditions when the noise occurs and any
customer's comments; refer to SE-41, "
Diagnostic Worksheet". This information is necessary to duplicate the
conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed descr iption or the location of the noise. Attempt to obtain
all the facts and conditions that exist when the noise occurs (or does not occur).
• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is
concerned about. This can be accomplished by test driving the vehicle with the customer.
• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.
• Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping.
• Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow mo vement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.
• Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contac t/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.
• Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/someti mes repeating/often brought on by driver action.
• Tick—(Like a clock second hand) Tick characteristics include gentle contacting of li ght materials/loose components/can be caused by driver
action or road conditions.
• Thump—(Heavy, muffled knock noise) Thump characteristics include softer k nock/dead sound often brought on by activity.
• Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.
• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge as acceptable may be very irritating to the customer.
• Weather conditions, especially humidity and temperature, may have a great effect on noise level.
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or lo cation of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
SBT842
Revision: March 2010 2008 QX56
Page 3160 of 4083

SE-38
< SYMPTOM DIAGNOSIS >
SQUEAK AND RATTLE TROUBLE DIAGNOSES
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
• Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
• If it is difficult to duplicate the noise, drive the v ehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, chec k ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follo w the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area.To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear: J-39565 and mechanic's stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:
• removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fasteners can be broken
or lost during the repair, resulting in the creation of new noise.
• tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only tem-
porarily.
• feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.
• placing a piece of paper between components that you suspect are causing the noise.
• looking for loose components and contact marks. Refer to SE-39, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE
• If the cause is a loose component, tighten the component securely.
• If the cause is insufficient clearance between components:
- separate components by repositioning or loos ening and retightening the component, if possible.
- insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or urethane tape. A NISSAN Squeak and Rattle Kit (J-43980) is av ailable through your authorized NISSAN Parts Depart-
ment.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the NISSAN Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 ×135 mm (3.94× 5.31 in)/76884-71L01: 60 ×85 mm (2.36 ×3.35 in)/76884-71L02: 15 ×25
mm (0.59× 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 ×50 mm (1.97 ×1.97 in)/73982-50Y00: 10 mm (0.39 in) thick,
50× 50 mm (1.97 ×1.97 in)
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 ×50 mm (1.18 ×1.97 in)
FELT CLOTH TAPE
Used to insulate where movemen t does not occur. Ideal for instrument panel applications.
68370-4B000: 15 ×25 mm (0.59× 0.98 in) pad/68239-13E00: 5 mm (0.20 in ) wide tape roll. The following
materials not found in the kit can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE
Insulates where slight movement is present. Ideal for inst rument panel applications.
Revision: March 2010 2008 QX56
