2008 INFINITI QX56 Factory Service Manual

checking oilparking sensorshood releaserimsheadresttransmission fluid
Popular search:
jump startkey batteryoil capacitywheelfuel filtercoolant capacityCD player
Previous
Next
Load previous 8 pages

Page 1185 of 4083

INFINITI QX56 2008 Factory Service Manual TRANSFER ASSEMBLYDLN-155 < DISASSEMBLY AND ASSEMBLY > [ATX14B] C EF G H I J K L M A B DLN N O P d. Place the control valve with the lower body facing up. Remove the two bolts, and then remove the lowe

Page 1186 of 4083

INFINITI QX56 2008 Factory Service Manual DLN-156 < DISASSEMBLY AND ASSEMBLY >[ATX14B] TRANSFER ASSEMBLY 38. Remove the sub oil pump cover bolts. 39. Thread two bolts (M4 x 0.8) into the holes of sub oil pump cover as shown, and pull out to r

Page 1187 of 4083

INFINITI QX56 2008 Factory Service Manual TRANSFER ASSEMBLYDLN-157 < DISASSEMBLY AND ASSEMBLY > [ATX14B] C EF G H I J K L M A B DLN N O P 43. Remove the oil filter stud from the oil filter. 44. Remove the O-ring from the oil filter stud. INSP

Page 1188 of 4083

INFINITI QX56 2008 Factory Service Manual DLN-158 < DISASSEMBLY AND ASSEMBLY >[ATX14B] TRANSFER ASSEMBLY • Check if the oil passage of the sun gear assembly is clogged. For this, try to pass a 3.6 mm (0.142 in) dia. pin through the oil pas-

Page 1189 of 4083

INFINITI QX56 2008 Factory Service Manual TRANSFER ASSEMBLYDLN-159 < DISASSEMBLY AND ASSEMBLY > [ATX14B] C EF G H I J K L M A B DLN N O P 1. Check the inner and outer circumference, tooth face, and side- face of the inner and outer gears for

Page 1190 of 4083

INFINITI QX56 2008 Factory Service Manual DLN-160 < DISASSEMBLY AND ASSEMBLY >[ATX14B] TRANSFER ASSEMBLY • Check each control valve spring for damage or distortion. Also check its free length, outer diameter and wire diameter. If any dam- a

Page 1191 of 4083

INFINITI QX56 2008 Factory Service Manual TRANSFER ASSEMBLYDLN-161 < DISASSEMBLY AND ASSEMBLY > [ATX14B] C EF G H I J K L M A B DLN N O P 3. Apply ATF to the two new O-rings (1), and install them on the oil filter (2). CAUTION: Do not reuse O

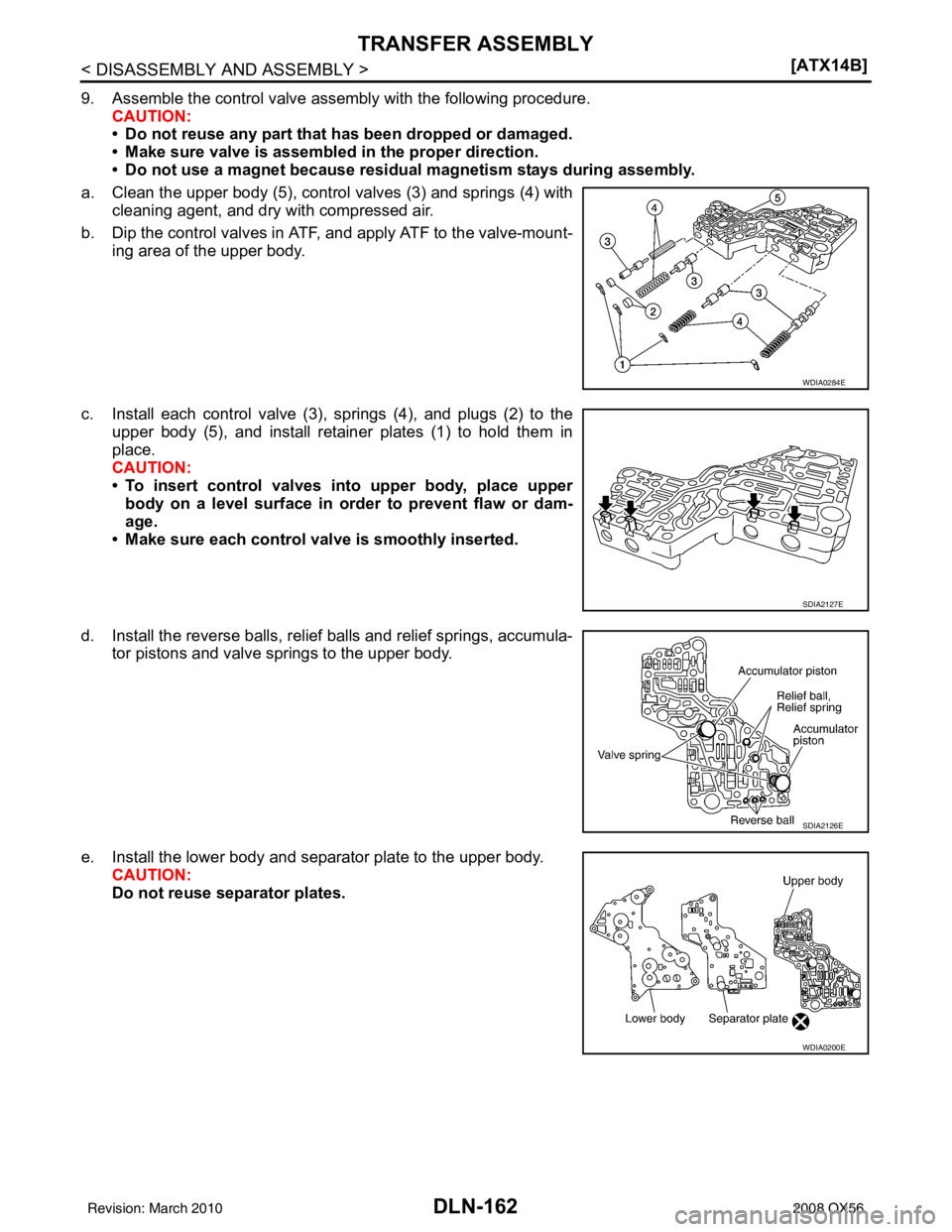

Page 1192 of 4083

INFINITI QX56 2008 Factory Service Manual DLN-162 < DISASSEMBLY AND ASSEMBLY >[ATX14B] TRANSFER ASSEMBLY 9. Assemble the control valve assembly with the following procedure. CAUTION: • Do not reuse any part that has been dropped or damaged.
