Page 2801 of 4083

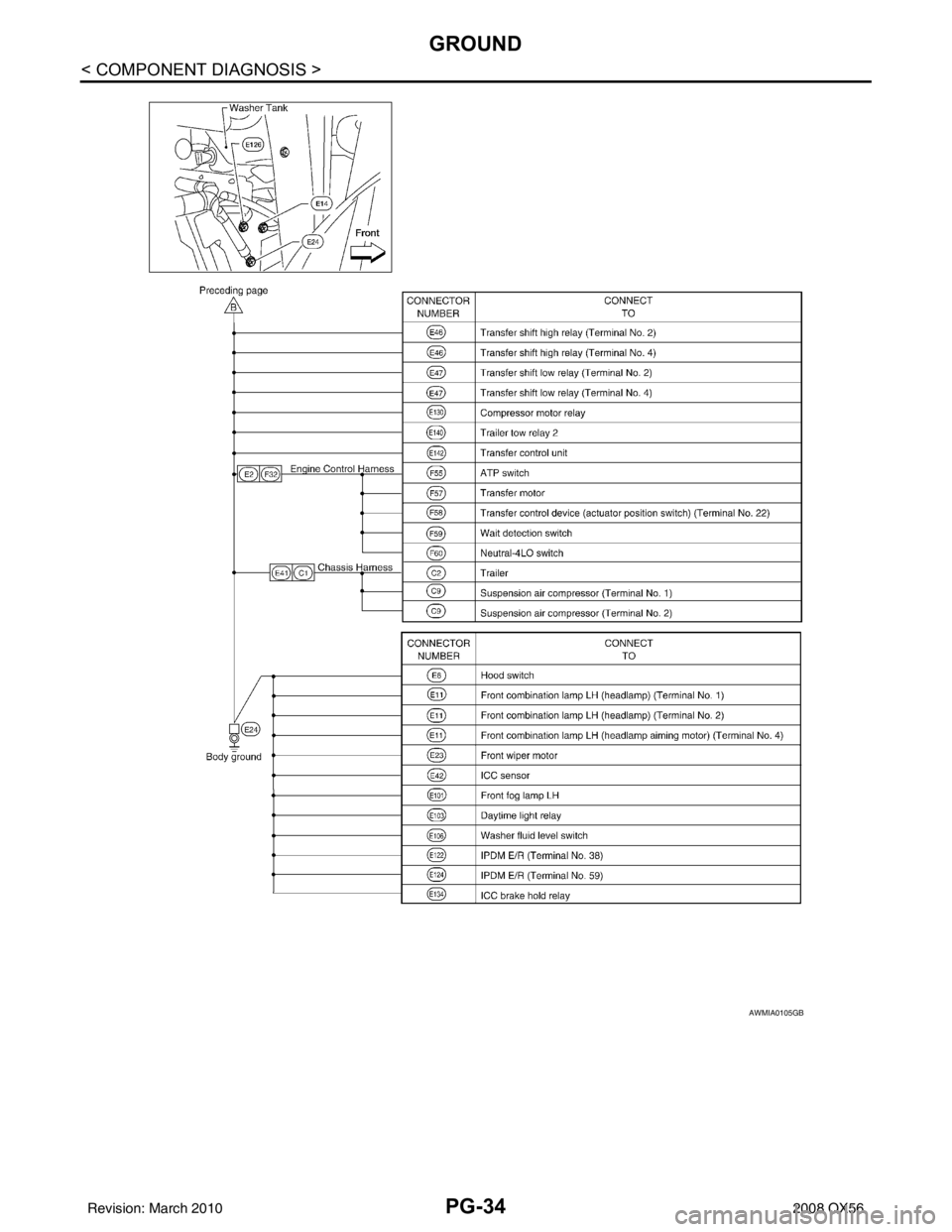

INFINITI QX56 2008 Factory Service Manual PG-34 < COMPONENT DIAGNOSIS > GROUND AWMIA0105GB Revision: March 20102008 QX56

Page 2802 of 4083

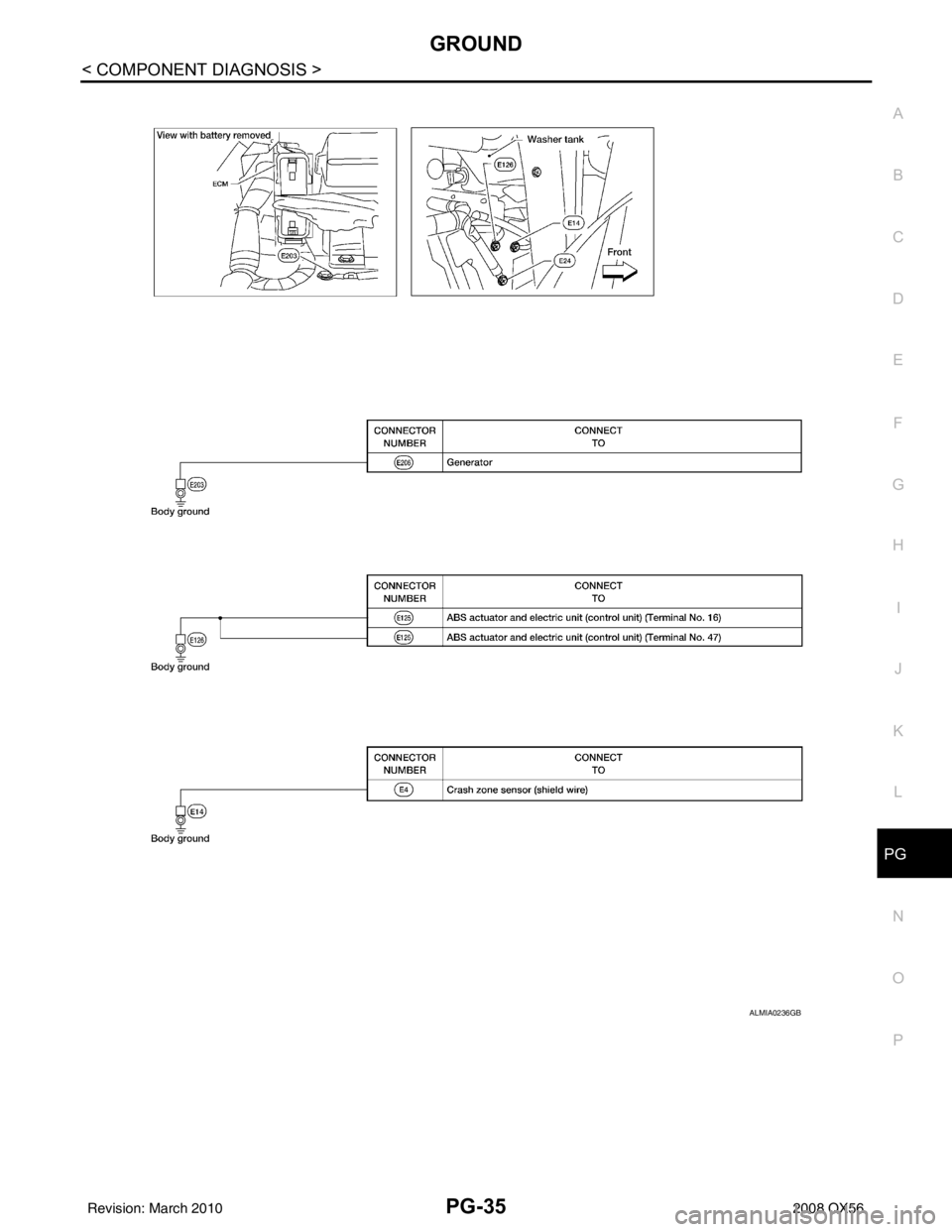

INFINITI QX56 2008 Factory Service Manual PG GROUNDPG-35 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ALMIA0236GB Revision: March 2010 2008 QX56

Page 2803 of 4083

INFINITI QX56 2008 Factory Service Manual PG-36 < COMPONENT DIAGNOSIS > GROUND ENGINE CONTROL HARNESS ALMIA0237GB Revision: March 20102008 QX56

Page 2804 of 4083

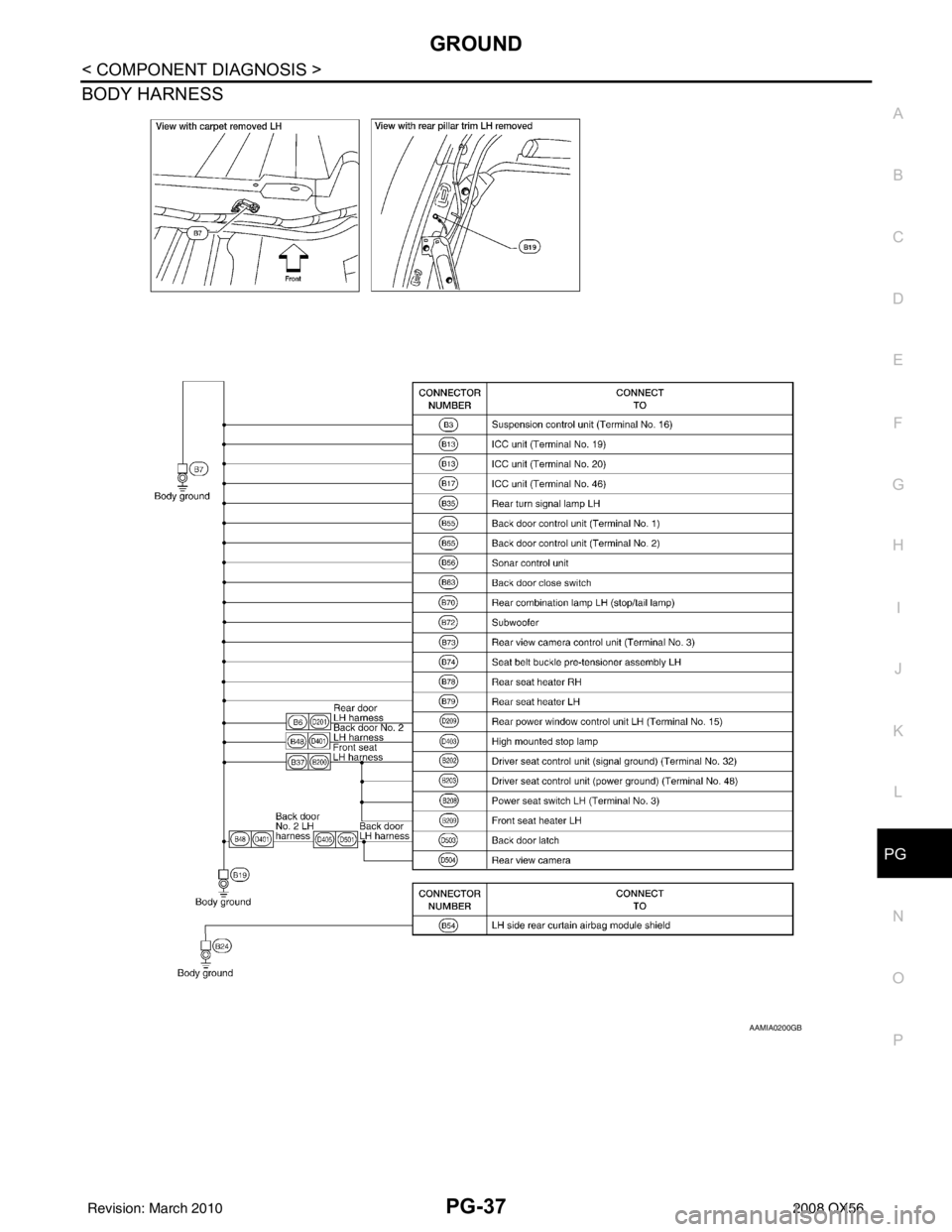

INFINITI QX56 2008 Factory Service Manual PG GROUNDPG-37 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N BODY HARNESS AAMIA0200GB Revision: March 2010 2008 QX56

Page 2805 of 4083

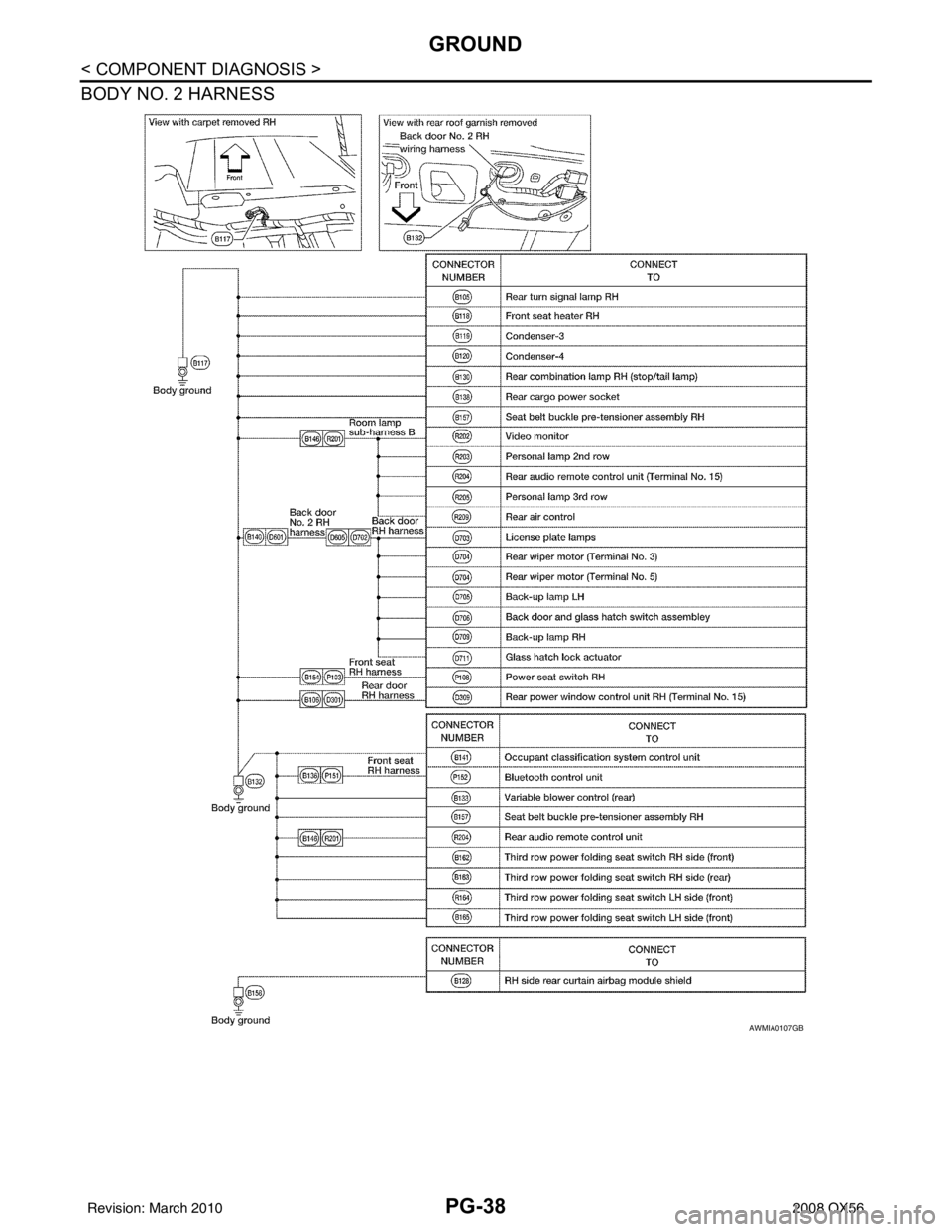

INFINITI QX56 2008 Factory Service Manual PG-38 < COMPONENT DIAGNOSIS > GROUND BODY NO. 2 HARNESS AWMIA0107GB Revision: March 20102008 QX56

Page 2806 of 4083

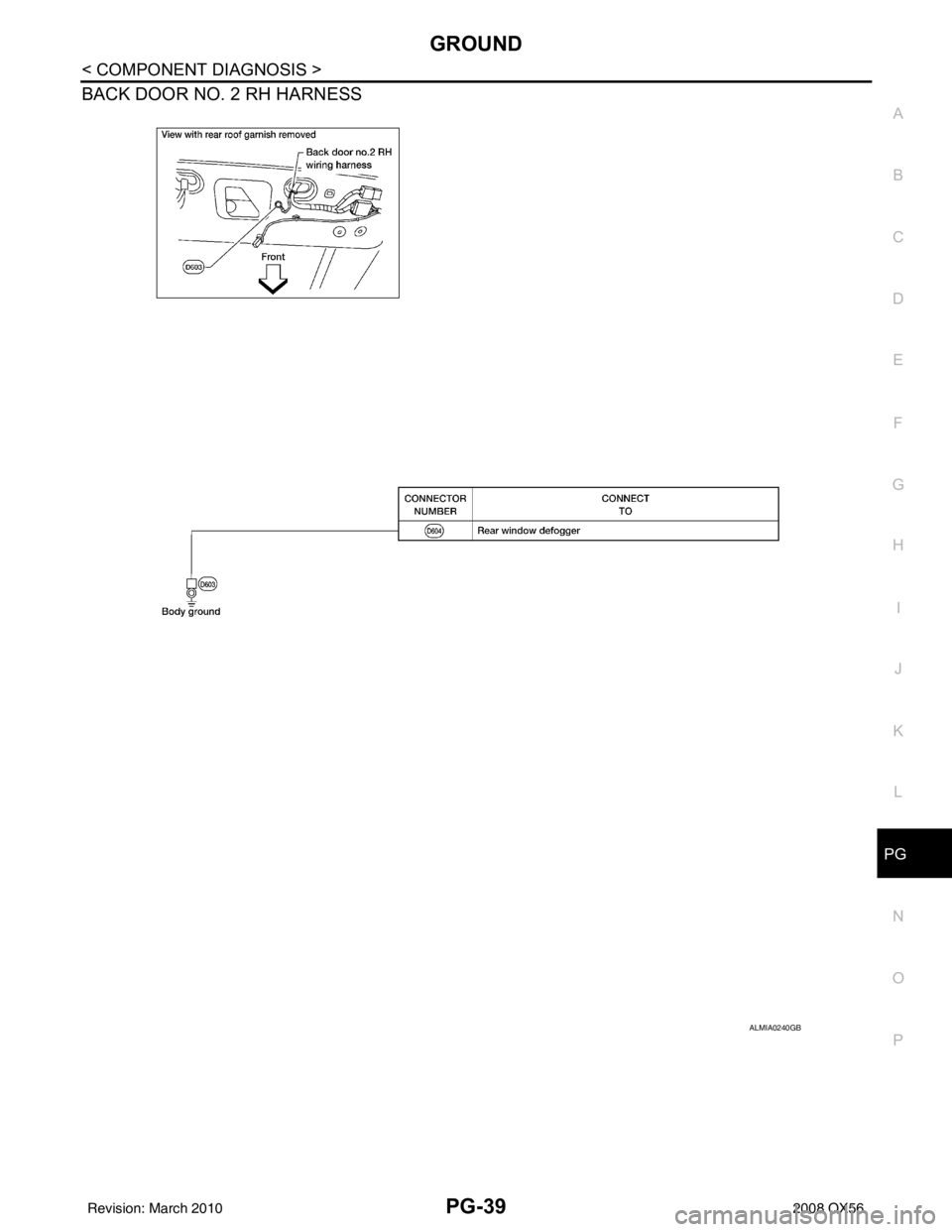

INFINITI QX56 2008 Factory Service Manual PG GROUNDPG-39 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N BACK DOOR NO. 2 RH HARNESS ALMIA0240GB Revision: March 2010 2008 QX56

Page 2807 of 4083

INFINITI QX56 2008 Factory Service Manual PG-40 < COMPONENT DIAGNOSIS > HARNESS HARNESS Harness LayoutINFOID:0000000001744674 HOW TO READ HARNESS LAYOUT The following Harness Layouts use a map style grid to help locate connectors on the draw

Page 2808 of 4083

INFINITI QX56 2008 Factory Service Manual PG HARNESSPG-41 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N MAIN HARNESS AWMIA0111GB G4 M1 W/16 : To R1 G4 M84 W/16 : To B101 F4 M2 W/12 : To R2 B3 M87 B/5 : Rear power vent window relay (ope
