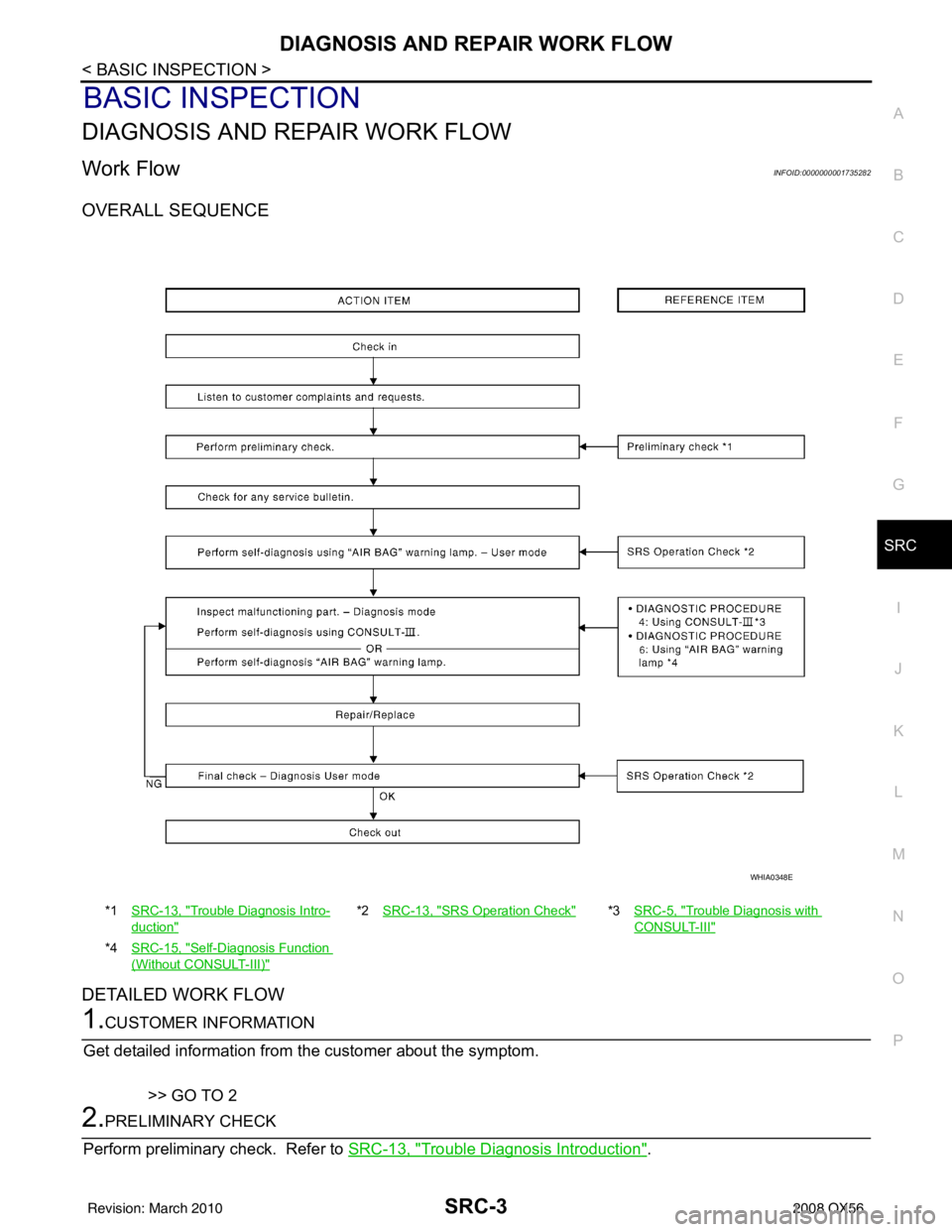

INFINITI QX56 2008 Factory Service Manual DIAGNOSIS AND REPAIR WORK FLOWSRC-3 < BASIC INSPECTION > C DE F G I J K L M A B SRC N O P BASIC INSPECTION DIAGNOSIS AND REPAIR WORK FLOW Work FlowINFOID:0000000001735282 OVERALL SEQUENCE DETAILED WOR

Page 3402 of 4083

INFINITI QX56 2008 Factory Service Manual SRC-4 < BASIC INSPECTION > DIAGNOSIS AND REPAIR WORK FLOW >> GO TO 3 3.TECHNICAL SERVICE BULLETINS Check for technical service bulletins. >> GO TO 4 4.USER MODE Perform self-diagnosis using the "AIR B

Page 3403 of 4083

INFINITI QX56 2008 Factory Service Manual INTERMITTENTS INCIDENTSRC-5 < BASIC INSPECTION > C DE F G I J K L M A B SRC N O P INTERMITTENTS INCIDENT Inspection ProcedureINFOID:0000000001735283 INTERMITTENT TROUBLE An intermittent incident may h

Page 3404 of 4083

INFINITI QX56 2008 Factory Service Manual SRC-6 < FUNCTION DIAGNOSIS > SRS AIR BAG SYSTEM FUNCTION DIAGNOSIS SRS AIR BAG SYSTEM SRS ConfigurationINFOID:0000000001735369 The air bag deploys if the air bag diagnosis sensor unit is activated whi

Page 3405 of 4083

INFINITI QX56 2008 Factory Service Manual SRS AIR BAG SYSTEMSRC-7 < FUNCTION DIAGNOSIS > C DE F G I J K L M A B SRC N O P SRS Component Parts LocationINFOID:0000000001735370 Driver Air Bag ModuleINFOID:0000000001735287 The driver air bag modu

Page 3406 of 4083

INFINITI QX56 2008 Factory Service Manual SRC-8 < FUNCTION DIAGNOSIS > SRS AIR BAG SYSTEM Front Passenger Air Bag Module INFOID:0000000001735288 The front passenger air bag module is located behind the instrument panel assembly. It operates

Page 3407 of 4083

INFINITI QX56 2008 Factory Service Manual SRS AIR BAG SYSTEMSRC-9 < FUNCTION DIAGNOSIS > C DE F G I J K L M A B SRC N O P Direct-connect SRS Co mponent ConnectorsINFOID:0000000001735292 The following SRS components use dire ct-connect style h

Page 3408 of 4083

INFINITI QX56 2008 Factory Service Manual SRC-10 < FUNCTION DIAGNOSIS > OCCUPANT CLASSIFICATION SYSTEM OCCUPANT CLASSIFICATION SYSTEM System DiagramINFOID:0000000001735293 Occupant Classification System (OCS)INFOID:0000000001735294 The occupa
