Page 2969 of 4210

INFINITI QX56 2010 Factory Service Manual PG HARNESSPG-59 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N BACK DOOR HARNESS ABMIA1204GB Back door No. 2 LH harness Back door RH harness E2 D401 W/18 : To B48 B3 D701 W/16 : To D606 E2 D402

Page 2970 of 4210

INFINITI QX56 2010 Factory Service Manual PG-60 < COMPONENT DIAGNOSIS > HARNESS F2 D406 B/1 : Rear window defoggerD2 D705 GR/2 : Back-up lamp LH Back door LH harness C4 D706 W/4 : Back door and glass hatch switch assembly G3 D501 W/18 : To D4

Page 2971 of 4210

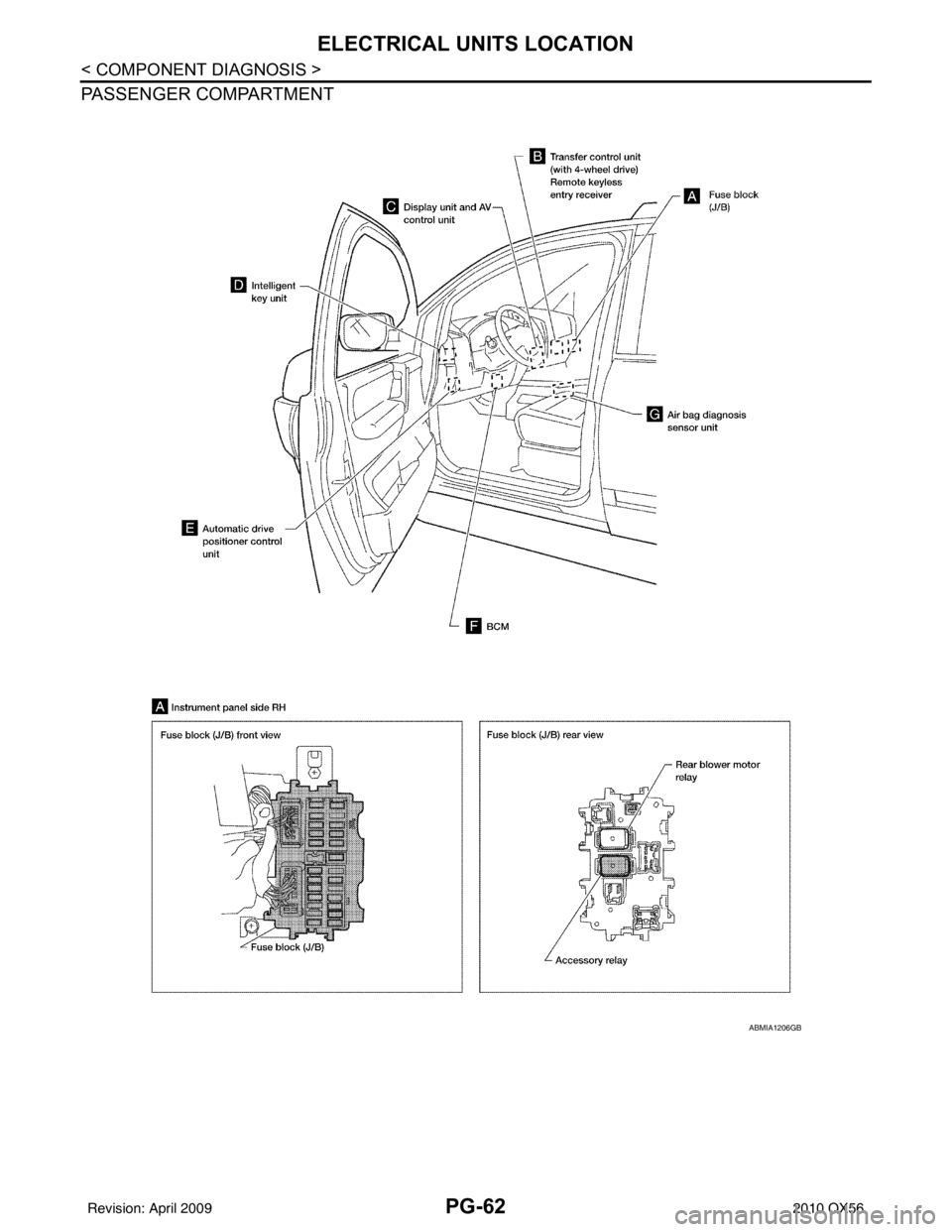

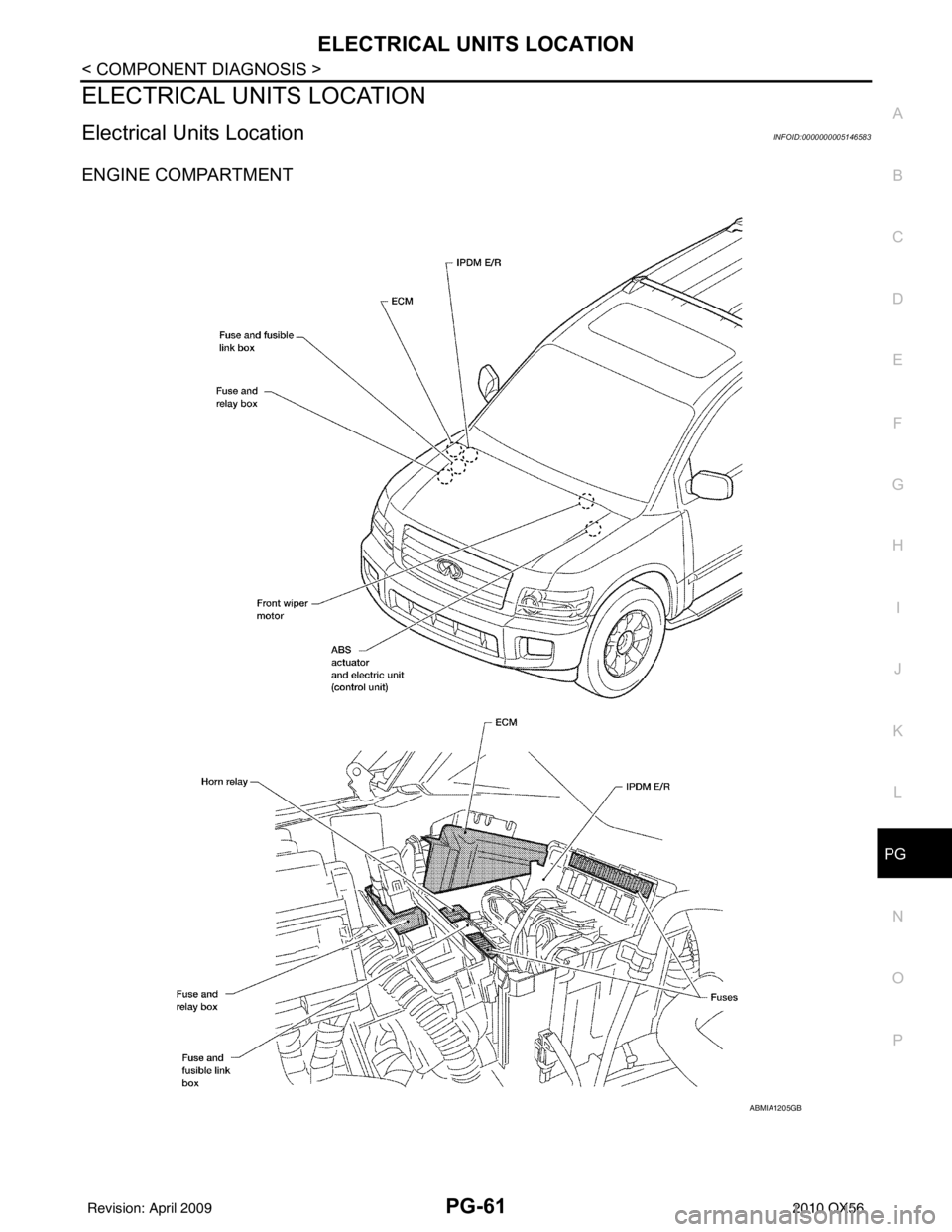

INFINITI QX56 2010 Factory Service Manual PG ELECTRICAL UNITS LOCATIONPG-61 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ELECTRICAL UNITS LOCATION Electrical Units LocationINFOID:0000000005146583 ENGINE COMPARTMENT ABMIA1205GB Revisi

Page 2972 of 4210

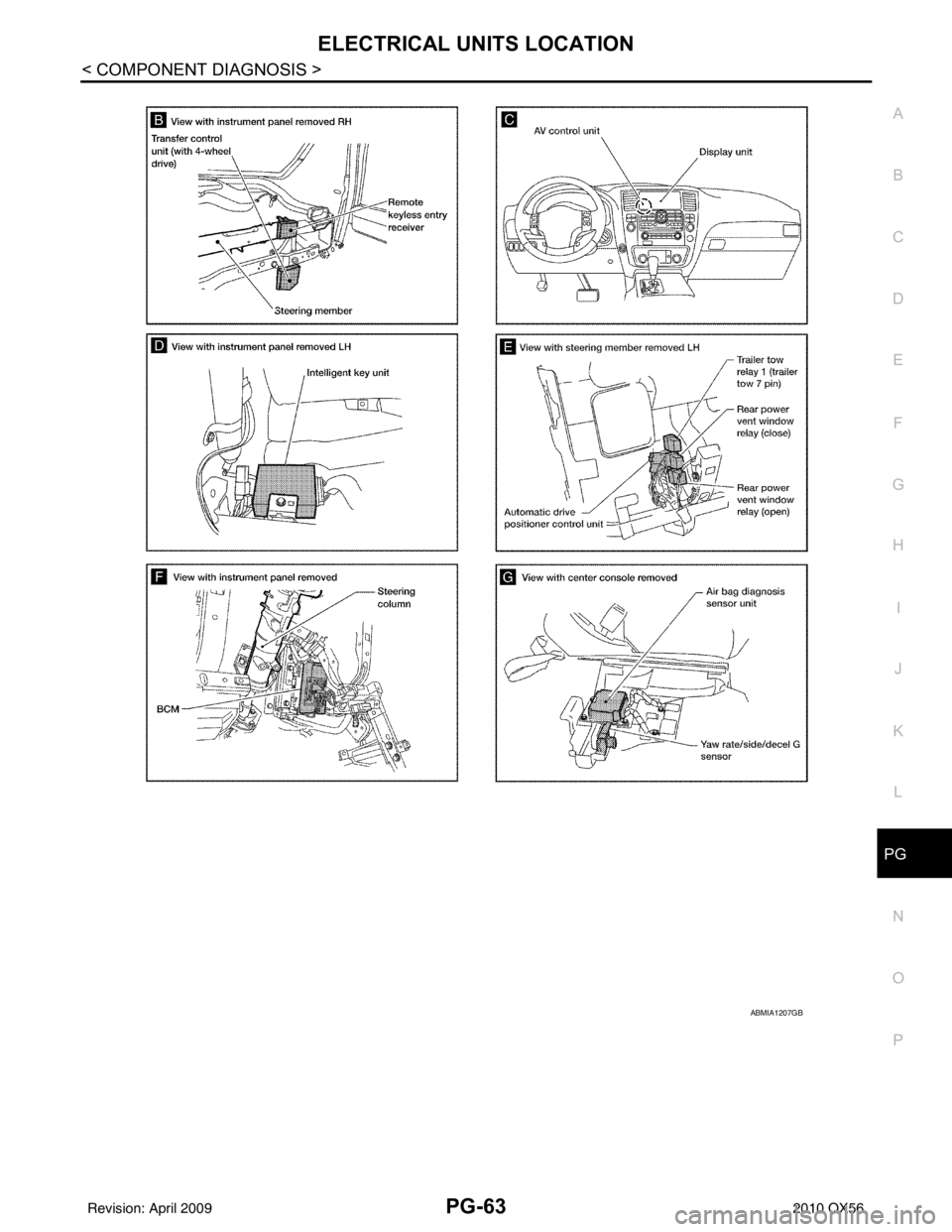

INFINITI QX56 2010 Factory Service Manual PG-62 < COMPONENT DIAGNOSIS > ELECTRICAL UNITS LOCATION PASSENGER COMPARTMENT ABMIA1206GB Revision: April 20092010 QX56

Page 2973 of 4210

INFINITI QX56 2010 Factory Service Manual PG ELECTRICAL UNITS LOCATIONPG-63 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ABMIA1207GB Revision: April 20092010 QX56

Page 2974 of 4210

INFINITI QX56 2010 Factory Service Manual PG-64 < COMPONENT DIAGNOSIS > HARNESS CONNECTOR HARNESS CONNECTOR DescriptionINFOID:0000000005146584 HARNESS CONNECTOR (TAB-LOCKING TYPE) • The tab-locking type connectors help prevent accidental lo

Page 2975 of 4210

INFINITI QX56 2010 Factory Service Manual PG HARNESS CONNECTORPG-65 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N • The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure below. CAUTI

Page 2976 of 4210

INFINITI QX56 2010 Factory Service Manual PG-66 < COMPONENT DIAGNOSIS > HARNESS CONNECTOR • Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these connectors to avoid damage to the connector
