Page 2913 of 4210

INFINITI QX56 2010 Factory Service Manual PG PRECAUTIONSPG-3 < PRECAUTION > C DE F G H I J K L B A O P N 5. When the repair work is completed, return the ignition switch to the ″LOCK ″ position before connecting the battery cables. (At t

Page 2914 of 4210

INFINITI QX56 2010 Factory Service Manual PG-4 < PREPARATION > PREPARATION PREPARATION PREPARATION Special Service ToolINFOID:0000000005146571 Commercial Service ToolINFOID:0000000005146572 Tool number (Kent-Moore No.) Tool nameDescription

Page 2915 of 4210

INFINITI QX56 2010 Factory Service Manual PG BATTERYPG-5 < BASIC INSPECTION > C DE F G H I J K L B A O P N BASIC INSPECTION BATTERY How to Handle BatteryINFOID:0000000005146573 CAUTION: • If it becomes necessary to start the engine with a

Page 2916 of 4210

INFINITI QX56 2010 Factory Service Manual PG-6 < BASIC INSPECTION > BATTERY • Remove the cell plug using a suitable tool. • Add distilled water up to the MAX level. Sulphation A battery will be completely discharged if it is left unattend

Page 2917 of 4210

INFINITI QX56 2010 Factory Service Manual PG BATTERYPG-7 < BASIC INSPECTION > C DE F G H I J K L B A O P N CHARGING THE BATTERY CAUTION: • Never “quick charge” a fully discharged battery. • Keep the battery away from open flame while

Page 2918 of 4210

INFINITI QX56 2010 Factory Service Manual PG-8 < BASIC INSPECTION > INSPECTION AND ADJUSTMENT INSPECTION AND ADJUSTMENT ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : S

Page 2919 of 4210

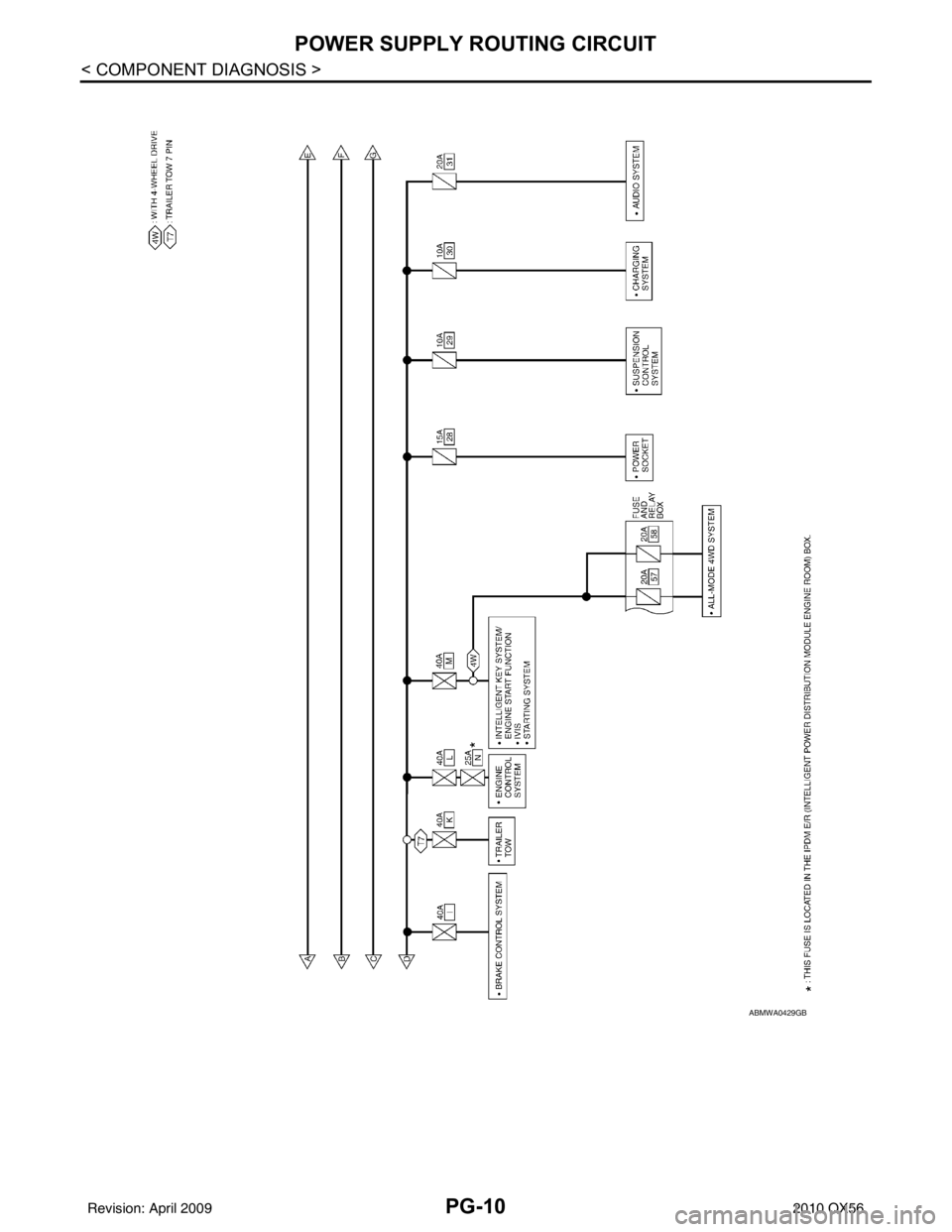

INFINITI QX56 2010 Factory Service Manual PG POWER SUPPLY ROUTING CIRCUITPG-9 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N COMPONENT DIAGNOSIS POWER SUPPLY ROUTING CIRCUIT Wiring Diagram —Battery Power Supply —INFOID:0000000005146

Page 2920 of 4210

INFINITI QX56 2010 Factory Service Manual PG-10 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT ABMWA0429GB Revision: April 20092010 QX56
