SIDE OIL SEALDLN-247
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
SIDE OIL SEAL
Removal and InstallationINFOID:0000000005148933
REMOVAL
1. Remove the drive shaft from the rear final drive assembly. Refer to RAX-10, "Removal and Installation".
2. Remove the side flange using Tools.
3. Remove the side oil seal using suitable tool. CAUTION:
Do not to damage gear carrier.
INSTALLATION
1. Apply multi-purpose grease to the lips of the new side oil seal.
Then drive the new side oil seal in evenly until it becomes flush
with the gear carrier using Tool.
CAUTION:
• Do not reuse side oil seal.
• Do not incline the new side oil seal when installing.
• Apply multi-purpose grease to the lips of the new side oil seal.
2. Install the side flange using Tool.
a. Install the Tool to the side oil seal as shown.
b. Insert the side flange until the serrated part of the side flange has engaged the serrated part of the side gear and remove the
Tool.
c. Drive in the side flange using suitable tool. NOTE:
Installation is completed when the driving sound of the side
flange turns into a sound which seems to affect the whole rear
final drive assembly.
3. Installation of the remaining components is in the reverse order of removal. CAUTION:Tool numbers A: KV40104100 ( — )
B: ST36230000 (J-25840-A)
WDIA0115E
LDIA0109E
Tool number : KV38100200 (J-26233)
LDIA0111E
Tool number : KV38107900 (J-39352)
SDIA0822E
Revision: April 20092010 QX56
Page 1330 of 4210
DLN-248
< ON-VEHICLE REPAIR >[REAR FINAL DRIVE: R230]
SIDE OIL SEAL
Check the differential gear oil level
after installation. Refer to DLN-244, "Checking Rear Differential
Gear Oil".
Revision: April 20092010 QX56
Page 1331 of 4210
![INFINITI QX56 2010 Factory Service Manual CARRIER COVERDLN-249
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
CARRIER COVER
Removal and InstallationINFOID:0000000005148934
REMOVAL
1. Remove the rear final driv INFINITI QX56 2010 Factory Service Manual CARRIER COVERDLN-249
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
CARRIER COVER
Removal and InstallationINFOID:0000000005148934
REMOVAL
1. Remove the rear final driv](/manual-img/42/57032/w960_57032-1330.png)
CARRIER COVERDLN-249
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
CARRIER COVER
Removal and InstallationINFOID:0000000005148934
REMOVAL
1. Remove the rear final drive assembly. Refer to DLN-250, "Removal and Installation".
2. Remove the carrier cover bolts and separate the carrier cover from the gear carrier using Tool.
CAUTION:
• Do not damage the mating surface.
• Do not insert flat-bladed screw driver, this will damage the
mating surface.
INSTALLATION
1. Apply a 3 mm (0.12 in) bead of sealant to the mating surface of the carrier cover as shown.
• Use Genuine Silicone RTV or equivalent. Refer to GI-15,
"Recommended Chemical Products and Sealants".
CAUTION:
Remove any old sealant adheri ng to the mating surfaces.
Also remove any moisture, oil, or foreign material adhering
to the application and mating surfaces.
2. Install the carrier cover to the gear carrier. Tighten the bolts to the specified torque. Refer to DLN-253, "
Disassembly and
Assembly".
3. Install the rear final drive assembly. Refer to DLN-250, "
Removal
and Installation".
CAUTION:
Fill the rear final drive assembly with reco mmended differential gear oil. Refer to DLN-244
.
Tool number : KV10111100 (J-37228)
WDIA0123E
WDIA0282E
Revision: April 20092010 QX56
Page 1332 of 4210
DLN-250
< REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
REMOVAL AND INSTALLATION
REAR FINAL DRIVE
Removal and InstallationINFOID:0000000005148935
REMOVAL
1. Remove the spare tire.
2. Drain the differential gear oil. Refer to
DLN-244, "
Changing Rear Differential Gear Oil".
3. Remove the rear stabilizer bar. Refer to RSU-23, "
Removal and Installation".
4. Remove the rear propeller shaft. Refer to DLN-196, "
Removal and Installation".
5. Remove the rear drive shafts from the rear final drive assembly and support them using suitable wire. Refer to RAX-10,
"Removal and Installation".
6. Disconnect the breather hose from the rear final drive assembly.
1. Rear final drive assembly 2. Upper stopper3. Washer
4. Lower stopper Vehicle front
WDIA0383E
LDIA0164E
Revision: April 20092010 QX56
Page 1333 of 4210
REAR FINAL DRIVEDLN-251
< REMOVAL AND INSTALLATION > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
7. Place a suitable jack under the rear final drive assembly. CAUTION:
Do not place the jack on the carrier cover.
8. Remove the nuts and bolts and remove the rear final drive assembly.
CAUTION:
Secure rear final drive assembly to the jack while removing
it.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• When installing the breather hose make sure the pa inted marking on the metal end of breather hose
is to the front of the vehicle and there are no pinched or restricted areas on the breather hose
caused by folding or bend ing when installing it.
• When installing the breather hose insert the plastic end of the breather hose into the hole in the sus-
pension member.
WDIA0117E
Revision: April 20092010 QX56
Page 1334 of 4210
DLN-252
< REMOVAL AND INSTALLATION >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
REAR FINAL DRIVE BREATHER
• Fill the rear final drive assembl
y with differential gear oil after installation. Refer to DLN-244.
ALDIA0210GB
1. Rear final drive breather hose connector 2. Plastic clip 3. Rear final drive breather tube
4. Rear final drive assembly 5. Rear suspension member 6. Rear final drive breather hose
7. Parking brake cable 8. Exhaust pipe9. Frame (LH)
10. Rear final drive breather hose frame connector A. Close-up view
Front
Revision: April 20092010 QX56
Page 1335 of 4210
REAR FINAL DRIVEDLN-253
< DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
DISASSEMBLY AND ASSEMBLY
REAR FINAL DRIVE
Disassembly and AssemblyINFOID:0000000005148936

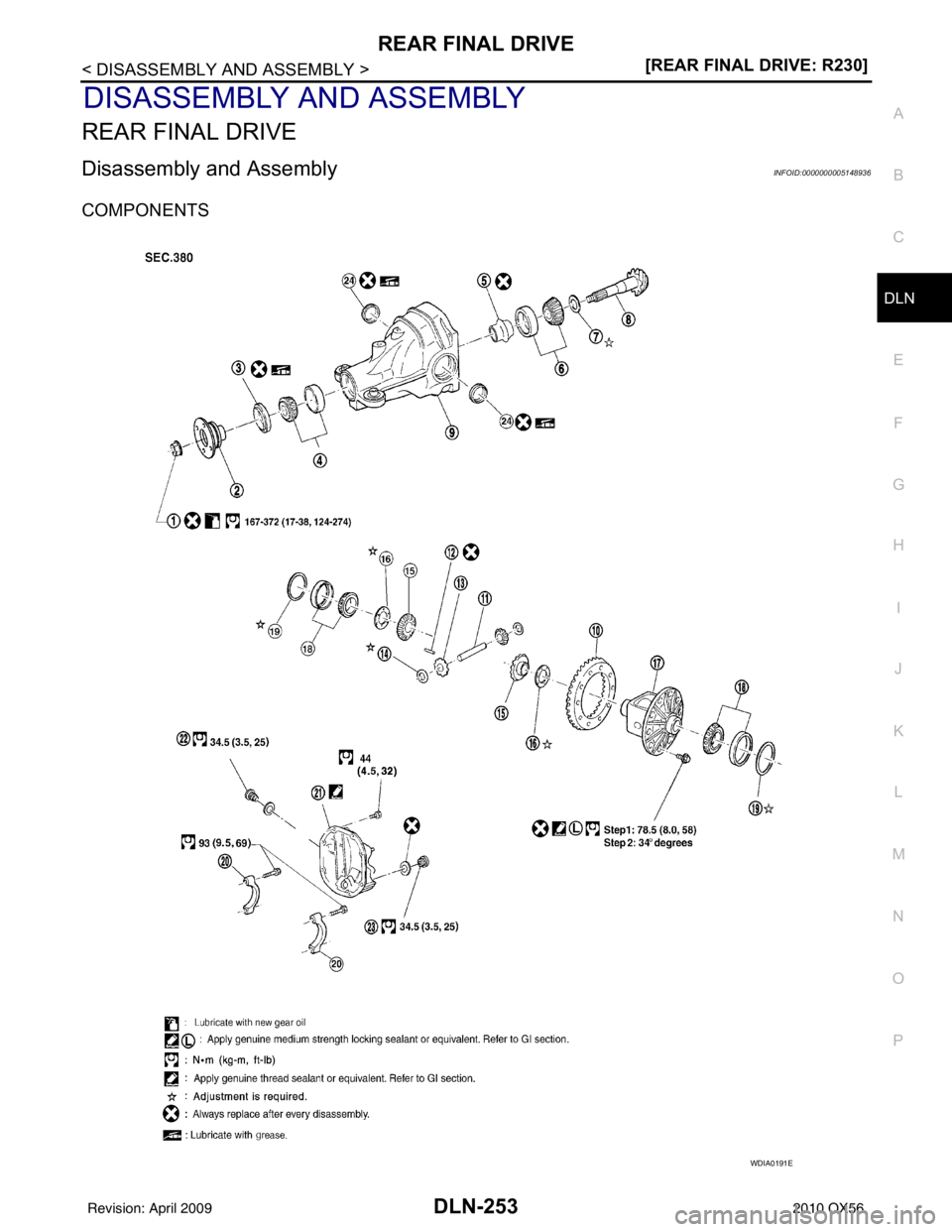

COMPONENTS
WDIA0191E
Revision: April 20092010 QX56
Page 1336 of 4210
![INFINITI QX56 2010 Factory Service Manual DLN-254
< DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
ASSEMBLY INSPECTION AND ADJUSTMENT
• Drain the differential gear oil before inspection and adjustment. Refer to
DLN-244 INFINITI QX56 2010 Factory Service Manual DLN-254
< DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
ASSEMBLY INSPECTION AND ADJUSTMENT
• Drain the differential gear oil before inspection and adjustment. Refer to
DLN-244](/manual-img/42/57032/w960_57032-1335.png)
DLN-254
< DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
ASSEMBLY INSPECTION AND ADJUSTMENT
• Drain the differential gear oil before inspection and adjustment. Refer to
DLN-244.
• Remove and install the carrier cover as necessary for inspection and adjustment. Refer to DLN-249
.
Total Preload Torque
1. Remove the side flanges if necessary. Refer to DLN-247, "Removal and Installation".
CAUTION:
The side flanges must removed in or der to measure total preload torque.
2. Rotate the drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.
3. Rotate the drive pinion at least 20 times to check for smooth operation of the bearings.
4. Measure the total preload torque using Tool.
NOTE:
Total preload torque = Drive pinion bearing preload torque +
Side bearing preload torque
• If the measured value is out of the specification, check and adjust each part. Adjust the drive pinion
bearing preload torque first, then adjust the side bearing preload torque.
CAUTION:
Select a side bearing adjusting wash er for right and left individually.
Drive Gear Runout
1. Drive pinion lock nut 2. Companion flange3. Front oil seal
4. Drive pinion front bearing 5. Collapsible spacer6. Drive pinion rear bearing
7. Drive pinion height adjusting washer 8. Drive pinion 9. Gear carrier
10. Drive gear 11. Pinion mate shaft12. Lock pin
13. Pinion mate gear 14. Pinion mate thrust washer 15. Side gear
16. Side gear thrust washer 17. Differential case18. Side bearing
19. Side bearing adjusting washer 20. Bearing cap 21. Carrier cover
22. Filler plug 23. Drain plug24. Side oil seal
Tool number : ST3127S000 (J-25765-A)
Total preload torque
: Refer to DLN-270, "
Inspection and Adjustment"
SPD884
If the total preload torque is greater than specification
On drive pinion bearings: Replace the collapsible spacer.
On side bearings: Use thinner side b earing adjusting washers by the same
amount on each side. Refer to DLN-270, "
Inspection and Adjust-
ment".
If the total preload torque is less than specification On drive pinion bearings: Tighten the drive pinion lock nut.
On side bearings: Use thicker side b earing adjusting washers by the same
amount on each side. Refer to DLN-270, "
Inspection and Ad-
justment".
