INFINITI QX56 2010 Factory Service Manual WW-48
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
44 ORear wiper auto stop
switch 1 Input ONRise up position (rear wiper
arm on stopper)
0V
A Position (full clockwise stop
position) Battery voltage

Page 4170 of 4210

INFINITI QX56 2010 Factory Service Manual BCM (BODY CONTROL MODULE)WW-49
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
58 W/R Optical sensor Input ONWhen optical sensor is illumi-
nated
3.1V or more
When optical sensor is not illu-
minate

Page 4171 of 4210

INFINITI QX56 2010 Factory Service Manual WW-50
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)

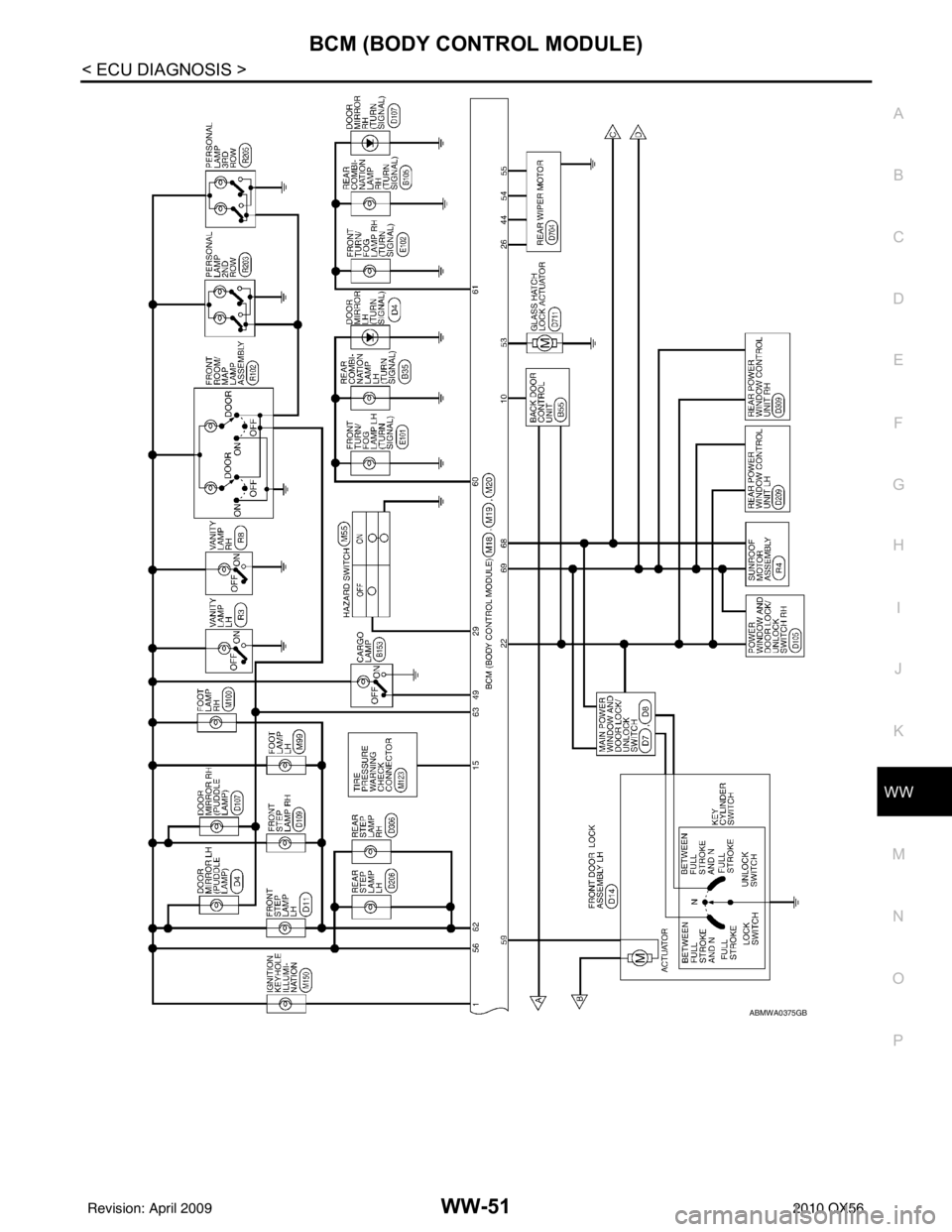

Wiring Diagram
INFOID:0000000005369218
ABMWA0374GB
Revision: April 20092010 QX56

Page 4172 of 4210

INFINITI QX56 2010 Factory Service Manual BCM (BODY CONTROL MODULE)WW-51
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
ABMWA0375GB
Revision: April 20092010 QX56

Page 4173 of 4210

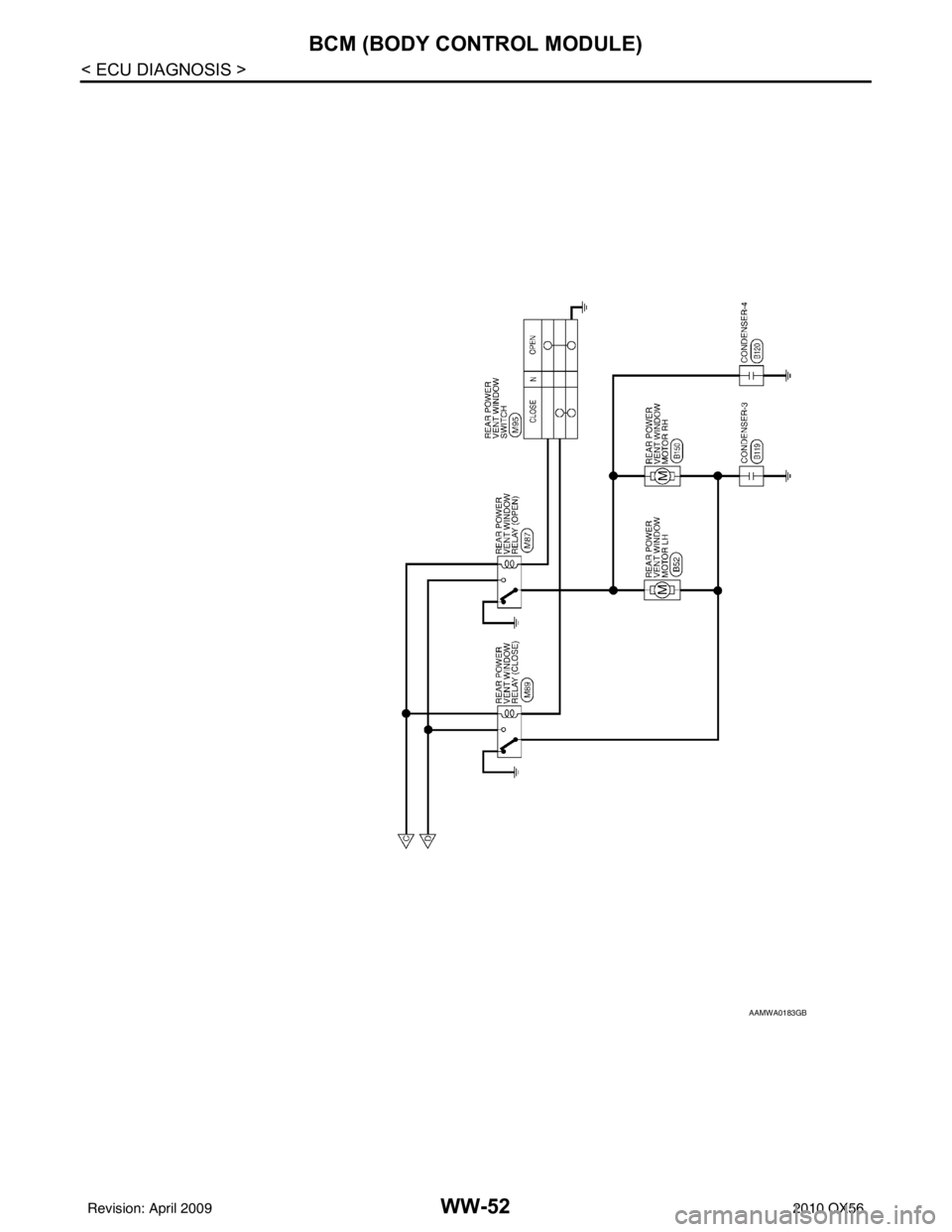

INFINITI QX56 2010 Factory Service Manual WW-52
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
AAMWA0183GB
Revision: April 20092010 QX56

Page 4174 of 4210

INFINITI QX56 2010 Factory Service Manual BCM (BODY CONTROL MODULE)WW-53
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
ABMIA1059GB
Revision: April 20092010 QX56

Page 4175 of 4210

INFINITI QX56 2010 Factory Service Manual WW-54
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
Fail Safe
INFOID:0000000005369219
Fail-safe index
BCM performs fail-safe control when any DTC listed below is detected.
ABMIA1060GB
Revision: April 20

Page 4176 of 4210

INFINITI QX56 2010 Factory Service Manual BCM (BODY CONTROL MODULE)WW-55
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
DTC Inspection Priority ChartINFOID:0000000005369220
If some DTCs are displayed at the same time, perform inspections o

BCM (BODY CONTROL MODULE)WW-55
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
DTC Inspection Priority ChartINFOID:0000000005369220
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
DTC IndexINFOID:0000000005369221
NOTE: Details of time display
• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni- tion switch OFF → ON again.
• 1 - 39: Displayed if any previous ma lfunction is present when current conditi on is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condi tion if the malfunction is detected again.
Display contents of CONSULT Fail-safe Cancellation
U1000: CAN COMM CIRCUIT I nhibit engine crankingWhen the BCM re-establishes communication with the other mod-
ules.
Priority
DTC
1 • U1000: CAN COMM CIRCUIT
2 • B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2013: STRG COMM 1
• B2552: INTELLIGENT KEY
• B2590: NATS MALFUNCTION
3 • C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL
4 • C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL
CONSULT display
Fail-safeIntelligent Key
warning lamp ON Tire pressure
monitor warning lamp ON Reference page
No DTC is detected.
further testing
may be required. ————
U1000: CAN COMM CIRCUIT ———BCS-32
B2190: NATS ANTENNA AMP ———SEC-31
Revision: April 20092010 QX56
