INFINITI QX56 2010 Factory Service Manual SR-22
< ON-VEHICLE REPAIR >
COLLISION DIAGNOSIS
PartSRS is activated SRS is NOT activated
LH side curtain air
bag module If the LH side curtain
air bag has deployed:
REPLACE the LH
side curtain air

SR-22
< ON-VEHICLE REPAIR >
COLLISION DIAGNOSIS
PartSRS is activated SRS is NOT activated
LH side curtain air
bag module If the LH side curtain
air bag has deployed:
REPLACE the LH
side curtain air bag
module. (Repair the
center pillar inner, etc.
before installing new
one if damaged.)If the LH side curtain air bag has NOT deployed:
1. Check for visible signs of damage (dents, tears, deformation) of the center pillar
on the collision side.
2. If damaged—Remove the LH side curtain air bag module.
3. Check for visible signs of damaged (tears etc.) of the LH side curtain air bag mod- ule.
4. Check harness and connectors for damage, and terminals for deformities.
5. If no damage is found, reinstall the LH side curtain air bag module with new fas- teners.
6. If damaged—REPLACE the LH side curtain air bag module with new fasteners.
RH side curtain air
bag module If the RH side curtain
air bag has deployed:
REPLACE the RH
side curtain air bag
module. (Repair the
center pillar inner, etc.
before installing new
one if damaged.)If the RH side curtain air bag has NOT deployed:
1. Check for visible signs of damage (dents, tears, deformation) of the center pillar
on the collision side.
2. If damaged—Remove the RH side curtain air bag module.
3. Check for visible signs of damaged (tears etc.) of the RH side curtain air bag module.
4. Check harness and connectors for damage, and terminals for deformities.
5. If no damage is found, reinstall the RH side curtain air bag module with new fas- teners.
6. If damaged—REPLACE the RH side curtain air bag module with new fasteners.
Front LH side air bag
module If the front LH side air
bag has deployed:
REPLACE front LH
seatback assembly.If the front LH side air bag has NOT deployed:
1. Check for visible signs of damage (dents, tears, deformation) of the seat back on
the collision side.
2. Check harness and connectors for damage, and terminals for deformities.
3. If damaged—REPLACE the front LH seatback assembly.
Front RH side air bag
module If the front RH side air
bag has deployed:
REPLACE front RH
seatback assembly.If the front RH side air bag has NOT deployed:
1. Check for visible signs of damage (dents, tears, deformation) of the seat back on
the collision side.
2. Check harness and connectors for damage, and terminals for deformities.
3. If damaged—REPLACE the front RH seatback assembly.
(LH or RH) side air
bag (satellite) sensor If any of the SRS
components have de-
ployed:
REPLACE the side air
bag (satellite) sensor
on the collision side
with new fasteners.
(Repair the center pil-
lar inner, etc. before
installing new one if
damaged.)If none of the SRS components have been activated:
1. Remove the side air bag (satellite) sensor on the collision side. Check harness
connectors for damage, terminals for deformities, and harness for binding.
2. Check for visible signs of damage (dents, cracks, deformation) of the side air bag
(satellite) sensor.
3. Install the side air bag (satellite) sensor to check fit.
4. If no damage is found, reinstall the side sir bag (satellite) sensor with new fasten- ers.
5. If damaged—REPLACE the side air bag (satellite) sensor with new fasteners.
Diagnosis sensor unit If any of the SRS components have de-
ployed:
REPLACE the diag-
nosis sensor unit with
new fasteners.If none of the SRS components have been activated:
1. Check case and bracket for dents, cracks or deformities.
2. Check connectors for damage, and terminals for deformities.
3. If no damage is found, reinstall the diagnosis sensor unit with new fasteners.
4. If damaged—REPLACE the diagnosis sensor unit with new fasteners.
Seat belt pre-tension-
er assemblies
(All applicable loca-
tions: buckle, reel, lap
outer) If either the driver or
passenger seat belt
pre-tensioner* has
been activated:
REPLACE all seat
belt pre-tensioner as-
semblies with new
fasteners.
*: Confirm seat belt
pre-tensioner activa-
tion using CONSULT-
III only.If the pre-tensioners have NOT been activated:
1. Remove seat belt pre-tensioners.
Check harness cover and connectors for damage, terminals for deformities, and
harness for binding.
2. Check belts for damage and anchors for loose mounting.
3. Check retractor for smooth operation.
4. Check seat belt adjuster for damage.
5. Check for deformities of the center pillar inner.
6. If the center pillar inner has no damage, REPLACE the seat belt pre-tensioner
assembly.
7. If no damage is found, reinstall seat belt pre-tensioner assembly.
8. If damaged—REPLACE. Install the seat belt pre-tensioners with new fasteners.
Revision: April 20092010 QX56

Page 3546 of 4210

INFINITI QX56 2010 Factory Service Manual COLLISION DIAGNOSISSR-23
< ON-VEHICLE REPAIR >
C
DE
F
G
I
J
K L
M A
B
SR
N
O P
Seat (with front side
air bag) If either the front LH or
front RH side air bag
modules has been de-
ployed:
REPLACE f

Page 3547 of 4210

INFINITI QX56 2010 Factory Service Manual SRC-1
RESTRAINTS
C
DE
F
G
I
J
K L
M
SECTION SRC
A
B
SRC
N
O P
CONTENTS
SRS AIRBAG CONTROL SYSTEM
BASIC INSPECTION ....... .............................3

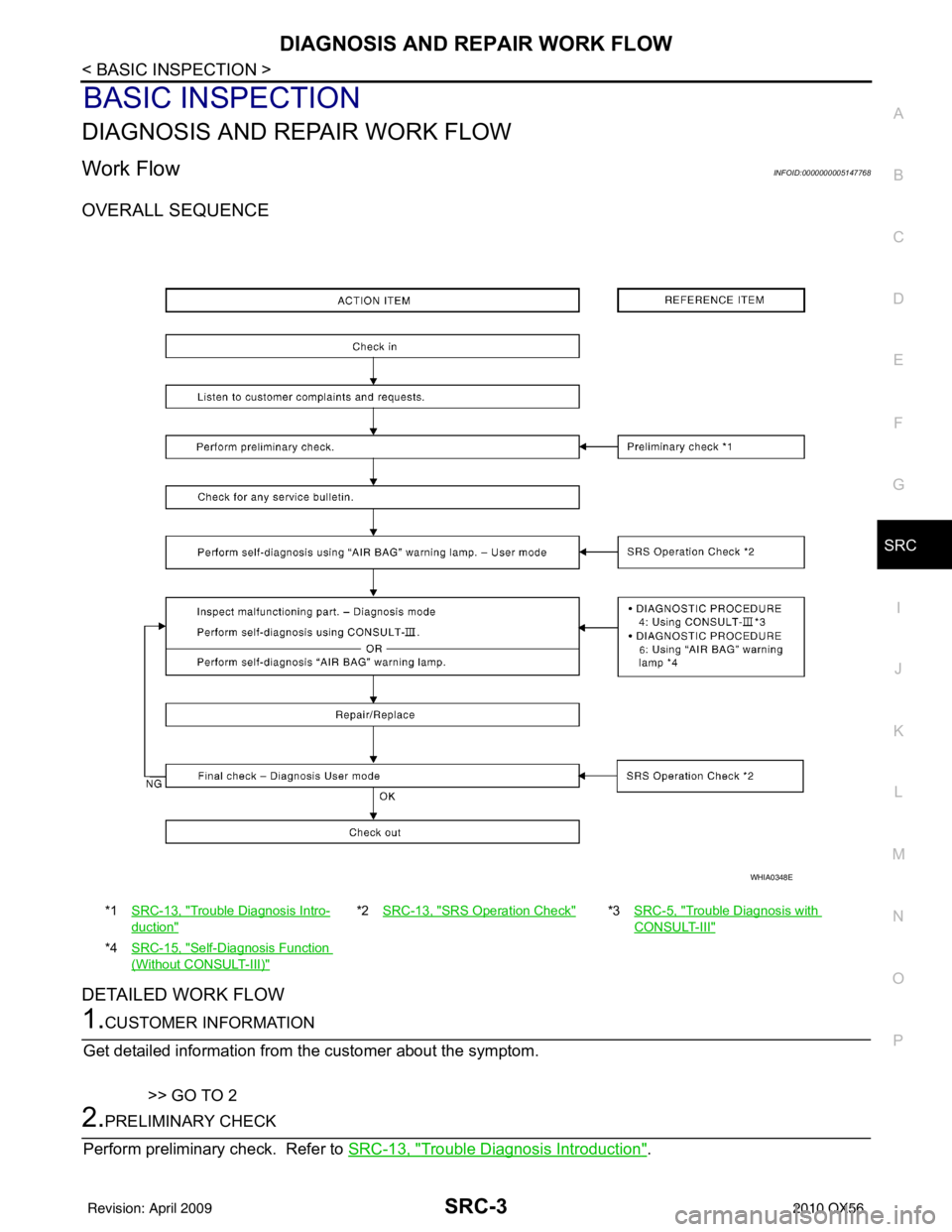

DIAGNOSIS AND REPAIR WORK FLOW .... .....3
Wo

SRC-1
RESTRAINTS
C
DE
F
G
I
J
K L
M
SECTION SRC
A
B
SRC
N
O P
CONTENTS
SRS AIRBAG CONTROL SYSTEM
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORK FLOW .... .....3
Work Flow ........................................................... ......3
INTERMITTENTS INCIDENT ..............................5
Inspection Procedure ......................................... ......5
Trouble Diagnosis with CONSULT-III .......................5
FUNCTION DIAGNOSIS ...............................6
SRS AIR BAG SYSTEM ................................. .....6
SRS Configuration .............................................. ......6
SRS Component Parts Location ...............................7
Driver Air Bag Module ...............................................7
Front Passenger Air Bag Module ..............................8
Front Side Air Bag ............................................... ......8
Side Curtain Air Bag ..................................................8
Front Seat Belt Pre-tensioner with Load Limiter .......8
Direct-connect SRS Component Connectors ............9
OCCUPANT CLASSIFICATION SYSTEM .........10
System Diagram .................................................. ....10
Occupant Classification System (OCS) ..................10
PASSENGER SEAT BELT WARNING SYS-
TEM ....................................................................
12
System Diagram .................................................. ....12
System Description .................................................12
Component Parts Location ......................................12
ON BOARD DIAGNOSTIC (OBD) SYSTEM ......13
Trouble Diagnosis Introduction ........................... ....13
SRS Operation Check .............................................13
Trouble Diagnosis without CONSULT-III ................15
CONSULT-III Function (AIR BAG) ..........................15
Self-Diagnosis Function (Without CONSULT-III) ....15
COMPONENT DIAGNOSIS .........................17
B1049 – B1052, B1054 – B1057 DRIVER AIR-
BAG MODULE ...................................................
17
Description ........................................................... ....17
DTC Logic ................................................................17
Diagnosis Procedure (Component Diagnosis) ........18
B1065 – B1068, B1070 – B1073 PASSEN-
GER AIRBAG MODULE ...................................
20
Description ...............................................................20
DTC Logic ................................................................20
Diagnosis Procedure (Component Diagnosis) ........21
B1134 – B1137 SIDE AIRBAG MODULE LH ...23
Description ...............................................................23
DTC Logic ................................................................23
Diagnosis Procedure (Component Diagnosis) ........24
B1129 – B1132 SIDE AIRBAG MODULE RH ...26
Description ...............................................................26
DTC Logic ................................................................26
Diagnosis Procedure (Component Diagnosis) ........27
B1198 – B1201 SIDE CURTAIN AIR BAG
MODULE LH (FRONT) ......................................
29
Description ...............................................................29
DTC Logic ................................................................29
Diagnosis Procedure (Component Diagnosis) ........30
B1193 – B1196 SIDE CURTAIN AIR BAG
MODULE RH (FRONT) .....................................
32
Description ...............................................................32
DTC Logic ................................................................32
Diagnosis Procedure (Component Diagnosis) ........33
B1150 – B1153 SIDE CURTAIN AIR BAG
MODULE LH (REAR) ........................................
35
Description ...............................................................35
DTC Logic ................................................................35
Diagnosis Procedure (Component Diagnosis) ........36
B1145 – B1148 SIDE CURTAIN AIR BAG
MODULE RH (REAR) .......................................
38
Description ...............................................................38
DTC Logic ................................................................38
Revision: April 20092010 QX56

Page 3548 of 4210

INFINITI QX56 2010 Factory Service Manual SRC-2
Diagnosis Procedure (Component Diagnosis) ........39
B1086 – B1089 SEAT BELT PRE-TENSION-
ER LH .................................................................
41
Description ...............

SRC-2
Diagnosis Procedure (Component Diagnosis) ........39
B1086 – B1089 SEAT BELT PRE-TENSION-
ER LH .................................................................
41
Description ........................................................... ...41
DTC Logic ...............................................................41
Diagnosis Procedure (Component Diagnosis) ........42
B1081 – B1084 SEAT BELT PRE-TENSION-
ER RH ................................................................
44
Description ..............................................................44
DTC Logic ...............................................................44
Diagnosis Procedure (Component Diagnosis) ........45
B1182 - B1185 SEAT BELT BUCKLE PRE-
TENSIONER LH .................................................
47
Description ........................................................... ...47
DTC Logic ...............................................................47
Diagnosis Procedure (Component Diagnosis) ........48
B1177 - B1180 SEAT BELT BUCKLE PRE-
TENSIONER RH ................................................
50
Description ........................................................... ...50
DTC Logic ...............................................................50
Diagnosis Procedure (Component Diagnosis) ........51
B1033 – B1035 CRASH ZONE SENSOR .........53
Description ........................................................... ...53
DTC Logic ...............................................................53
Diagnosis Procedure (Component Diagnosis) ........54
B1118 – B1120 SATELLITE SENSOR LH ........56
Description ........................................................... ...56
DTC Logic ...............................................................56
Diagnosis Procedure (Component Diagnosis) ........57
B1113 – B1115 SATELLITE SENSOR RH .......59
Description ........................................................... ...59
DTC Logic ...............................................................59
Diagnosis Procedure (Component Diagnosis) ........60
B1XXX AIR BAG DIAGNOSIS SENSOR UNIT ...62
Description ........................................................... ...62
DTC Logic ...............................................................62
Diagnosis Procedure (Component Diagnosis) ........63
B1023 PASSENGER AIR BAG OFF INDICA-
TOR ....................................................................
64
Description ........................................................... ...64
DTC Logic ...............................................................64
Diagnosis Procedure (Component Diagnosis) ........65
B1017 – B1022 OCCUPANT CLASSIFICA-
TION SYSTEM ................................................ ...
67
Description ........................................................... ...67
DTC Logic ...............................................................67
Diagnosis Procedure (Component Diagnosis) ........68
B1209 – B1211 COLLISION DETECTION ........70
Description ........................................................... ...70
DTC Logic ...............................................................70
Diagnosis Procedure (Component Diagnosis) ........70
ECU DIAGNOSIS .......................................71
DIAGNOSIS SENSOR UNIT .............................71
Wiring Diagram .................................................... ...71
Trouble Diagnosis with CONSULT-III .....................80
Trouble Diagnosis without CONSULT-III ................84
SYMPTOM DIAGNOSIS ............................89
SRS AIR BAG SYSTEM ................................. ...89
"AIR BAG" Warning Lamp Does Not Turn Off ..... ...89
"AIR BAG" Warning Lamp Does Not Turn On ........89
PASSENGER SEAT BELT WARNING SYS-
TEM ....................................................................
91
Seat Belt Warning System Does Not Function .... ...91
PRECAUTION ............................................92
PRECAUTIONS .............................................. ...92
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ...
92
Precaution for SRS "AIR BAG" and "SEAT BELT
PRE-TENSIONER" Service ................................. ...
92
Occupant Classification System Precaution ...........92
Revision: April 20092010 QX56

Page 3549 of 4210

INFINITI QX56 2010 Factory Service Manual DIAGNOSIS AND REPAIR WORK FLOWSRC-3
< BASIC INSPECTION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000005147768
OVERALL SEQUENCE
DETAILED WOR

Page 3550 of 4210

INFINITI QX56 2010 Factory Service Manual SRC-4
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORK FLOW
>> GO TO 3
3.TECHNICAL SERVICE BULLETINS
Check for technical service bulletins.
>> GO TO 4
4.USER MODE
Perform self-diagnosis using the "AIR B

Page 3551 of 4210

INFINITI QX56 2010 Factory Service Manual INTERMITTENTS INCIDENTSRC-5
< BASIC INSPECTION >
C
DE
F
G
I
J
K L
M A
B
SRC
N
O P
INTERMITTENTS INCIDENT
Inspection ProcedureINFOID:0000000005147769
INTERMITTENT TROUBLE
An intermittent incident may h

Page 3552 of 4210

INFINITI QX56 2010 Factory Service Manual SRC-6
< FUNCTION DIAGNOSIS >
SRS AIR BAG SYSTEM
FUNCTION DIAGNOSIS
SRS AIR BAG SYSTEM
SRS ConfigurationINFOID:0000000005147771
The air bag deploys if the air bag diagnosis sensor unit is activated whi

Load next 8 pages

Page: < prev 1-10 ... 3513-3520 3521-3528 3529-3536 3537-3544 3545-3552 3553-3560 3561-3568 3569-3576 3577-3584 ... 4216 next >

low oil pressure radio antenna refrigerant type fuse box diagram change wheel differential
