2010 INFINITI QX56 Factory Service Manual

check oil fuse diagram windshield wipers heater service indicator fold seats

Page 1 of 4210

INFINITI QX56 2010 Factory Service Manual
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
O
QUICK REFERENCE INDEX

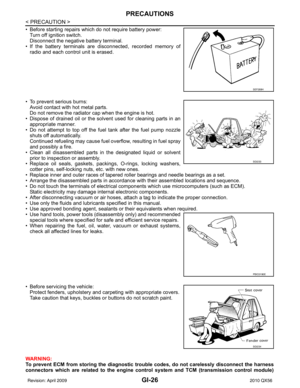

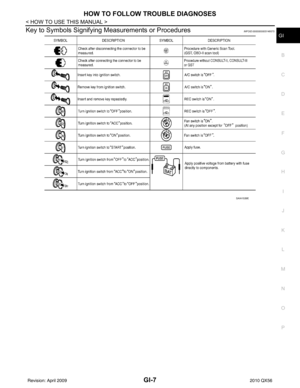

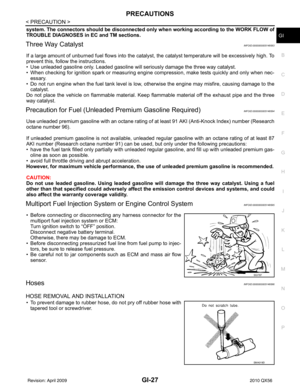

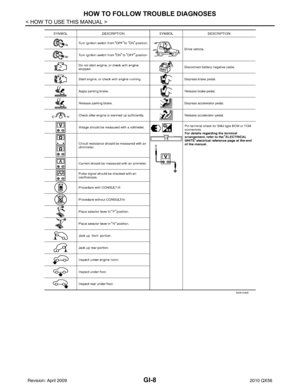

AGENERAL INFORMATIONGIGeneral Information

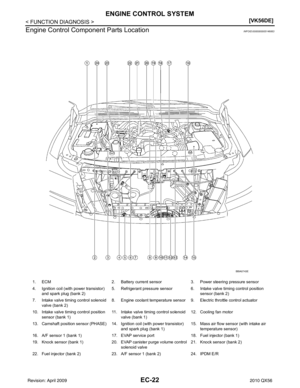

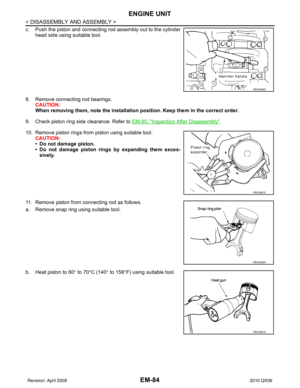

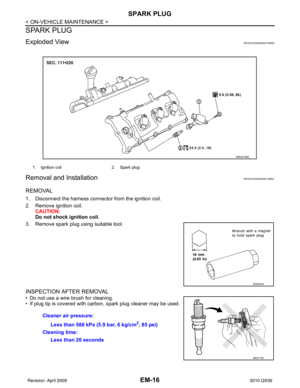

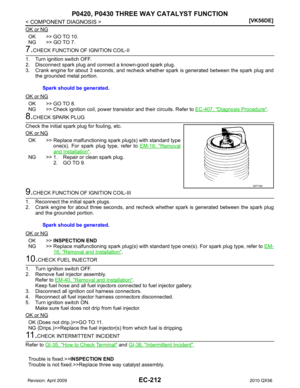

BENGINEEMEngine Mechanical

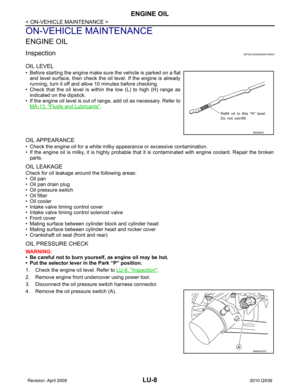

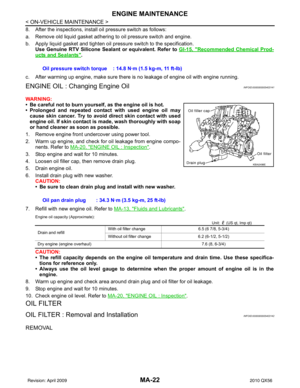

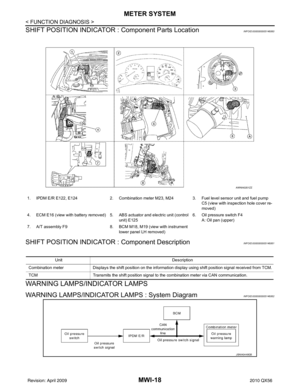

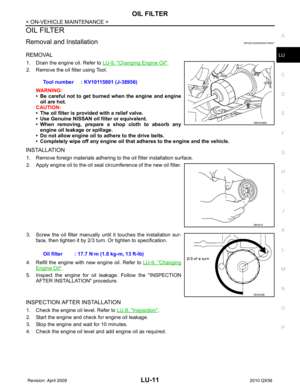

LUEngine Lubrication System
COEngine Cooling System

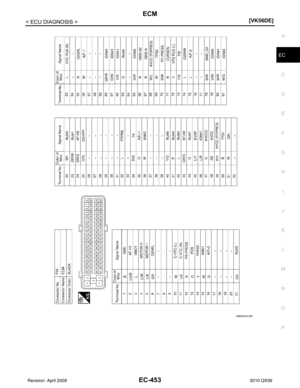

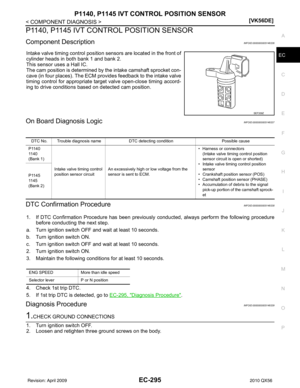

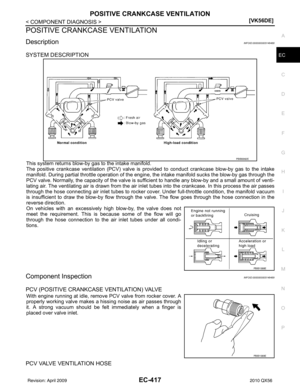

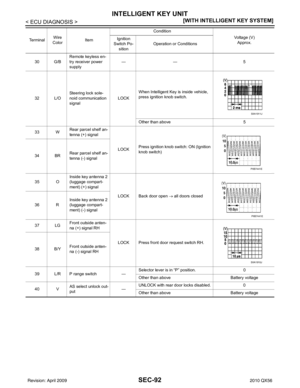

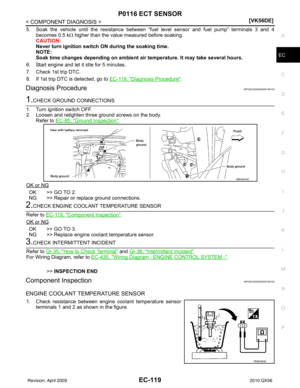

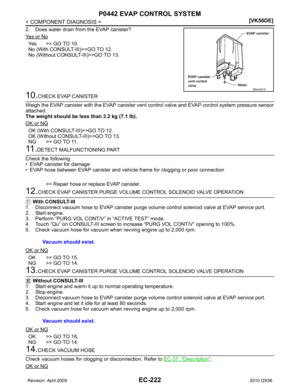

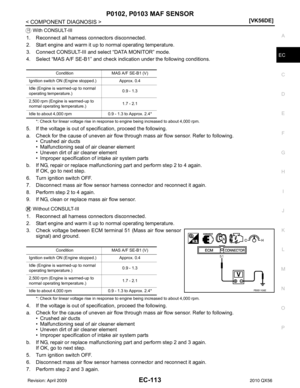

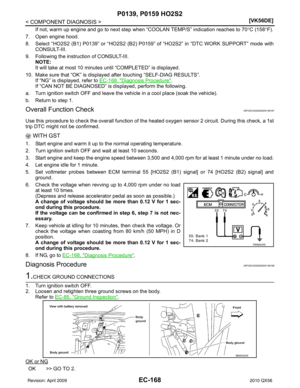

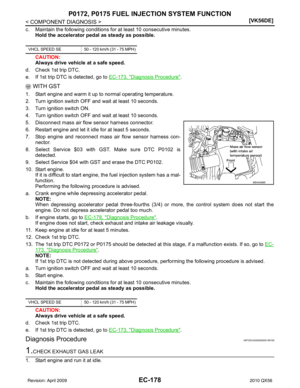

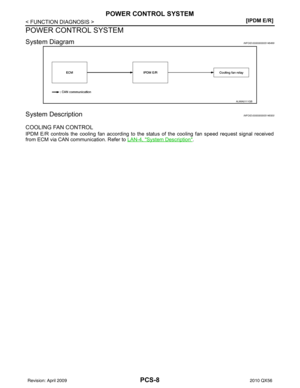

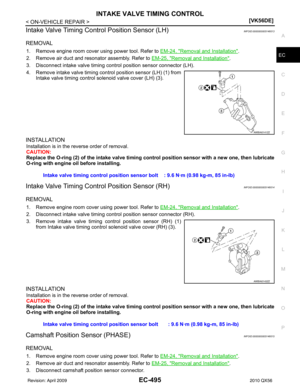

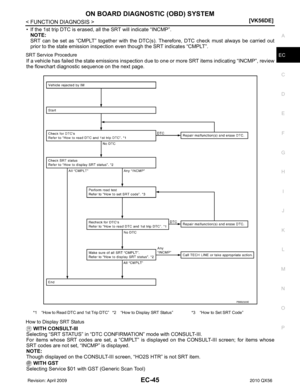

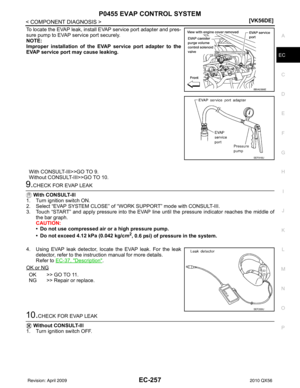

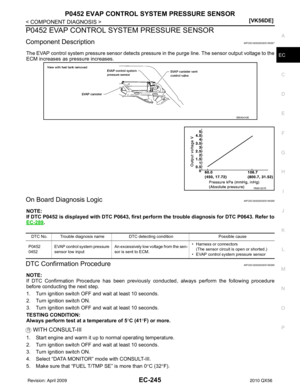

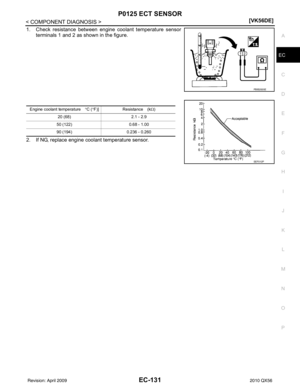

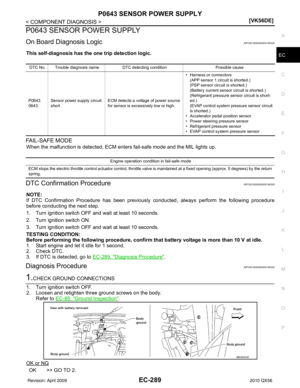

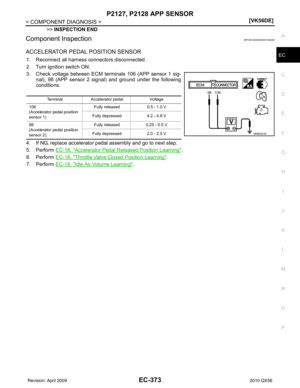

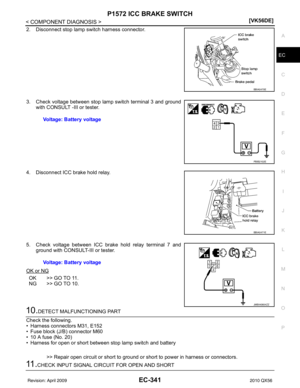

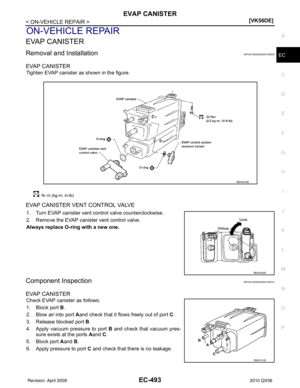

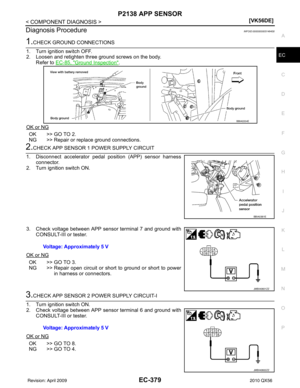

ECEngine Control System

A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
O
QUICK REFERENCE INDEX

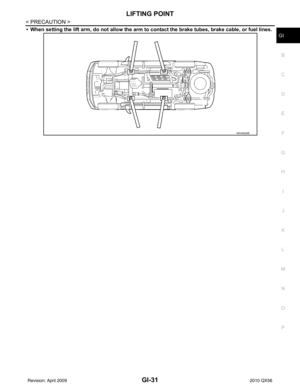

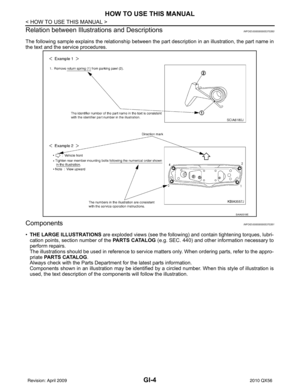

AGENERAL INFORMATIONGIGeneral Information

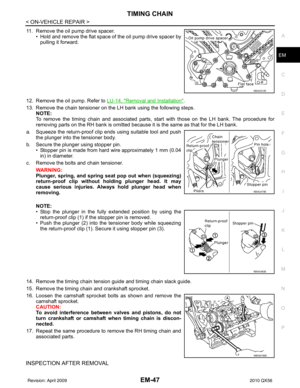

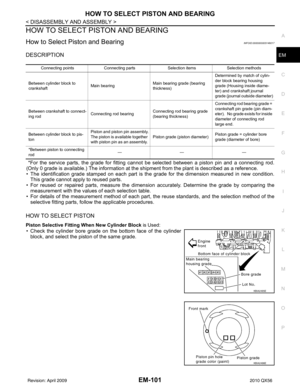

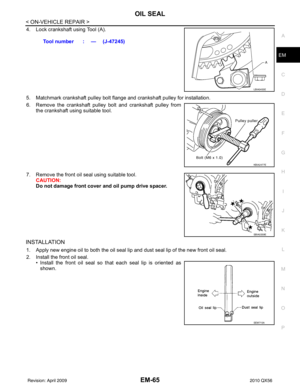

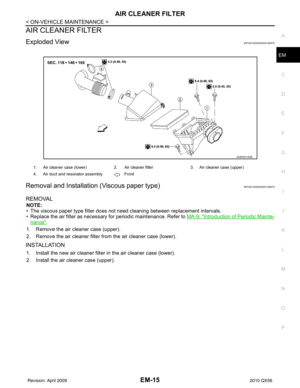

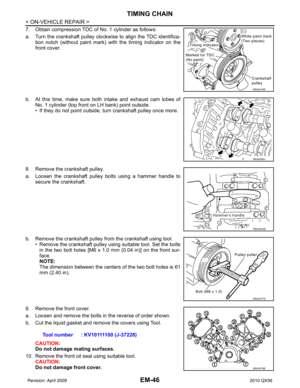

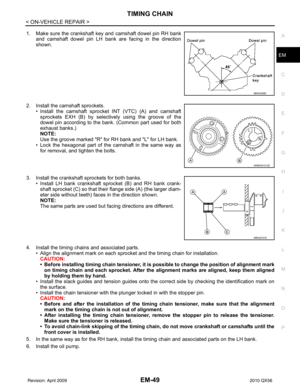

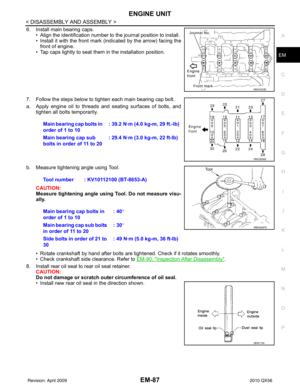

BENGINEEMEngine Mechanical

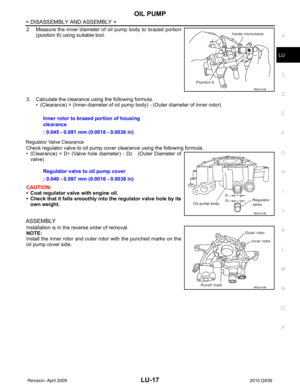

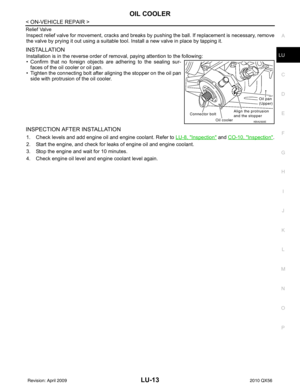

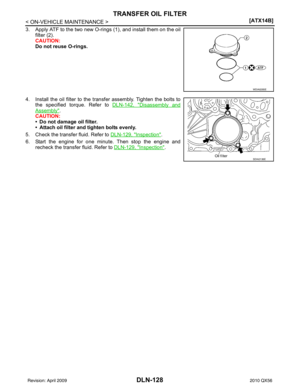

LUEngine Lubrication System
COEngine Cooling System

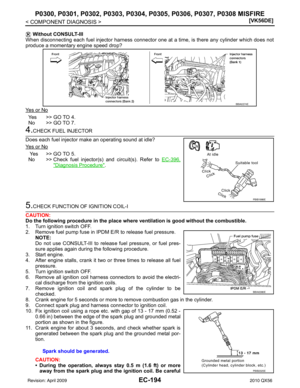

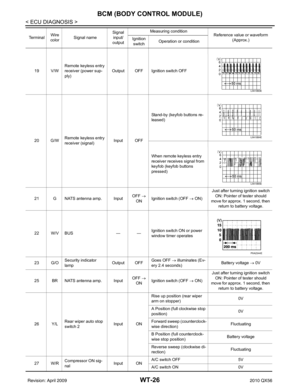

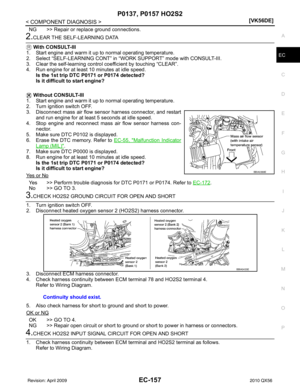

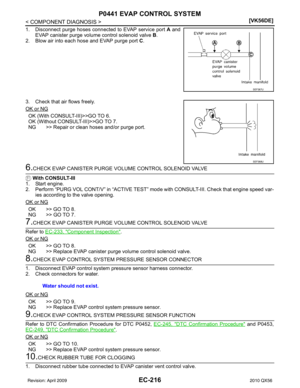

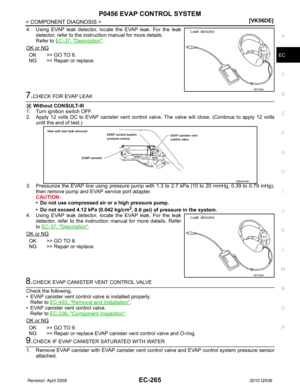

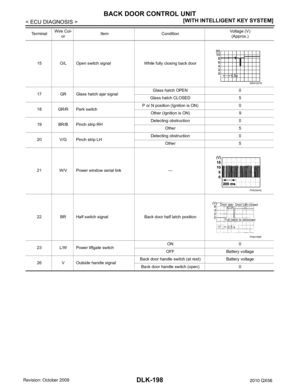

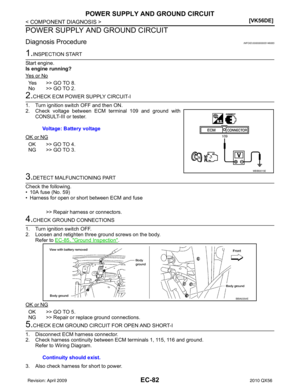

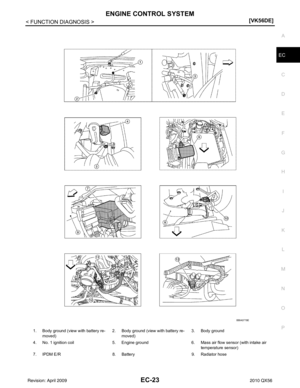

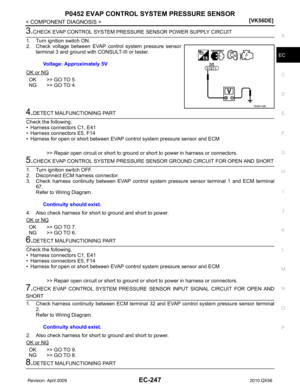

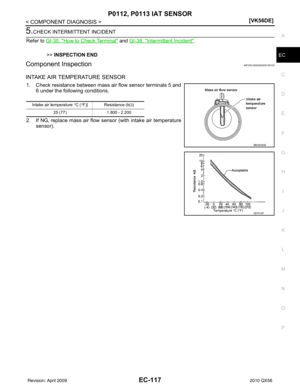

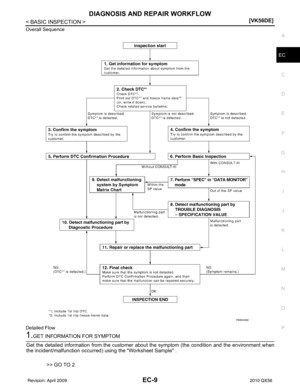

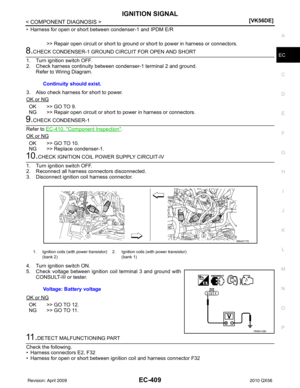

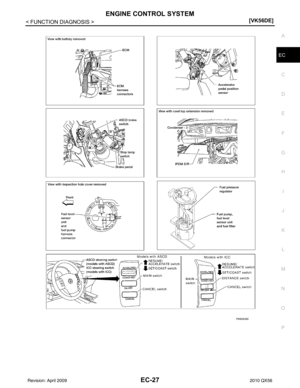

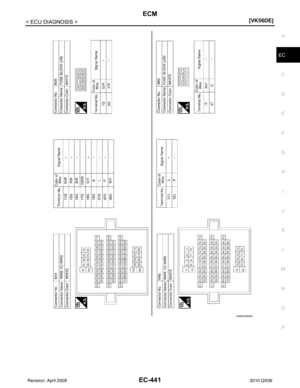

ECEngine Control System

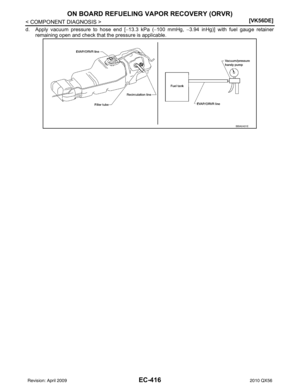

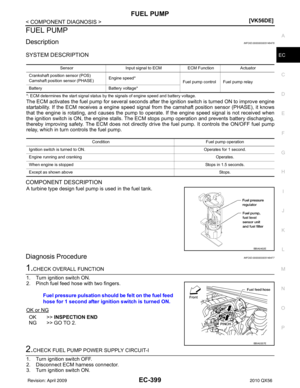

FLFuel System
EXExhaust System
STRStarting System

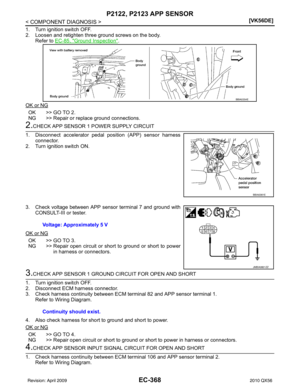

ACCAccelerator Control System
CHYBRIDHBCHybrid Control System
HBBHybrid Battery System
HBRHybrid Brake System

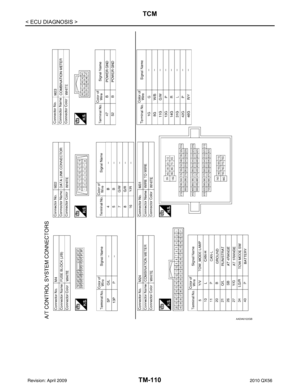

DTRANSMISSION & DRIVE-

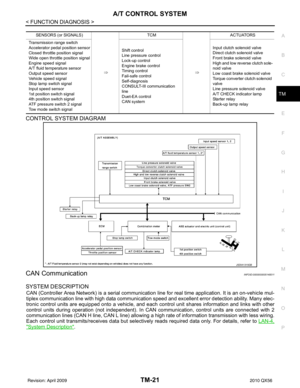

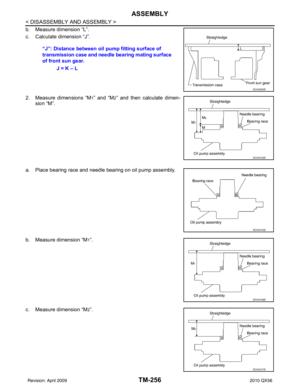

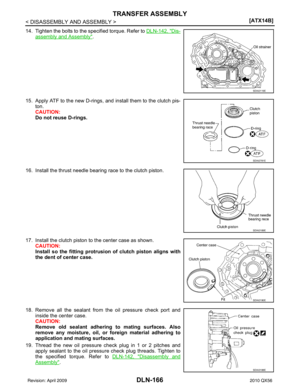

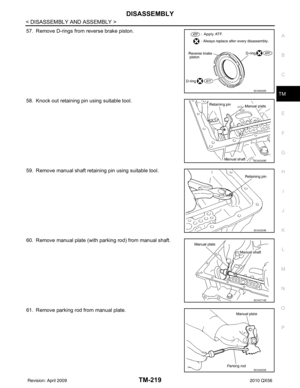

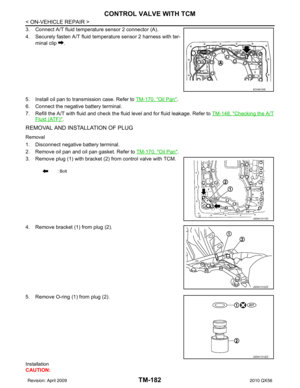

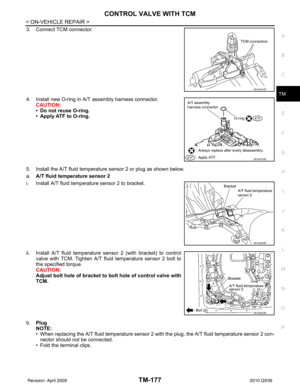

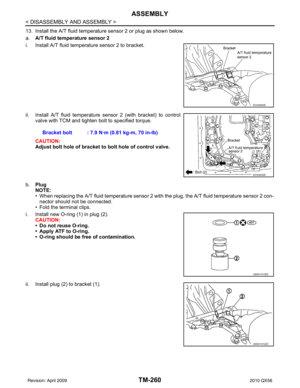

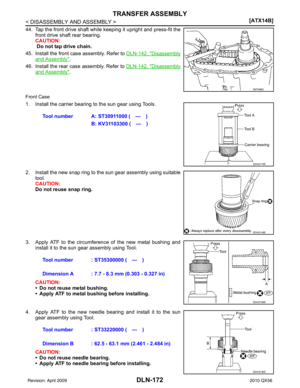

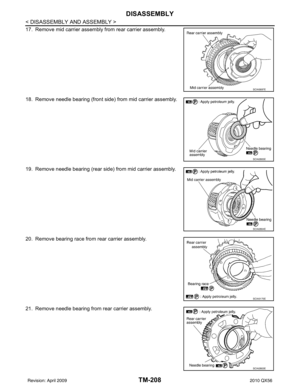

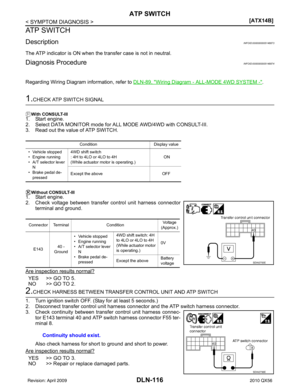

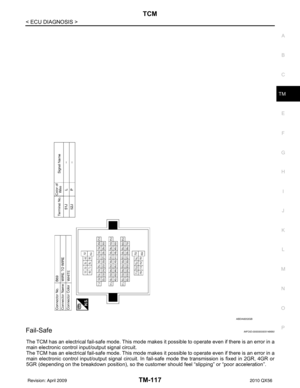

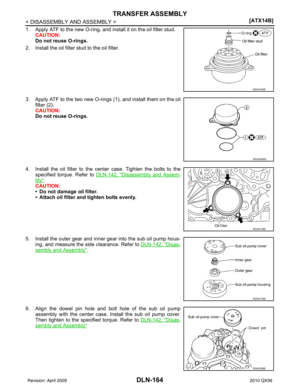

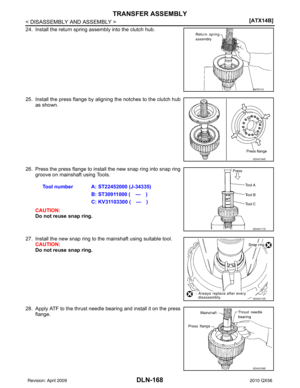

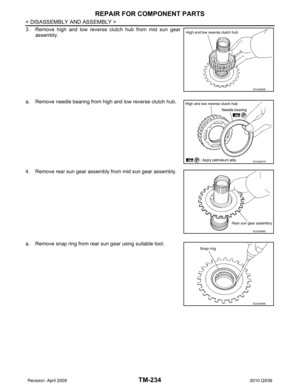

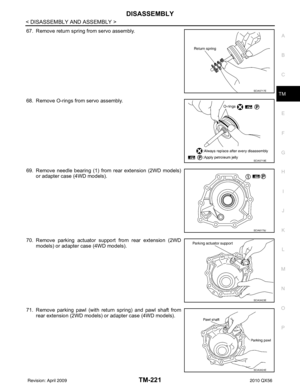

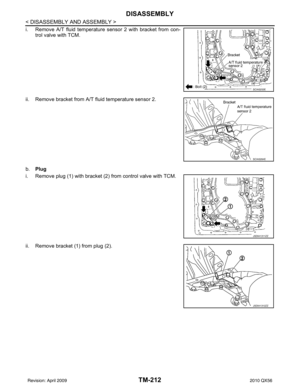

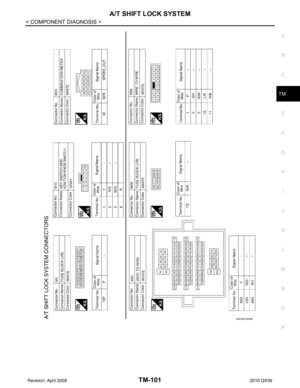

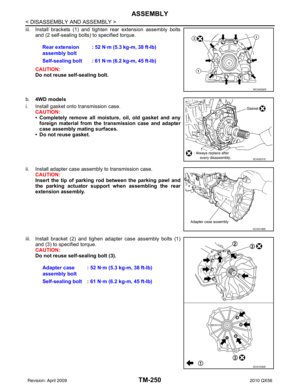

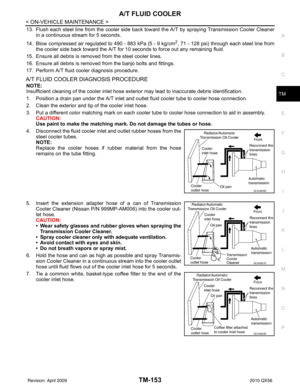

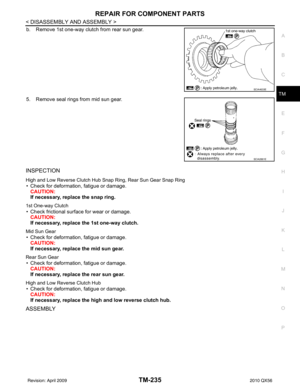

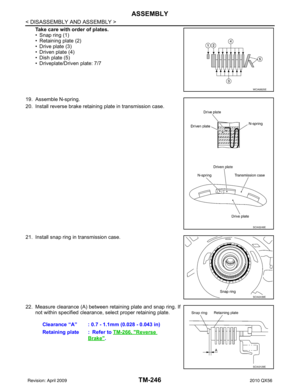

LINETMTransaxle & Transmission

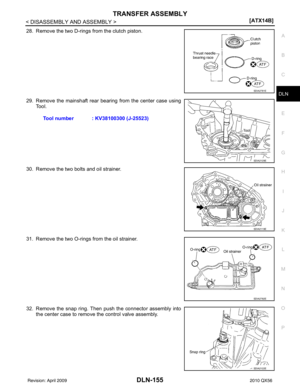

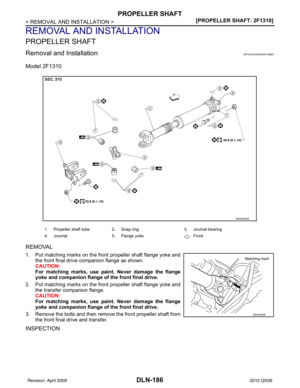

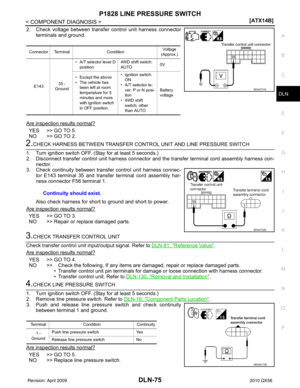

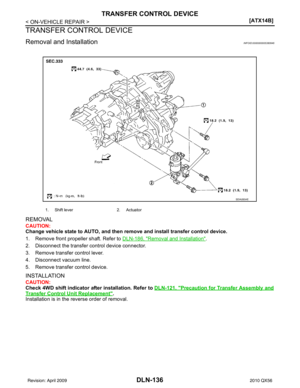

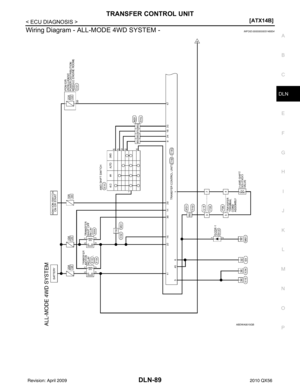

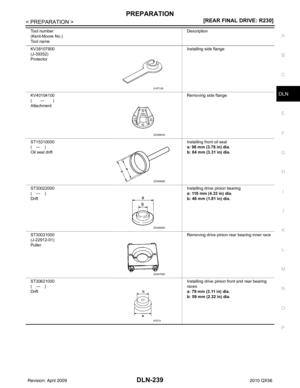

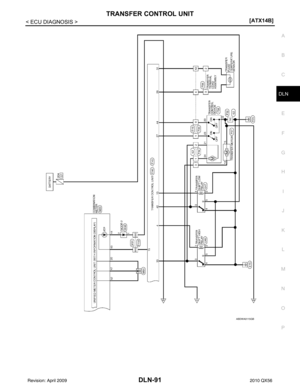

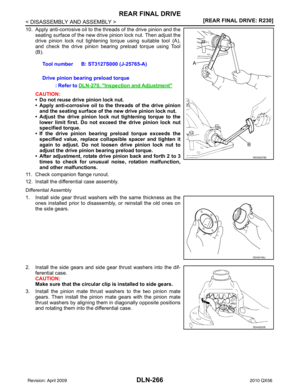

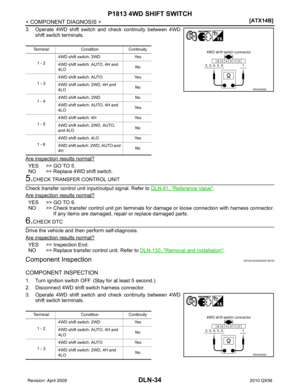

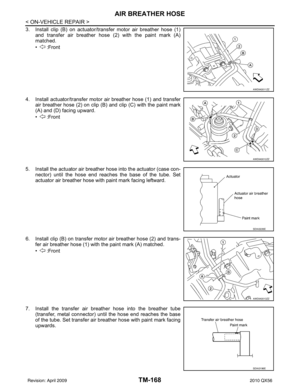

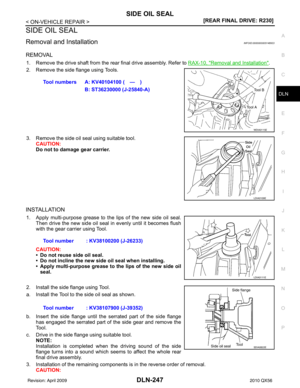

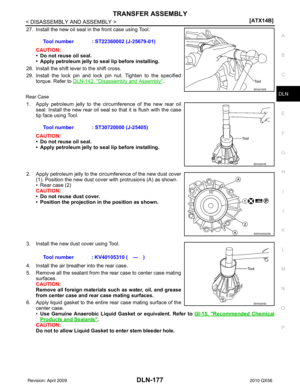

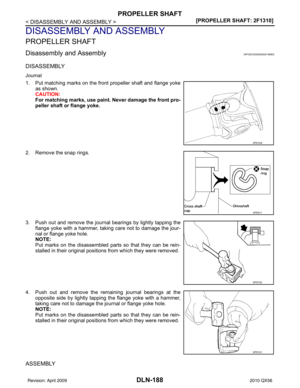

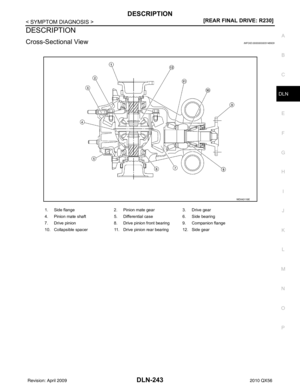

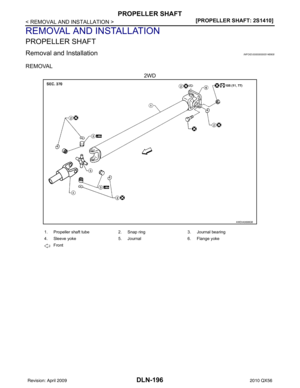

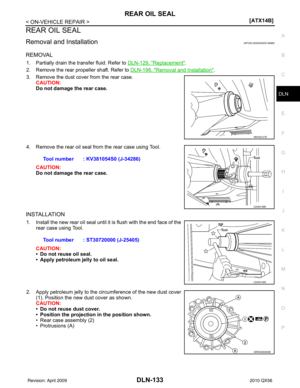

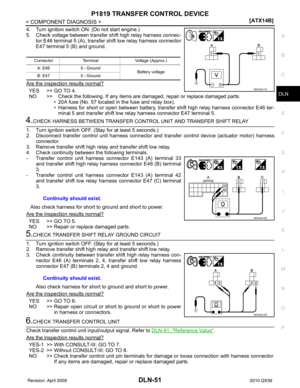

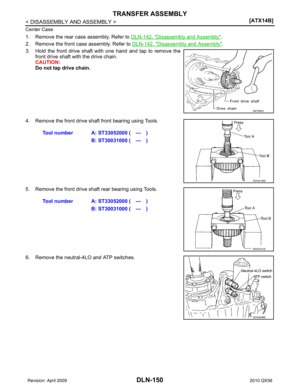

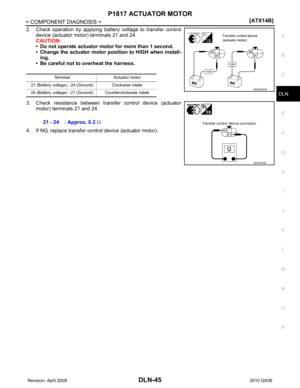

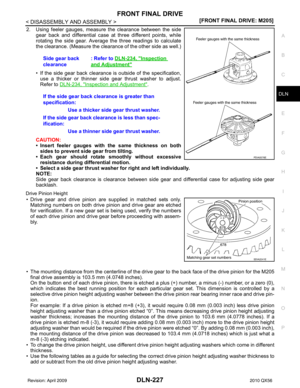

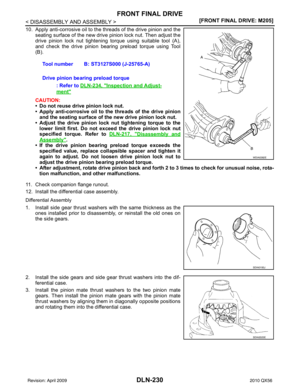

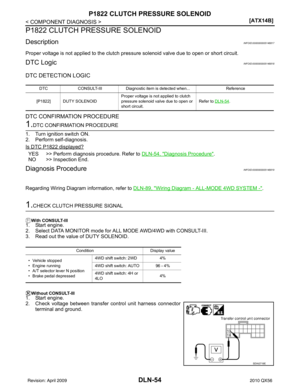

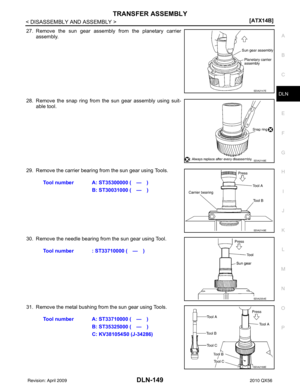

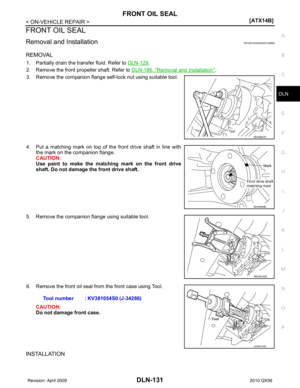

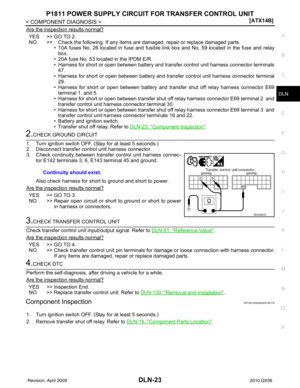

DLNDriveline

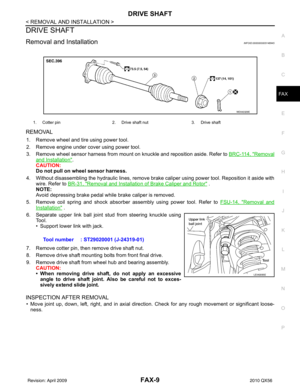

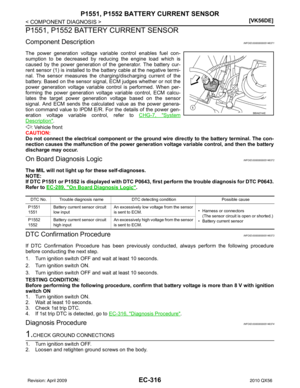

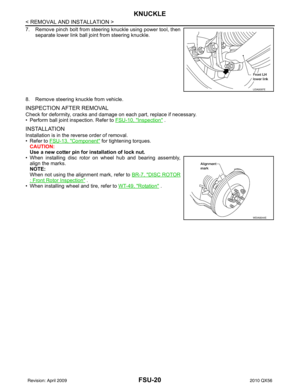

FAXFront Axle
RAXRear Axle

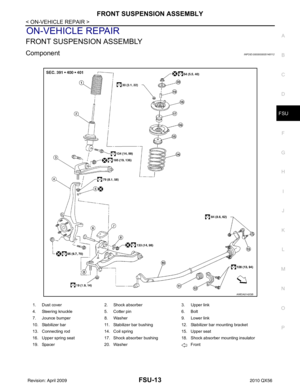

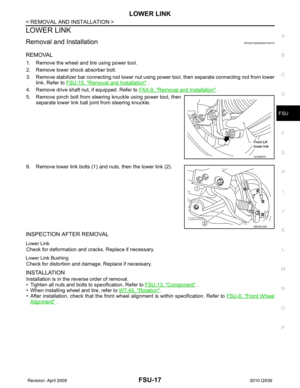

ESUSPENSIONFSUFront Suspension

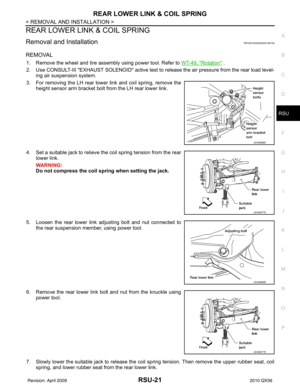

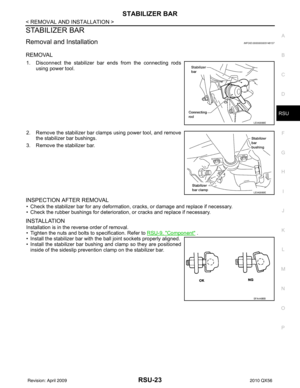

RSURear Suspension

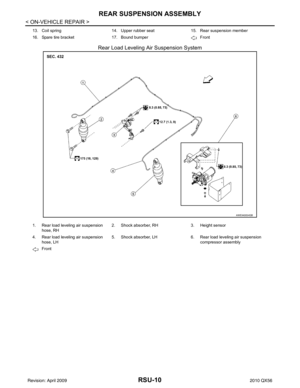

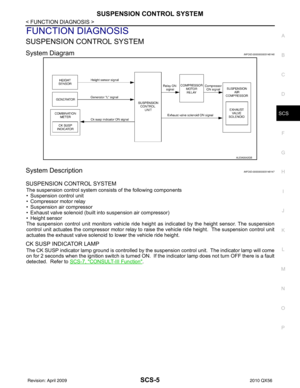

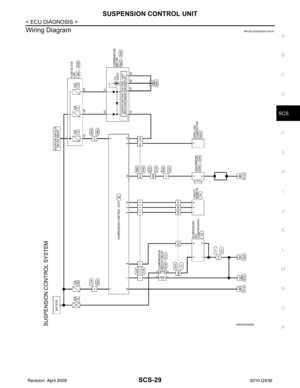

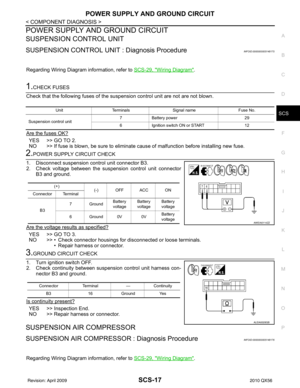

SCSSuspension Control System

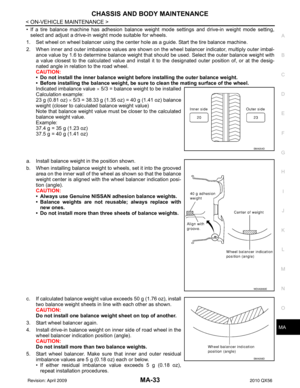

WTRoad Wheels & Tires
FBRAKESBRBrake System

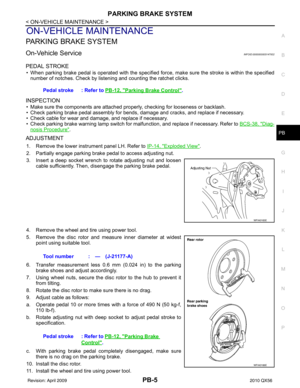

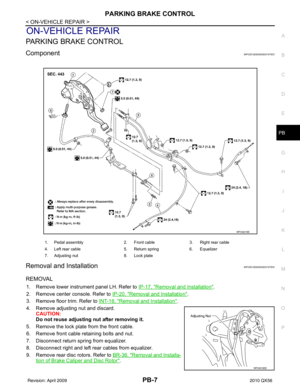

PBParking Brake System
BRCBrake Control System

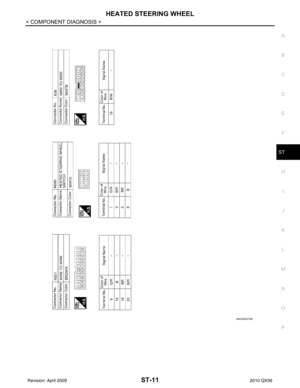

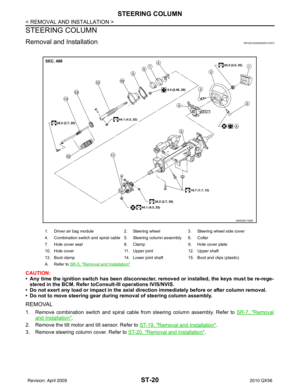

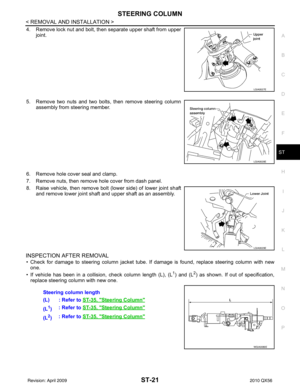

GSTEERINGSTSteering System
STCSteering Control System

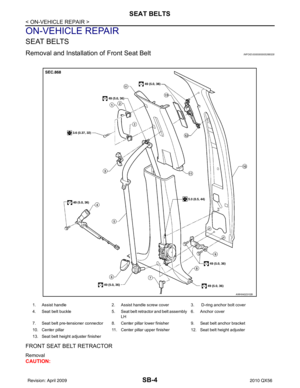

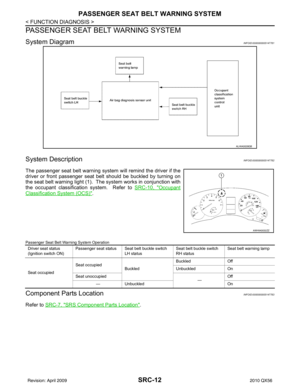

HRESTRAINTSSBSeat Belt
SBCSeat Belt Control System

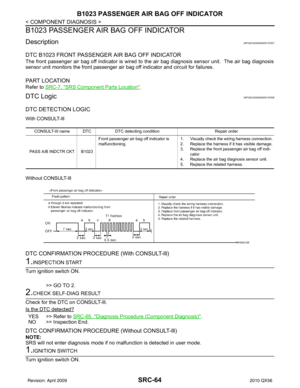

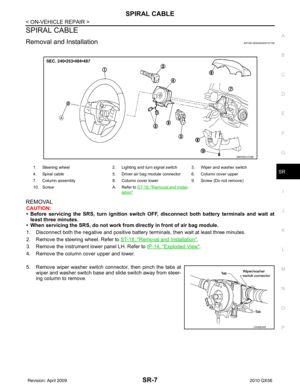

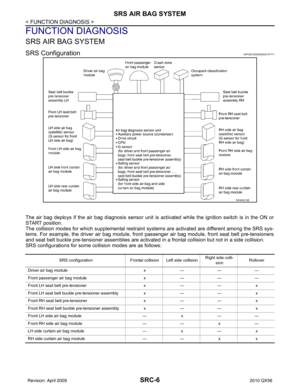

SRSRS Airbag

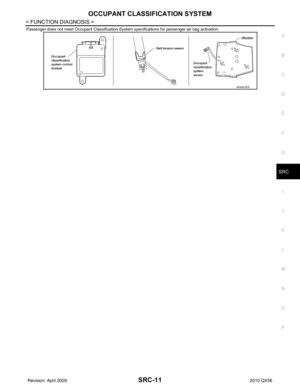

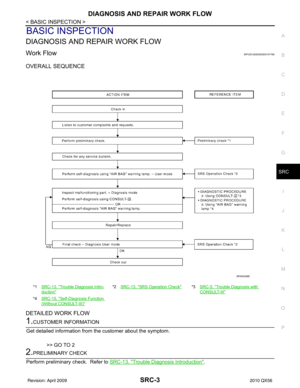

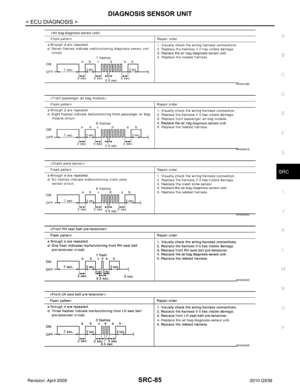

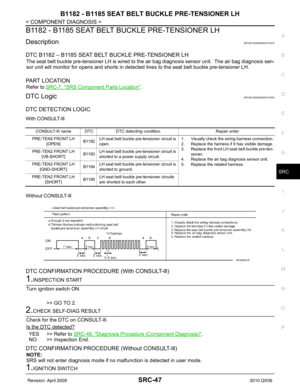

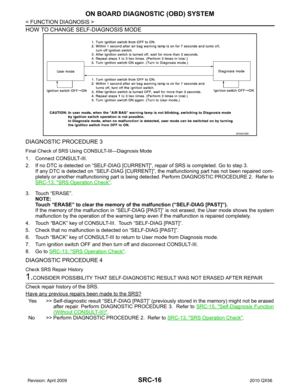

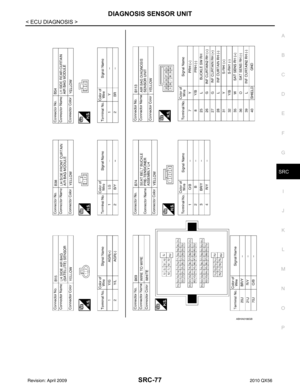

SRCSRS Airbag Control System
IVENTILATION, HEATER &

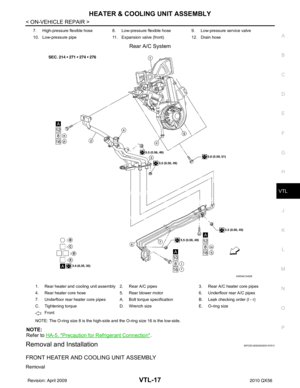

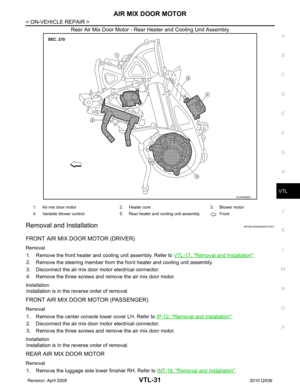

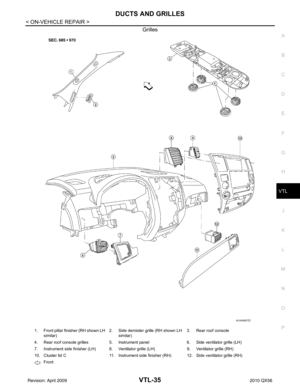

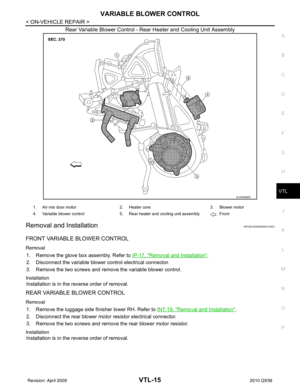

AIR CONDITIONERVTLVentilation System

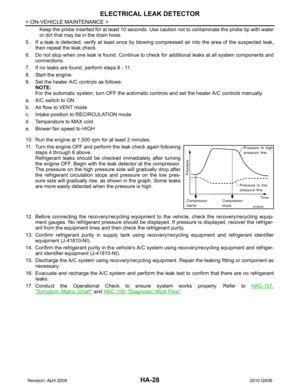

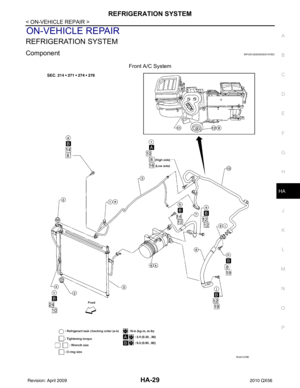

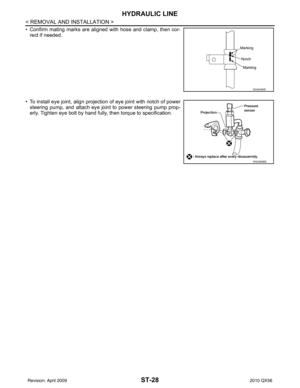

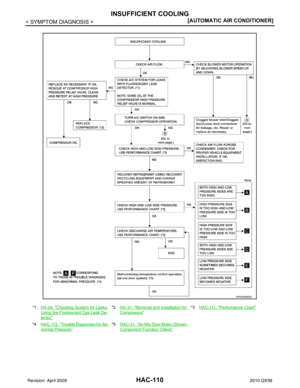

HAHeater & Air Conditioning System

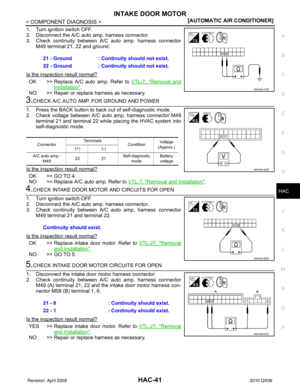

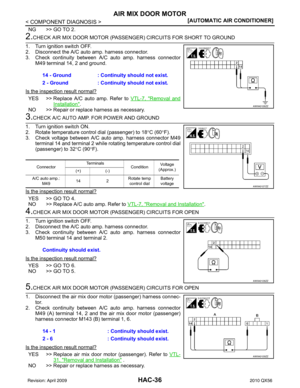

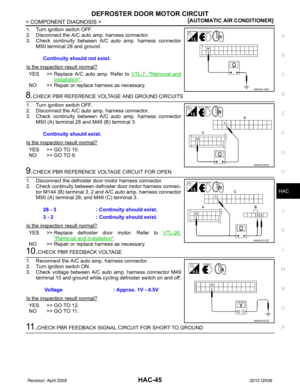

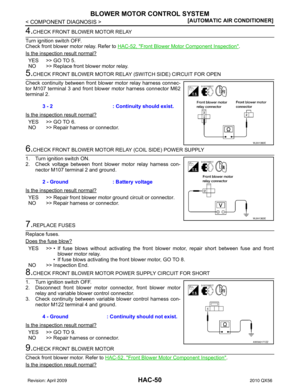

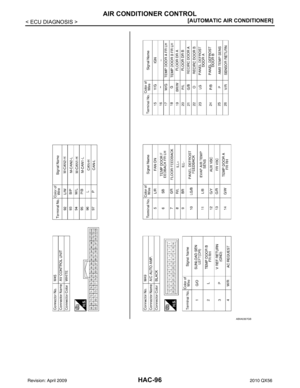

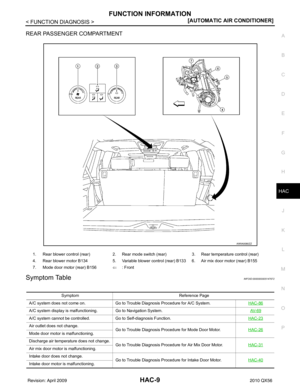

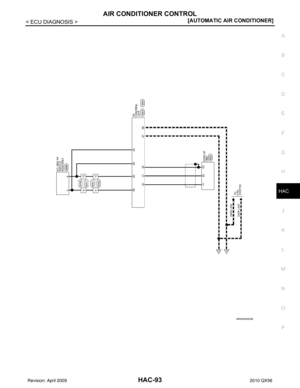

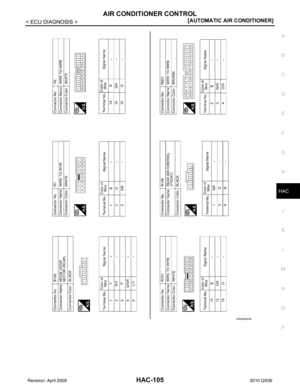

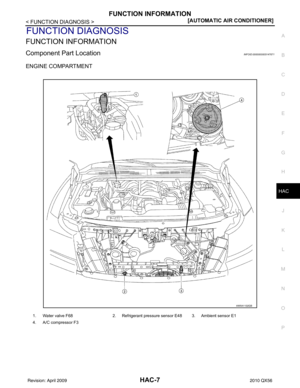

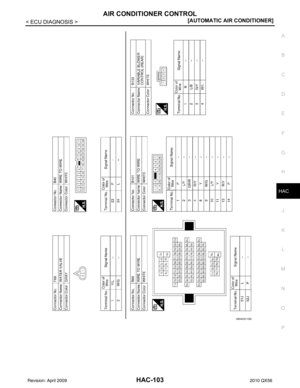

HACHeater & Air Conditioning Control System

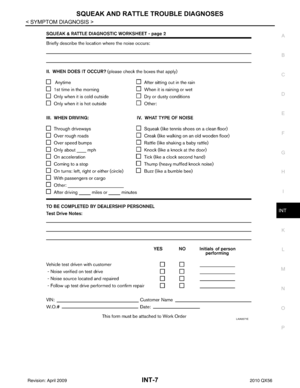

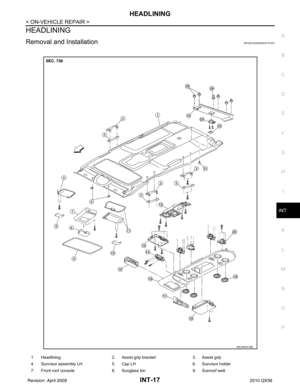

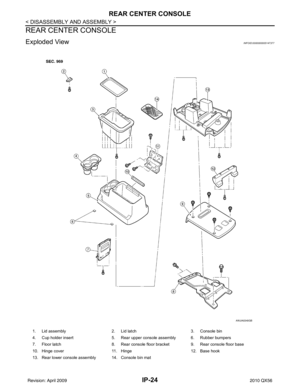

JBODY INTERIORINTInterior

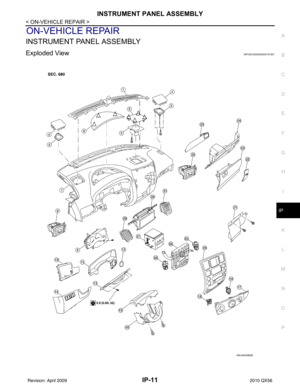

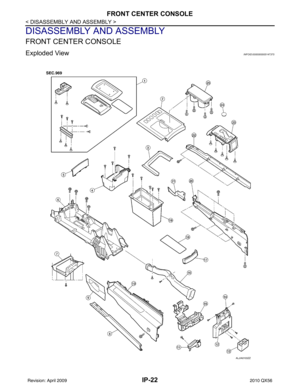

IPInstrument Panel

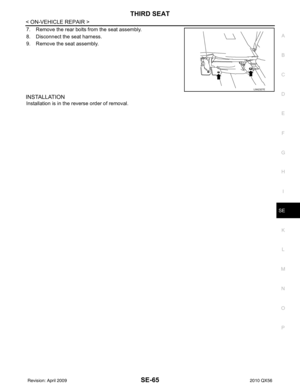

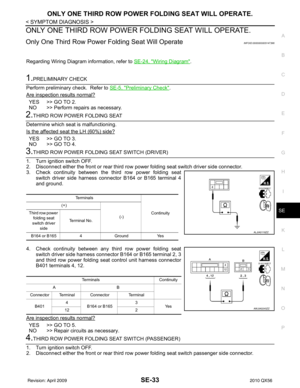

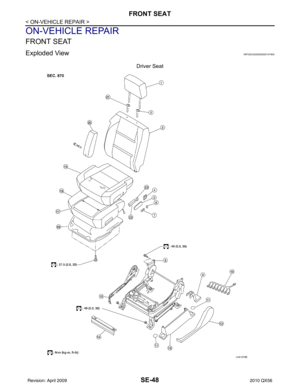

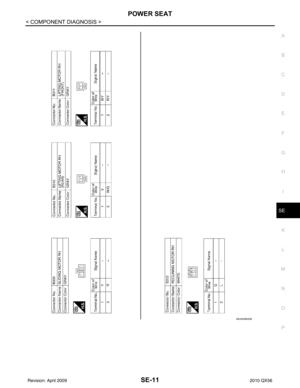

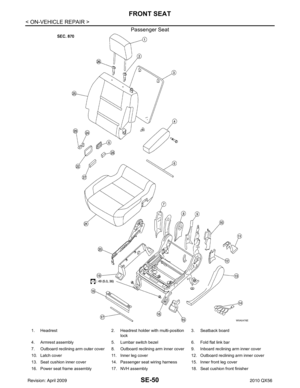

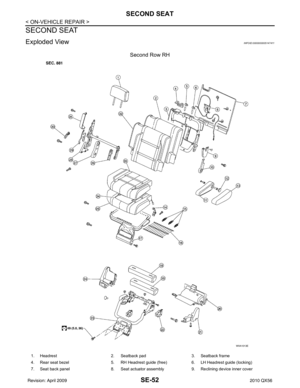

SESeat

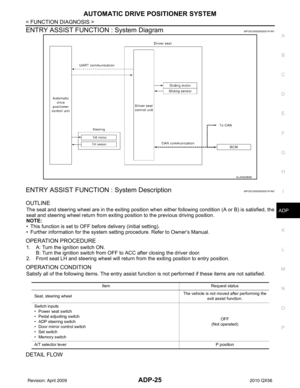

ADPAutomatic Drive Postioner
APAdjustable Pedal
KBODY EXTERIOR,
DOORS, ROOF & VEHICLE

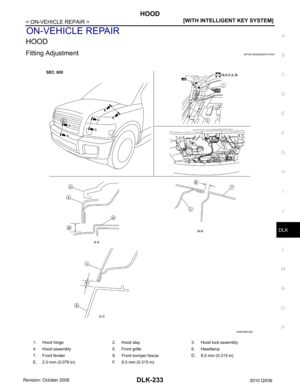

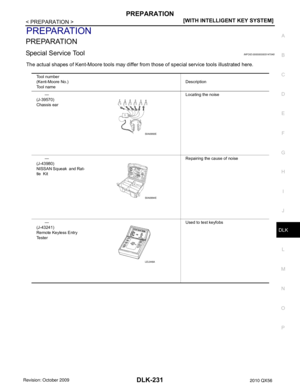

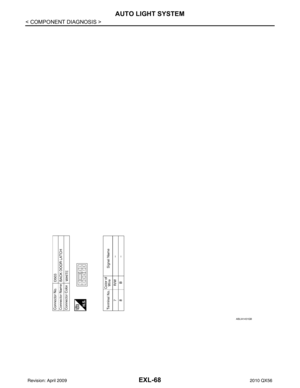

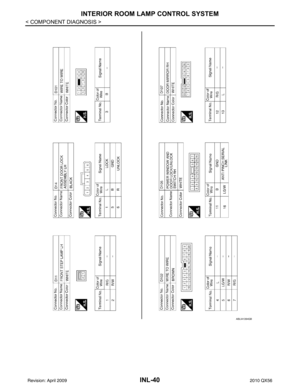

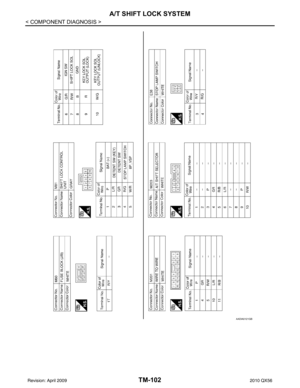

SECURITYDLKDoor & Lock

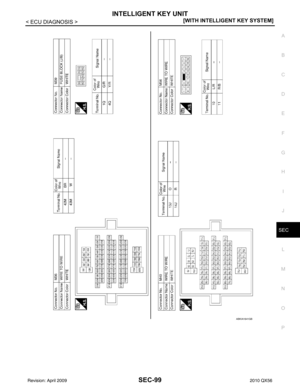

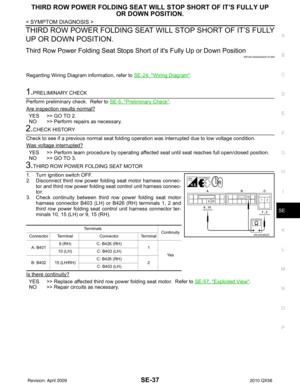

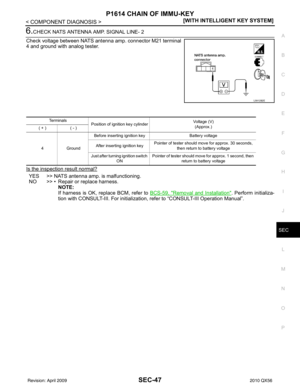

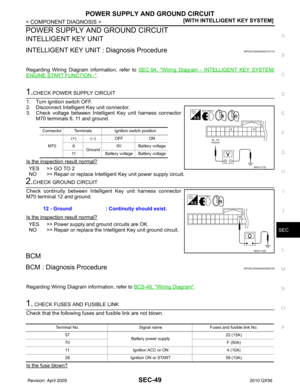

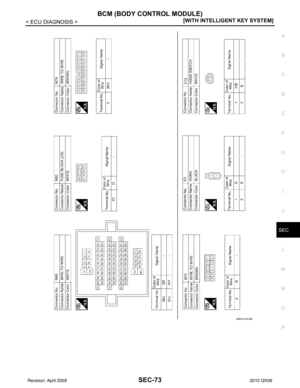

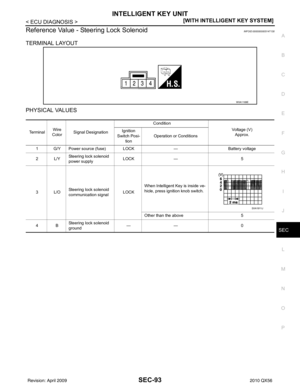

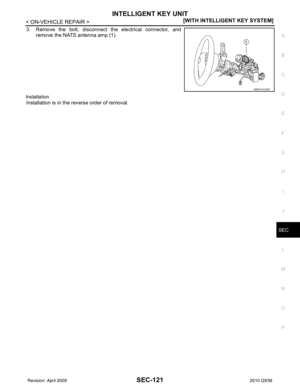

SECSecurity Control System

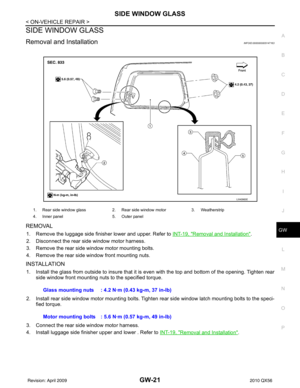

GWGlass & Window System

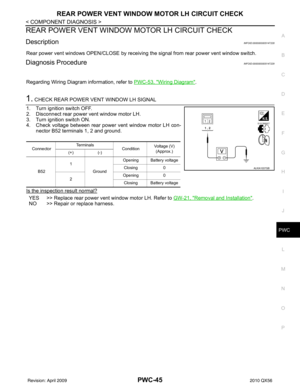

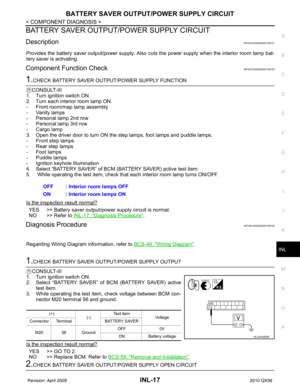

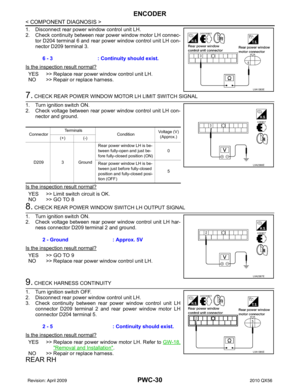

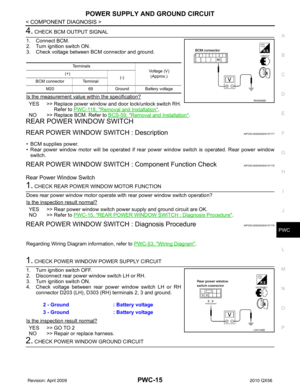

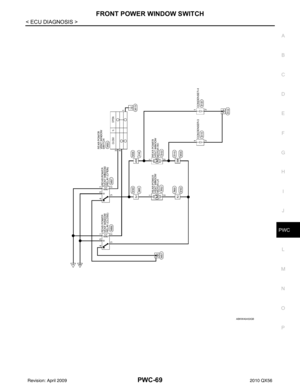

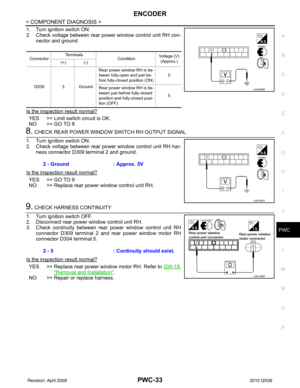

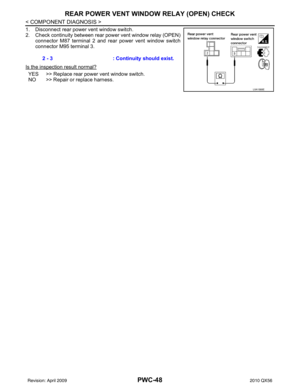

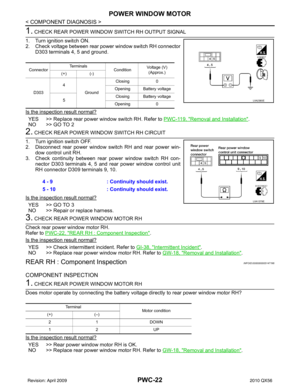

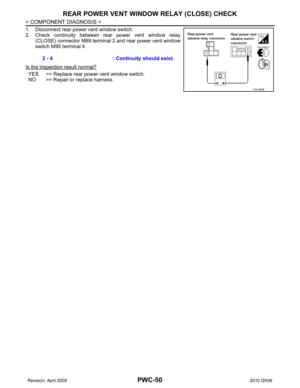

PWCPower Window Control System

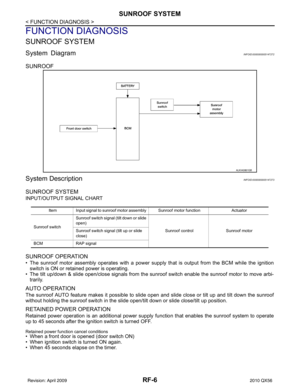

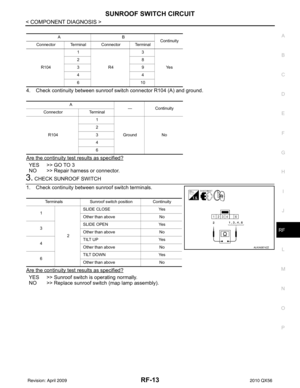

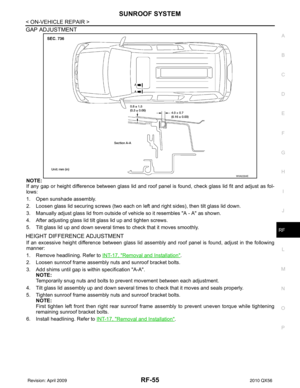

RFRoof

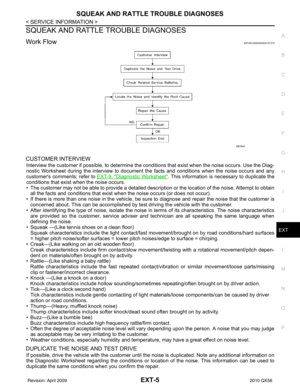

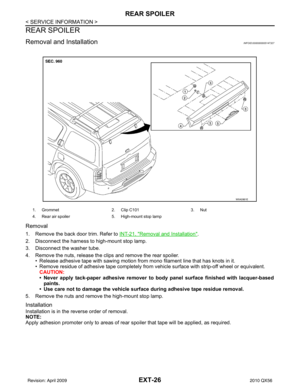

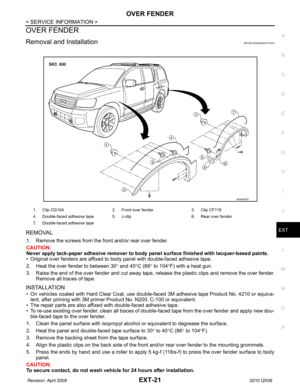

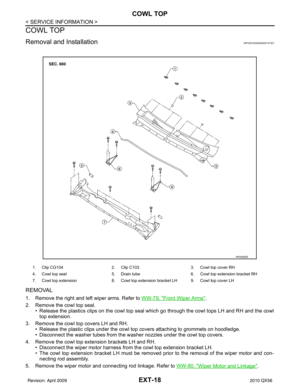

EXTExterior
BRMBody Repair Manual

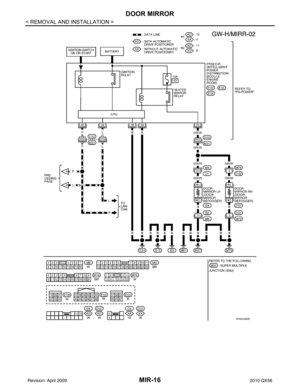

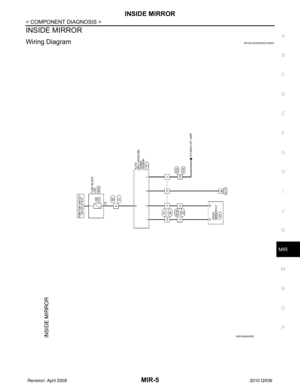

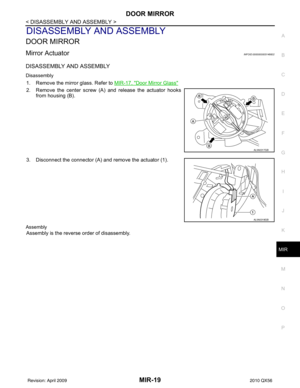

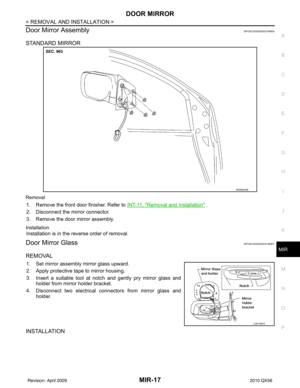

LDRIVER CONTROLSMIRMirrors

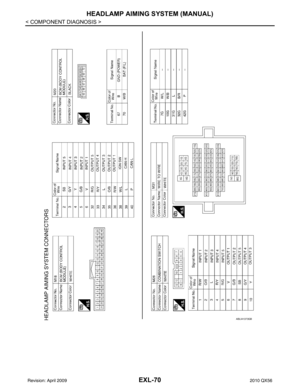

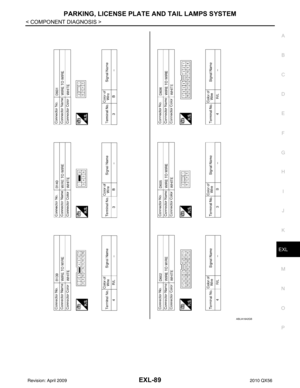

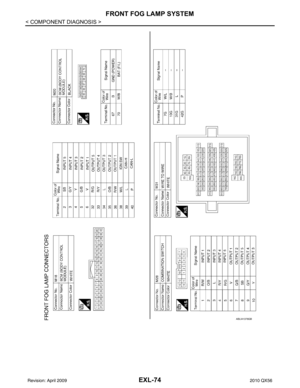

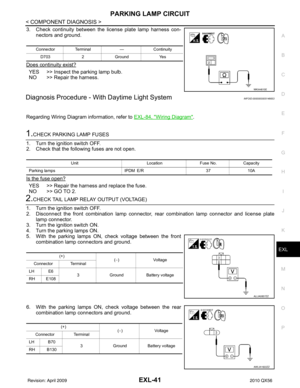

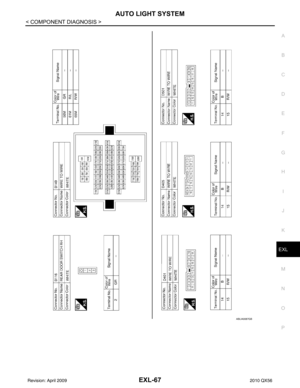

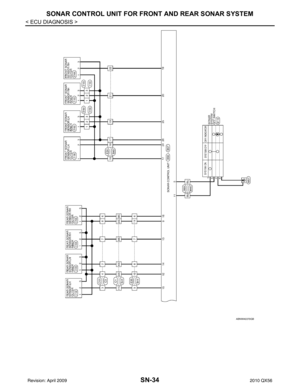

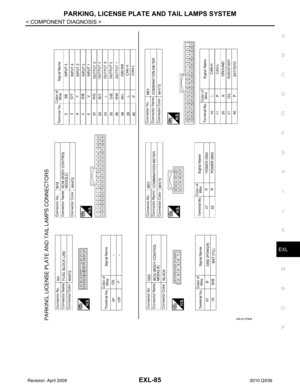

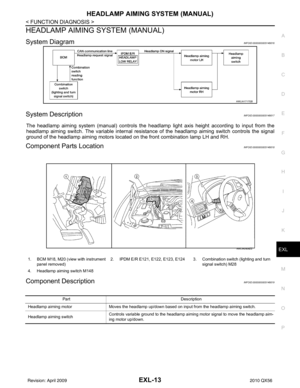

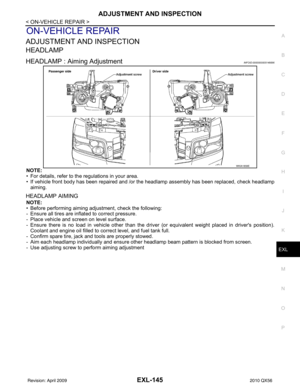

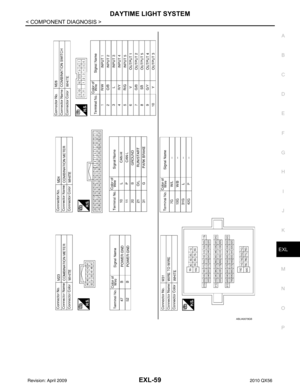

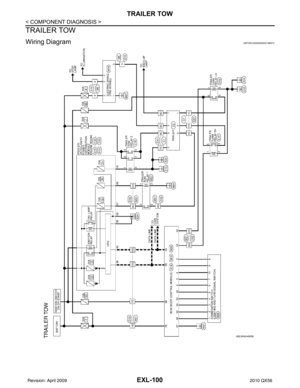

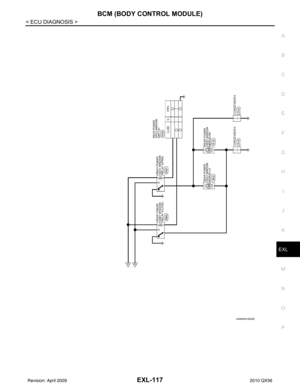

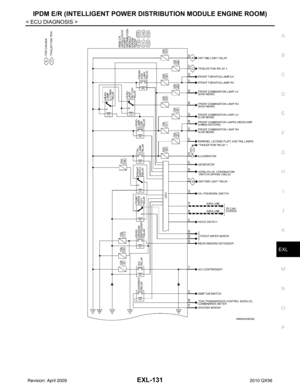

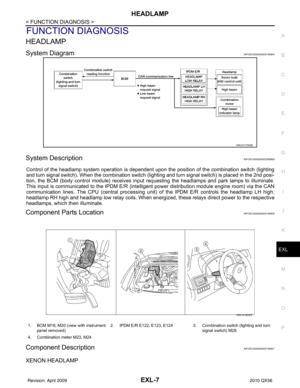

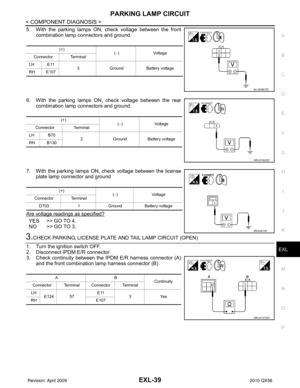

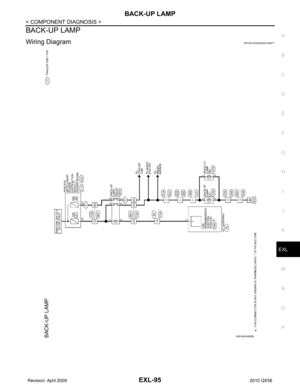

EXLExterior Lighting System

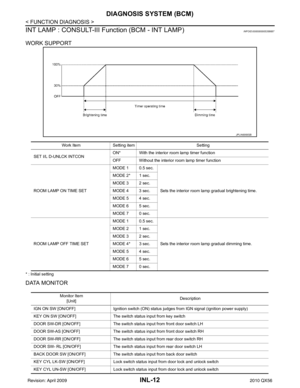

INLInterior Lighting System

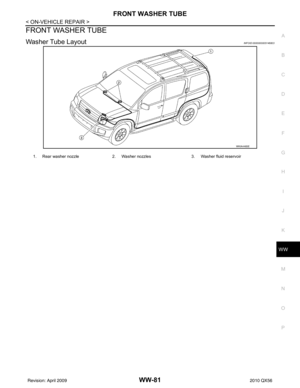

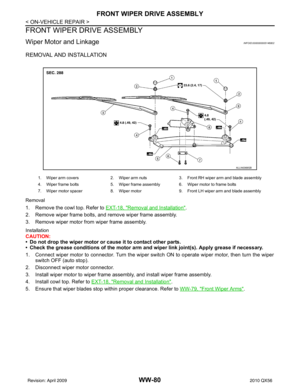

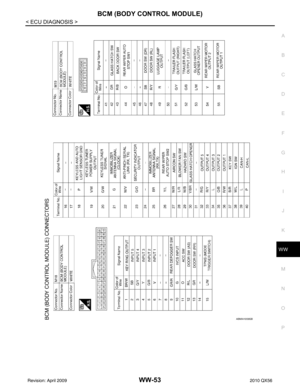

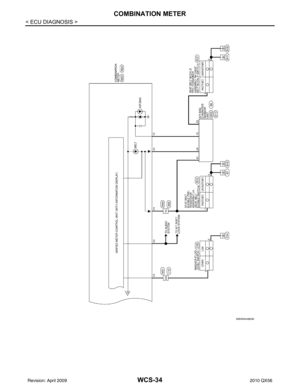

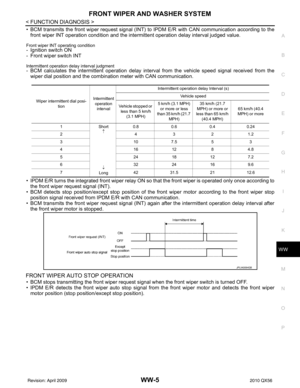

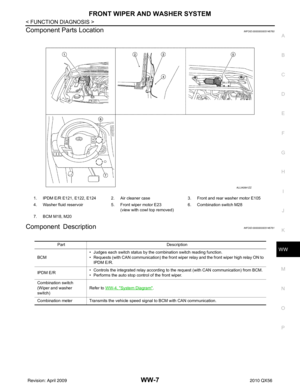

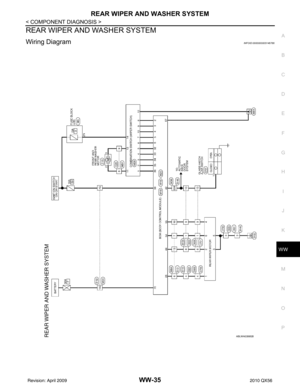

WWWiper & Washer

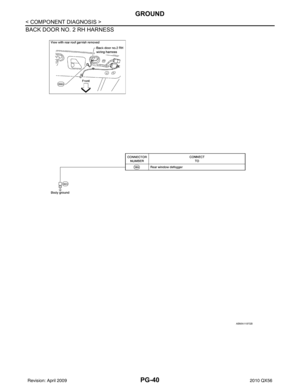

DEFDefogger
HRNHorn
MELECTRICAL & POWER

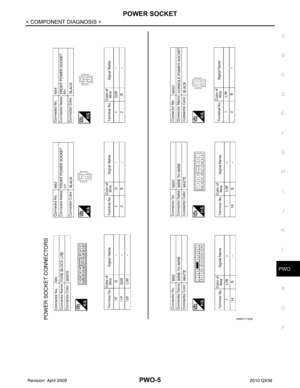

CONTROLPWOPower Outlet

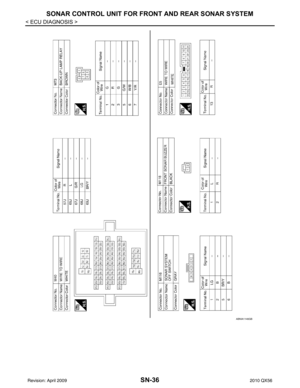

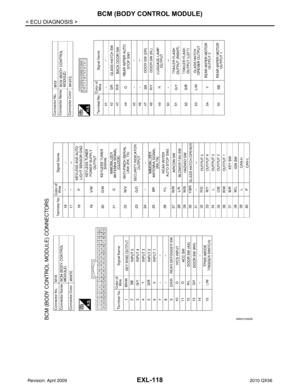

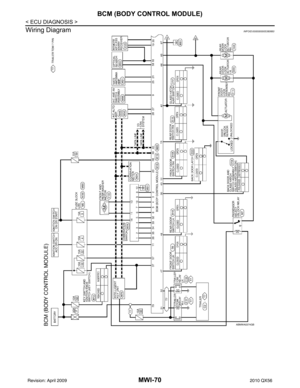

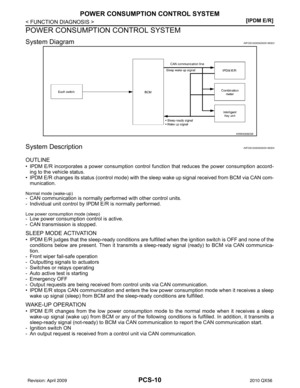

BCSBody Control System

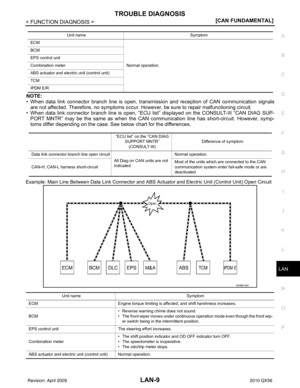

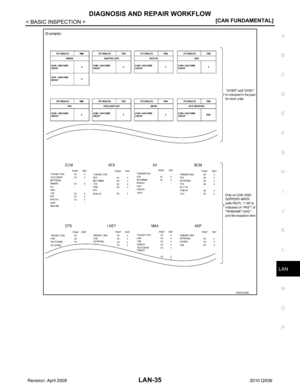

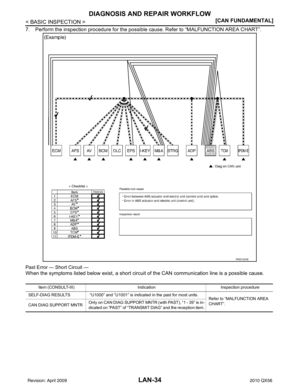

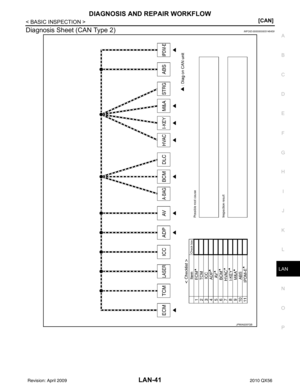

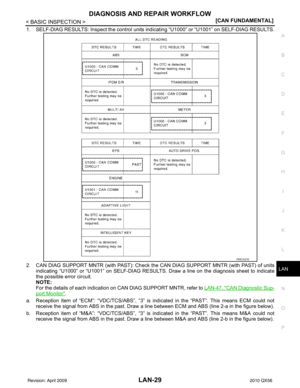

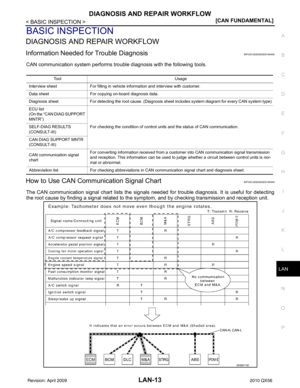

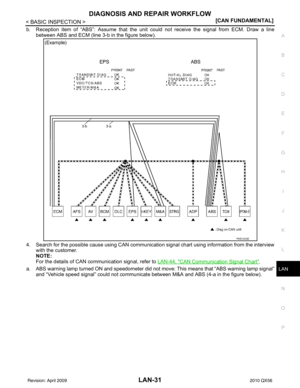

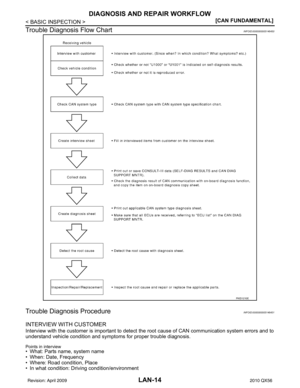

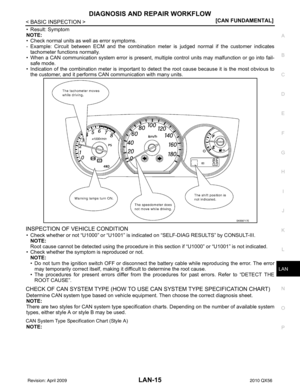

LANLAN System

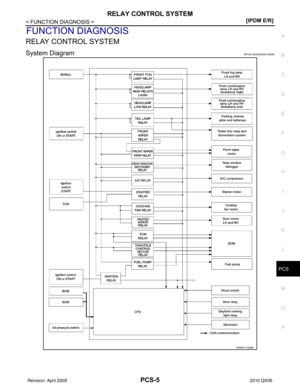

PCSPower Control System
CHGCharging System

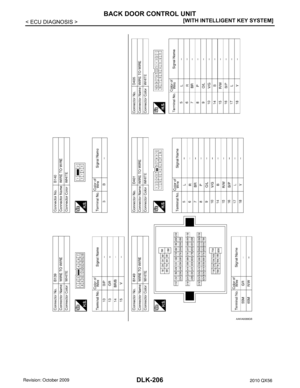

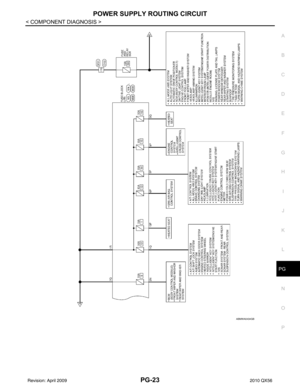

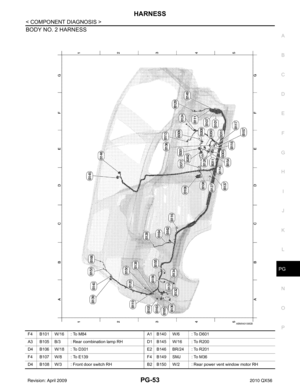

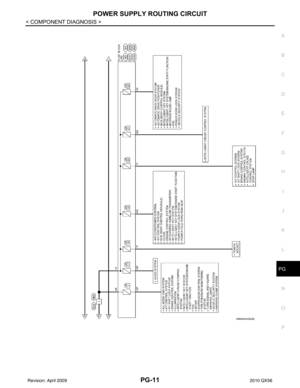

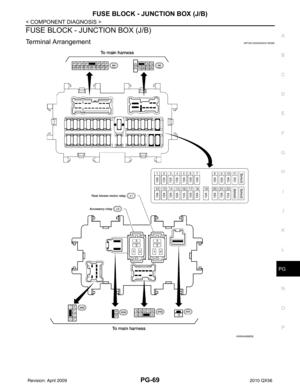

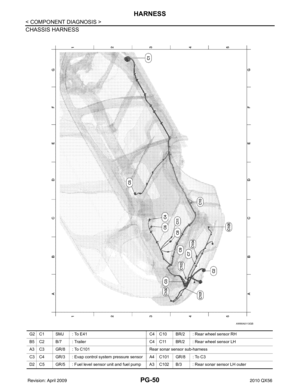

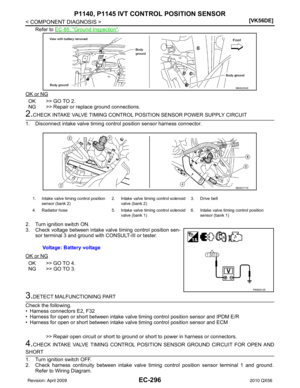

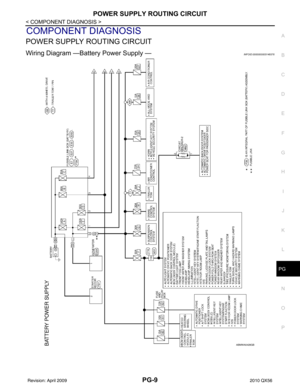

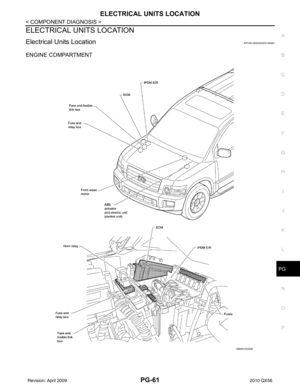

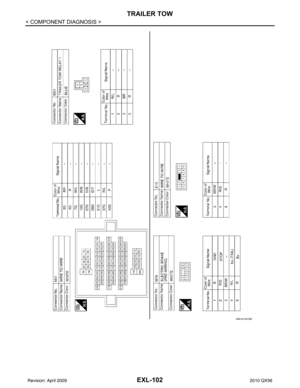

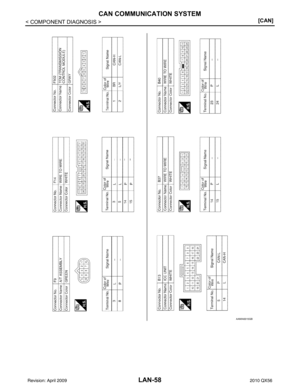

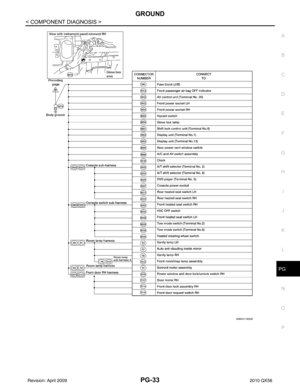

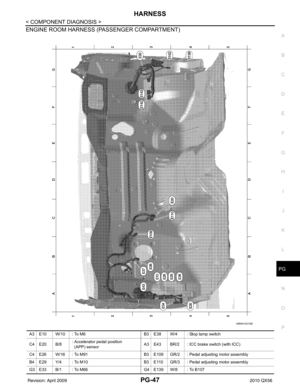

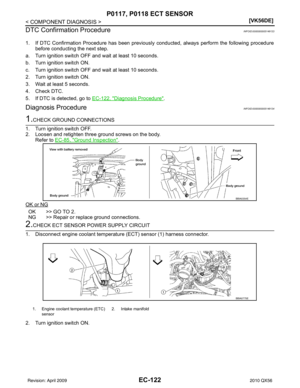

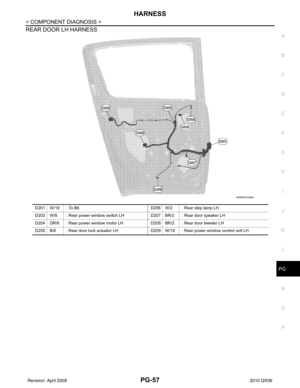

PGPower Supply, Ground & Circuit Elements
NDRIVER INFORMATION &

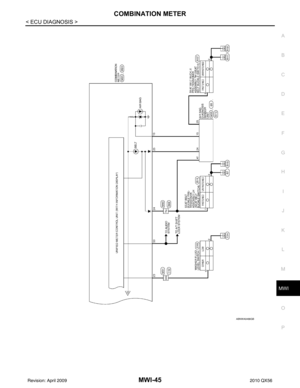

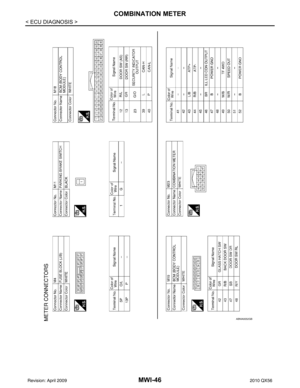

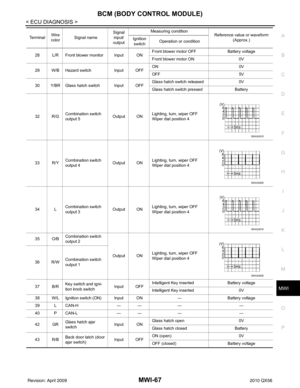

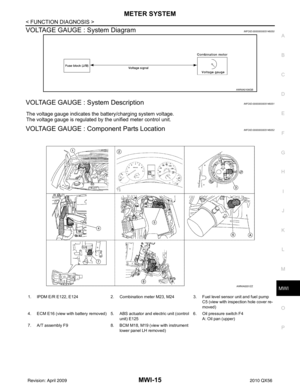

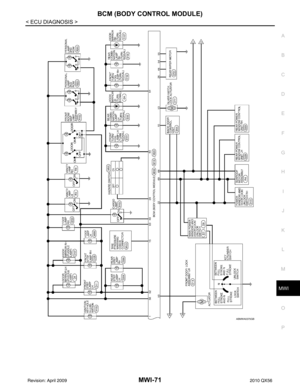

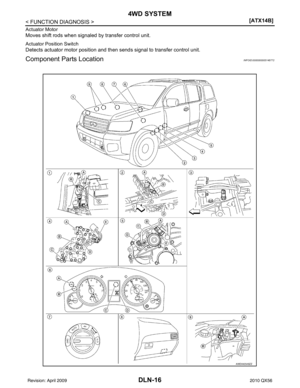

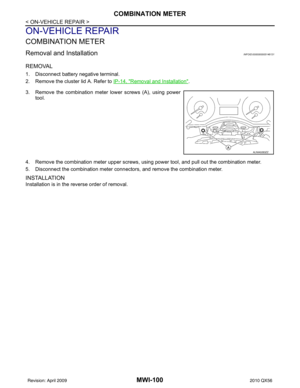

MULTIMEDIAMWIMeter, Warning Lamp & Indicator

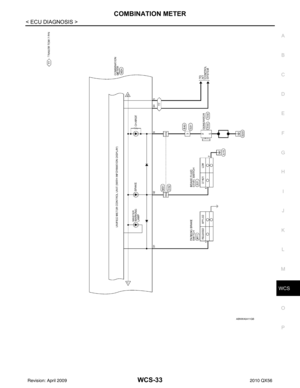

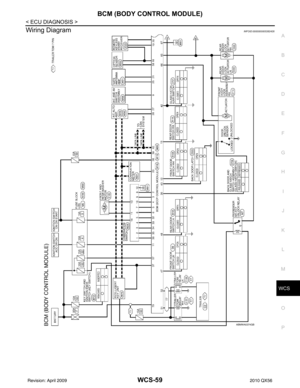

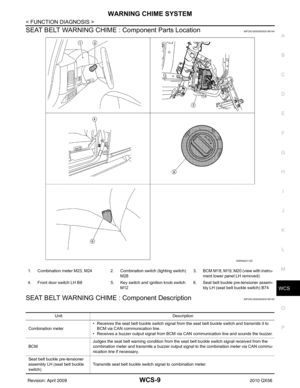

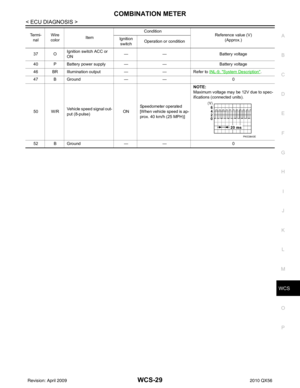

WCSWarning Chime System

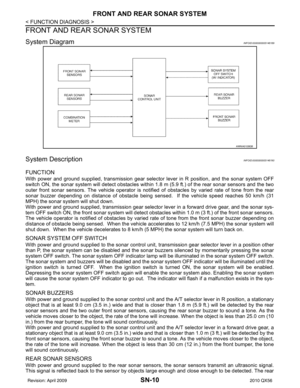

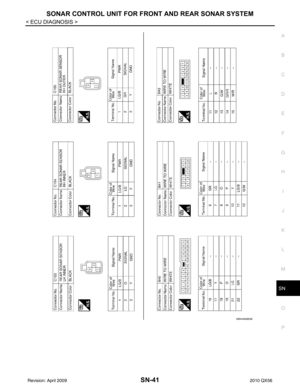

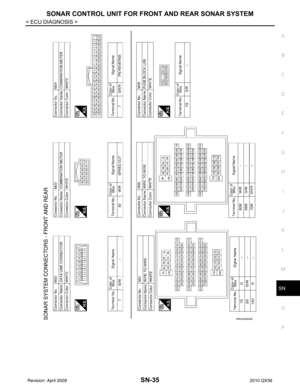

SNSonar System

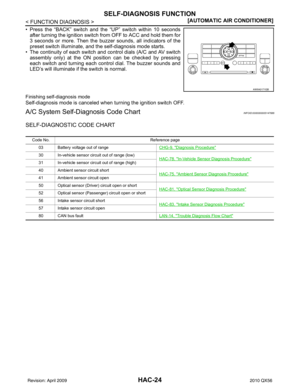

AVAudio, Visual & Navigation System

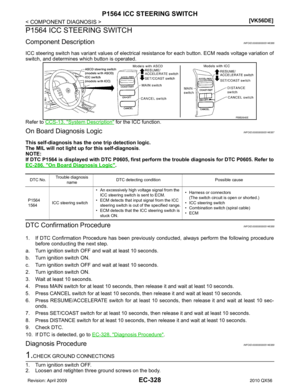

OCRUISE CONTROLCCSCruise Control System

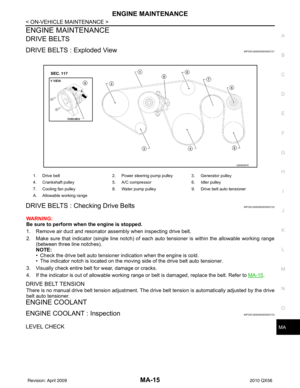

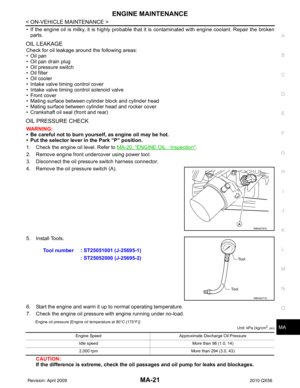

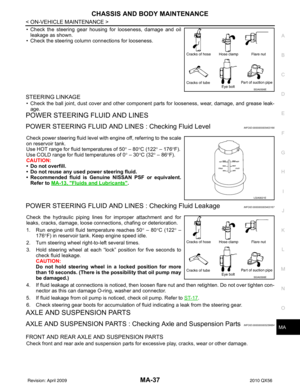

PMAINTENANCEMAMaintenance
All rights reserved. No part
of this Service Manual may
be reproduced or stored in a
retrieval system, or transmit-
ted in any form, or by any
means, electronic, mechani-
cal, photo-copying, record-
ing or otherwise, without the
prior written permission of
Nissan North America, Inc.
Edition: April 2009
Revision: April 2009
Publication No. SM0
E-1J60U0

Page 2 of 4210

INFINITI QX56 2010 Factory Service Manual
FOREWORD
This manual contains maintenance and repair procedure for the 2010
INFINITI QX56.
In order to assure your safety and the efficient functioning of the vehicle,
this manual should be read tho

Page 3 of 4210

INFINITI QX56 2010 Factory Service Manual
PLEASEHELPMAKETHISSERVICEMANUALBETTER!
YourcommentsareimportanttoINFINITIandwillhelpustoimproveourServiceManuals.
UsethisformtoreportanyissuesorcommentsyoumayhaveregardingourServiceManuals.
Pleasepri

Page 4 of 4210

INFINITI QX56 2010 Factory Service Manual
2010
QUICK REFERENCE CHART: QX56
QUICK REFERENCE CHART: QX56
Engine Tune-up DataINFOID:0000000001842581
GENERAL SPECIFICATIONS
Cylinder arrangementV- 8
Displacement cm
3(in3) 5,552 (338.80)
Bore and

Page 5 of 4210

INFINITI QX56 2010 Factory Service Manual
QUICK REFERENCE CHART: QX56
2010
Front Wheel Alignment (Unladen*1)INFOID:0000000001842582
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions

Page 6 of 4210

INFINITI QX56 2010 Factory Service Manual
2010
QUICK REFERENCE CHART: QX56
Wheelarch Height (Unladen*
1)INFOID:0000000001842583
Unit: mm (in)
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated

Page 7 of 4210

INFINITI QX56 2010 Factory Service Manual
QUICK REFERENCE CHART: QX56
2010
Brake PedalINFOID:0000000001842586
When equipped with adjustable pedal, the pedal must be in the forward most (closest to the floor) position for pedal height measure

QUICK REFERENCE CHART: QX56
2010
Brake PedalINFOID:0000000001842586
When equipped with adjustable pedal, the pedal must be in the forward most (closest to the floor) position for pedal height measure-
ment.
Front Disc BrakeINFOID:0000000001842587
Rear Disc BrakeINFOID:0000000001842588
Fluids and LubricantsINFOID:0000000001842589
Rear brake Brake model AD14VE
Rotor outer diameter × thickness 320 × 14 (12.60 × 0.6)
Pad Length × width × thickness 83.0 × 33.0 × 8.5 (3.268 × 1.299 × 0.335)
Cylinder bore diameter 48 (1.89)
Control valve Valve model Electric brake force distribution
Brake booster Booster model C215T
Diaphragm diameter 215 (8.46)
Brake pedal height (from dash panel top surface) 182.3 − 192.3 mm (7.18 − 7.57 in)
Depressed pedal height [under a force of 490 N (50 kg-f, 110 lb-f)
with engine running] More than 90.3 mm (3.55 in)
Clearance between stopper rubber and the threaded end of stop
lamp switch and ASCD cancel switch 0.74
− 1.96 mm (0.029 − 0.077 in)
Pedal play 3 − 11 mm (0.12 − 0.43 in)
Brake model CLZ31VC
Brake pad Standard thickness (new) 11.88 mm (0.468 in)
Repair limit thickness 1.0 mm (0.039 in)
Disc rotor Standard thickness (new) 26.0 mm (1.024 in)
Repair limit thickness 24.5 mm (0.965 in)
Maximum uneven wear (measured at 8 positions) 0.015mm (0.0006 in)
Runout limit (with it attached to the vehicle) 0.03 mm (0.001 in)
Brake model
AD14VE
Brake pad Standard thickness (new) 12.13 mm (0.478 in)
Repair limit thickness 1.0 mm (0.039 in)
Disc rotor Standard thickness (new) 14.0 mm (0.551 in)
Repair limit thickness 12.0 mm (0.472 in)
Maximum uneven wear (measured at 8 positions) 0.015 mm (0.0006 in)
Runout limit (with it attached to the vehicle) 0.07 mm (0.003 in)
Description
Capacity (Approximate)
Metric US measure Imp measure
Fuel 105.8 28 gal 23 1/4 gal
Engine oil
Drain and refill With oil filter change
6.2 6 1/2 qt 5 1/2 qt
Without oil filter change 5.9 6 1/4 qt 5 1/4 qt
Dry engine (engine overhaul) 7.6 8 qt 6 3/4 qt

Page 8 of 4210

INFINITI QX56 2010 Factory Service Manual
2010
QUICK REFERENCE CHART: QX56
Cooling systemWith reservoir
at MAX level
14.4
3 3/4 gal 3 1/8 gal
Automatic transmission fluid (ATF) 10.6 11 1/4 qt 9 3/8 qt
Rear final drive oil 1.75 3 3/4 pt 3 1/
