INFINITI QX56 2010 Factory Service Manual SCS-1
SUSPENSION
C
DF
G H
I
J
K L
M
SECTION SCS
A
B
SCS
N
O PCONTENTS
SUSPENSION CONTROL SYSTEM
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Wor

SCS-1
SUSPENSION
C
DF
G H
I
J
K L
M
SECTION SCS
A
B
SCS
N
O PCONTENTS
SUSPENSION CONTROL SYSTEM
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
FUNCTION DIAGNOSIS ...............................5
SUSPENSION CONTROL SYSTEM .............. .....5
System Diagram .................................................. ......5
System Description ...................................................5
Component Parts Location ........................................6
Component Description .............................................6
DIAGNOSIS SYSTEM (SUSPENSION CON-
TROL UNIT) .........................................................
7
CONSULT-III Function ..............................................7
COMPONENT DIAGNOSIS ..........................9
C1801 VEHICLE HEIGHT SENSOR .............. .....9
Description .......................................................... ......9
DTC Logic .................................................................9
Diagnosis Procedure ................................................9
C1802 COMPRESSOR RELAY .........................10
Description ..............................................................10
DTC Logic ...............................................................10
Diagnosis Procedure ..............................................10
C1803 EXHAUST SOLENOID ...........................11
Description ..............................................................11
DTC Logic ...............................................................11
Diagnosis Procedure ..............................................11
C1804 HEIGHT ADJUSTING MALFUNCTION
(COMPRESSOR) ............................................ ....
12
Description .......................................................... ....12
DTC Logic ...............................................................12
Diagnosis Procedure ..............................................12
C1805 HEIGHT ADJUSTING MALFUNCTION
(EXH SOLENOID) ..............................................
13
Description ........................................................... ....13
DTC Logic ................................................................13
Diagnosis Procedure ..............................................13
C1806 VEHICLE HEIGHT SENSOR LOCK-
ING MALFUNCTION .........................................
14
Description ........................................................... ....14
DTC Logic ................................................................14
Diagnosis Procedure ...............................................14
C1807 SENSOR 5V MALFUNCTION ...............15
Description ...............................................................15
DTC Logic ................................................................15
Diagnosis Procedure ..............................................15
C1808 INTEGRAL TIME MALFUNCTION
SUPPLYING AIR ...............................................
16
Description ...............................................................16
DTC Logic ................................................................16
Diagnosis Procedure ..............................................16
POWER SUPPLY AND GROUND CIRCUIT ....17
SUSPENSION CONTROL UNIT ................................17
SUSPENSION CONTROL UNI T : Diagnosis Pro-
cedure .................................................................. ....
17
SUSPENSION AIR COMPRESSOR ..........................17
SUSPENSION AIR COMPRESSOR : Diagnosis
Procedure ............................................................ ....
17
HEIGHT SENSOR .................................................. ....18
HEIGHT SENSOR : Diagnosis Procedure ..............18
COMPRESSOR MOTOR RELAY .....................20
Description ...............................................................20
Component Function Check ....................................20
Diagnosis Procedure ...............................................20
HEIGHT SENSOR SIGNAL CIRCUIT ...............23
Description ...............................................................23
Component Function Check ....................................23
Diagnosis Procedure ...............................................23
Revision: April 20092010 QX56

Page 3234 of 4210

INFINITI QX56 2010 Factory Service Manual SCS-2
EXHAUST VALVE SOLENOID CIRCUIT ..........24
Description ........................................................... ...24
Component Function Check ...................................24
Diagnos

SCS-2
EXHAUST VALVE SOLENOID CIRCUIT ..........24
Description ........................................................... ...24
Component Function Check ...................................24
Diagnosis Procedure ..............................................24
CK SUSP WARNING INDICATOR CONTROL
CIRCUIT .............................................................
26
Description ........................................................... ...26
Component Function Check ...................................26
Diagnosis Procedure ..............................................26
ECU DIAGNOSIS ..................................... ...28
SUSPENSION CONTROL UNIT ........................28
Reference Value .................................................. ...28
Wiring Diagram .......................................................29
DTC Index ..............................................................34
SYMPTOM DIAGNOSIS .............................36
SUSPENSION CONTROL SYSTEM .............. ...36
Symptom Table ................................................... ...36
SUSPENSION CONTROL SYSTEM INOPER-
ATIVE .................................................................
37
Description ........................................................... ...37
Diagnosis Procedure ...............................................37
SUSPENSION CONTROL SYSTEM DOES
NOT RAISE ........................................................
38
Description ........................................................... ...38
Diagnosis Procedure ...............................................38
SUSPENSION CONTROL SYSTEM DOES
NOT LOWER .....................................................
39
Description ........................................................... ...39
Diagnosis Procedure ...............................................39
PRECAUTION ............................................40
PRECAUTIONS .............................................. ...40
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ...
40
Precaution for Rear Suspension .............................40
Revision: April 20092010 QX56

Page 3235 of 4210

INFINITI QX56 2010 Factory Service Manual DIAGNOSIS AND REPAIR WORKFLOWSCS-3
< BASIC INSPECTION >
C
DF
G H
I
J
K L
M A
B
SCS
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000005148145

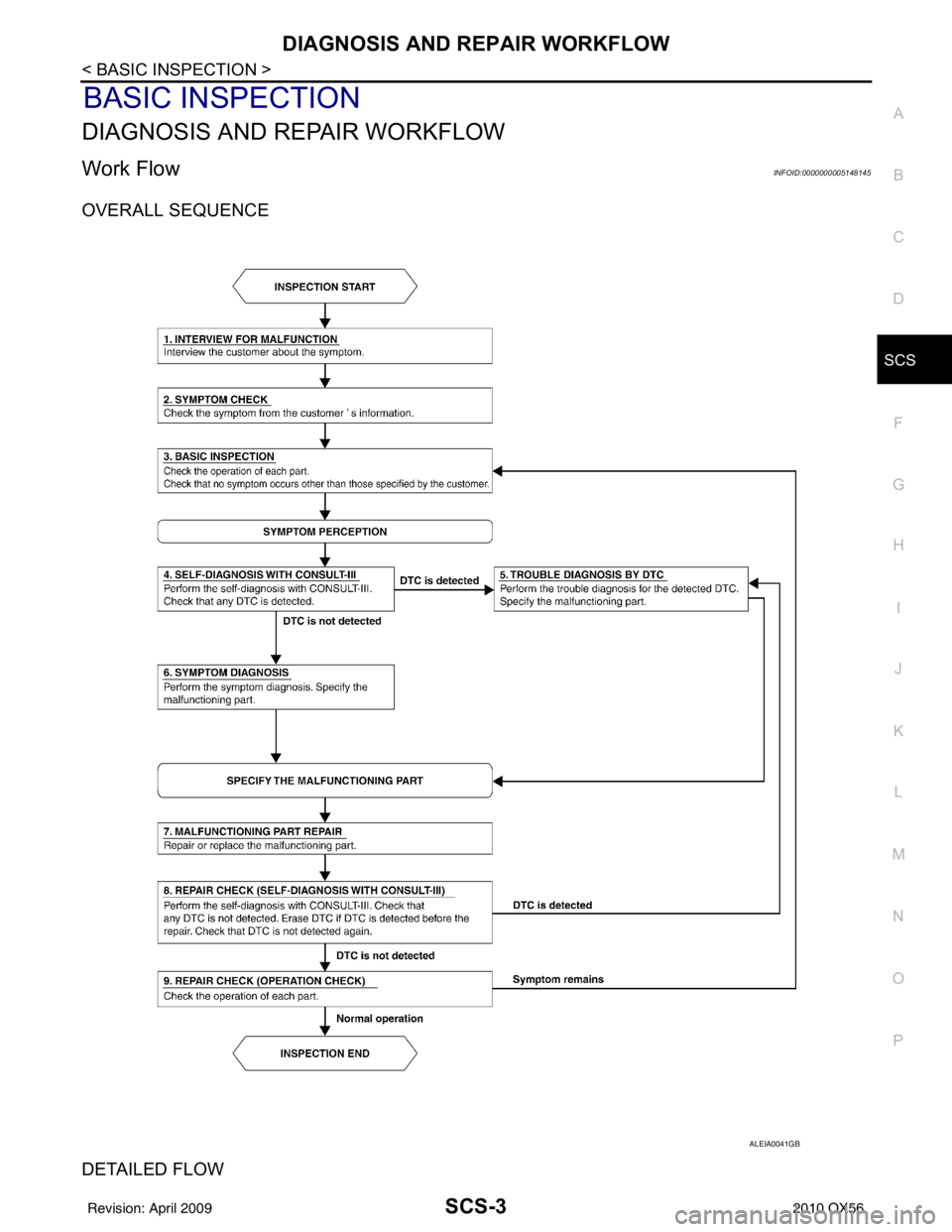

OVERALL SEQUENCE
DETAILED FLOW

Page 3236 of 4210

INFINITI QX56 2010 Factory Service Manual SCS-4
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
1.INTERVIEW FOR MALFUNCTION
Interview the customer about the symptom.
>> GO TO 2.
2.SYMPTOM CHECK
Verify the symptom from the customers inform

Page 3237 of 4210

INFINITI QX56 2010 Factory Service Manual SUSPENSION CONTROL SYSTEMSCS-5
< FUNCTION DIAGNOSIS >
C
DF
G H
I
J
K L
M A
B
SCS
N
O P
FUNCTION DIAGNOSIS
SUSPENSION CONTROL SYSTEM
System DiagramINFOID:0000000005148146
System DescriptionINFOID:00000

Page 3238 of 4210

INFINITI QX56 2010 Factory Service Manual SCS-6
< FUNCTION DIAGNOSIS >
SUSPENSION CONTROL SYSTEM
Component Parts Location
INFOID:0000000005148148
:Front
Component DescriptionINFOID:0000000005148149
1. Suspension control unit B3 (view with u

Page 3239 of 4210

INFINITI QX56 2010 Factory Service Manual DIAGNOSIS SYSTEM (SUSPENSION CONTROL UNIT)
SCS-7
< FUNCTION DIAGNOSIS >
C
D F
G H
I
J
K L
M A
B
SCS
N
O P
DIAGNOSIS SYSTEM (SUS PENSION CONTROL UNIT)
CONSULT-III FunctionINFOID:0000000005148150
CONSUL

DIAGNOSIS SYSTEM (SUSPENSION CONTROL UNIT)
SCS-7
< FUNCTION DIAGNOSIS >
C
D F
G H
I
J
K L
M A
B
SCS
N
O P
DIAGNOSIS SYSTEM (SUS PENSION CONTROL UNIT)
CONSULT-III FunctionINFOID:0000000005148150
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
WORK SUPPORT
Display Item List
DATA MONITOR
Display Item List
ACTIVE TEST
CAUTION:
Do not perform active test while driving.
Display Item List
AIR LEVELIZER diagnosis mode Description
WORK SUPPORT Supports inspection and adjustment. Commands are transmitted to the suspension control
unit for setting the status suitable for required operation, input/output signals are received
from the suspension control unit and received data is displayed.
SELF-DIAG RESULTS Displays suspension control unit self-diagnosis results.
DATA MONITOR Displays suspension control unit input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
ECU PART NUMBER The part number of suspension control unit can be checked.
ItemDescription Condition
STANDARD HEIGHT LEVEL Resets the vehicle height to the initialization flag
setting stored in the suspension control unit. Vehicle unladen, set in a horizontal position and
not moving.
NOTE:
Do not take your eyes off the vehicle while CON-
SULT-III is processing.
ADJUST HEIGHT INI Sets the height initialization flag in the suspen-
sion control unit when the control unit has been
replaced or when the initialization flag has been
cleared using the "CLEAR HEIGHT INI" proce-
dure. Vehicle unladen, move vehicle forward and back-
ward approx. 5 m (16.4 ft) and rock vehicle side
to side.
NOTE:
Do not move vehicle wh
ile CONSULT-III is pro-
cessing.
CLEAR HEIGHT INI Clears the initialization flag in the suspension
control unit. Vehicle unladen.
Display item [unit] ALL
SIGNALS SELECTION FROM MENU
HEIGT SEN [V] XX
HEIGT CALC [mm] XX
SEN FIX TIME [HR] XX
HEIGT INI VAL [V] XX
COMPRESSOR [ON/OFF] XX
EXH SOLENOID [ON/OFF] XX
ACG L [ON/OFF] XX
Test Item Description
COMPRESSOR ON/OFF
Revision: April 20092010 QX56

Page 3240 of 4210

INFINITI QX56 2010 Factory Service Manual SCS-8
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (SUSPENSION CONTROL UNIT)
CAUTION:
The "COMPRESSOR active test will remain ON until it is turned off using CONSULT-III. Allowing the
compressor to run for

Load next 8 pages
