STANDARDIZED RELAYPG-67
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
STANDARDIZED RELAY
DescriptionINFOID:0000000005146585
NORMAL OPEN, NORMAL CLOS
ED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
SEL881H
1M ···················· 1 Make 2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H
Revision: April 20092010 QX56
Page 2978 of 4210
PG-68
< COMPONENT DIAGNOSIS >
STANDARDIZED RELAY
SEL188W
Revision: April 20092010 QX56
Page 2979 of 4210
PG
FUSE BLOCK - JUNCTION BOX (J/B)PG-69
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
FUSE BLOCK - JUNCTION BOX (J/B)
Terminal ArrangementINFOID:0000000005146586
AWMIA0898GB
Revision: April 20092010 QX56
Page 2980 of 4210
PG-70
< COMPONENT DIAGNOSIS >
FUSE, FUSIBLE LINK AND RELAY BOX
FUSE, FUSIBLE LINK AND RELAY BOX
Terminal ArrangementINFOID:0000000005146587
FUSE AND FUSIBLE LINK BOX
ABMIA0136GB
Revision: April 20092010 QX56
Page 2981 of 4210
PG
FUSE, FUSIBLE LINK AND RELAY BOXPG-71
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
FUSE AND RELAY BOX
ABMIA1208GB
Revision: April 20092010 QX56
Page 2982 of 4210
PG-72
< COMPONENT DIAGNOSIS >
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

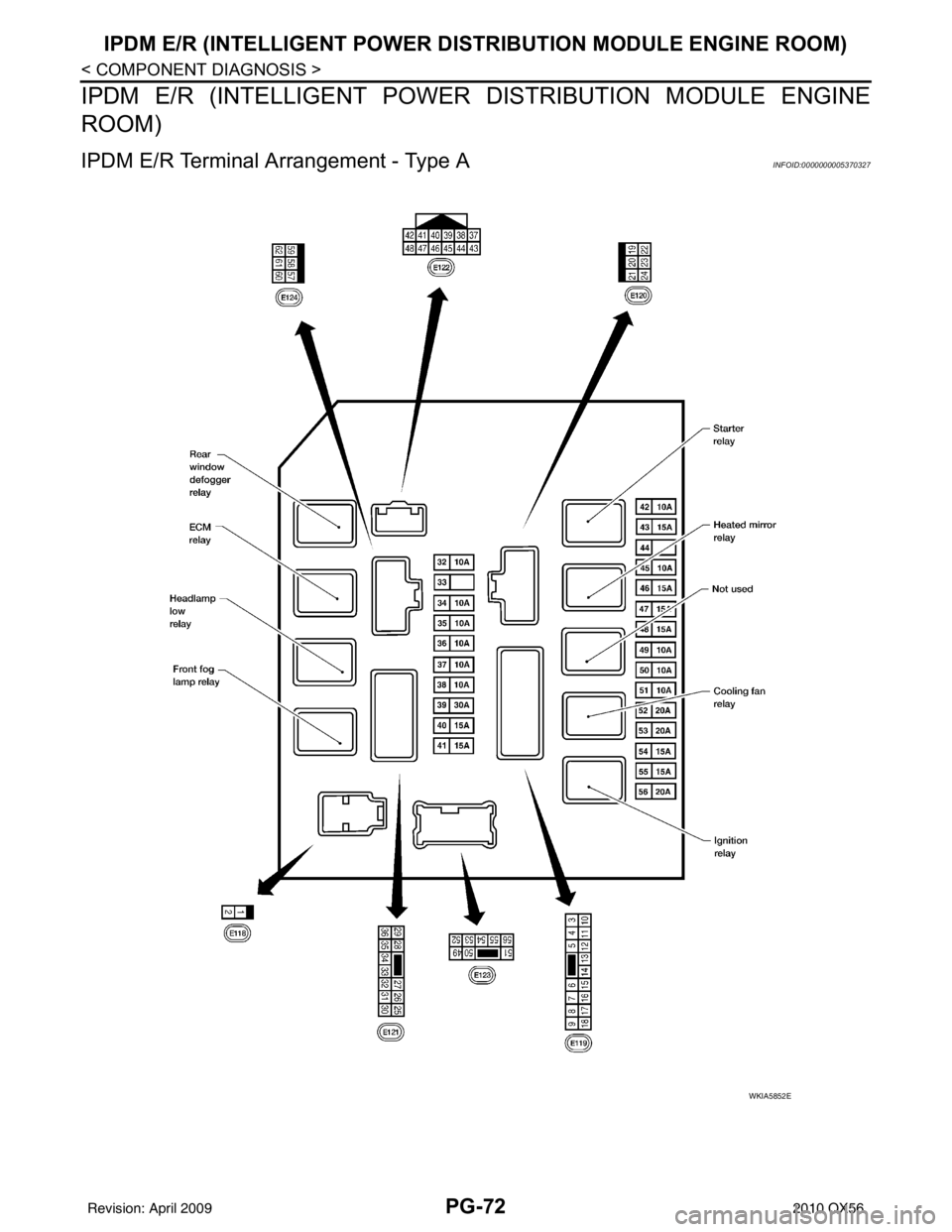

IPDM E/R Terminal Arrangement - Type AINFOID:0000000005370327
WKIA5852E
Revision: April 20092010 QX56
Page 2983 of 4210
PG
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-73
< COMPONENT DIAGNOSIS >
C
D E
F
G H
I
J
K L
B A
O P
N
IPDM E/R Terminal Ar
rangement - Type BINFOID:0000000005370328
NOTE:
Numbers preceded by an "F" represent the fuse number s imprinted on the IPDM E/R. The other numbers
represent the fuse numbers as they appear in the wiring diagrams.
AAMIA0364GB
Revision: April 20092010 QX56
Page 2984 of 4210
PG-74
< ON-VEHICLE REPAIR >
BATTERY
ON-VEHICLE REPAIR
BATTERY
Removal and InstallationINFOID:0000000005146588
REMOVAL
1. Disconnect the negative battery terminal (1) and positive batteryterminal (2).
CAUTION:
Remove negative battery terminal first.
2. Remove the battery cover.
3. Remove the battery clamp bolt (3) and battery clamp.
4. Remove the battery.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When installing, install the po sitive battery terminal first.
Reset electronic systems as necessary. Refer to PG-8, "
ADDITIONAL SERVICE WHEN REMOVING BAT-
TERY NEGATIVE TERMINAL : Special Repair Requirement".
: Front
AWBIA0504ZZ
Battery clamp bolt : 14.7 N·m (1.5 kg-m, 11 ft-lb)
Battery terminal nut : 3.5 N·m (0.36 kg-m, 31 in-lb)
