Page 2625 of 4210

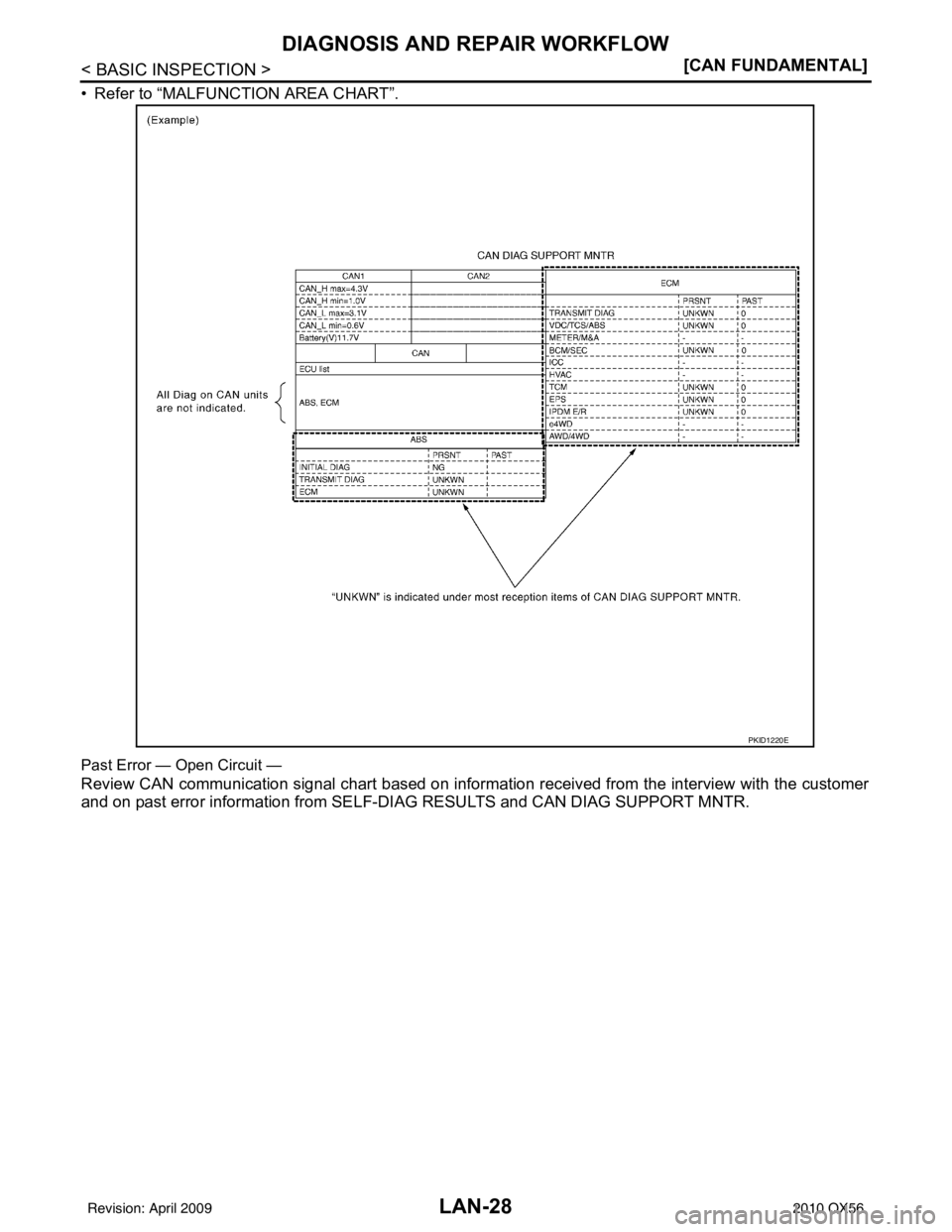

INFINITI QX56 2010 Factory Service Manual LAN DIAGNOSIS AND REPAIR WORKFLOWLAN-27 < BASIC INSPECTION > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N 5. Perform the inspection for the detected error circui t. For the inspection procedure, re

Page 2626 of 4210

INFINITI QX56 2010 Factory Service Manual LAN-28 < BASIC INSPECTION >[CAN FUNDAMENTAL] DIAGNOSIS AND REPAIR WORKFLOW • Refer to “MALFUNCTION AREA CHART”. Past Error — Open Circuit — Review CAN communication signal chart based on inf

Page 2627 of 4210

INFINITI QX56 2010 Factory Service Manual LAN DIAGNOSIS AND REPAIR WORKFLOWLAN-29 < BASIC INSPECTION > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N 1. SELF-DIAG RESULTS: Inspect the control units indicating “U1000” or “U1001” on S

Page 2628 of 4210

INFINITI QX56 2010 Factory Service Manual LAN-30 < BASIC INSPECTION >[CAN FUNDAMENTAL] DIAGNOSIS AND REPAIR WORKFLOW c. Reception item of “TCM”: “VDC/TCS/ABS”, “3” is indicated in the “PAST”. This means TCM could not receive t

Page 2629 of 4210

INFINITI QX56 2010 Factory Service Manual LAN DIAGNOSIS AND REPAIR WORKFLOWLAN-31 < BASIC INSPECTION > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N b. Reception item of “ABS”: Assume that the unit could not receive the signal from ECM

Page 2630 of 4210

INFINITI QX56 2010 Factory Service Manual LAN-32 < BASIC INSPECTION >[CAN FUNDAMENTAL] DIAGNOSIS AND REPAIR WORKFLOW b. The tachometer moved normally: This means that “Engine speed signal” could communicate normally between ECM and M&A (4

Page 2631 of 4210

INFINITI QX56 2010 Factory Service Manual LAN DIAGNOSIS AND REPAIR WORKFLOWLAN-33 < BASIC INSPECTION > [CAN FUNDAMENTAL] C D E F G H I J K L B A O P N b. The tachometer moved normally: Put check marks between ECM and M&A. The circuit between

Page 2632 of 4210

INFINITI QX56 2010 Factory Service Manual LAN-34 < BASIC INSPECTION >[CAN FUNDAMENTAL] DIAGNOSIS AND REPAIR WORKFLOW 7. Perform the inspection procedure for the possi ble cause. Refer to “MALFUNCTION AREA CHART”. Past Error — Short Circ
