Page 3881 of 4210

INFINITI QX56 2010 Factory Service Manual TM-186 < REMOVAL AND INSTALLATION > TRANSMISSION ASSEMBLY REMOVAL AND INSTALLATION TRANSMISSION ASSEMBLY Removal and Installation (2WD)INFOID:0000000005148743 COMPONENTS REMOVAL CAUTION: When removing

Page 3882 of 4210

INFINITI QX56 2010 Factory Service Manual TRANSMISSION ASSEMBLYTM-187 < REMOVAL AND INSTALLATION > CEF G H I J K L M A B TM N O P 8. Remove crankshaft position sens or (POS) from A/T assembly. CAUTION: • Do not subject it to impact by dropp

Page 3883 of 4210

INFINITI QX56 2010 Factory Service Manual TM-188 < REMOVAL AND INSTALLATION > TRANSMISSION ASSEMBLY • When installing transmission to the engine, attach the bolts in the order as shown.CAUTION: • When replacing an engine or transmission

Page 3884 of 4210

INFINITI QX56 2010 Factory Service Manual TRANSMISSION ASSEMBLYTM-189 < REMOVAL AND INSTALLATION > CEF G H I J K L M A B TM N O P REMOVAL CAUTION: When removing the A/T assembly from engine, firs t remove the crankshaft position sensor (POS)

Page 3885 of 4210

INFINITI QX56 2010 Factory Service Manual TM-190 < REMOVAL AND INSTALLATION > TRANSMISSION ASSEMBLY 8. Remove crankshaft position sensor (POS) from A/T assembly.CAUTION: • Do not subject it to impact by dropping or hitting it. • Do not di

Page 3886 of 4210

INFINITI QX56 2010 Factory Service Manual TRANSMISSION ASSEMBLYTM-191 < REMOVAL AND INSTALLATION > CEF G H I J K L M A B TM N O P • After inserting a torque converter to a transmission, be sure to check distance A to ensure it is within spe

Page 3887 of 4210

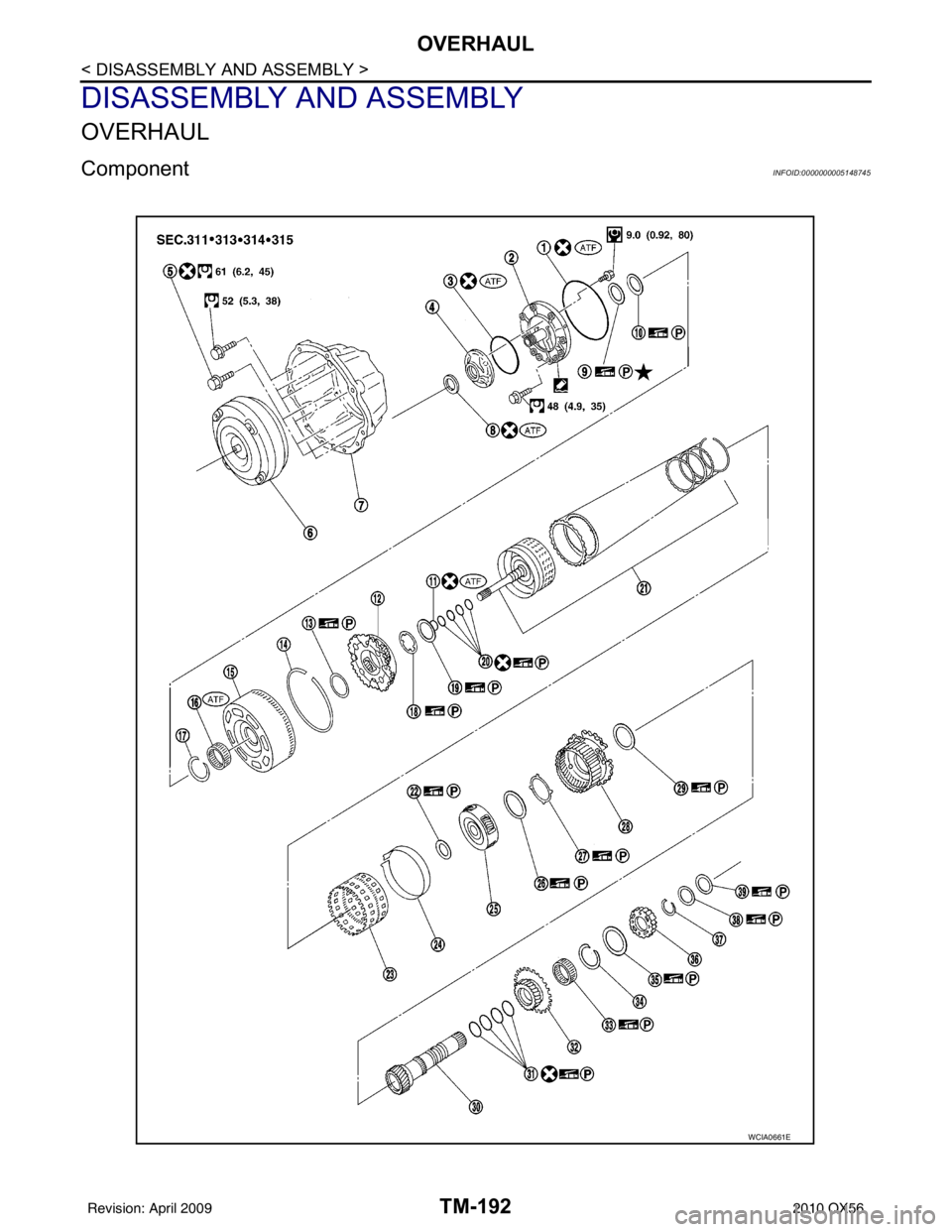

INFINITI QX56 2010 Factory Service Manual TM-192 < DISASSEMBLY AND ASSEMBLY > OVERHAUL DISASSEMBLY AND ASSEMBLY OVERHAUL ComponentINFOID:0000000005148745 WCIA0661E Revision: April 20092010 QX56

Page 3888 of 4210

INFINITI QX56 2010 Factory Service Manual OVERHAULTM-193 < DISASSEMBLY AND ASSEMBLY > CEF G H I J K L M A B TM N O P 1. O-ring 2. Oil pump cover 3. O-ring 4. Oil pump housing 5. Self-sealing bolts 6. Torque converter 7. Converter housing 8. O
