Page 3905 of 4210

TM-210
< DISASSEMBLY AND ASSEMBLY >
DISASSEMBLY
27. Push A/T assembly harness connector.CAUTION:
Do not damage connector.
28. Remove oil pan and oil pan gasket. Refer to TM-170, "
Oil Pan".
29. Check foreign materials in oil pan to help determine causes of malfunction. If the A/T fluid is very dark, smells burned, or con-
tains foreign particles, the frictional material (clutches, band)
may need replacement. A tacky film that will not wipe clean indi-
cates varnish build up. Varnish can cause valves, servo, and
clutches to stick and can inhibit pump pressure.
• If frictional material is de tected, perform A/T fluid cooler
cleaning. Refer to TM-152, "
A/T Fluid Cooler Cleaning".
30. Remove magnets from oil pan.
31. If an A/T fluid temperature sensor 2 is attached, disconnect the A/T fluid temperature sensor 2 connector
as shown below.
a. Disconnect A/T fluid temperat ure sensor 2 connector (A).
CAUTION:
Do not damage connector.
b. Straighten terminal clips ( ) to free terminal cord assembly and A/T fluid temperature sensor 2 harness.
SCIA5022E
SCIA5199E
SCIA5200E
SCIA8124E
Revision: April 20092010 QX56
Page 3906 of 4210
DISASSEMBLYTM-211
< DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
TM
N
O P
32. Disconnect output speed sensor connector (1). CAUTION:
Do not damage connector.
33. Straighten terminal clip ( ) to free output speed sensor har- ness.
34. Remove bolts (A), (B) and (C) from control valve with TCM. • : Front
35. Remove control valve with TCM from transmission case. CAUTION:
When removing, be careful with the manual valve notch and
manual plate height. Remove it vertically.
36. Remove the A/T fluid temperature sensor 2 or plug as shown below.
a. A/T fluid temperature sensor 2
JSDIA1319ZZ
JSDIA1320ZZ
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA8077E
SCIA5260E
Revision: April 20092010 QX56
Page 3907 of 4210
TM-212
< DISASSEMBLY AND ASSEMBLY >
DISASSEMBLY
i. Remove A/T fluid temperature sensor 2 with bracket from con-trol valve with TCM.
ii. Remove bracket from A/T fluid temperature sensor 2.
b. Plug
i. Remove plug (1) with bracket (2) from control valve with TCM.
ii. Remove bracket (1) from plug (2).
SCIA5253E
SCIA5264E
JSDIA1311ZZ
JSDIA1312ZZ
Revision: April 20092010 QX56
Page 3908 of 4210
DISASSEMBLYTM-213
< DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
TM
N
O P

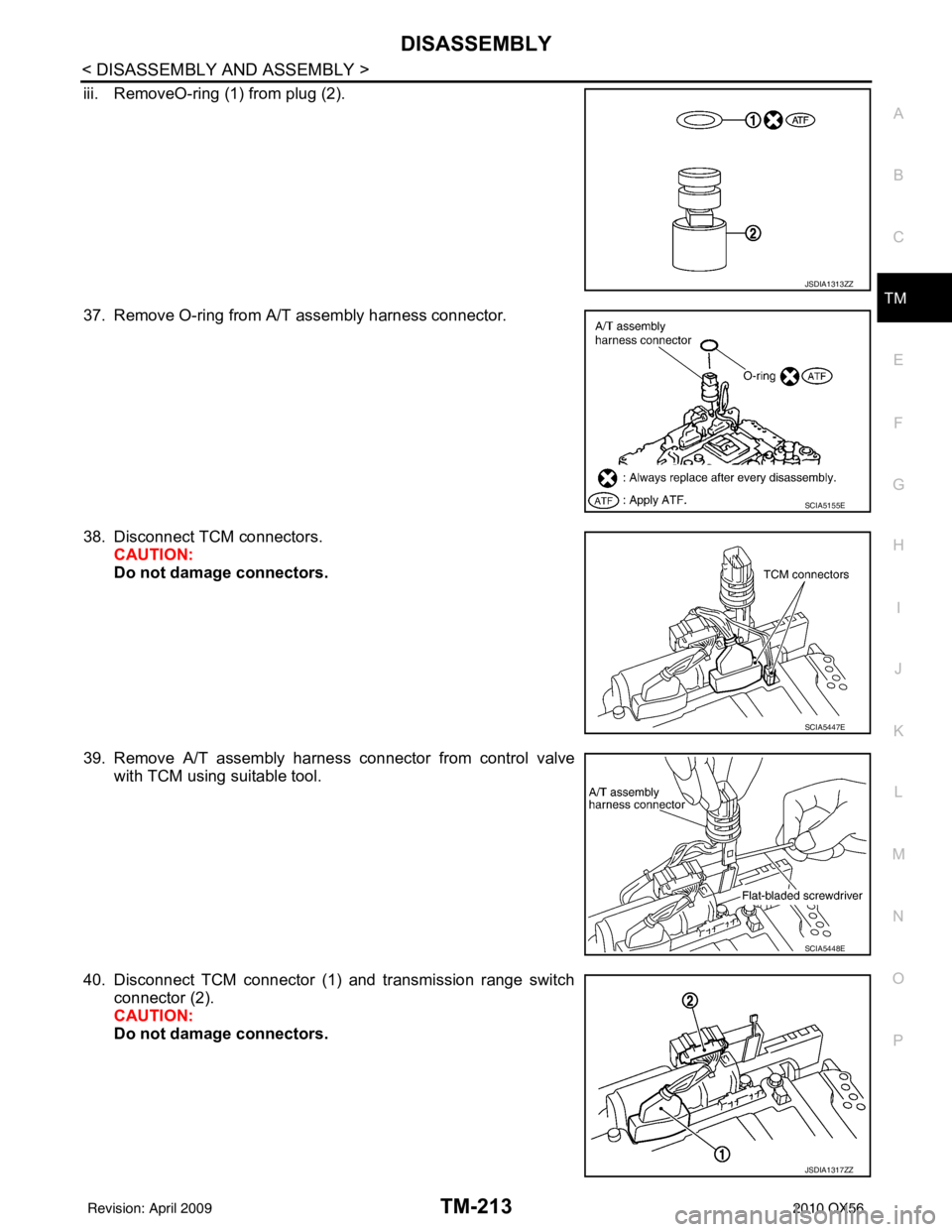

iii. RemoveO-ring (1) from plug (2).
37. Remove O-ring from A/T assembly harness connector.
38. Disconnect TCM connectors. CAUTION:
Do not damage connectors.
39. Remove A/T assembly harness connector from control valve with TCM using suitable tool.
40. Disconnect TCM connector (1) and transmission range switch connector (2).
CAUTION:
Do not damage connectors.
JSDIA1313ZZ
SCIA5155E
SCIA5447E
SCIA5448E
JSDIA1317ZZ
Revision: April 20092010 QX56
Page 3909 of 4210
TM-214
< DISASSEMBLY AND ASSEMBLY >
DISASSEMBLY
41. Remove rear extension assembly (2WD models) or adapter case assembly (4WD models) according tothe following procedures.
a. 2WD models
i. Remove bolts (1 brackets) for rear extension assembly and transmission case.
• Self-sealing bolts (2)
ii. Tap rear extension assembly with soft hammer.
iii. Remove rear extension assembly (with needle bearing) from transmission case.
WCIA0562E
SCIA5028E
SCIA5029E
Revision: April 20092010 QX56
Page 3910 of 4210
DISASSEMBLYTM-215
< DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
TM
N
O P
b. 4WD models
i. Remove adapter case to transmission case bolts and terminal bracket (1).
• Self-sealing bolt (2)
ii. Tap adapter case assembly using suitable tool.
iii. Remove adapter case assembly (with needle bearing) from transmission case.
iv. Remove gasket from transmission case.
WCIA0563E
SCIA5201E
SCIA5186E
SCIA5231E
Revision: April 20092010 QX56
Page 3911 of 4210
TM-216
< DISASSEMBLY AND ASSEMBLY >
DISASSEMBLY
42. Remove bearing race from output shaft.
43. Remove output shaft from transmission case by rotating left andright.
44. Remove parking gear from output shaft.
45. Remove seal rings from output shaft.
46. Remove needle bearing from transmission case.
SCIA5245E
SCIA5030E
SCIA5247E
SCIA5209E
SCIA5031E
Revision: April 20092010 QX56
Page 3912 of 4210

DISASSEMBLYTM-217
< DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
TM
N
O P
47. Remove output speed sensor (1) from transmission case.
CAUTION:
• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings or any foreign material to get onthe sensor's front edge magnetic area.
• Do not place in an area affected by magnetism.
48. Remove reverse brake snap ring using two flat-bladed screw- drivers.
NOTE:
Press out snap ring from the transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using a another
screwdriver.
49. Remove reverse brake retaining plate from transmission case. • Check facing for burns, cracks or damage. If necessary,
replace the plate.
50. Remove N-spring from transmission case.
51. Remove reverse brake drive plates, driven plates and dish plate from transmission case.
•Check facing for burns, cracks or damage. If necessary,
replace the plate.
52. Remove snap ring using suitable tool.
: Bolt
JSDIA1321ZZ
SCIA5032E
SCIA5214E
SCIA2322E
SCIA2323E
Revision: April 20092010 QX56
