LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-21
< BASIC INSPECTION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
K L
B A
O P
N
• For abbreviations, refer to
LAN-36, "Abbreviation List".
DETECT THE ROOT CAUSE

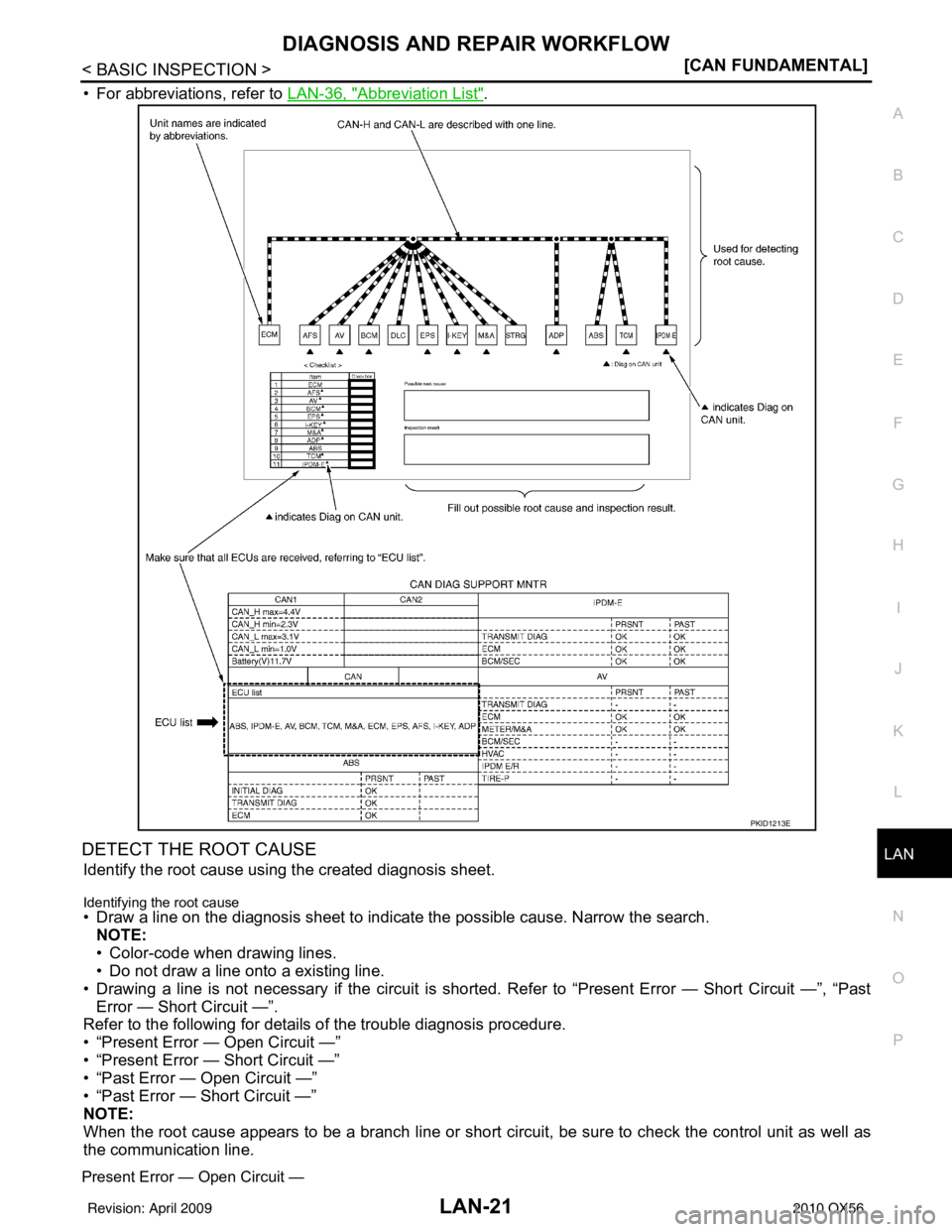

Identify the root cause using the created diagnosis sheet.
Identifying the root cause• Draw a line on the diagnosis sheet to indicate the possible cause. Narrow the search.
NOTE:
• Color-code when drawing lines.
• Do not draw a line onto a existing line.
• Drawing a line is not necessary if the circuit is shorted. Refer to “Present Error — Short Circuit —”, “Past Error — Short Circuit —”.
Refer to the following for details of the trouble diagnosis procedure.
• “Present Error — Open Circuit —”
• “Present Error — Short Circuit —”
• “Past Error — Open Circuit —”
• “Past Error — Short Circuit —”
NOTE:
When the root cause appears to be a branch line or short circuit, be sure to check the control unit as well as
the communication line.
Present Error — Open Circuit —
PKID1213E
Revision: April 20092010 QX56
Page 2620 of 4210
![INFINITI QX56 2010 Factory Service Manual LAN-22
< BASIC INSPECTION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW
Identify the error circuit using information from t
he “CAN DIAG SUPPORT MNTR” (“ECU list” included).
1. ECU list: Ch INFINITI QX56 2010 Factory Service Manual LAN-22
< BASIC INSPECTION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW
Identify the error circuit using information from t
he “CAN DIAG SUPPORT MNTR” (“ECU list” included).
1. ECU list: Ch](/manual-img/42/57032/w960_57032-2619.png)
LAN-22
< BASIC INSPECTION >[CAN FUNDAMENTAL]
DIAGNOSIS AND REPAIR WORKFLOW
Identify the error circuit using information from t
he “CAN DIAG SUPPORT MNTR” (“ECU list” included).
1. ECU list: Check the items indicated in “ECU list”. Draw a line on the diagnosis sheet to indicate the error circuit.
NOTE:
CAN communication line has no error if units other than Diag on CAN units are not indicated. An error
may be on the power supply of the control unit, DDL1 line or DDL2 line.
a. “TCM” which is Diag on CAN unit, is not indicated on “E CU list”. This indicates that DLC is not receiving a
signal from TCM. Draw a line to indicate an error between DLC and TCM (line 1-a in the figure below).
NOTE:
• Diag on CAN units are not indicated on the “ECU list” when the CAN line between Diag on CAN unit and
the data link connector is open.
• For a description of Diag on CAN, refer to LAN-6, "
Description".
2. CAN DIAG SUPPORT MNTR: Check each item on “CAN DIAG SUPPORT MNTR”. Draw a line on the diagnosis sheet to indicate the error circuit.
a. Reception item of “ECM”: On “TCM”, “UNKWN” is indicated. This means ECM cannot receive the signal
from TCM. Draw a line to indicate an error between ECM and TCM (line 2-a in the figure below).
NOTE:
If “UNKWN” is indicated on “TRA NSMIT DIAG”, then the control uni t cannot transmit CAN communication
signal to each unit. Draw a line between the control unit and the splice.
b. Reception item of “AFS”: On “T CM”, “UNKWN” is indicated. This means AFS cannot receive the signal
from TCM. Draw a line to indicate an error between AFS and TCM (line 2-b in the figure below).
PKID1214E
Revision: April 20092010 QX56
Page 2621 of 4210
LAN
DIAGNOSIS AND REPAIR WORKFLOWLAN-23
< BASIC INSPECTION > [CAN FUNDAMENTAL]
C
D
E
F
G H
I
J
K L
B A
O P
N

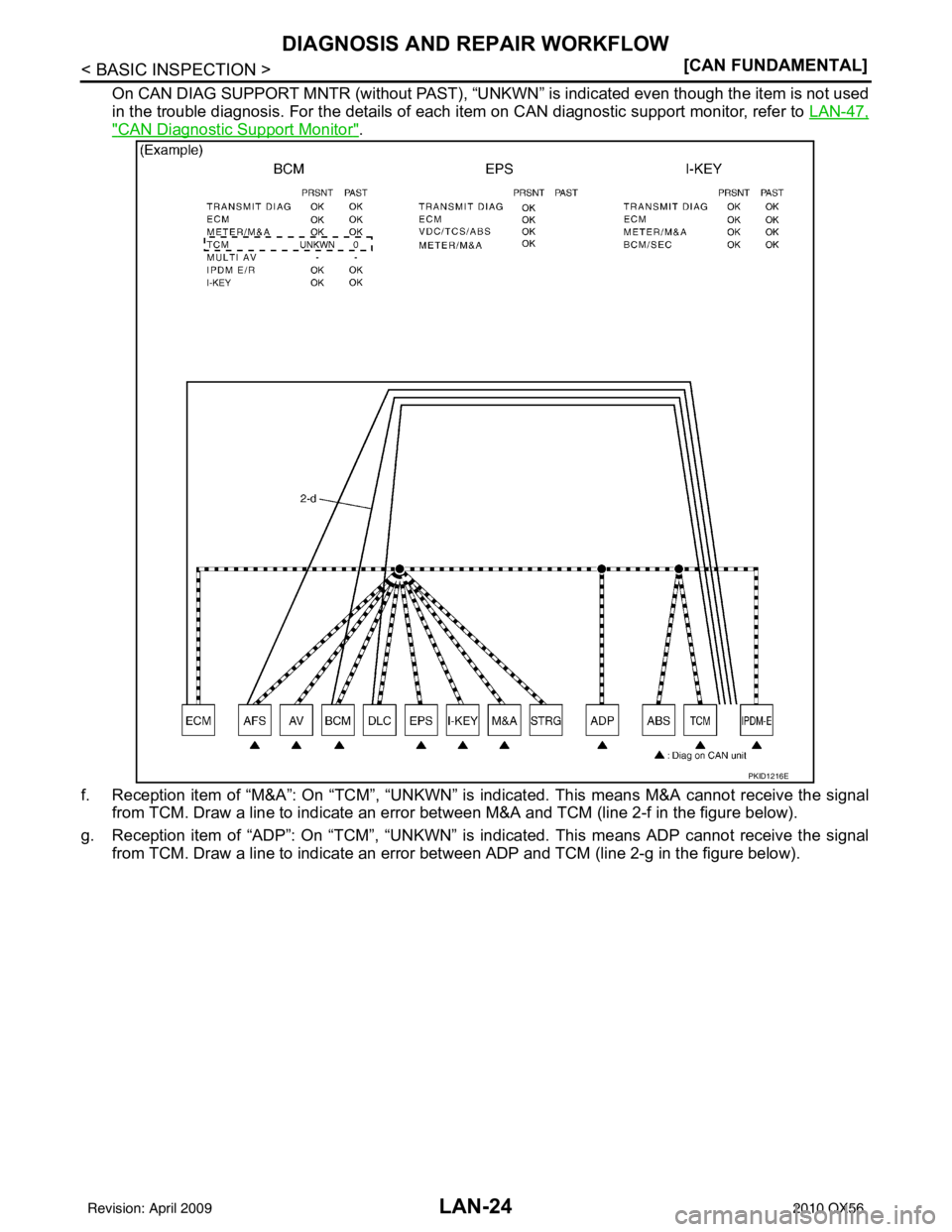

c. Reception item of “AV”: “UNKWN” is not indicated. This indicates normal communication between AV and
