Page 2937 of 4210

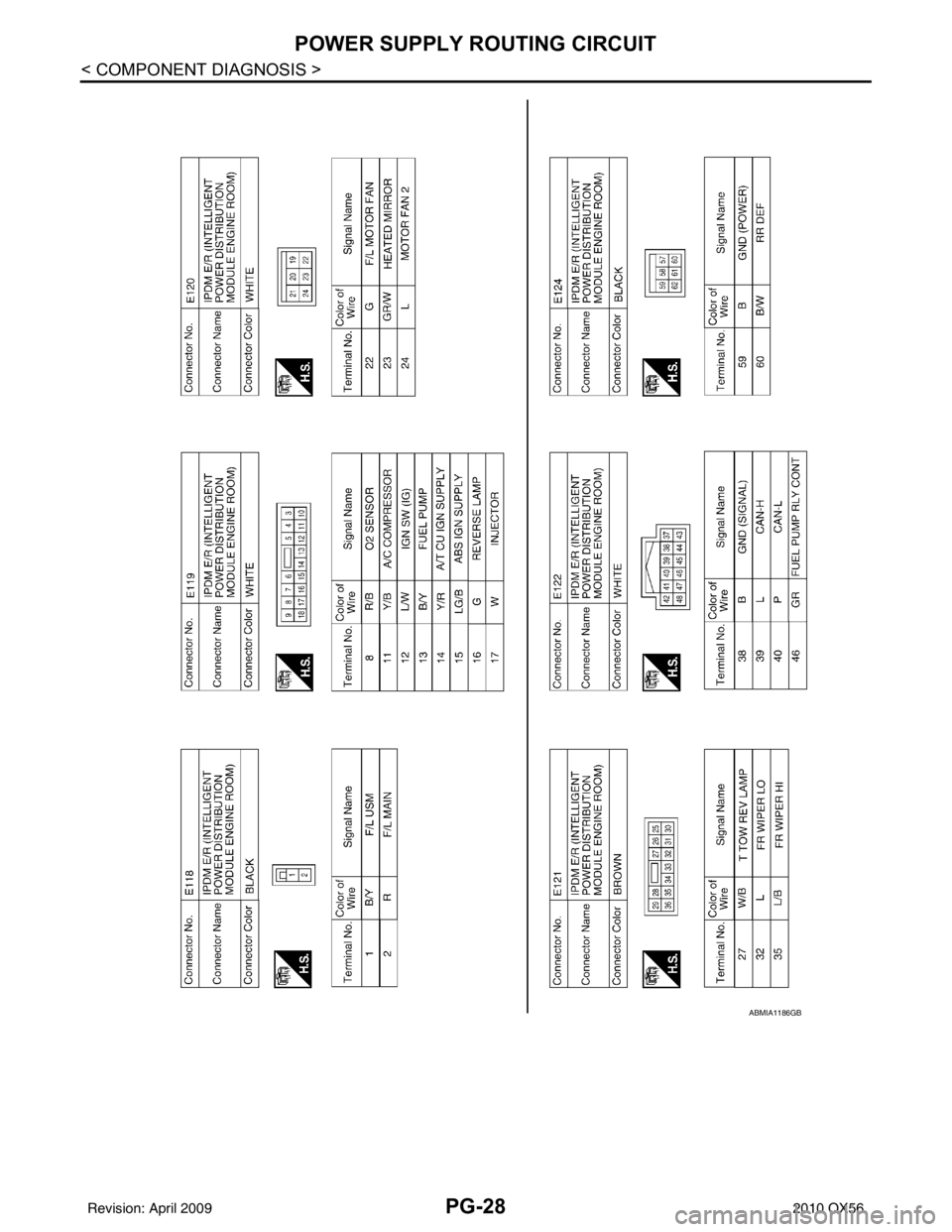

INFINITI QX56 2010 Factory Service Manual PG POWER SUPPLY ROUTING CIRCUITPG-27 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ABMIA1185GB Revision: April 20092010 QX56

Page 2938 of 4210

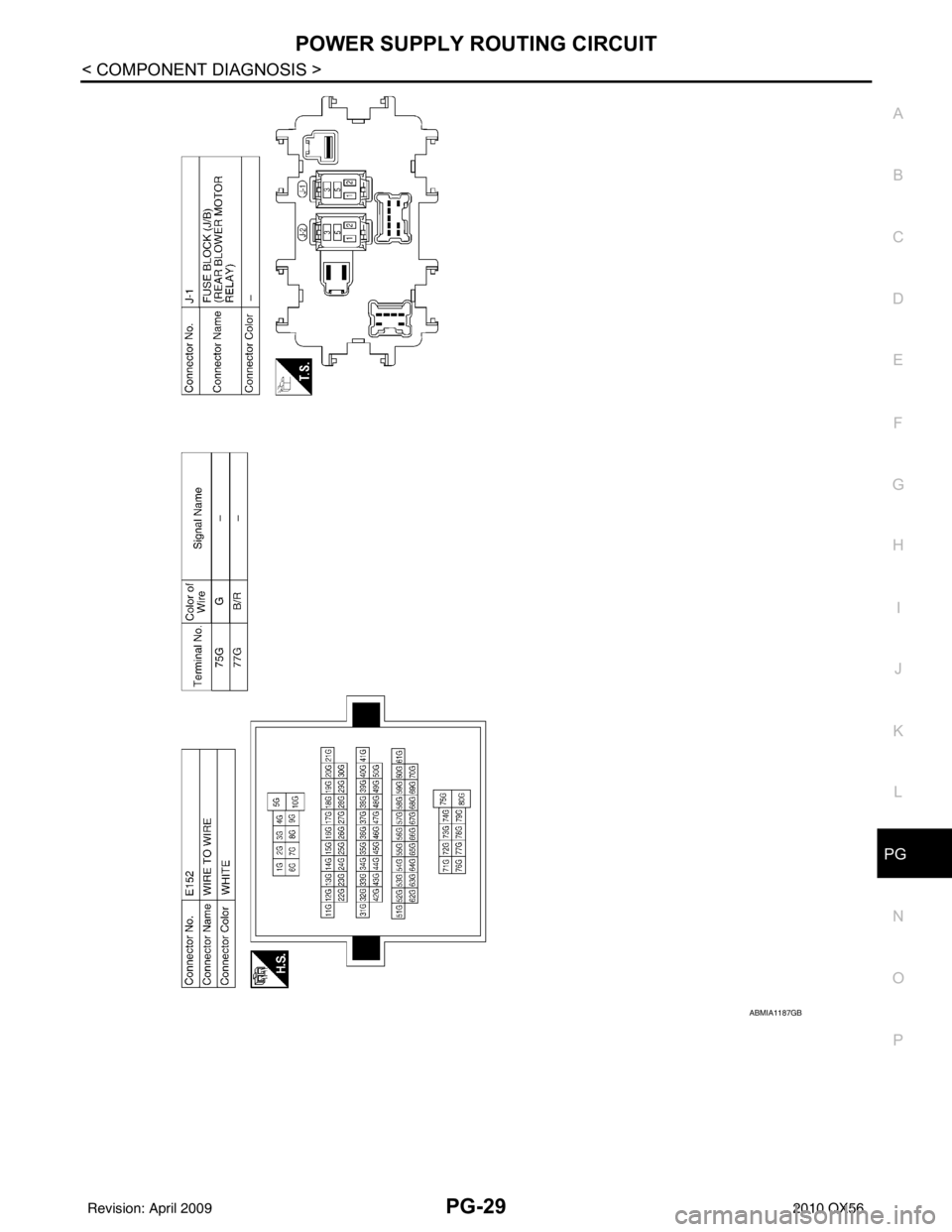

INFINITI QX56 2010 Factory Service Manual PG-28 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT ABMIA1186GB Revision: April 20092010 QX56

Page 2939 of 4210

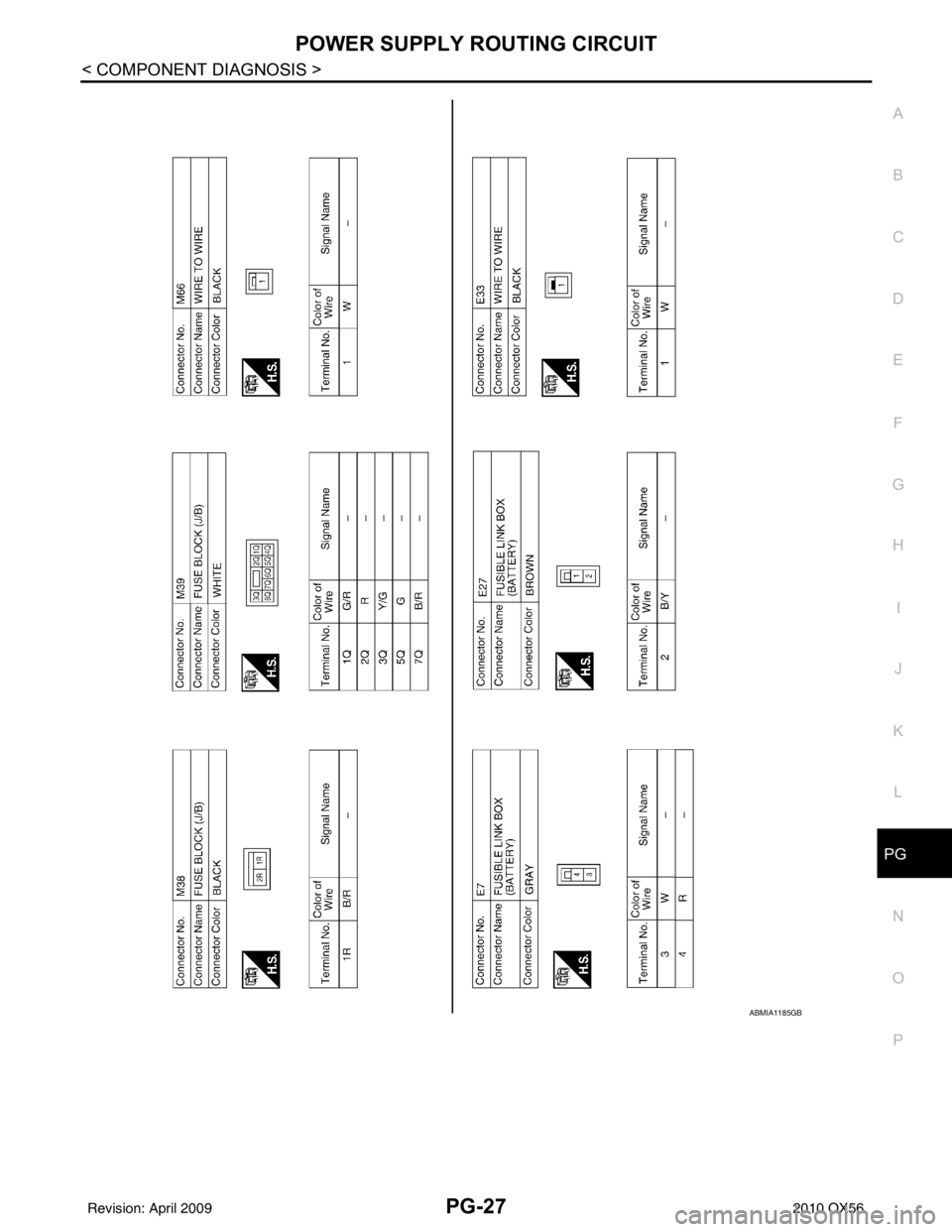

INFINITI QX56 2010 Factory Service Manual PG POWER SUPPLY ROUTING CIRCUITPG-29 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ABMIA1187GB Revision: April 20092010 QX56

Page 2940 of 4210

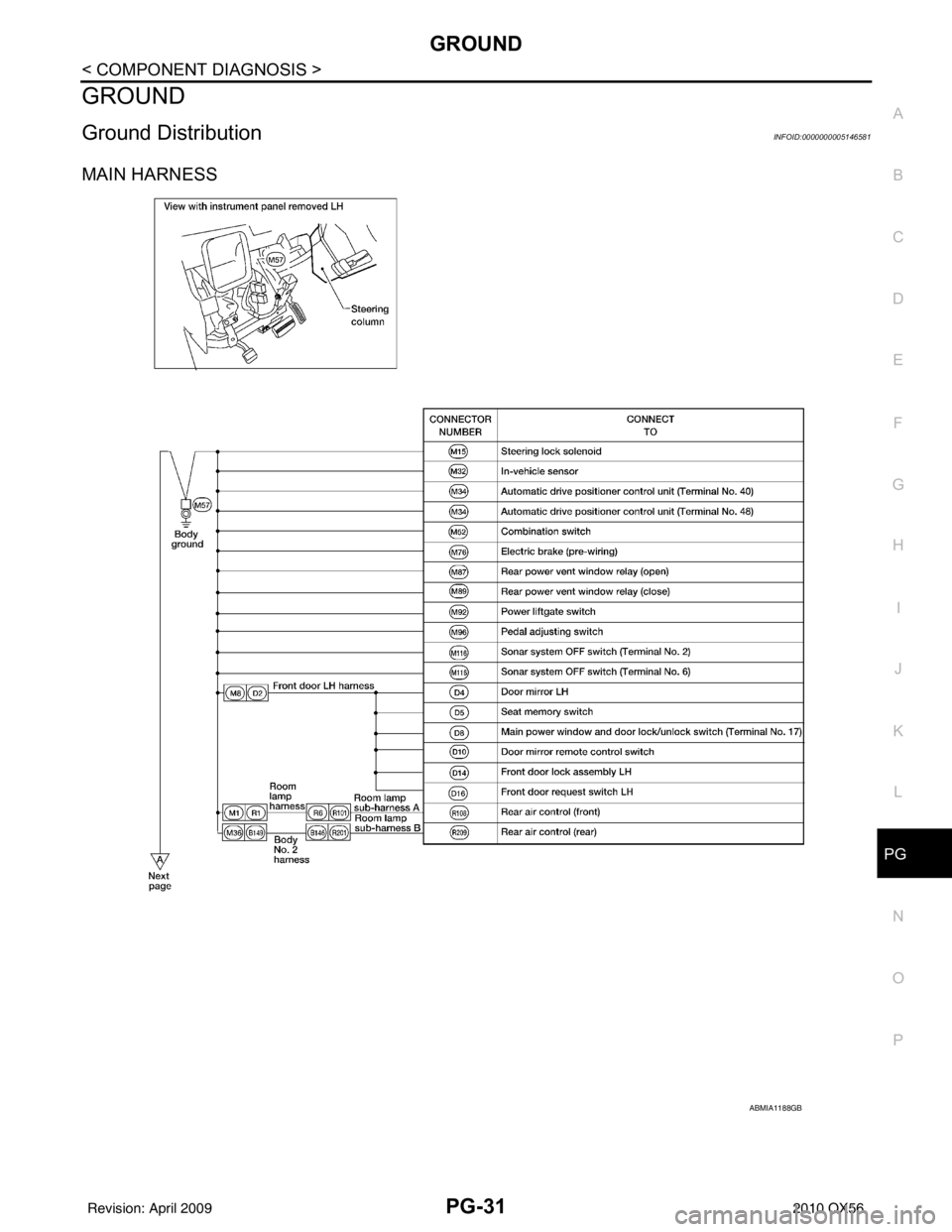

INFINITI QX56 2010 Factory Service Manual PG-30 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT Fuse INFOID:0000000005146579 • If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. • Use fuse of spec

Page 2941 of 4210

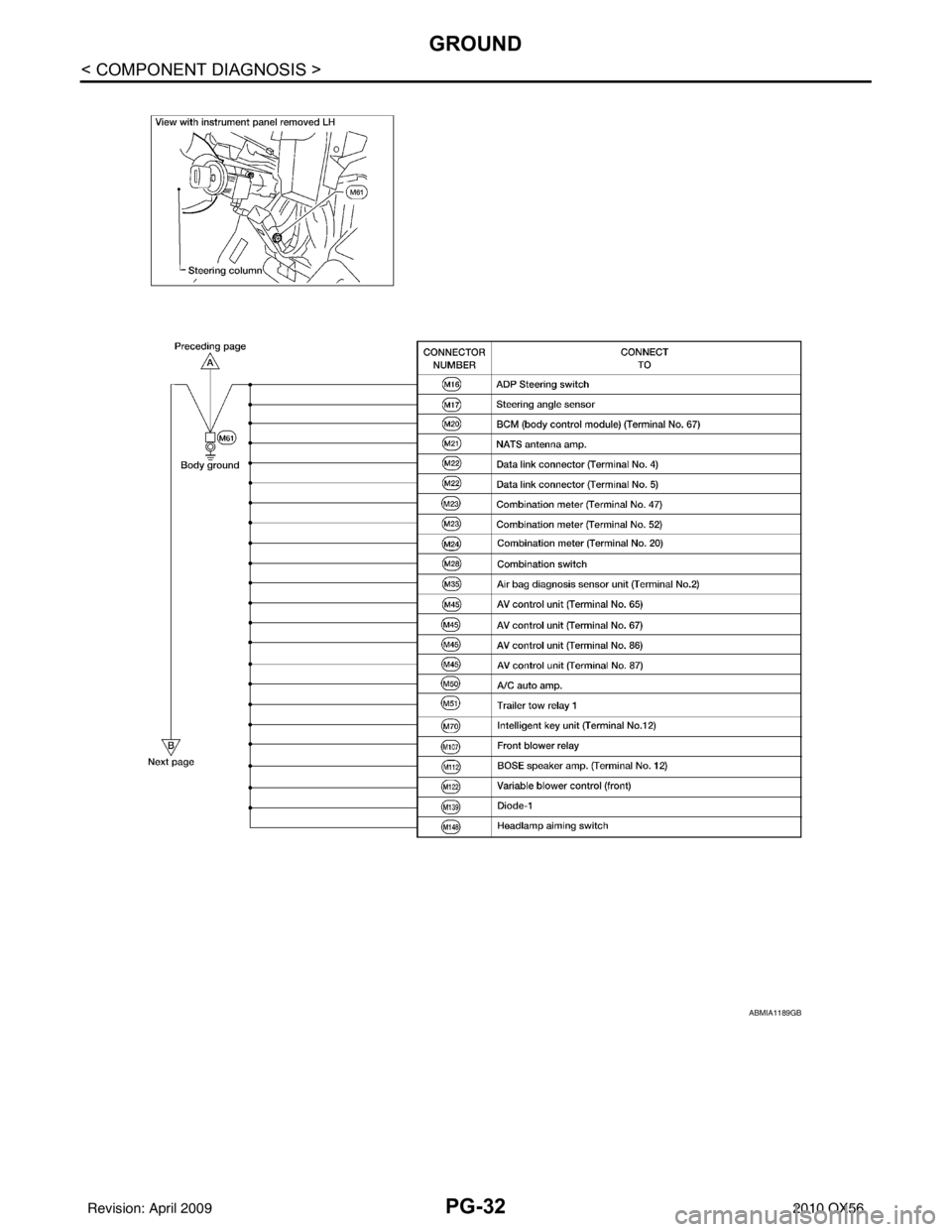

INFINITI QX56 2010 Factory Service Manual PG GROUNDPG-31 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N GROUND Ground DistributionINFOID:0000000005146581 MAIN HARNESS ABMIA1188GB Revision: April 20092010 QX56

Page 2942 of 4210

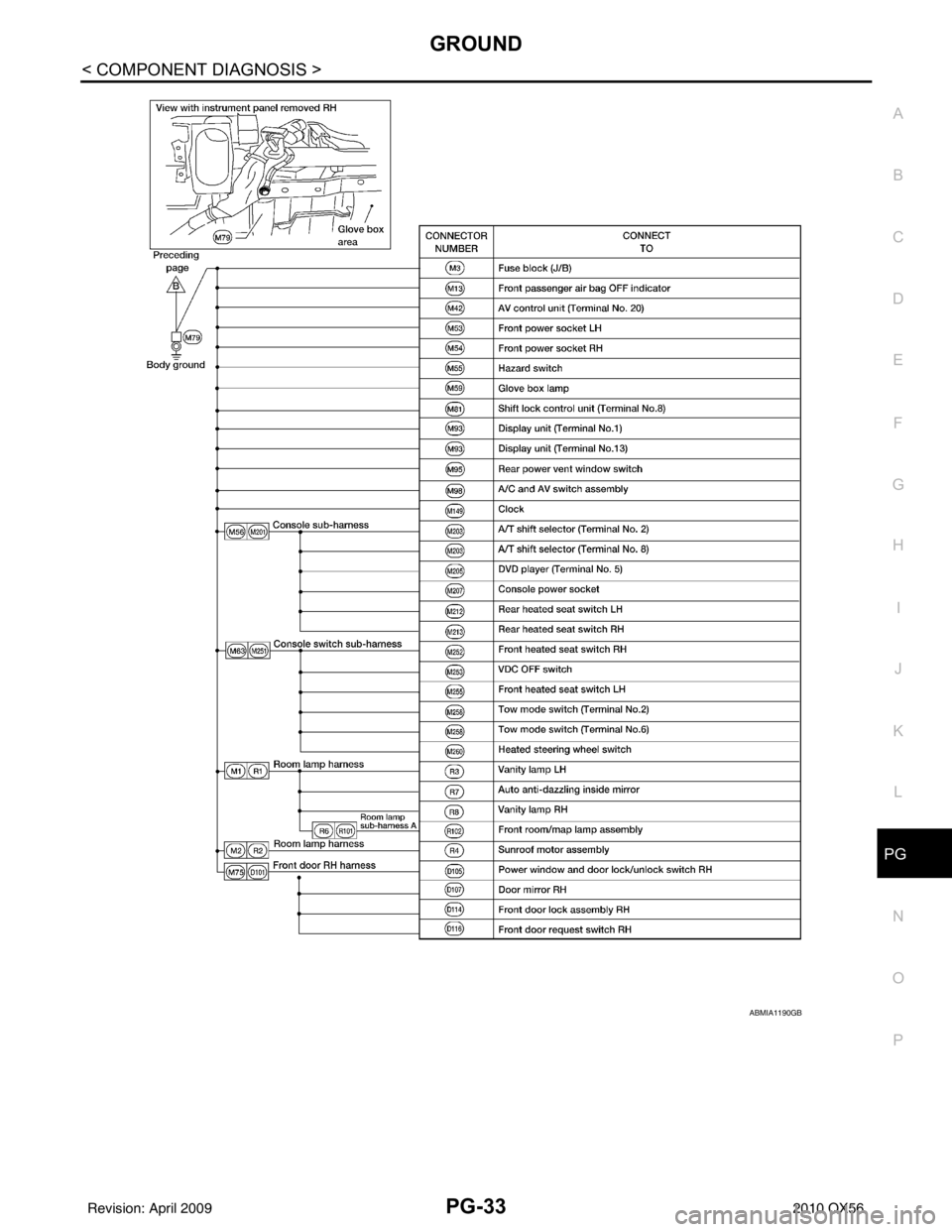

INFINITI QX56 2010 Factory Service Manual PG-32 < COMPONENT DIAGNOSIS > GROUND ABMIA1189GB Revision: April 20092010 QX56

Page 2943 of 4210

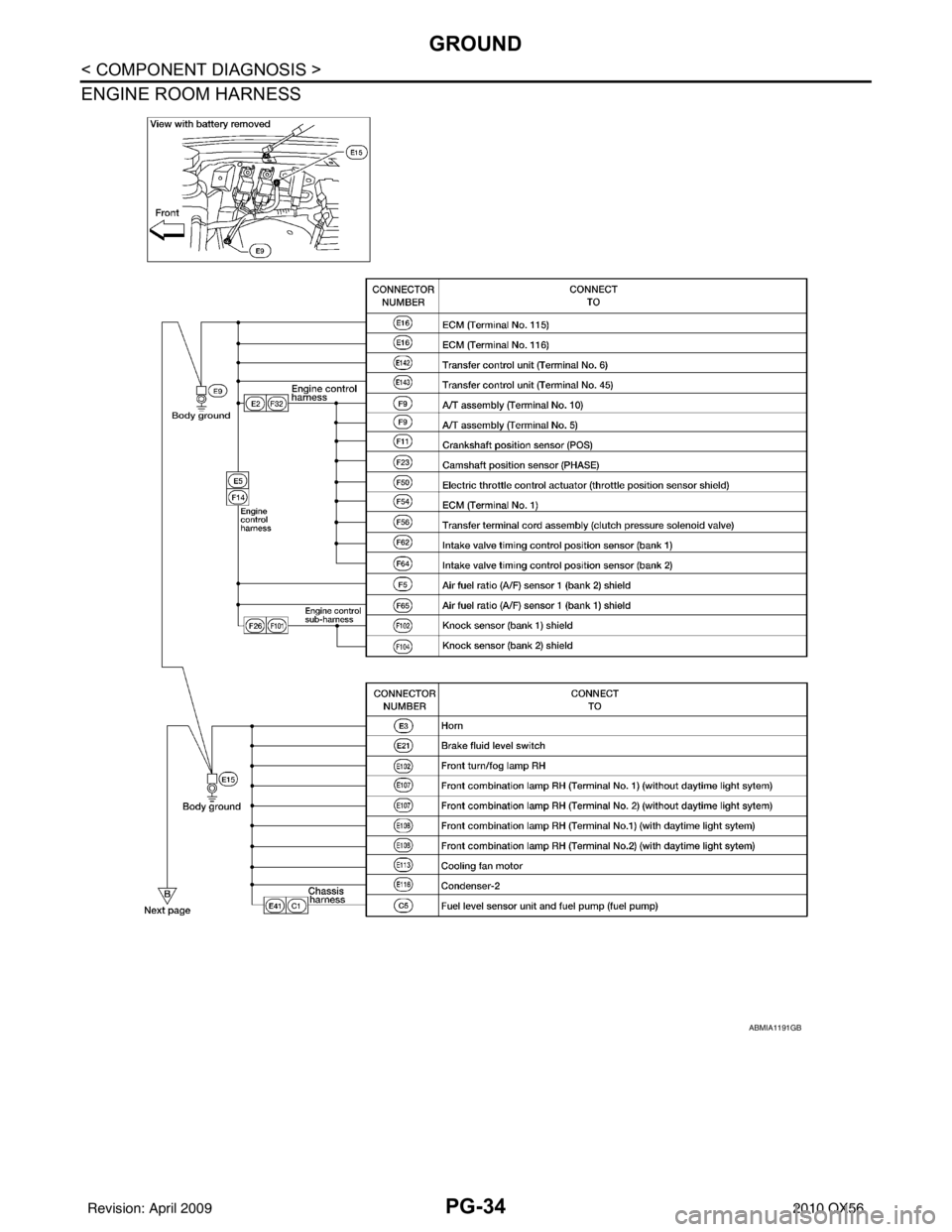

INFINITI QX56 2010 Factory Service Manual PG GROUNDPG-33 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ABMIA1190GB Revision: April 20092010 QX56

Page 2944 of 4210

INFINITI QX56 2010 Factory Service Manual PG-34 < COMPONENT DIAGNOSIS > GROUND ENGINE ROOM HARNESS ABMIA1191GB Revision: April 20092010 QX56
