Page 3337 of 4210

INFINITI QX56 2010 Factory Service Manual THIRD SEATSE-65 < ON-VEHICLE REPAIR > C DE F G H I K L M A B SE N O P 7. Remove the rear bolts from the seat assembly. 8. Disconnect the seat harness. 9. Remove the seat assembly. INSTALLATION Install

Page 3338 of 4210

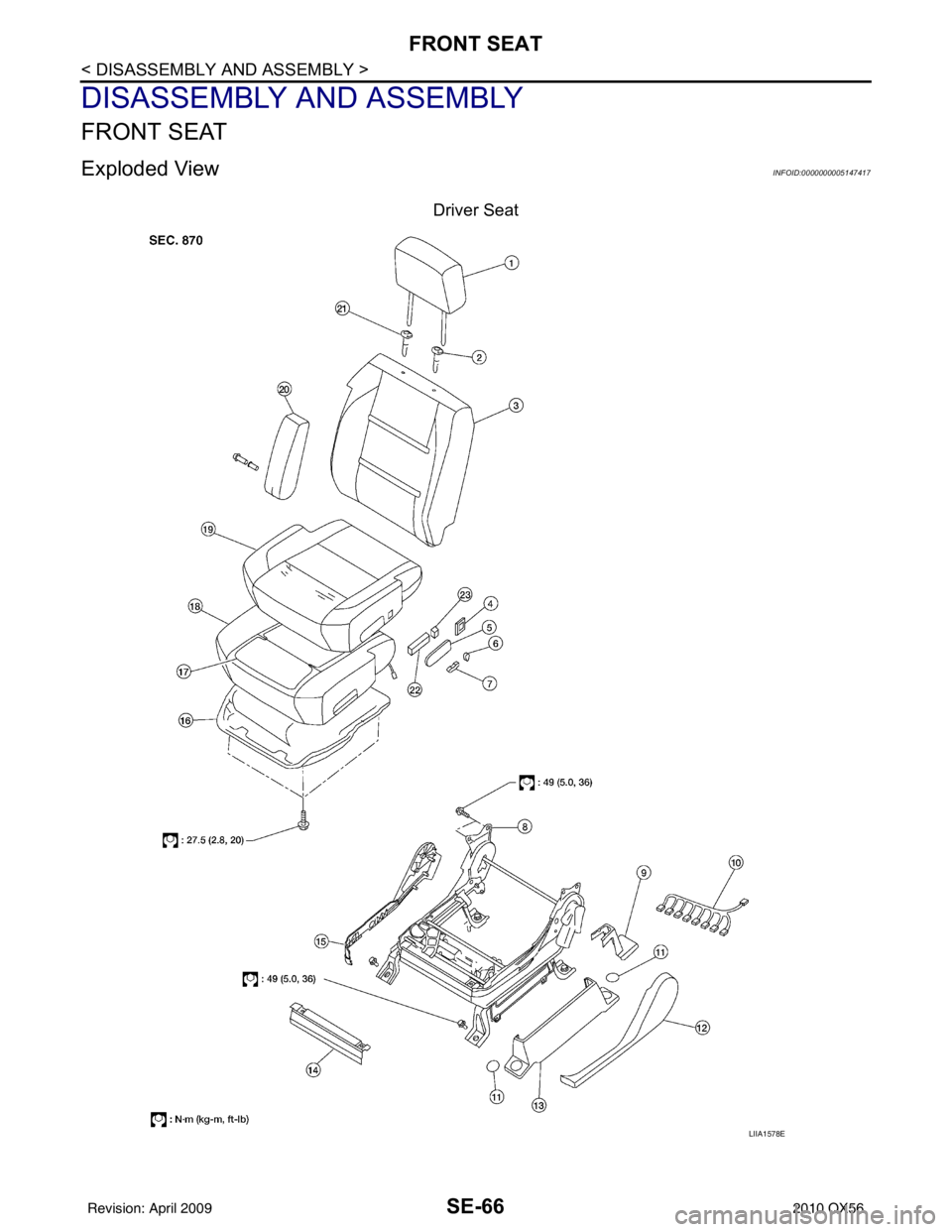

INFINITI QX56 2010 Factory Service Manual SE-66 < DISASSEMBLY AND ASSEMBLY > FRONT SEAT DISASSEMBLY AND ASSEMBLY FRONT SEAT Exploded ViewINFOID:0000000005147417 Driver Seat LIIA1578E Revision: April 20092010 QX56

Page 3339 of 4210

INFINITI QX56 2010 Factory Service Manual FRONT SEATSE-67 < DISASSEMBLY AND ASSEMBLY > C DE F G H I K L M A B SE N O P 1. Headrest 2. Headrest holder with multi-position lock 3. Seatback assembly 4. Lumbar switch bezel 5. Power seat switch

Page 3340 of 4210

INFINITI QX56 2010 Factory Service Manual SE-68 < DISASSEMBLY AND ASSEMBLY > FRONT SEAT Passenger Seat WIIA0476E 1. Headrest2. Headrest holder with multi-position lock 3. Seatback board 4. Armrest assembly 5. Lumbar switch bezel6. Fold fla

Page 3341 of 4210

INFINITI QX56 2010 Factory Service Manual FRONT SEATSE-69 < DISASSEMBLY AND ASSEMBLY > C DE F G H I K L M A B SE N O P Disassembly and AssemblyINFOID:0000000005256345 SEATBACK TRIM AND PAD Disassembly CAUTION: • Only complete seatback assem

Page 3342 of 4210

INFINITI QX56 2010 Factory Service Manual SE-70 < DISASSEMBLY AND ASSEMBLY > FRONT SEAT 1. Remove the recline release lever. 2. Remove four bolts and the seat cushion assembly. • On the fold flat passenger seat it is necessary to unclip the

Page 3343 of 4210

INFINITI QX56 2010 Factory Service Manual FRONT SEATSE-71 < DISASSEMBLY AND ASSEMBLY > C DE F G H I K L M A B SE N O P Installation Installation is in the reverse order of removal. PASSENGER SEATBACK BOARD - HARD SEATBACK Removal 1. The seatb

Page 3344 of 4210

INFINITI QX56 2010 Factory Service Manual SE-72 < DISASSEMBLY AND ASSEMBLY > SECOND SEAT SECOND SEAT Disassembly and AssemblyINFOID:0000000005147419 Second Row RH WIIA1013E 1. Headrest 2. Seatback pad 3. Seatback frame 4. Rear seat bezel 5. R
