Page 2929 of 4210

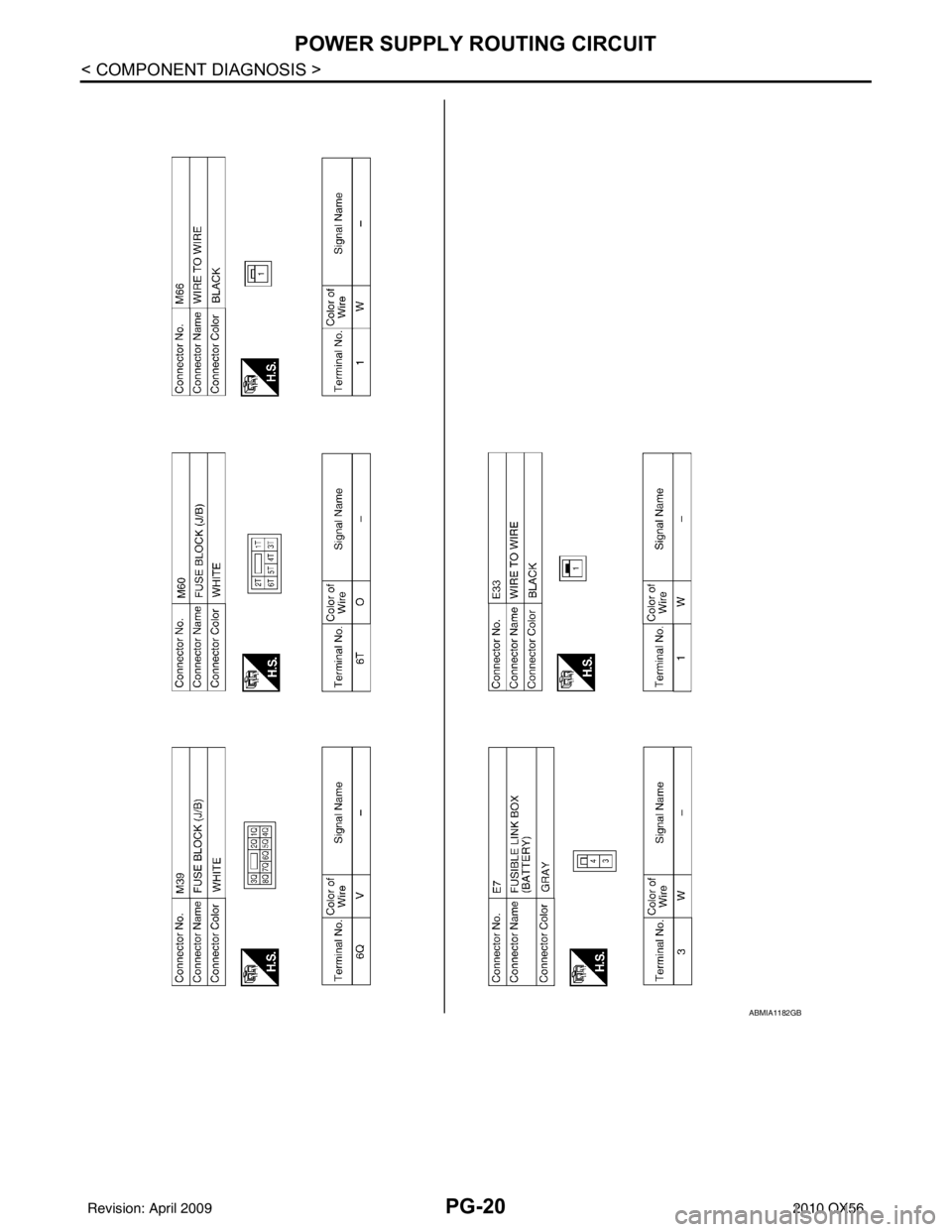

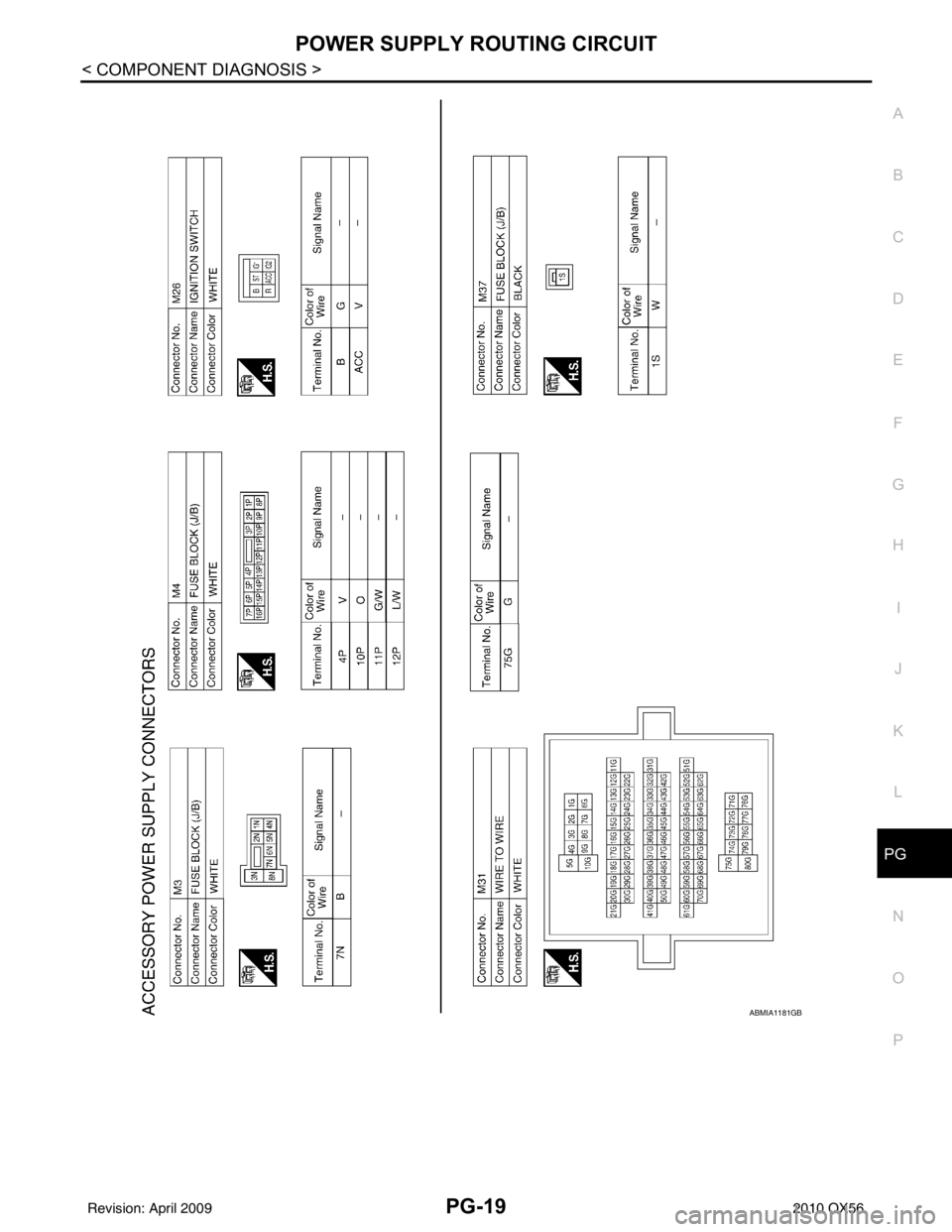

INFINITI QX56 2010 Factory Service Manual PG POWER SUPPLY ROUTING CIRCUITPG-19 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ABMIA1181GB Revision: April 20092010 QX56

Page 2930 of 4210

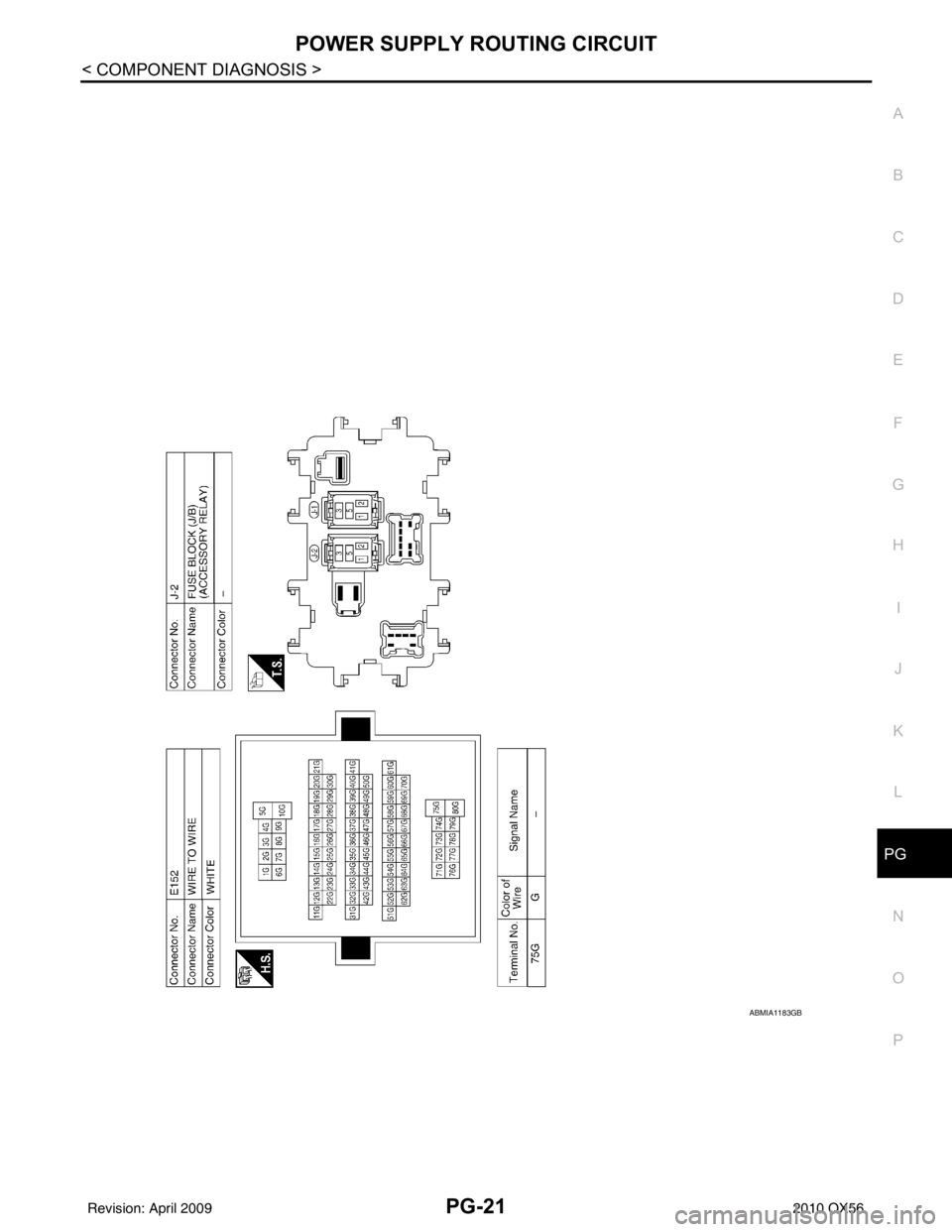

INFINITI QX56 2010 Factory Service Manual PG-20 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT ABMIA1182GB Revision: April 20092010 QX56

Page 2931 of 4210

INFINITI QX56 2010 Factory Service Manual PG POWER SUPPLY ROUTING CIRCUITPG-21 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ABMIA1183GB Revision: April 20092010 QX56

Page 2932 of 4210

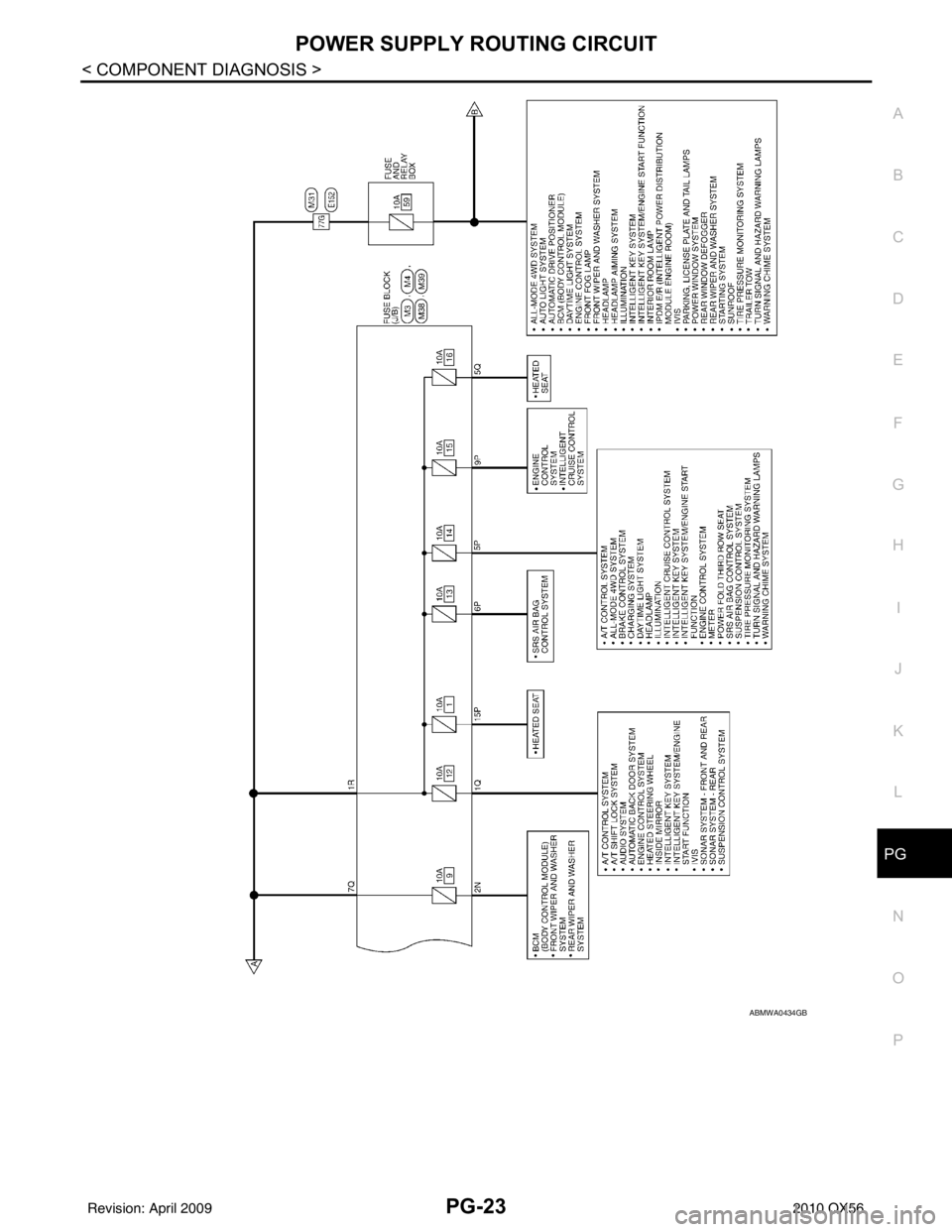

INFINITI QX56 2010 Factory Service Manual PG-22 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT Wiring Diagram —Igniti on Power Supply — INFOID:0000000005146578 ABMWA0066GB Revision: April 20092010 QX56

Page 2933 of 4210

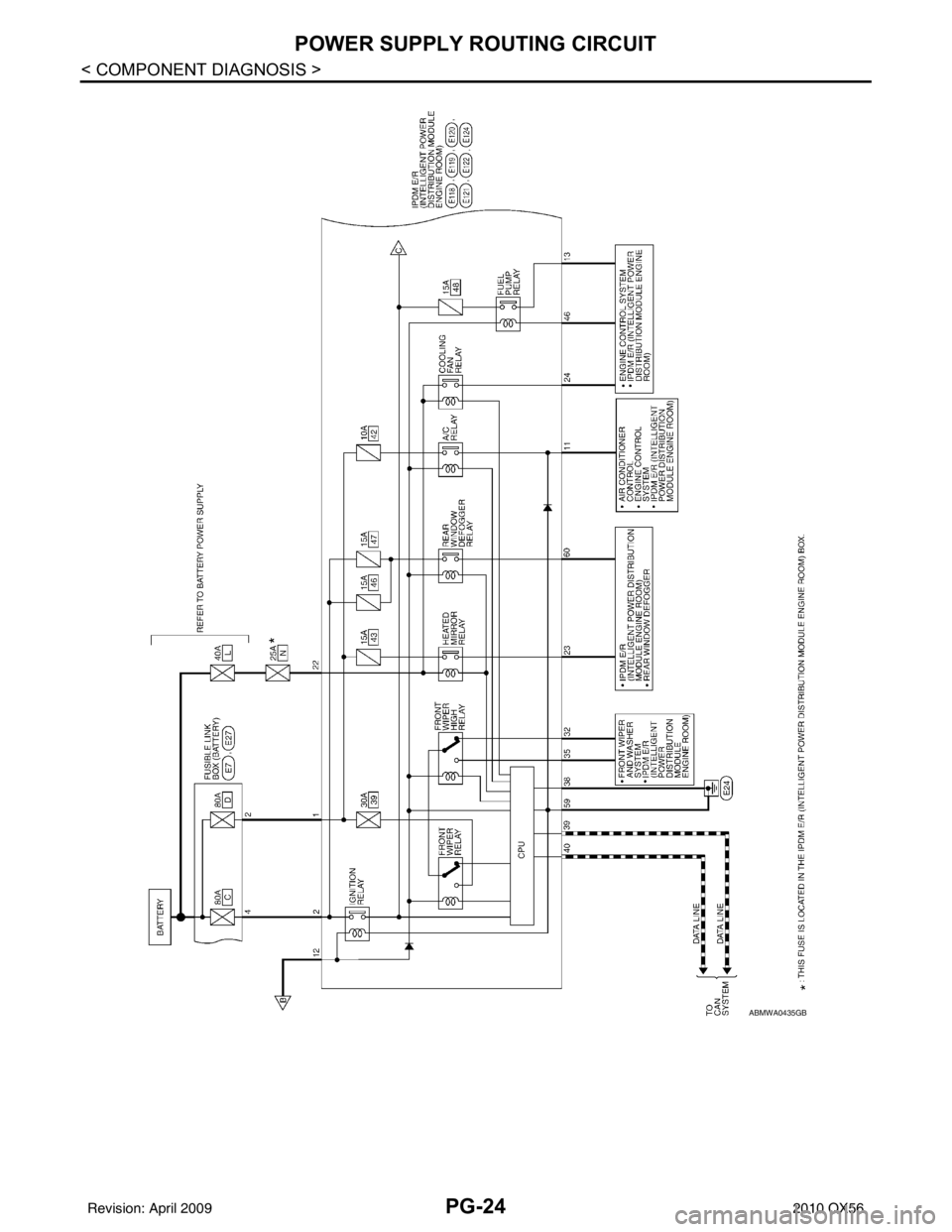

INFINITI QX56 2010 Factory Service Manual PG POWER SUPPLY ROUTING CIRCUITPG-23 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ABMWA0434GB Revision: April 20092010 QX56

Page 2934 of 4210

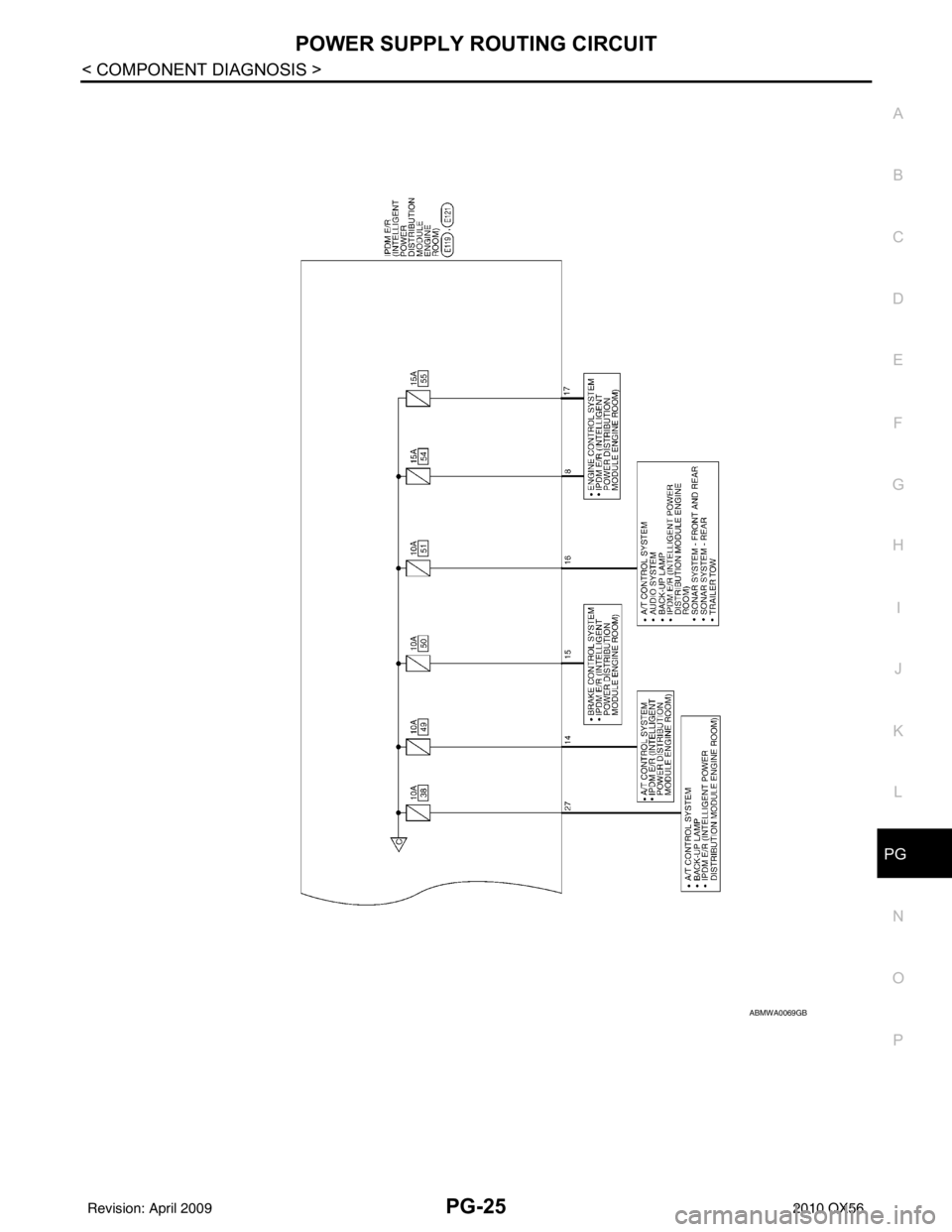

INFINITI QX56 2010 Factory Service Manual PG-24 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT ABMWA0435GB Revision: April 20092010 QX56

Page 2935 of 4210

INFINITI QX56 2010 Factory Service Manual PG POWER SUPPLY ROUTING CIRCUITPG-25 < COMPONENT DIAGNOSIS > C DE F G H I J K L B A O P N ABMWA0069GB Revision: April 20092010 QX56

Page 2936 of 4210

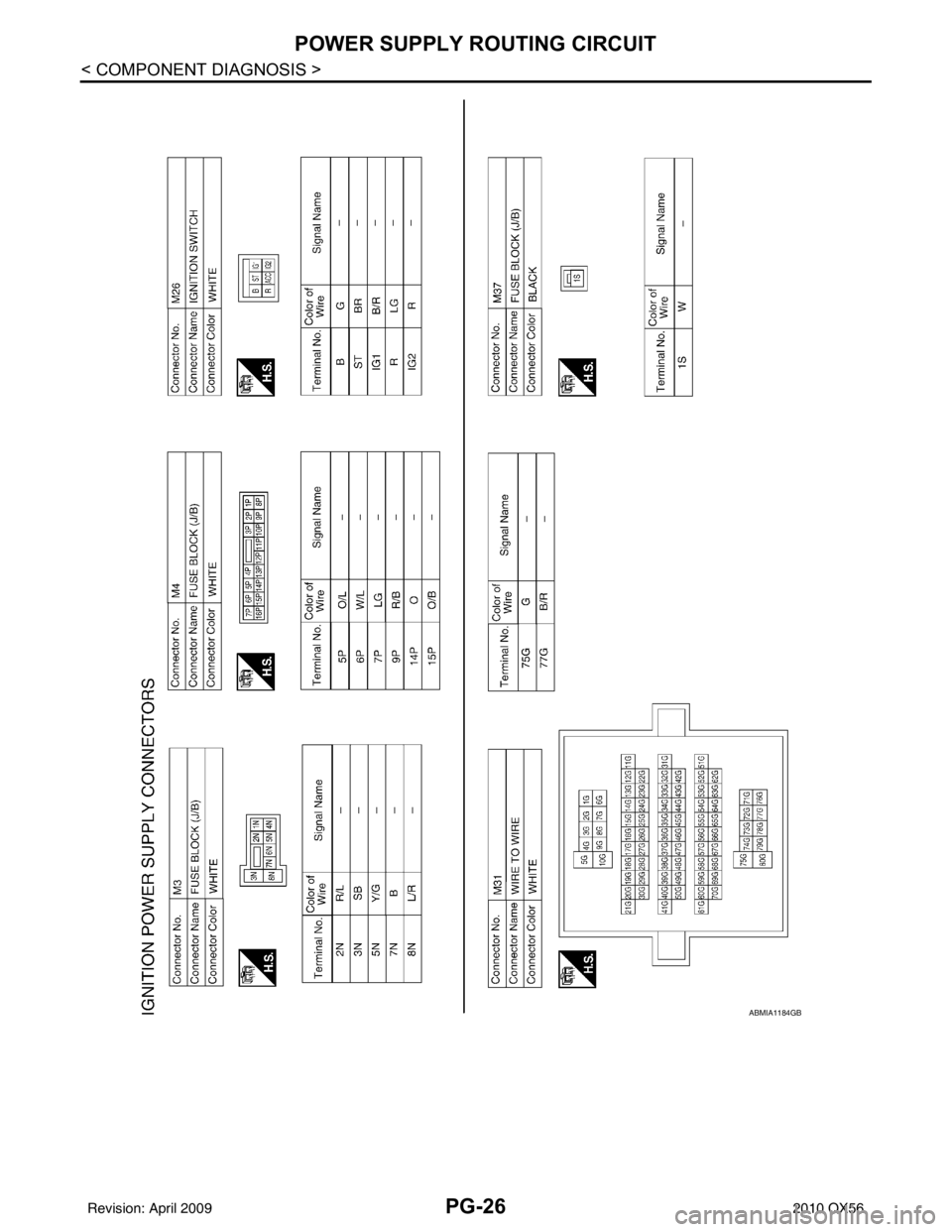

INFINITI QX56 2010 Factory Service Manual PG-26 < COMPONENT DIAGNOSIS > POWER SUPPLY ROUTING CIRCUIT ABMIA1184GB Revision: April 20092010 QX56
