Page 1249 of 4210

INFINITI QX56 2010 Factory Service Manual TRANSFER ASSEMBLYDLN-167 < DISASSEMBLY AND ASSEMBLY > [ATX14B] C EF G H I J K L M A B DLN N O P • Use Genuine Silicone RTV or equivalent. Refer to GI-15, "Recommended Chemical Products and Sealants

Page 1250 of 4210

INFINITI QX56 2010 Factory Service Manual DLN-168 < DISASSEMBLY AND ASSEMBLY >[ATX14B] TRANSFER ASSEMBLY 24. Install the return spring assembly into the clutch hub. 25. Install the press flange by aligning the notches to the clutch hub as sho

Page 1251 of 4210

INFINITI QX56 2010 Factory Service Manual TRANSFER ASSEMBLYDLN-169 < DISASSEMBLY AND ASSEMBLY > [ATX14B] C EF G H I J K L M A B DLN N O P 29. Install the new snap ring to the main shaft. CAUTION: Do not reuse snap ring. 30. Install the mainsh

Page 1252 of 4210

INFINITI QX56 2010 Factory Service Manual DLN-170 < DISASSEMBLY AND ASSEMBLY >[ATX14B] TRANSFER ASSEMBLY 34. Apply petroleum jelly to the stem bleeder and install it to the cen- ter case. 35. Apply ATF to the new seal ring and install it to t

Page 1253 of 4210

INFINITI QX56 2010 Factory Service Manual TRANSFER ASSEMBLYDLN-171 < DISASSEMBLY AND ASSEMBLY > [ATX14B] C EF G H I J K L M A B DLN N O P 39. Remove all the sealant from the switch location area and inside the center case. CAUTION: Remove old

Page 1254 of 4210

INFINITI QX56 2010 Factory Service Manual DLN-172 < DISASSEMBLY AND ASSEMBLY >[ATX14B] TRANSFER ASSEMBLY 44. Tap the front drive shaft while keeping it upright and press-fit the front drive shaft rear bearing. CAUTION: Do not tap drive chain

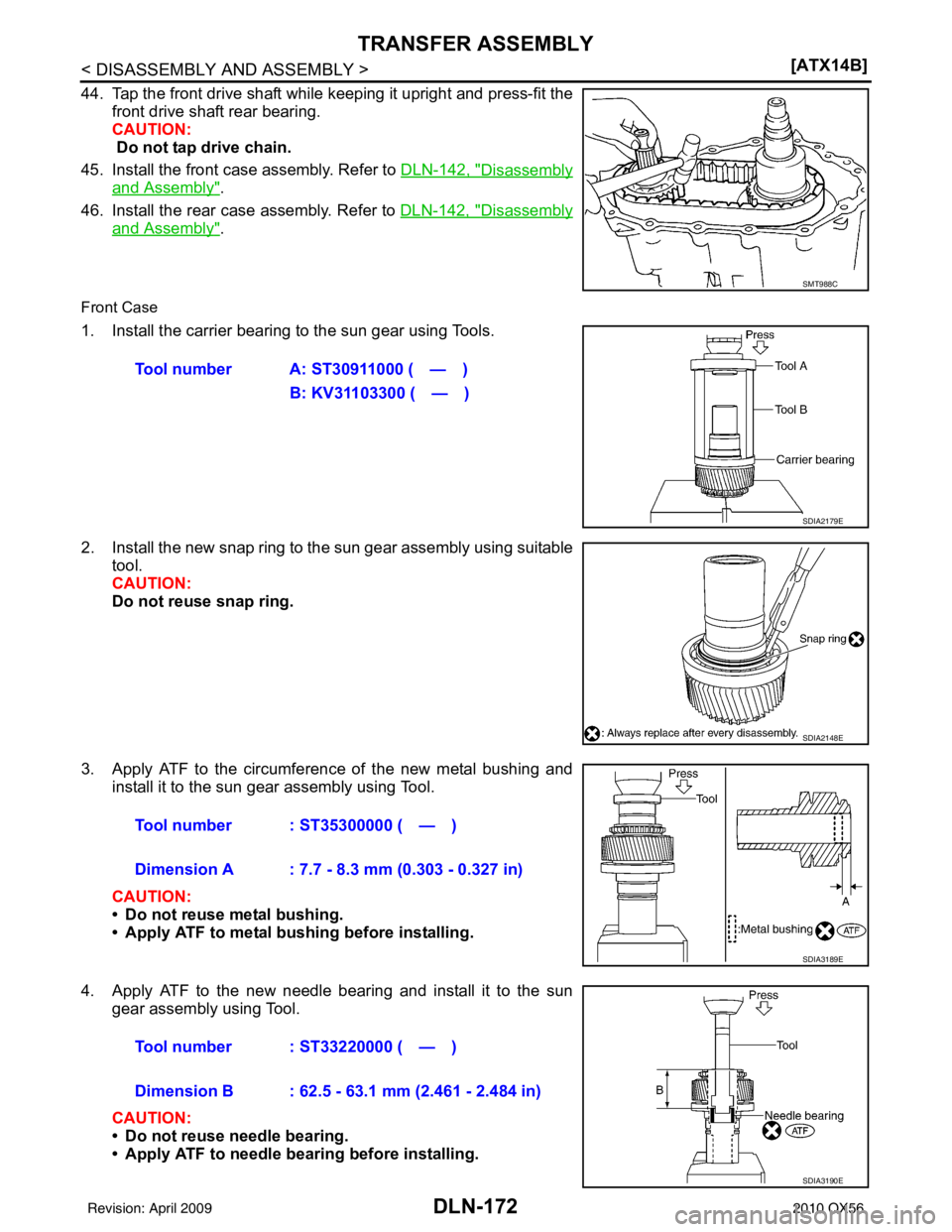

Page 1255 of 4210

INFINITI QX56 2010 Factory Service Manual TRANSFER ASSEMBLYDLN-173 < DISASSEMBLY AND ASSEMBLY > [ATX14B] C EF G H I J K L M A B DLN N O P 5. Install the sun gear assembly to the planetary carrier assembly. 6. Install the new snap ring to the

Page 1256 of 4210

INFINITI QX56 2010 Factory Service Manual DLN-174 < DISASSEMBLY AND ASSEMBLY >[ATX14B] TRANSFER ASSEMBLY 10. Install the new front oil seal until it is seated flush with the end face of the front case using Tool. CAUTION: • Do not reuse oil
