Page 2529 of 4210

INFINITI QX56 2010 Factory Service Manual INL-60 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) TRNK OPNR SWWhen back door opener switch is not pressed OFF When back door opener switch is pressed ON TURN SIGNAL L Turn signal switch OFF OFF Turn

Page 2530 of 4210

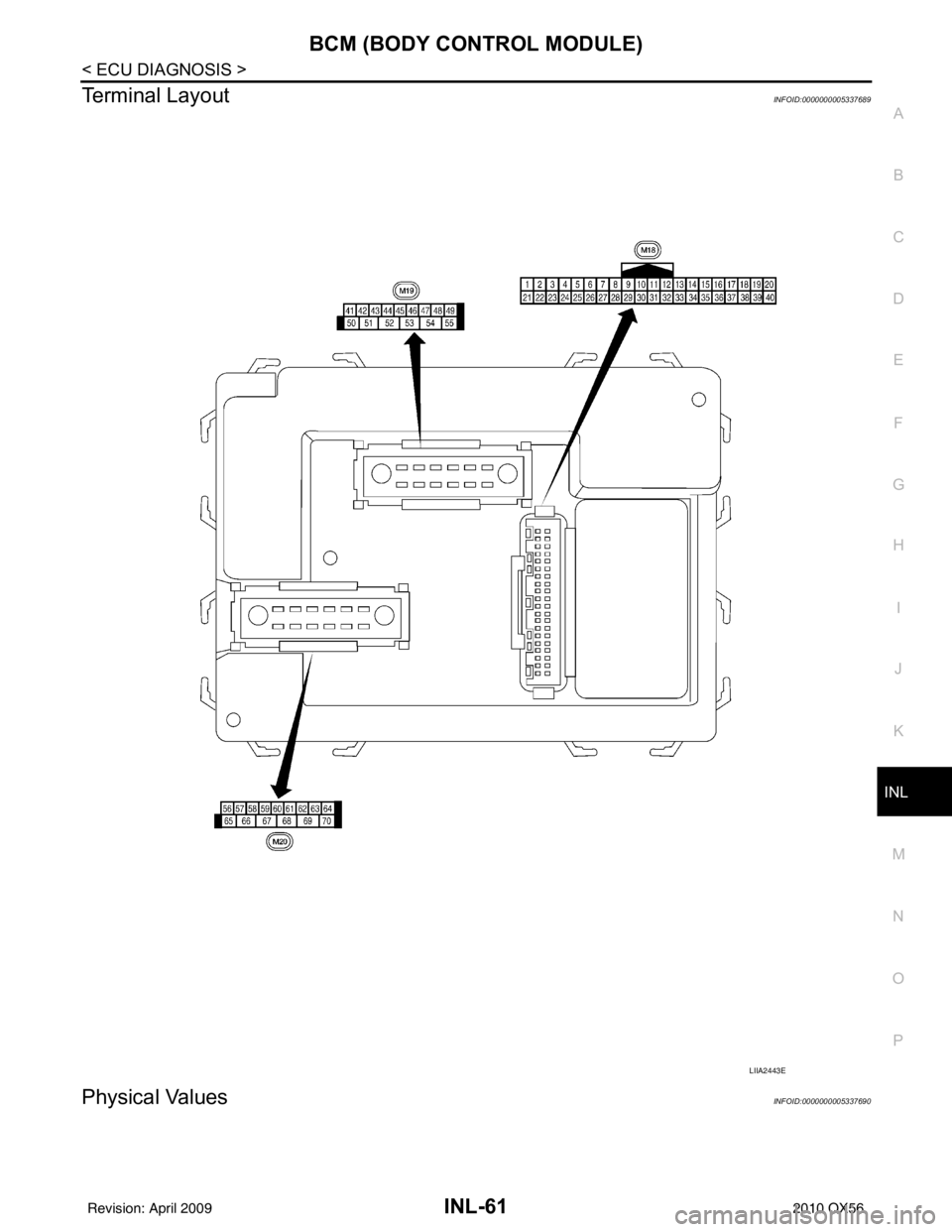

INFINITI QX56 2010 Factory Service Manual BCM (BODY CONTROL MODULE)INL-61 < ECU DIAGNOSIS > C DE F G H I J K M A B INL N O P Terminal LayoutINFOID:0000000005337689 Physical ValuesINFOID:0000000005337690 LIIA2443E Revision: April 20092010 QX56

Page 2531 of 4210

INFINITI QX56 2010 Factory Service Manual INL-62 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) Te r m i n a lWire color Signal name Signal input/ output Measuring condition Reference value or waveform (Approx.) Ignition switch Operation or c

Page 2532 of 4210

INFINITI QX56 2010 Factory Service Manual BCM (BODY CONTROL MODULE)INL-63 < ECU DIAGNOSIS > C DE F G H I J K M A B INL N O P 19 V/W Remote keyless entry receiver (power sup- ply) Output OFF Ignition switch OFF 20 G/W Remote keyless entry re

Page 2533 of 4210

INFINITI QX56 2010 Factory Service Manual INL-64 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 28 L/R Front blower monitor Input ONFront blower motor OFF Battery voltage Front blower motor ON 0V 29 W/B Hazard switch Input OFFON 0V OFF 5V 30 Y/B

Page 2534 of 4210

INFINITI QX56 2010 Factory Service Manual BCM (BODY CONTROL MODULE)INL-65 < ECU DIAGNOSIS > C DE F G H I J K M A B INL N O P 44 O Rear wiper auto stop switch 1 Input ONRise up position (rear wiper arm on stopper) 0V A Position (full clockwi

Page 2535 of 4210

INFINITI QX56 2010 Factory Service Manual INL-66 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 58 W/R Optical sensorInput ONWhen optical sensor is illumi- nated 3.1V or more When optical sensor is not illu- minated 0.6V or less 59 G Front door

Page 2536 of 4210

INFINITI QX56 2010 Factory Service Manual BCM (BODY CONTROL MODULE)INL-67 < ECU DIAGNOSIS > C DE F G H I J K M A B INL N O P Wiring DiagramINFOID:0000000005337697 ABMWA0374GB Revision: April 20092010 QX56
