Page 2625 of 2889

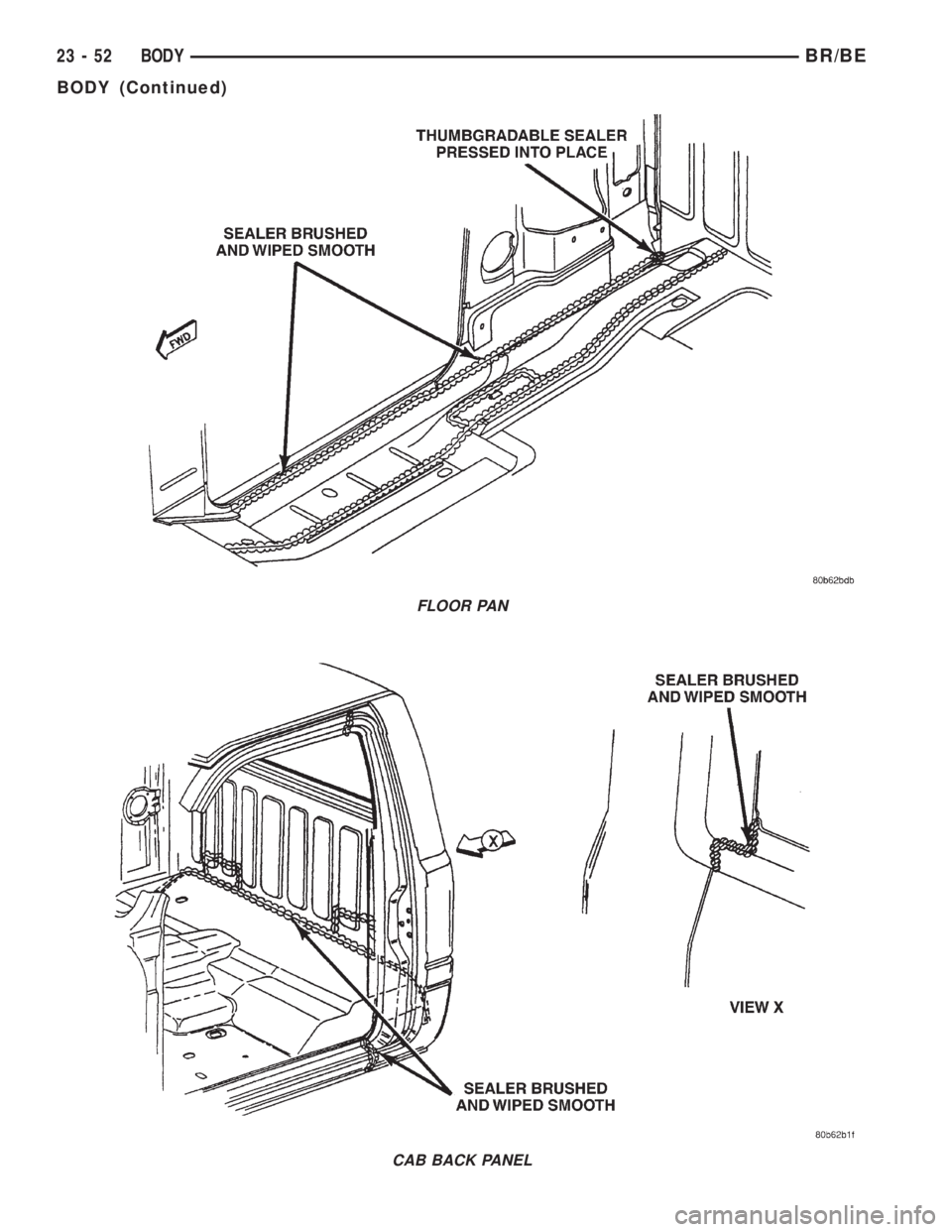

DODGE RAM 2001 Service Repair Manual FLOOR PAN CAB BACK PANEL 23 - 52 BODYBR/BE BODY (Continued)

Page 2626 of 2889

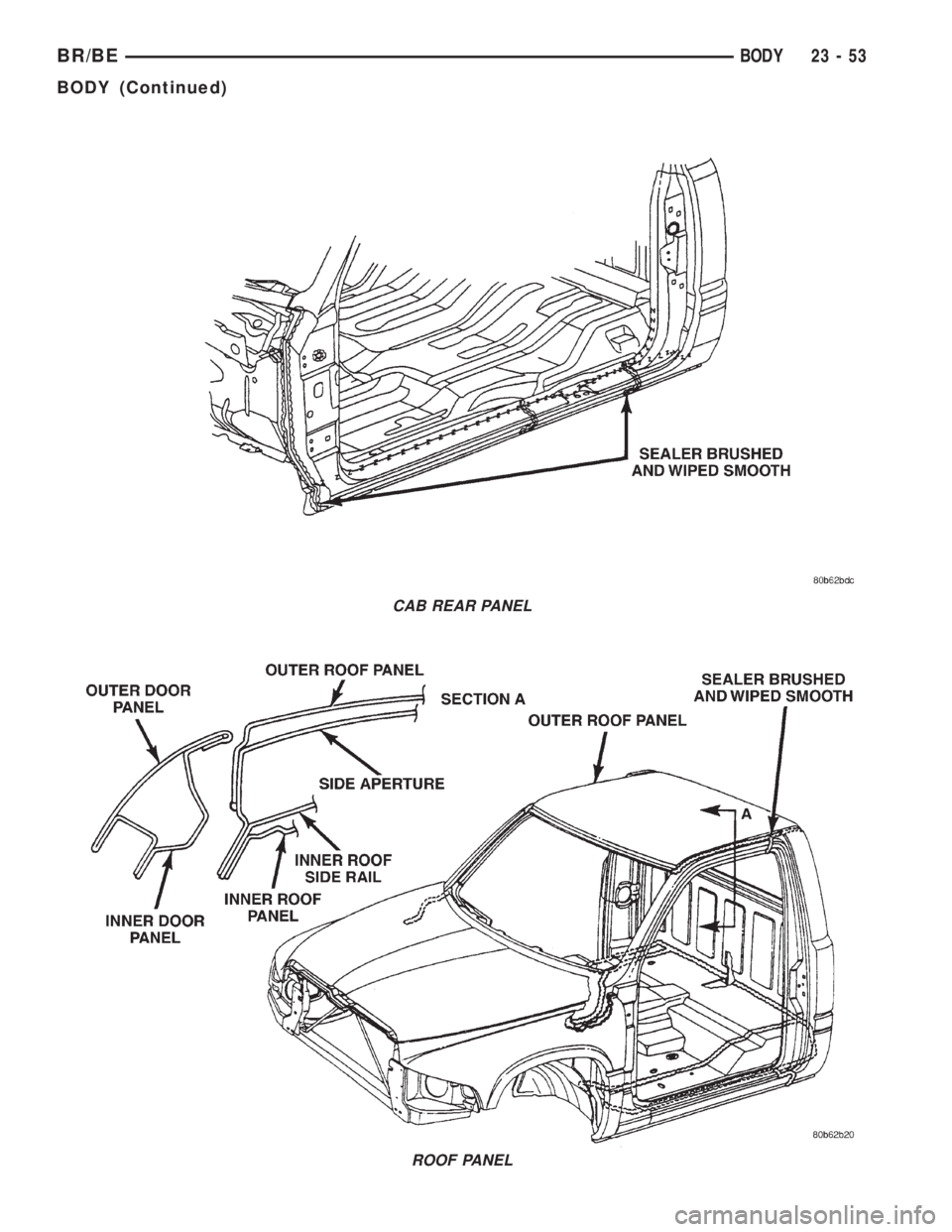

DODGE RAM 2001 Service Repair Manual CAB REAR PANEL ROOF PANEL BR/BEBODY 23 - 53 BODY (Continued)

Page 2627 of 2889

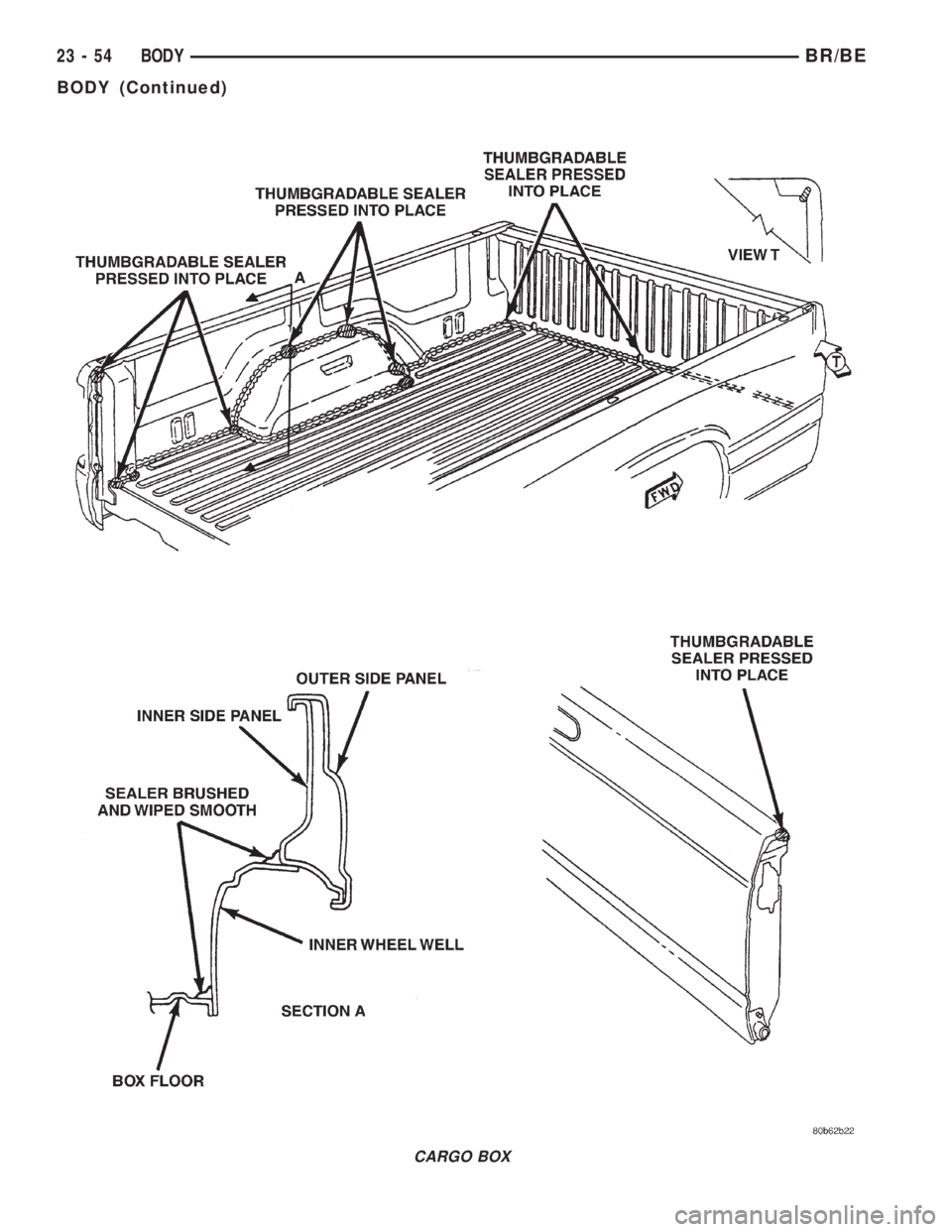

DODGE RAM 2001 Service Repair Manual CARGO BOX 23 - 54 BODYBR/BE BODY (Continued)

Page 2628 of 2889

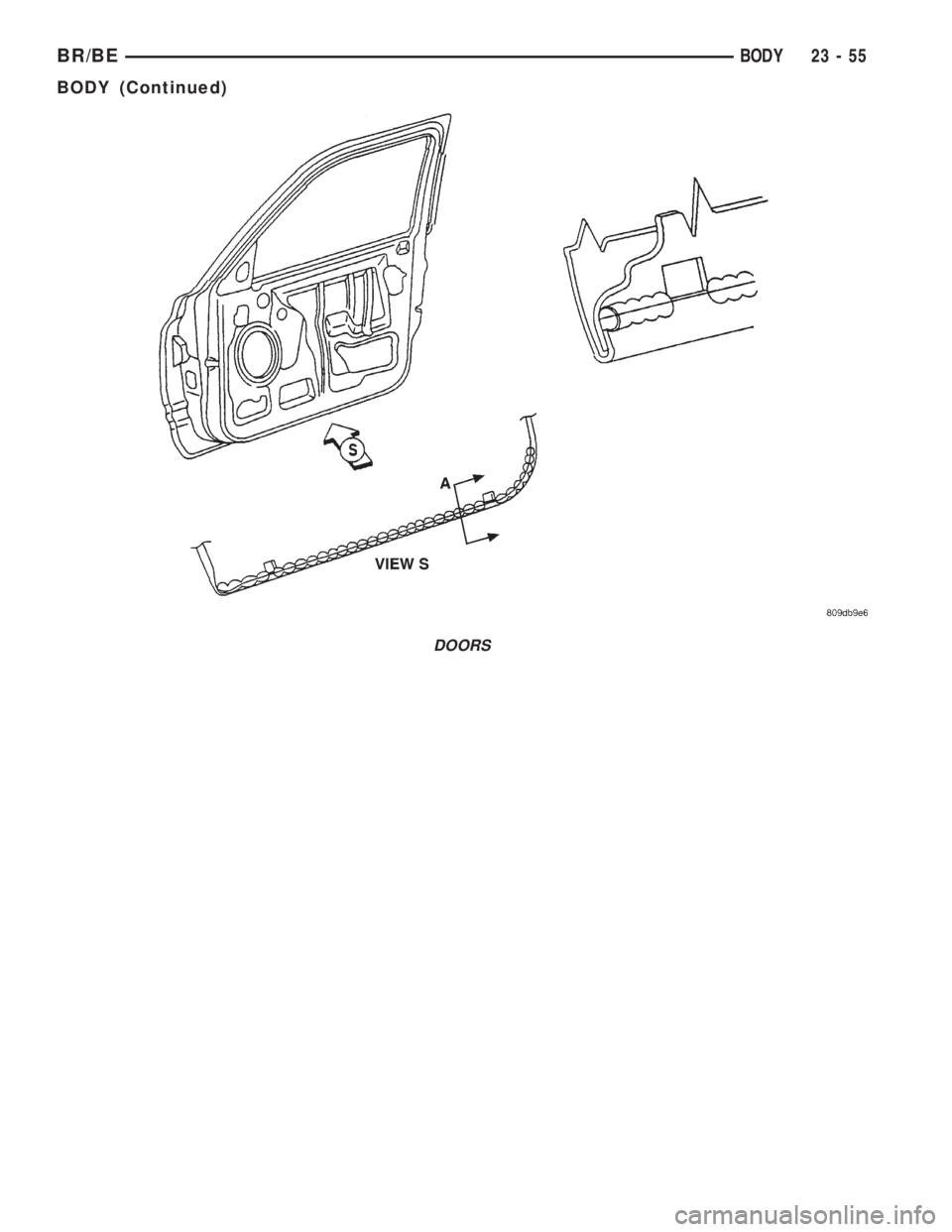

DODGE RAM 2001 Service Repair Manual DOORS BR/BEBODY 23 - 55 BODY (Continued)

Page 2629 of 2889

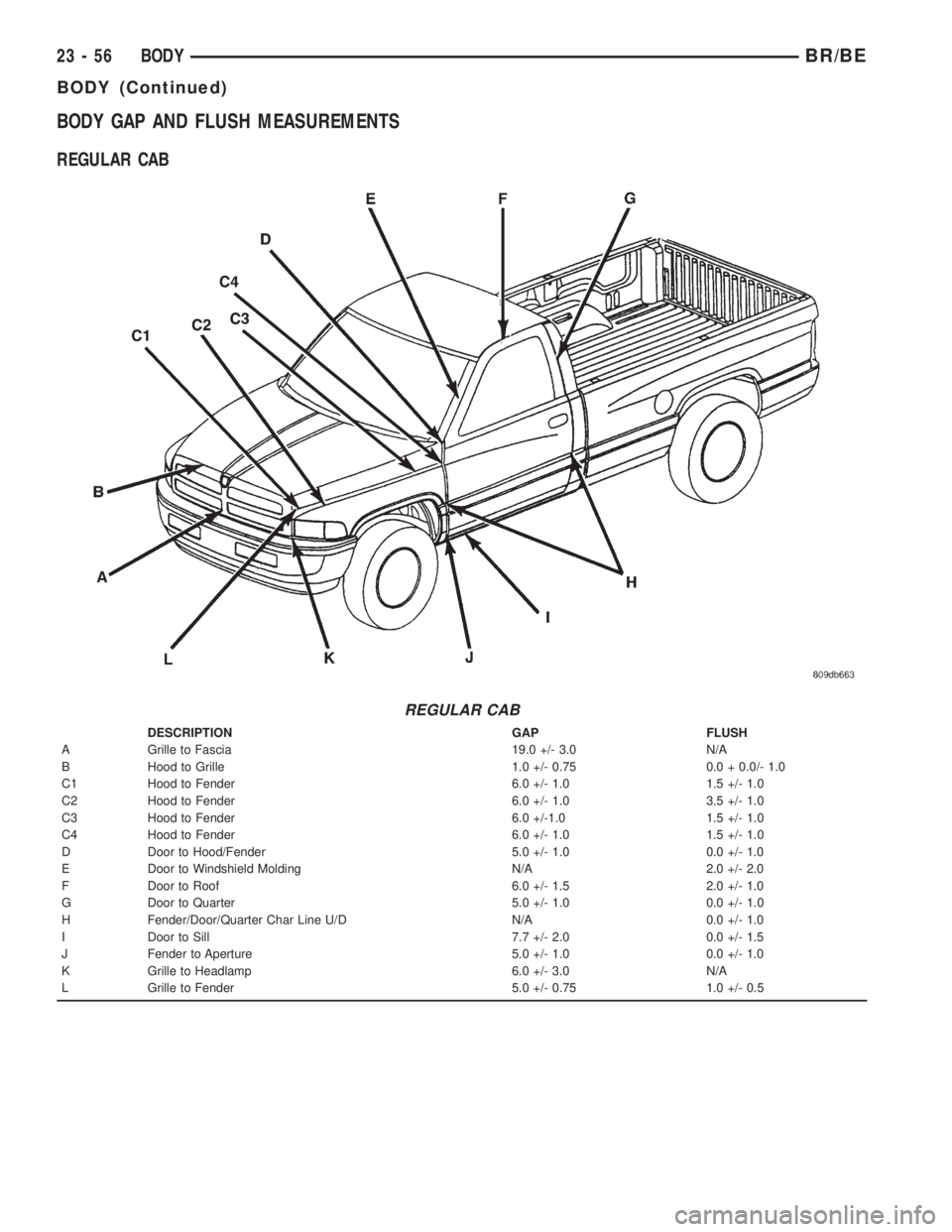

DODGE RAM 2001 Service Repair Manual BODY GAP AND FLUSH MEASUREMENTS REGULAR CAB REGULAR CAB DESCRIPTION GAP FLUSH A Grille to Fascia 19.0 +/- 3.0 N/A B Hood to Grille 1.0 +/- 0.75 0.0 + 0.0/- 1.0 C1 Hood to Fender 6.0 +/- 1.0 1.5 +/- 1.

Page 2630 of 2889

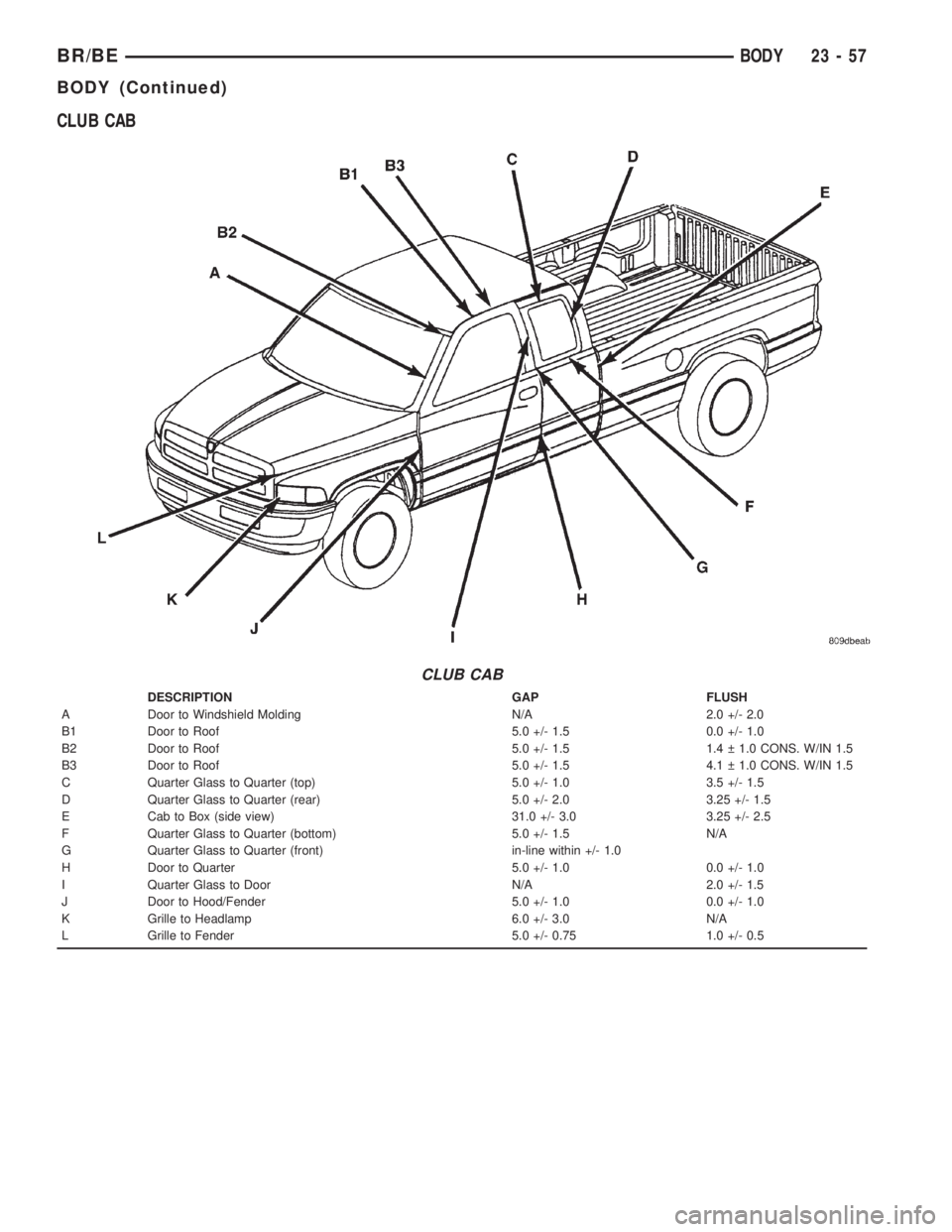

DODGE RAM 2001 Service Repair Manual CLUB CAB CLUB CAB DESCRIPTION GAP FLUSH A Door to Windshield Molding N/A 2.0 +/- 2.0 B1 Door to Roof 5.0 +/- 1.5 0.0 +/- 1.0 B2 Door to Roof 5.0 +/- 1.5 1.4   1.0 CONS. W/IN 1.5 B3 Door to Roof 5.0 +

Page 2631 of 2889

DODGE RAM 2001 Service Repair Manual QUAD CAB QUAD CAB DESCRIPTION GAP FLUSH A Door to Windshield Molding N/A 2.0 +/- 2.0 B Front Door to Roof 5.0 +/- 1.5 0.0 +/- 1.0 C Rear Door to Roof 5.0 +/- 1.0 0.0 +/- 1.0 D Rear Door Glass to Rear

Page 2632 of 2889

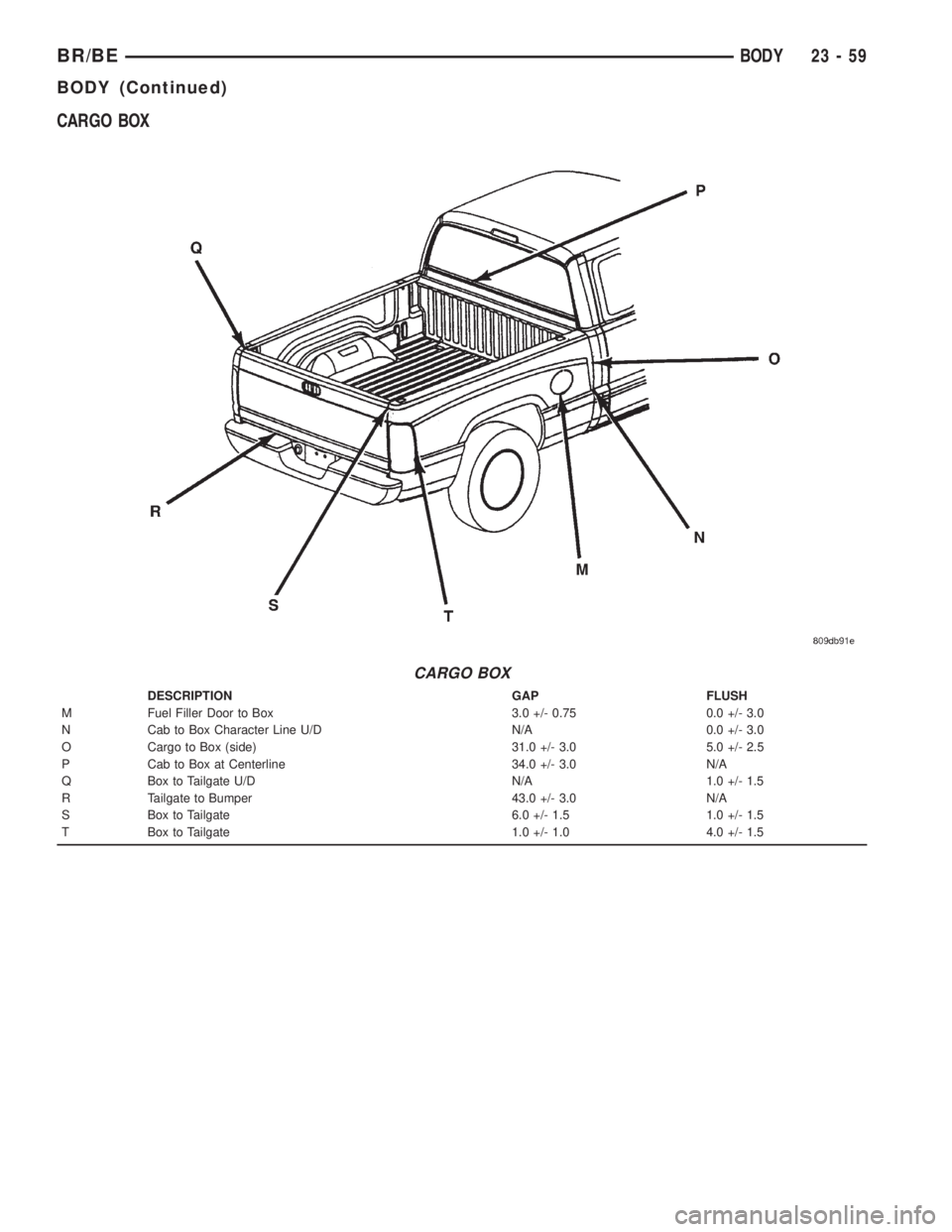

DODGE RAM 2001 Service Repair Manual CARGO BOX CARGO BOX DESCRIPTION GAP FLUSH M Fuel Filler Door to Box 3.0 +/- 0.75 0.0 +/- 3.0 N Cab to Box Character Line U/D N/A 0.0 +/- 3.0 O Cargo to Box (side) 31.0 +/- 3.0 5.0 +/- 2.5 P Cab to Box
