2001 DODGE RAM Service Repair Manual

Page 2657 of 2889

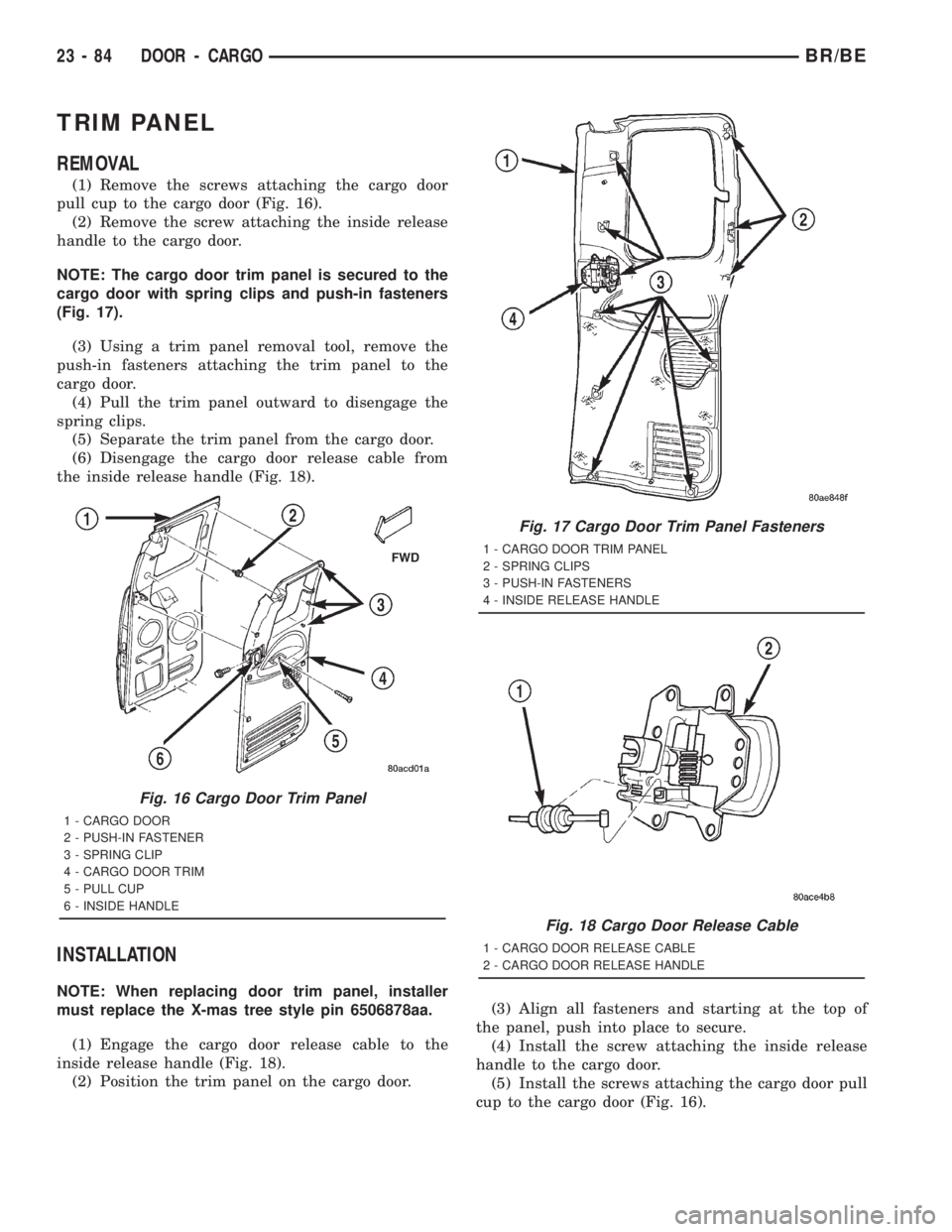

DODGE RAM 2001  Service Repair Manual TRIM PANEL
REMOVAL
(1) Remove the screws attaching the cargo door
pull cup to the cargo door (Fig. 16).
(2) Remove the screw attaching the inside release
handle to the cargo door.
NOTE: The cargo door

Page 2658 of 2889

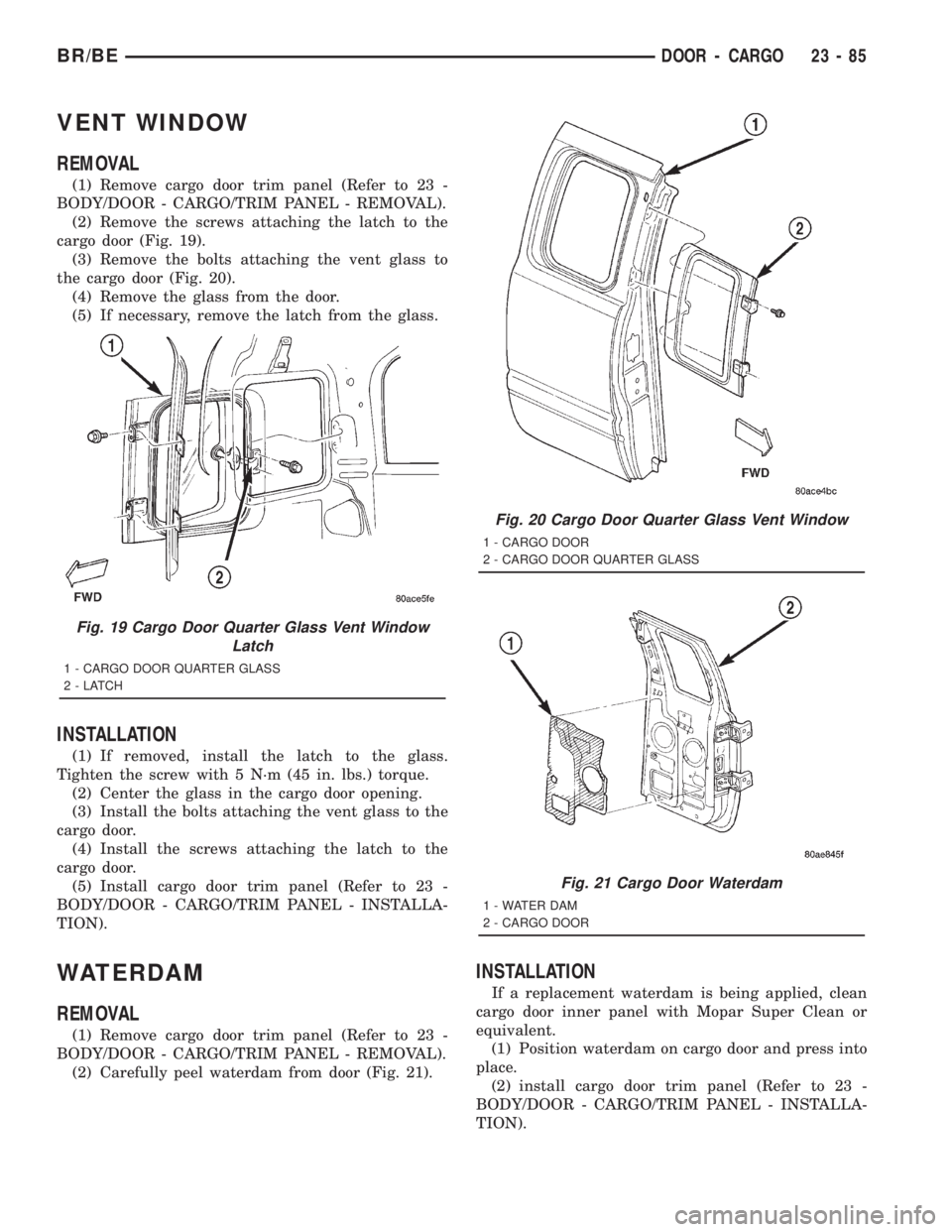

DODGE RAM 2001  Service Repair Manual VENT WINDOW
REMOVAL
(1) Remove cargo door trim panel (Refer to 23 -
BODY/DOOR - CARGO/TRIM PANEL - REMOVAL).
(2) Remove the screws attaching the latch to the
cargo door (Fig. 19).
(3) Remove the bolts

Page 2659 of 2889

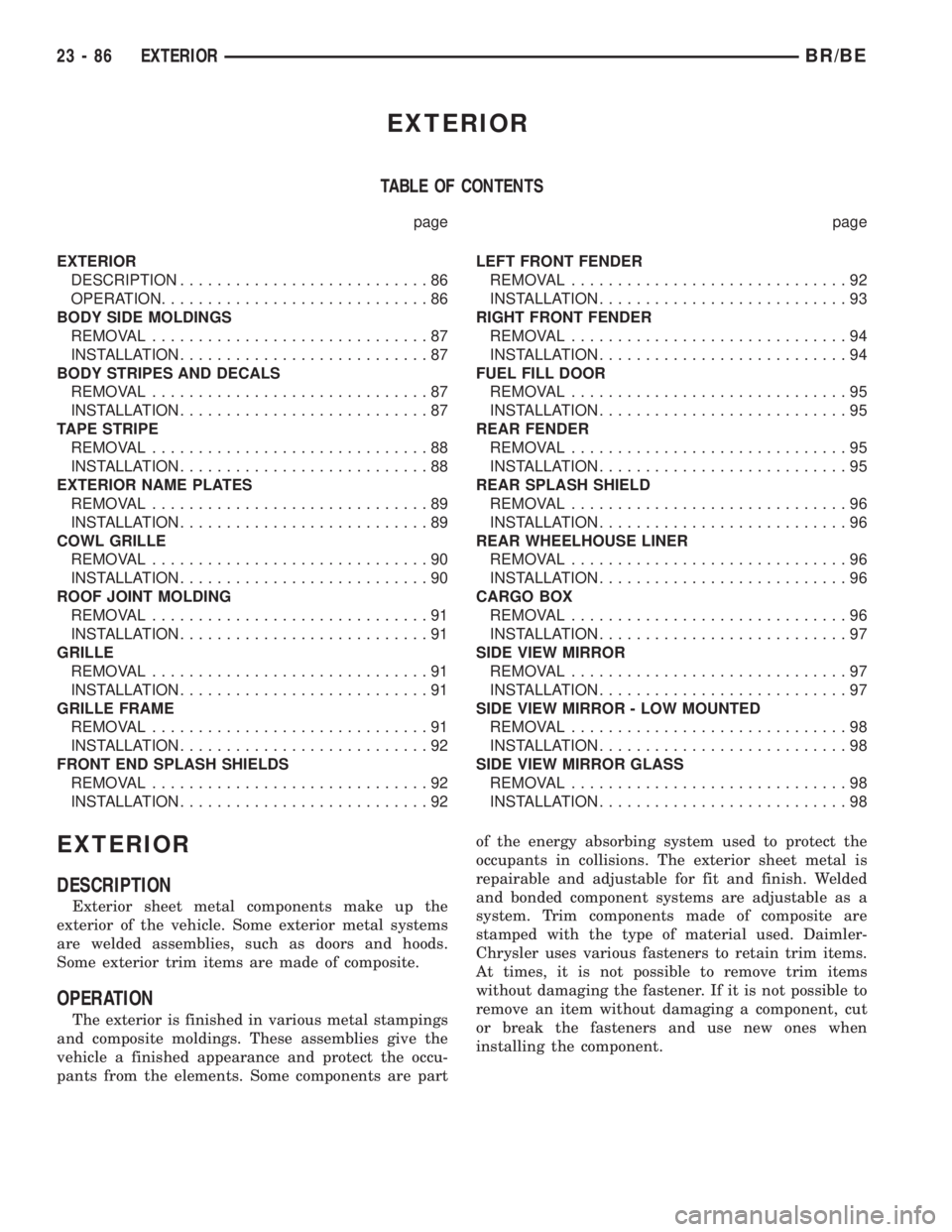

DODGE RAM 2001  Service Repair Manual EXTERIOR
TABLE OF CONTENTS
page page
EXTERIOR
DESCRIPTION...........................86
OPERATION.............................86
BODY SIDE MOLDINGS
REMOVAL..............................87
INSTALLATION.

Page 2660 of 2889

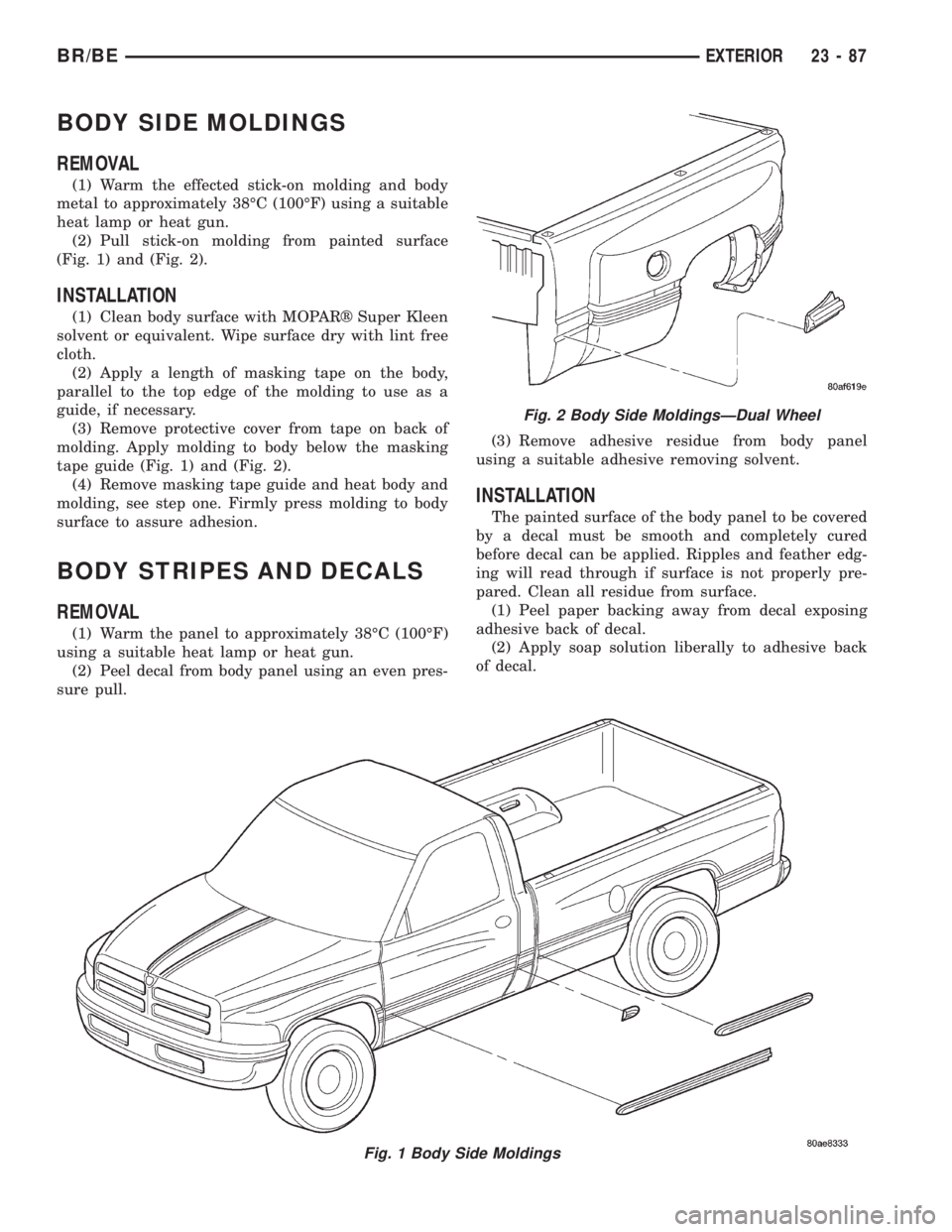

DODGE RAM 2001  Service Repair Manual BODY SIDE MOLDINGS
REMOVAL
(1) Warm the effected stick-on molding and body
metal to approximately 38ÉC (100ÉF) using a suitable
heat lamp or heat gun.
(2) Pull stick-on molding from painted surface

Page 2661 of 2889

DODGE RAM 2001  Service Repair Manual (3) Apply soap solution liberally to body panel sur-
face.
(4) Place decal into position on body panel (Fig. 3)
. Smooth out wrinkles by pulling lightly on edges of
decal until it lays flat on painted

Page 2662 of 2889

DODGE RAM 2001  Service Repair Manual (1) Spread replacement tape stripe overlay across
a smooth flat work surface, finish side down.
(2) Peel paper backing away from overlay exposing
adhesive back of overlay.
(3) Apply soap solution libe

Page 2663 of 2889

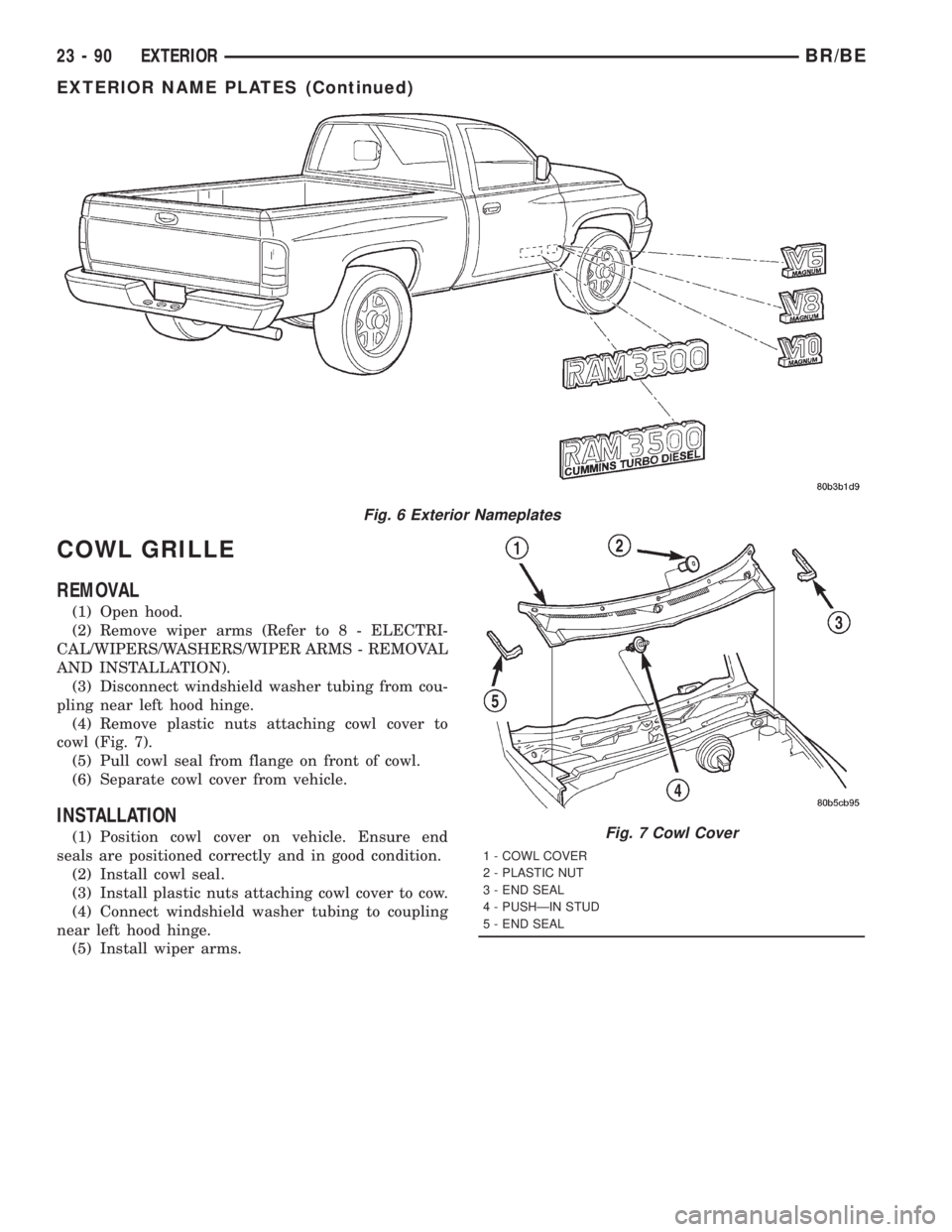

DODGE RAM 2001  Service Repair Manual COWL GRILLE
REMOVAL
(1) Open hood.
(2) Remove wiper arms (Refer to 8 - ELECTRI-
CAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL
AND INSTALLATION).
(3) Disconnect windshield washer tubing from cou-
pling near

Page 2664 of 2889

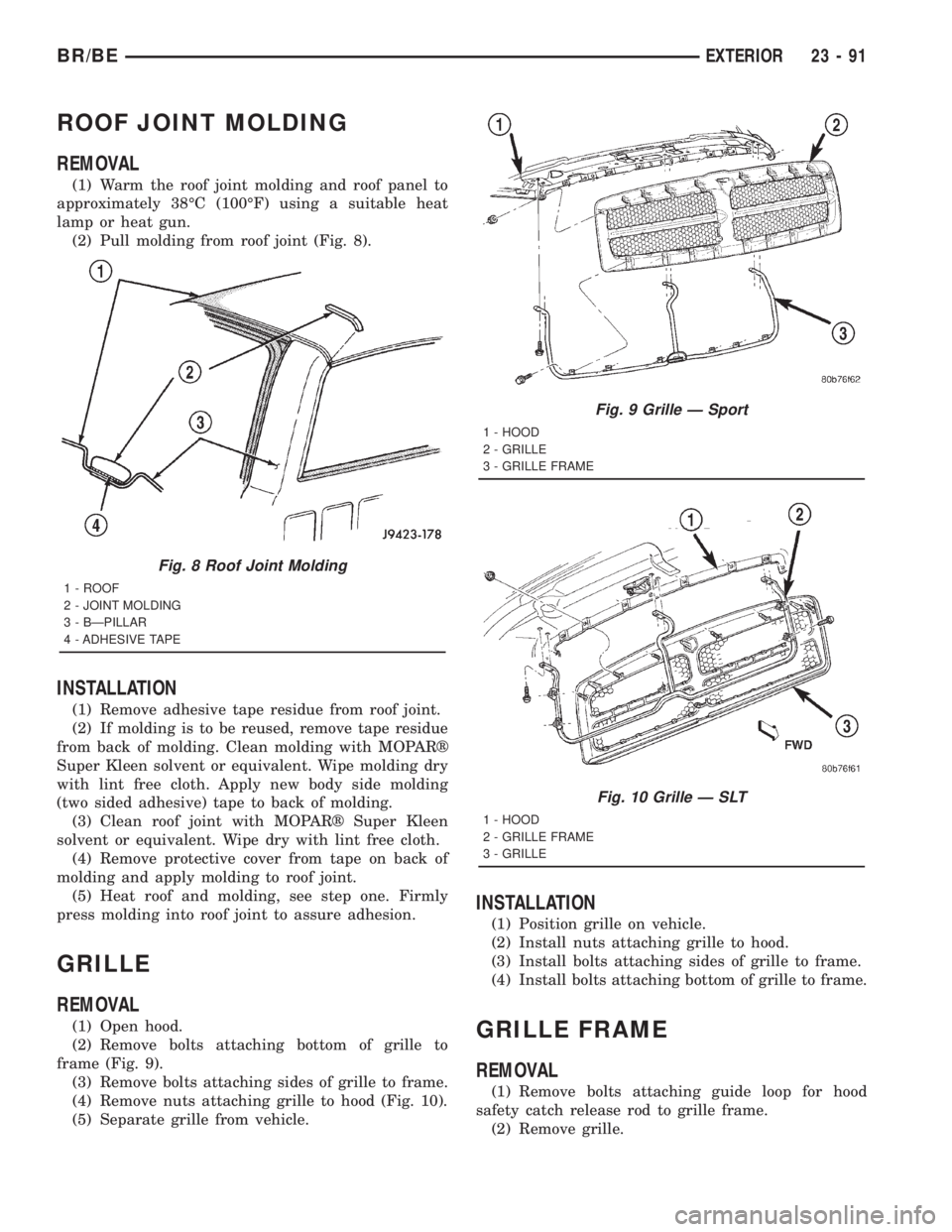

DODGE RAM 2001  Service Repair Manual ROOF JOINT MOLDING
REMOVAL
(1) Warm the roof joint molding and roof panel to
approximately 38ÉC (100ÉF) using a suitable heat
lamp or heat gun.
(2) Pull molding from roof joint (Fig. 8).
INSTALLATIO
