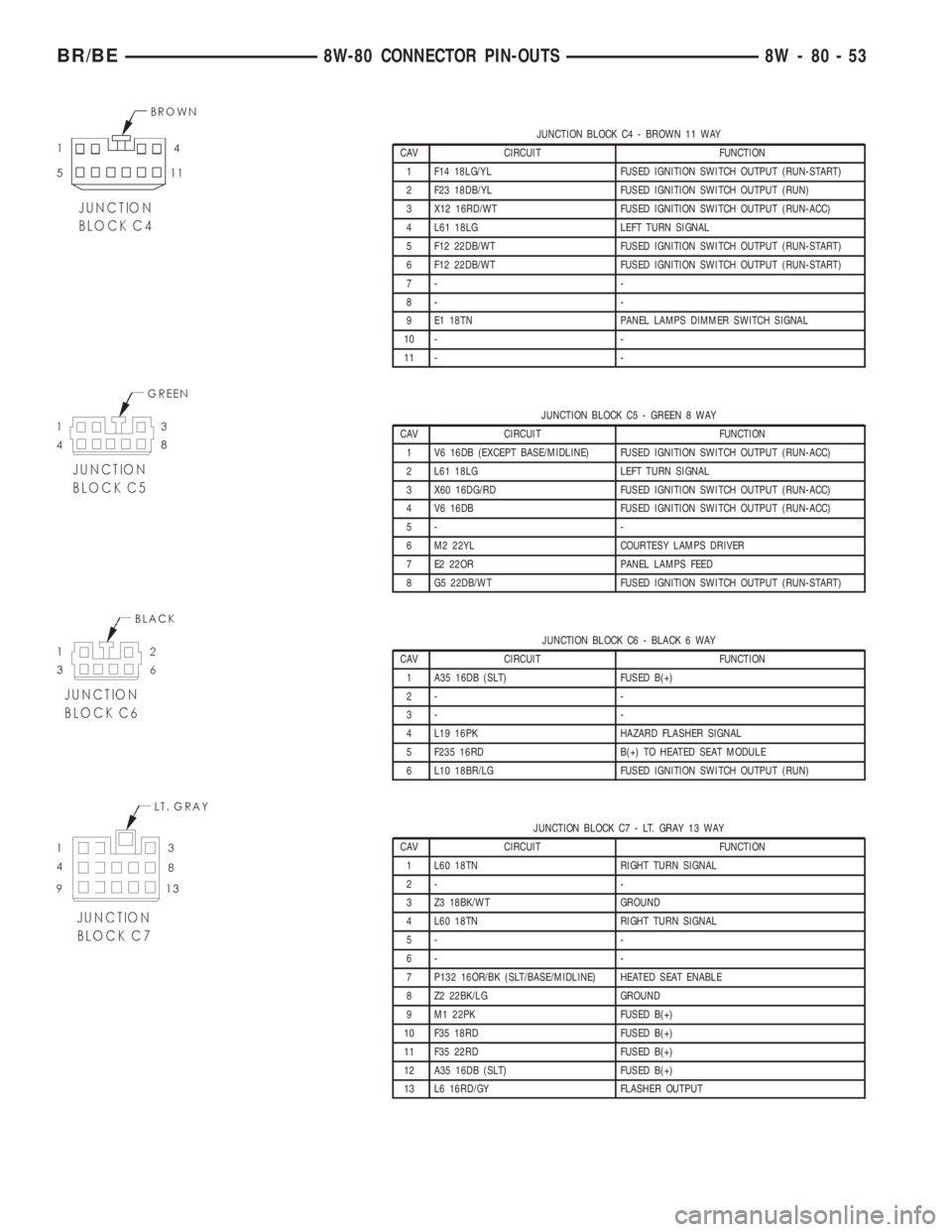

Page 1065 of 2889

DODGE RAM 2001 Service Repair Manual JUNCTION BLOCK C1 - BLUE 15 WAY CAV CIRCUIT FUNCTION 1- - 2 G31 20VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL 3 A20 20RD/DB FUSED IGNITION SWITCH OUTPUT (RUN) 4 L61 18LG LEFT TURN SIGNAL 5 V6 16DB FUSED I

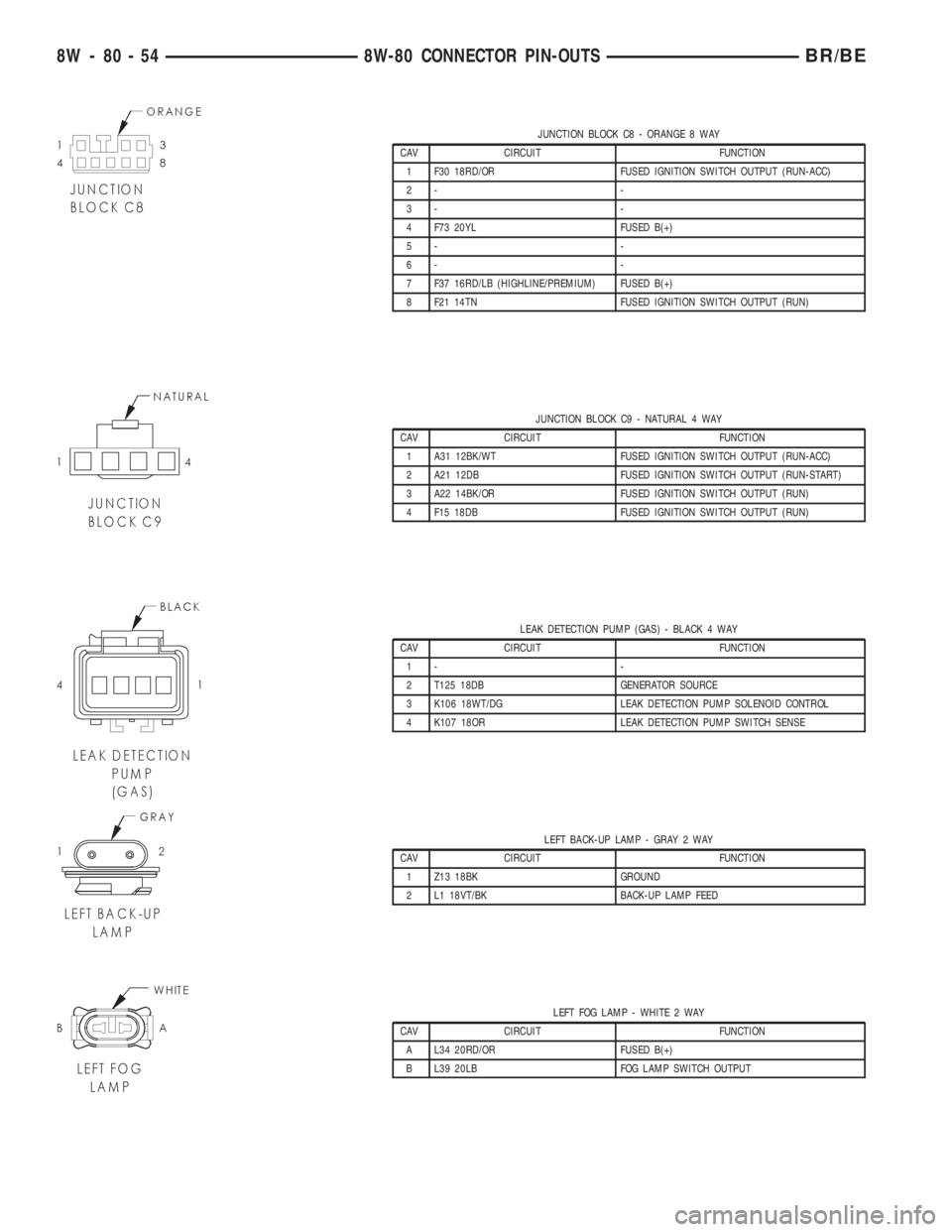

Page 1066 of 2889

DODGE RAM 2001 Service Repair Manual JUNCTION BLOCK C4 - BROWN 11 WAY CAV CIRCUIT FUNCTION 1 F14 18LG/YL FUSED IGNITION SWITCH OUTPUT (RUN-START) 2 F23 18DB/YL FUSED IGNITION SWITCH OUTPUT (RUN) 3 X12 16RD/WT FUSED IGNITION SWITCH OUTPUT

Page 1067 of 2889

DODGE RAM 2001 Service Repair Manual JUNCTION BLOCK C8 - ORANGE 8 WAY CAV CIRCUIT FUNCTION 1 F30 18RD/OR FUSED IGNITION SWITCH OUTPUT (RUN-ACC) 2- - 3- - 4 F73 20YL FUSED B(+) 5- - 6- - 7 F37 16RD/LB (HIGHLINE/PREMIUM) FUSED B(+) 8 F21 1

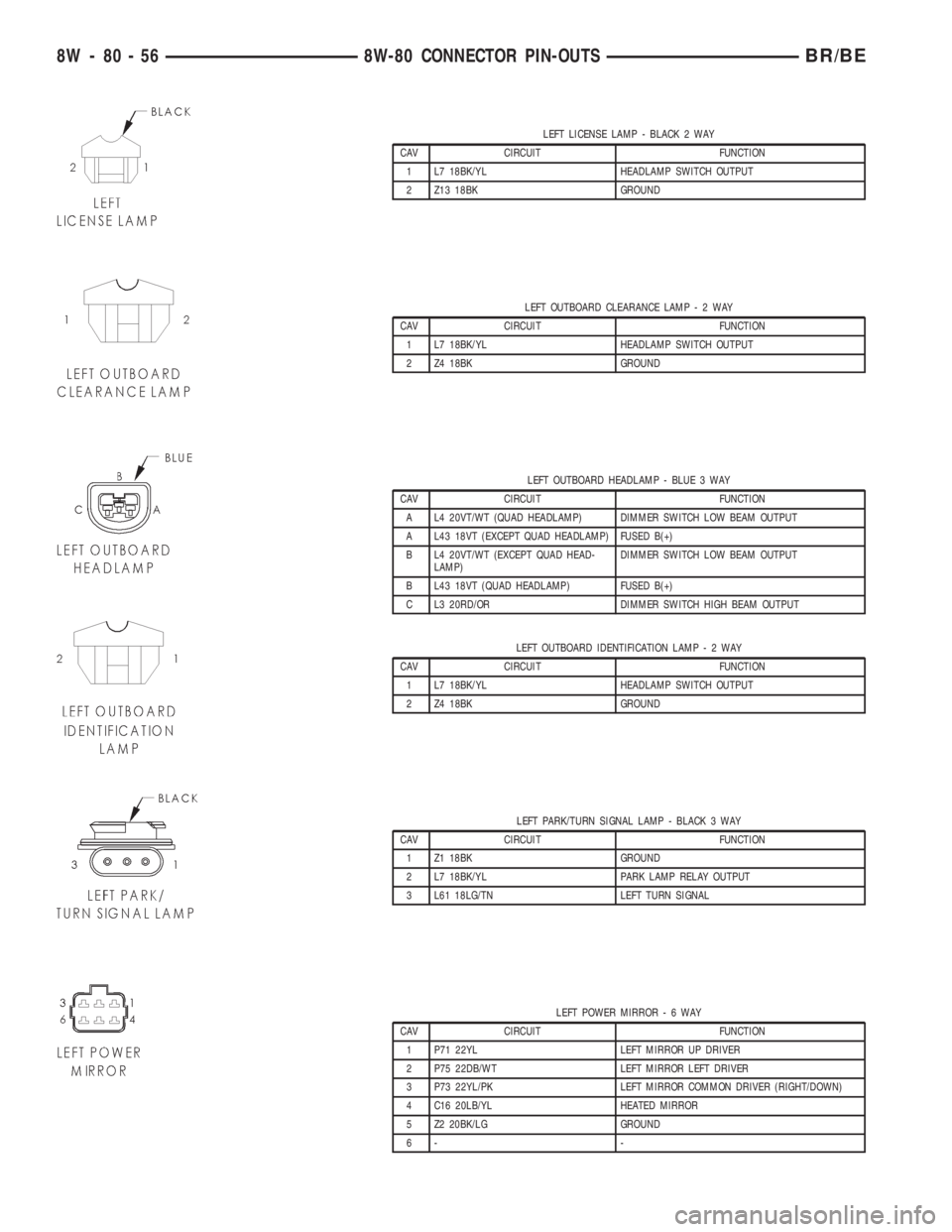

Page 1068 of 2889

DODGE RAM 2001 Service Repair Manual LEFT FRONT DOOR SPEAKER (PREMIUM) - 10 WAY CAV CIRCUIT FUNCTION 1 X83 20YL/RD AMPLIFIED HIGH LEFT FRONT SPEAKER (+) 2 X81 20YL/BK AMPLIFIED HIGH LEFT FRONT SPEAKER (-) 3 X53 18DG LEFT FRONT SPEAKER (+

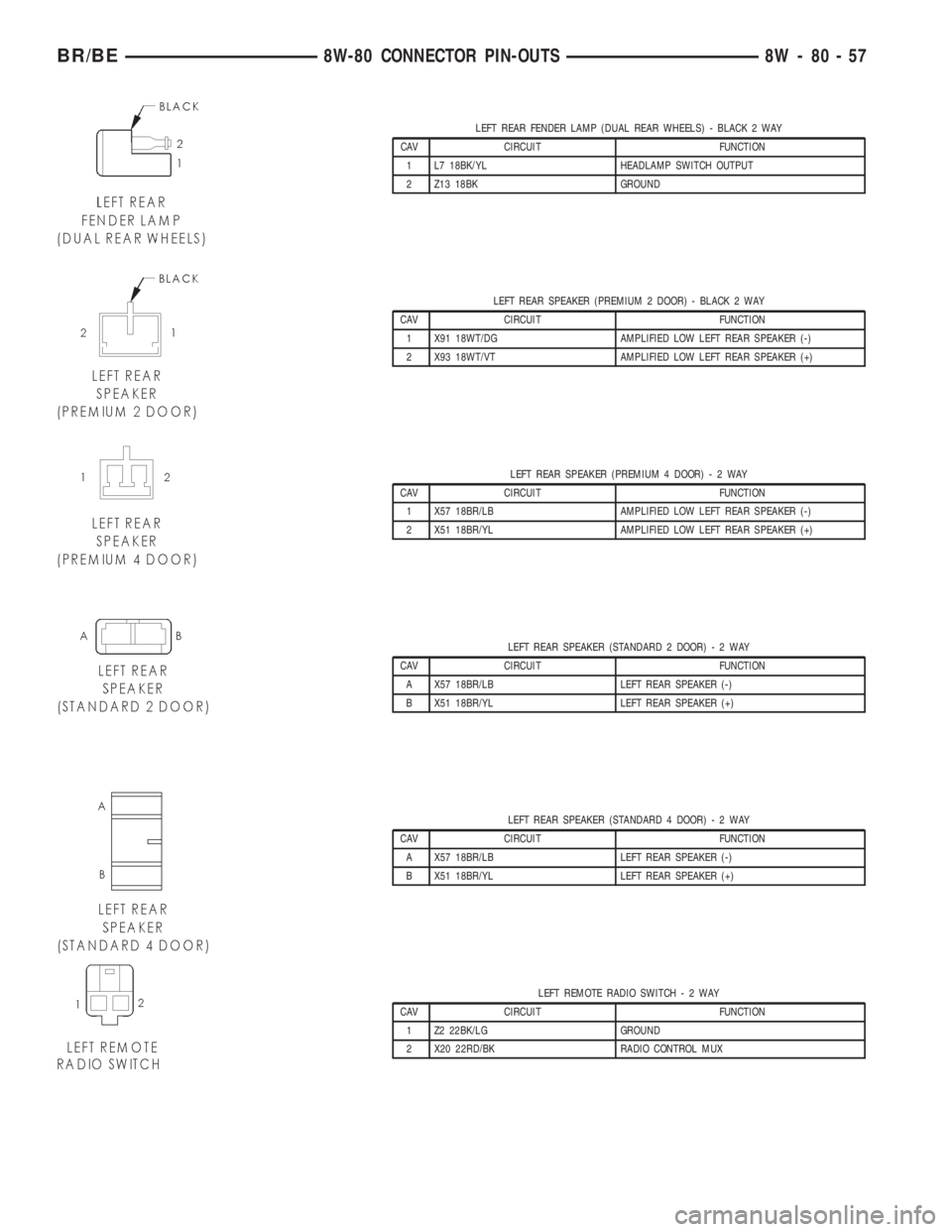

Page 1069 of 2889

DODGE RAM 2001 Service Repair Manual LEFT LICENSE LAMP - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 L7 18BK/YL HEADLAMP SWITCH OUTPUT 2 Z13 18BK GROUND LEFT OUTBOARD CLEARANCE LAMP-2WAY CAV CIRCUIT FUNCTION 1 L7 18BK/YL HEADLAMP SWITCH OUTPUT 2

Page 1070 of 2889

DODGE RAM 2001 Service Repair Manual LEFT REAR FENDER LAMP (DUAL REAR WHEELS) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 L7 18BK/YL HEADLAMP SWITCH OUTPUT 2 Z13 18BK GROUND LEFT REAR SPEAKER (PREMIUM 2 DOOR) - BLACK 2 WAY CAV CIRCUIT FUNCTION

Page 1071 of 2889

DODGE RAM 2001 Service Repair Manual LEFT SPEED CONTROL SWITCH-2WAY CAV CIRCUIT FUNCTION 1 K4 22WT SENSOR GROUND 1 K4 22WT SENSOR GROUND 2 V37 22DG/RD SPEED CONTROL SWITCH SIGNAL 2 V37 22DG/RD SPEED CONTROL SWITCH SIGNAL LEFT TAIL/STOP/T

Page 1072 of 2889

DODGE RAM 2001 Service Repair Manual MANIFOLD ABSOLUTE PRESSURE SENSOR (8.0L)-3WAY CAV CIRCUIT FUNCTION 1 K6 20VT/WT 5V SUPPLY 2 K4 20BK/LB SENSOR GROUND 3 K1 18DG/RD MAP SENSOR SIGNAL MANIFOLD AIR PRESSURE SENSOR (DIESEL)-3WAY CAV CIRCU
