Page 2105 of 2889

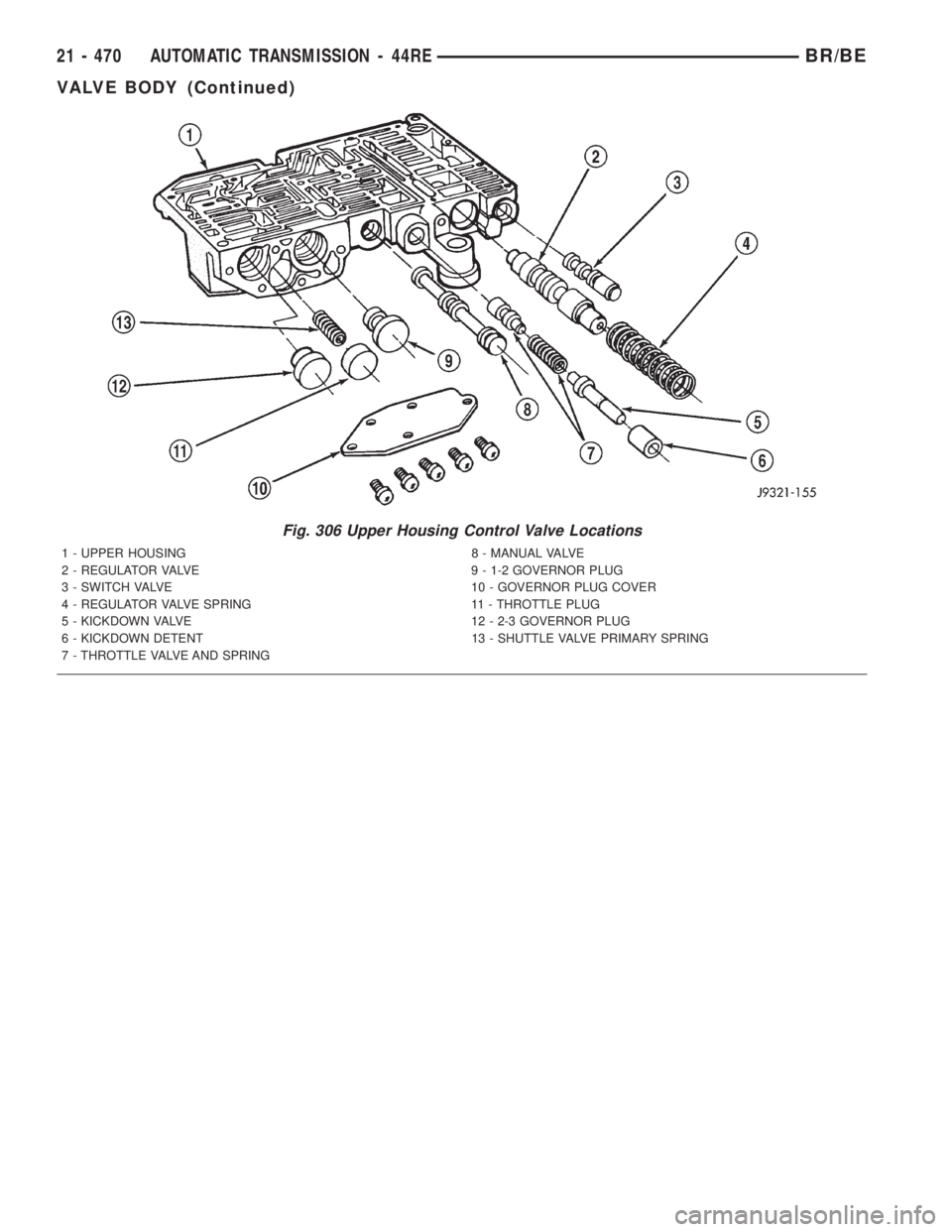

DODGE RAM 2001 Service Repair Manual Fig. 306 Upper Housing Control Valve Locations
1 - UPPER HOUSING 8 - MANUAL VALVE
2 - REGULATOR VALVE 9 - 1-2 GOVERNOR PLUG
3 - SWITCH VALVE 10 - GOVERNOR PLUG COVER
4 - REGULATOR VALVE SPRING 11 - TH

Page 2106 of 2889

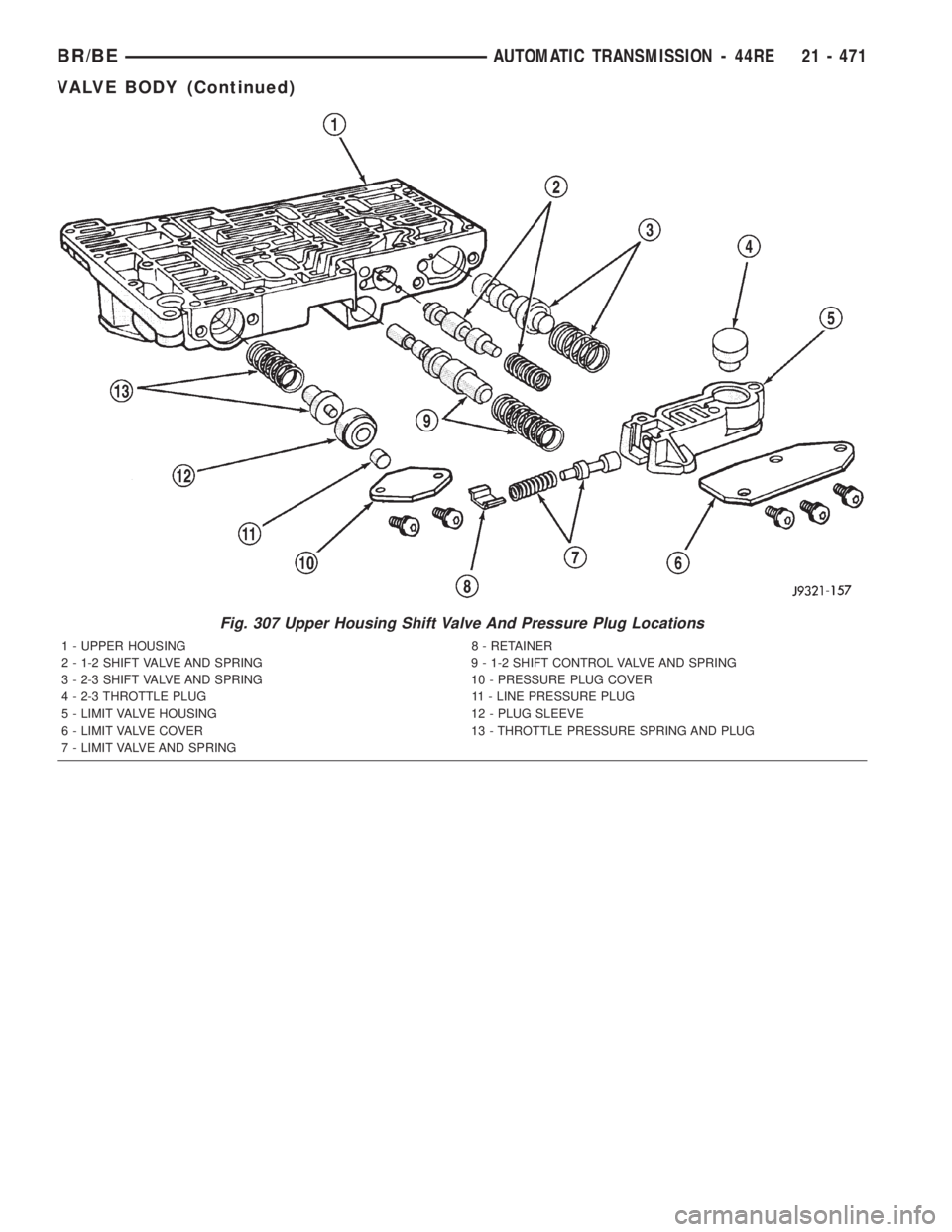

DODGE RAM 2001 Service Repair Manual Fig. 307 Upper Housing Shift Valve And Pressure Plug Locations
1 - UPPER HOUSING 8 - RETAINER
2 - 1-2 SHIFT VALVE AND SPRING 9 - 1-2 SHIFT CONTROL VALVE AND SPRING
3 - 2-3 SHIFT VALVE AND SPRING 10 -

Page 2107 of 2889

DODGE RAM 2001 Service Repair Manual BOOST VALVE TUBE AND BRACE
(1) Position valve body assembly so lower housing
is facing upward (Fig. 308).
(2) Lubricate tube ends and housing ports with
transmission fluid or petroleum jelly.
(3) Star

Page 2108 of 2889

DODGE RAM 2001 Service Repair Manual VALVE BODY FINAL
(1) Install boost valve, valve spring, retainer and
cover plate. Tighten cover plate screws to 4 N´m (35
in. lbs.) torque.
(2) Insert manual lever detent spring in upper
housing.(3)

VALVE BODY FINAL
(1) Install boost valve, valve spring, retainer and
cover plate. Tighten cover plate screws to 4 N´m (35
in. lbs.) torque.
(2) Insert manual lever detent spring in upper
housing.(3) Position detent ball on end of spring. Then hold
detent ball and spring in detent housing with
Retainer Tool 6583 (Fig. 313).
(4) Install throttle lever in upper housing. Then
install manual lever over throttle lever and start
manual lever into housing.
(5) Align manual lever with detent ball and man-
ual valve. Hold throttle lever upward. Then press
down on manual lever until fully seated. Remove
detent ball retainer tool after lever is seated.
(6) Then install manual lever seal, washer and
E-clip.
(7) Verify that throttle lever is aligned with end of
kickdown valve stem and that manual lever arm is
engaged in manual valve (Fig. 314).
(8) Position line pressure adjusting screw in
adjusting screw bracket.
(9) Install spring on end of line pressure regulator
valve.
(10) Install switch valve spring on tang at end of
adjusting screw bracket.
(11) Install manual valve.
(12) Install throttle valve and spring.
(13) Install kickdown valve and detent.
(14) Install pressure regulator valve.
(15) Install switch valve.
(16) Position adjusting screw bracket on valve
body. Align valve springs and press bracket into
place. Install short, upper bracket screws first and
long bottom screw last. Verify that valve springs and
bracket are properly aligned. Then tighten all three
bracket screws to 4 N´m (35 in. lbs.) torque.
(17) Perform Line Pressure and Throttle Pressure
adjustments. (Refer to 21 - TRANSMISSION/TRAN-
SAXLE/AUTOMATIC/VALVE BODY - ADJUST-
MENTS)
(18) Lubricate solenoid case connector O-rings and
shaft of manual lever with light coat of petroleum
jelly.
(19) Attach solenoid case connector to 3-4 accumu-
lator with shoulder-type screw. Connector has small
locating tang that fits in dimple at top of accumula-
tor housing (Fig. 315). Seat tang in dimple before
tightening connector screw.
(20) Install solenoid assembly and gasket. Tighten
solenoid attaching screws to 8 N´m (72 in. lbs.)
torque.
(21) Verify that solenoid wire harness is properly
routed (Fig. 316). Solenoid harness must be clear of
manual lever and park rod and not be pinched
between accumulator housing and cover.

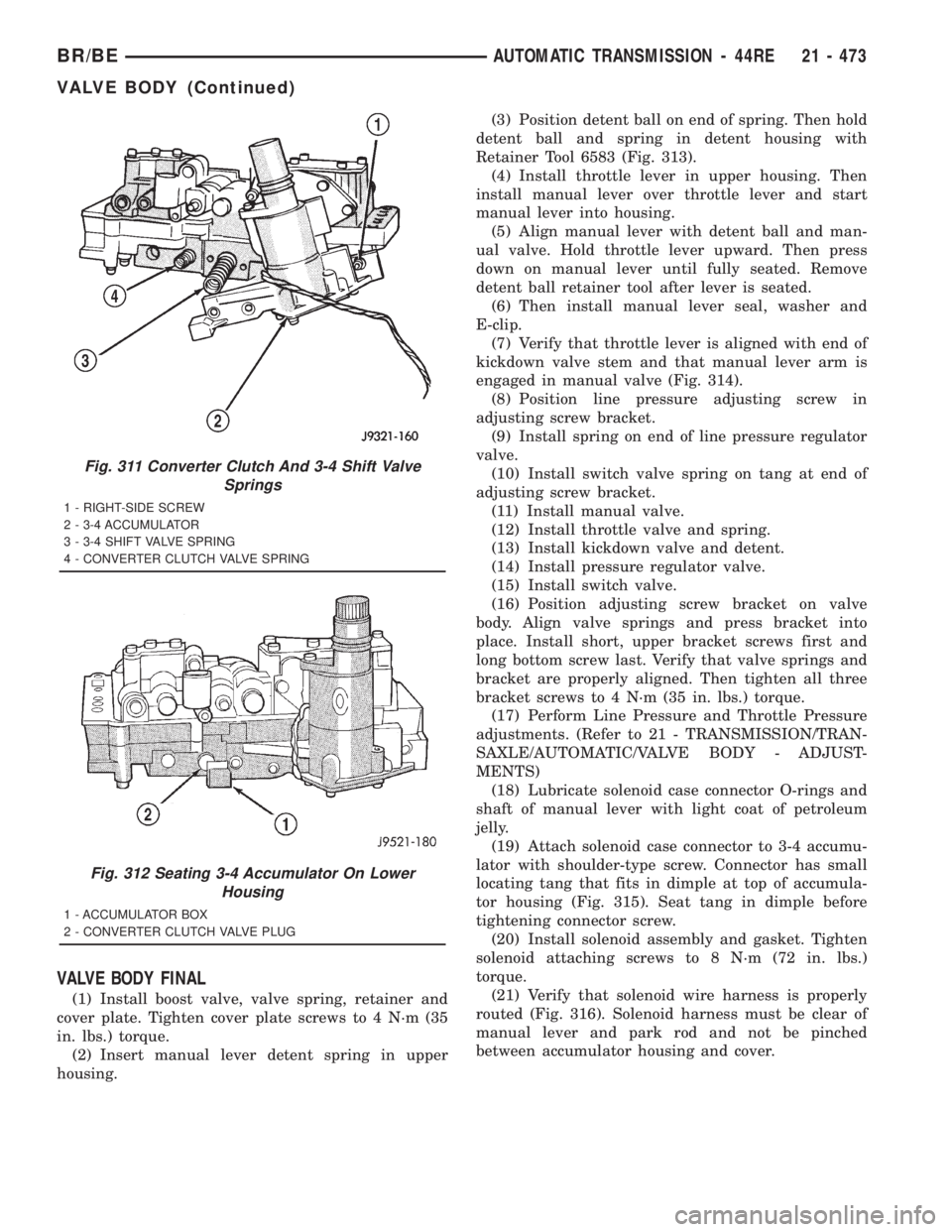

Fig. 311 Converter Clutch And 3-4 Shift Valve
Springs
1 - RIGHT-SIDE SCREW
2 - 3-4 ACCUMULATOR
3 - 3-4 SHIFT VALVE SPRING
4 - CONVERTER CLUTCH VALVE SPRING
Fig. 312 Seating 3-4 Accumulator On Lower
Housing
1 - ACCUMULATOR BOX
2 - CONVERTER CLUTCH VALVE PLUG
BR/BEAUTOMATIC TRANSMISSION - 44RE 21 - 473
VALVE BODY (Continued)

Page 2109 of 2889

DODGE RAM 2001 Service Repair Manual GOVERNOR BODY, SENSOR AND SOLENOID
(1) Turn valve body assembly over so accumulator
side of transfer plate is facing down.
(2) Install new O-rings on governor pressure sole-
noid and sensor.
(3) Lubri

Page 2110 of 2889

DODGE RAM 2001 Service Repair Manual INSTALLATION
(1) Check condition of O-ring seals on valve body
harness connector (Fig. 317). Replace seals on con-
nector body if cut or worn.
(2) Check condition of manual lever shaft seal in
transmi

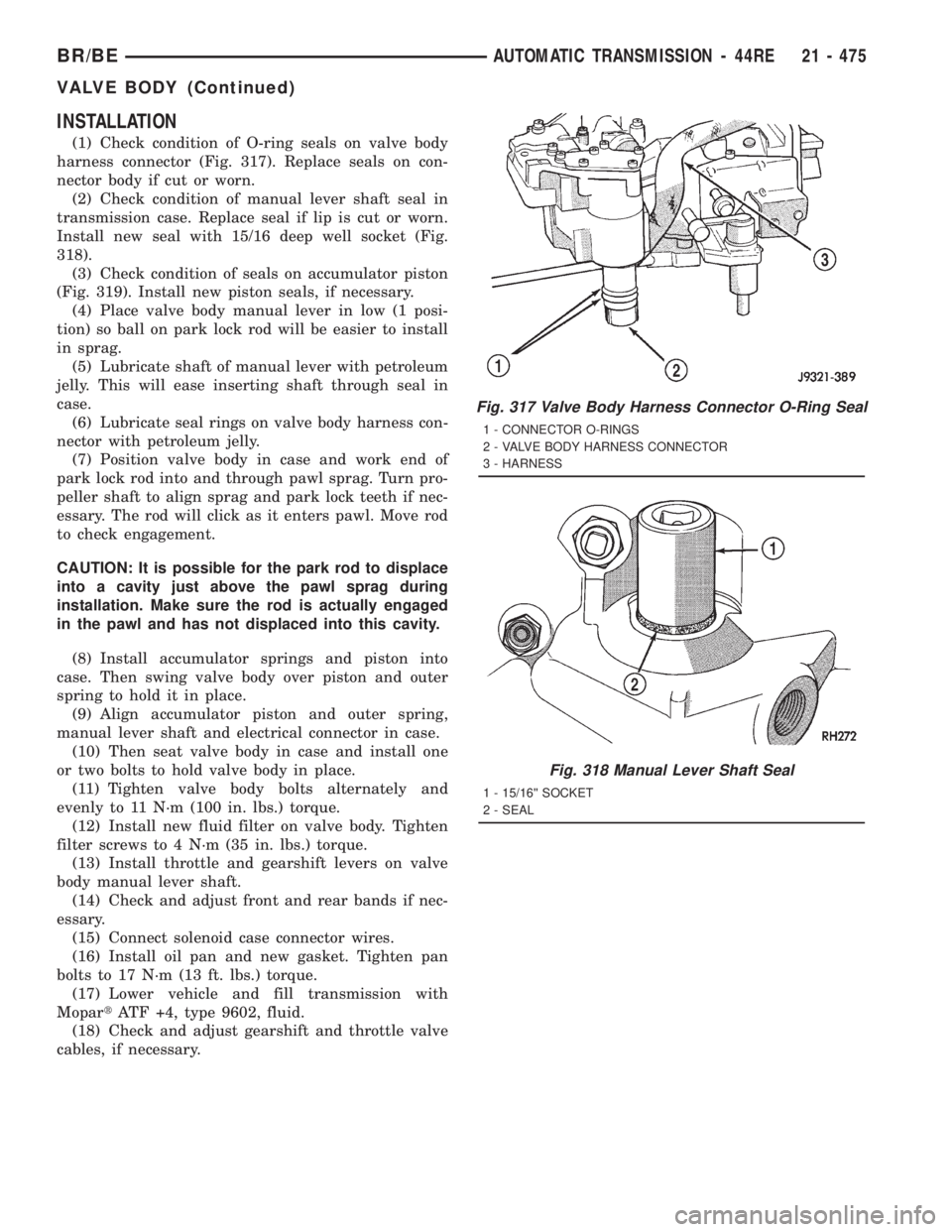

INSTALLATION
(1) Check condition of O-ring seals on valve body
harness connector (Fig. 317). Replace seals on con-
nector body if cut or worn.
(2) Check condition of manual lever shaft seal in
transmission case. Replace seal if lip is cut or worn.
Install new seal with 15/16 deep well socket (Fig.
318).
(3) Check condition of seals on accumulator piston
(Fig. 319). Install new piston seals, if necessary.
(4) Place valve body manual lever in low (1 posi-
tion) so ball on park lock rod will be easier to install
in sprag.
(5) Lubricate shaft of manual lever with petroleum
jelly. This will ease inserting shaft through seal in
case.
(6) Lubricate seal rings on valve body harness con-
nector with petroleum jelly.
(7) Position valve body in case and work end of
park lock rod into and through pawl sprag. Turn pro-
peller shaft to align sprag and park lock teeth if nec-
essary. The rod will click as it enters pawl. Move rod
to check engagement.
CAUTION: It is possible for the park rod to displace
into a cavity just above the pawl sprag during
installation. Make sure the rod is actually engaged
in the pawl and has not displaced into this cavity.
(8) Install accumulator springs and piston into
case. Then swing valve body over piston and outer
spring to hold it in place.
(9) Align accumulator piston and outer spring,
manual lever shaft and electrical connector in case.
(10) Then seat valve body in case and install one
or two bolts to hold valve body in place.
(11) Tighten valve body bolts alternately and
evenly to 11 N´m (100 in. lbs.) torque.
(12) Install new fluid filter on valve body. Tighten
filter screws to 4 N´m (35 in. lbs.) torque.
(13) Install throttle and gearshift levers on valve
body manual lever shaft.
(14) Check and adjust front and rear bands if nec-
essary.
(15) Connect solenoid case connector wires.
(16) Install oil pan and new gasket. Tighten pan
bolts to 17 N´m (13 ft. lbs.) torque.
(17) Lower vehicle and fill transmission with
MopartATF +4, type 9602, fluid.
(18) Check and adjust gearshift and throttle valve
cables, if necessary.
Fig. 317 Valve Body Harness Connector O-Ring Seal
1 - CONNECTOR O-RINGS
2 - VALVE BODY HARNESS CONNECTOR
3 - HARNESS
Fig. 318 Manual Lever Shaft Seal
1 - 15/16©© SOCKET
2 - SEAL
BR/BEAUTOMATIC TRANSMISSION - 44RE 21 - 475
VALVE BODY (Continued)

Page 2111 of 2889

DODGE RAM 2001 Service Repair Manual ADJUSTMENTS - VALVE BODY
CONTROL PRESSURE ADJUSTMENTS
There are two control pressure adjustments on the
valve body;
²Line Pressure
²Throttle Pressure
Line and throttle pressures are interdependent
b

ADJUSTMENTS - VALVE BODY
CONTROL PRESSURE ADJUSTMENTS
There are two control pressure adjustments on the
valve body;
²Line Pressure
²Throttle Pressure
Line and throttle pressures are interdependent
because each affects shift quality and timing. As a
result, both adjustments must be performed properly
and in the correct sequence. Adjust line pressure first
and throttle pressure last.
LINE PRESSURE ADJUSTMENT
Measure distance from the valve body to the inner
edge of the adjusting screw with an accurate steel
scale (Fig. 320).
Distance should be 33.4 mm (1-5/16 in.).
If adjustment is required, turn the adjusting screw
in, or out, to obtain required distance setting.
NOTE: The 33.4 mm (1-5/16 in.) setting is an
approximate setting. Manufacturing tolerances may
make it necessary to vary from this dimension to
obtain desired pressure.
One complete turn of the adjusting screw changes
line pressure approximately 1-2/3 psi (9 kPa).
Turning the adjusting screw counterclockwise
increases pressure while turning the screw clockwise
decreases pressure.
THROTTLE PRESSURE ADJUSTMENT
Insert Gauge Tool C-3763 between the throttle
lever cam and the kickdown valve stem (Fig. 321).
Push the gauge tool inward to compress the kick-
down valve against the spring and bottom the throt-
tle valve.Maintain pressure against kickdown valve spring.
Turn throttle lever stop screw until the screw head
touches throttle lever tang and the throttle lever cam
touches gauge tool.
NOTE: The kickdown valve spring must be fully
compressed and the kickdown valve completely
bottomed to obtain correct adjustment.
Fig. 319 Accumulator Piston Components
1 - INNER SPRING
2 - ACCUMULATOR PISTON
3 - OUTER SPRING
4 - SEAL RINGS
Fig. 320 Line Pressure Adjustment
1 - WRENCH
2 - 1±5/16 INCH
Fig. 321 Throttle Pressure Adjustment
1 - HEX WRENCH (IN THROTTLE LEVER ADJUSTING SCREW)
2 - SPECIAL TOOL C-3763 (POSITIONED BETWEEN THROTTLE
LEVER AND KICKDOWN VALVE)
21 - 476 AUTOMATIC TRANSMISSION - 44REBR/BE
VALVE BODY (Continued)

Page 2112 of 2889

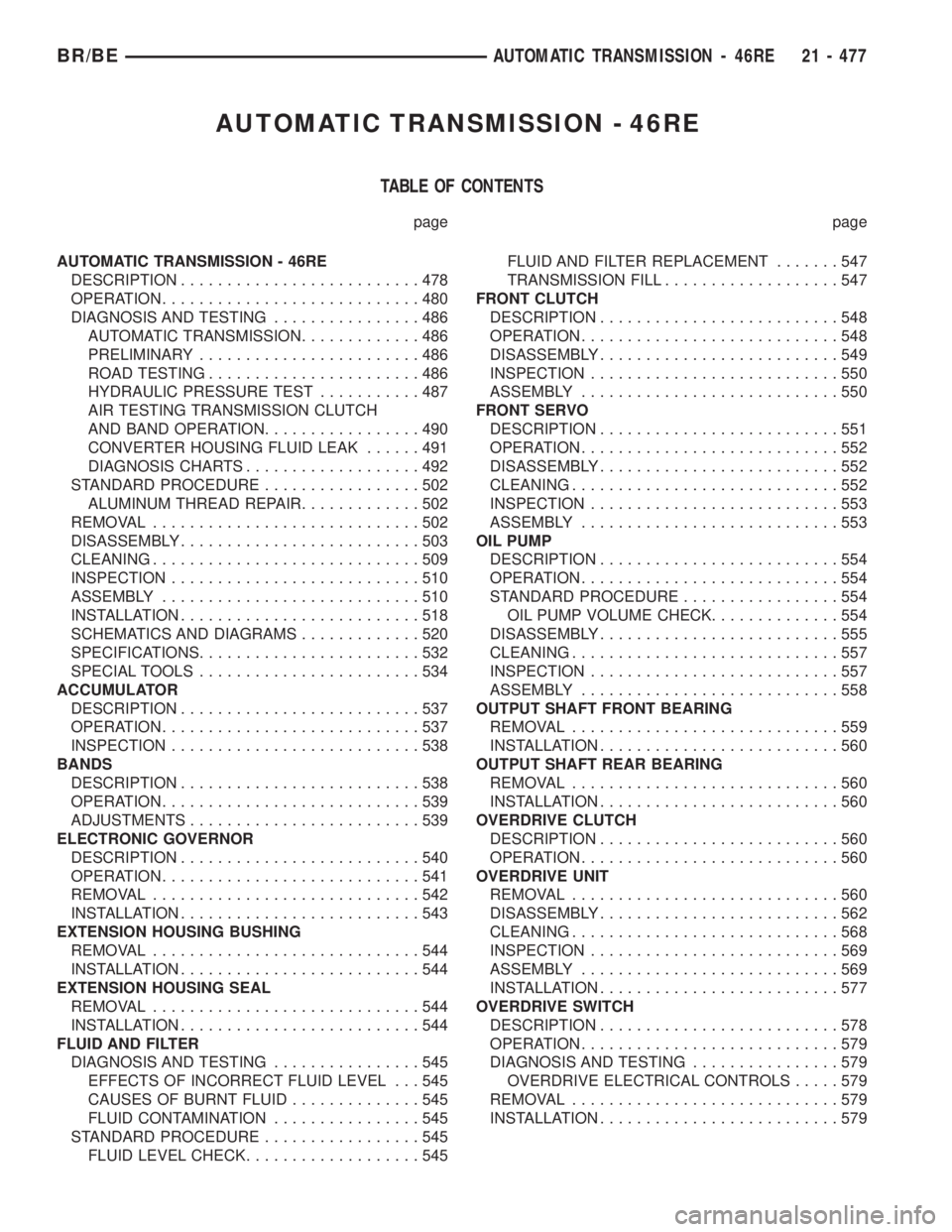

DODGE RAM 2001 Service Repair Manual AUTOMATIC TRANSMISSION - 46RE
TABLE OF CONTENTS
page page
AUTOMATIC TRANSMISSION - 46RE
DESCRIPTION..........................478
OPERATION............................480
DIAGNOSIS AND TESTING.........

AUTOMATIC TRANSMISSION - 46RE
TABLE OF CONTENTS
page page
AUTOMATIC TRANSMISSION - 46RE
DESCRIPTION..........................478
OPERATION............................480
DIAGNOSIS AND TESTING................486
AUTOMATIC TRANSMISSION.............486
PRELIMINARY........................486
ROAD TESTING.......................486
HYDRAULIC PRESSURE TEST...........487
AIR TESTING TRANSMISSION CLUTCH
AND BAND OPERATION.................490
CONVERTER HOUSING FLUID LEAK......491
DIAGNOSIS CHARTS...................492
STANDARD PROCEDURE.................502
ALUMINUM THREAD REPAIR.............502
REMOVAL.............................502
DISASSEMBLY..........................503
CLEANING.............................509
INSPECTION...........................510
ASSEMBLY............................510
INSTALLATION..........................518
SCHEMATICS AND DIAGRAMS.............520
SPECIFICATIONS........................532
SPECIAL TOOLS........................534
ACCUMULATOR
DESCRIPTION..........................537
OPERATION............................537
INSPECTION...........................538
BANDS
DESCRIPTION..........................538
OPERATION............................539
ADJUSTMENTS.........................539
ELECTRONIC GOVERNOR
DESCRIPTION..........................540
OPERATION............................541
REMOVAL.............................542
INSTALLATION..........................543
EXTENSION HOUSING BUSHING
REMOVAL.............................544
INSTALLATION..........................544
EXTENSION HOUSING SEAL
REMOVAL.............................544
INSTALLATION..........................544
FLUID AND FILTER
DIAGNOSIS AND TESTING................545
EFFECTS OF INCORRECT FLUID LEVEL . . . 545
CAUSES OF BURNT FLUID..............545
FLUID CONTAMINATION................545
STANDARD PROCEDURE.................545
FLUID LEVEL CHECK...................545FLUID AND FILTER REPLACEMENT.......547
TRANSMISSION FILL...................547
FRONT CLUTCH
DESCRIPTION..........................548
OPERATION............................548
DISASSEMBLY..........................549
INSPECTION...........................550
ASSEMBLY............................550
FRONT SERVO
DESCRIPTION..........................551
OPERATION............................552
DISASSEMBLY..........................552
CLEANING.............................552
INSPECTION...........................553
ASSEMBLY............................553
OIL PUMP
DESCRIPTION..........................554
OPERATION............................554
STANDARD PROCEDURE.................554
OIL PUMP VOLUME CHECK..............554
DISASSEMBLY..........................555
CLEANING.............................557
INSPECTION...........................557
ASSEMBLY............................558
OUTPUT SHAFT FRONT BEARING
REMOVAL.............................559
INSTALLATION..........................560
OUTPUT SHAFT REAR BEARING
REMOVAL.............................560
INSTALLATION..........................560
OVERDRIVE CLUTCH
DESCRIPTION..........................560
OPERATION............................560
OVERDRIVE UNIT
REMOVAL.............................560
DISASSEMBLY..........................562
CLEANING.............................568
INSPECTION...........................569
ASSEMBLY............................569
INSTALLATION..........................577
OVERDRIVE SWITCH
DESCRIPTION..........................578
OPERATION............................579
DIAGNOSIS AND TESTING................579
OVERDRIVE ELECTRICAL CONTROLS.....579
REMOVAL.............................579
INSTALLATION..........................579
BR/BEAUTOMATIC TRANSMISSION - 46RE 21 - 477

Load next 8 pages

Page: < prev 1-10 ... 2073-2080 2081-2088 2089-2096 2097-2104 2105-2112 2113-2120 2121-2128 2129-2136 2137-2144 ... 2896 next >

transmission oil bolt pattern odometer oil temperature winter tires turn signal bulb
