DODGE RAM 2001 Service Repair Manual FUEL INJECTOR NO. 10 (8.0L) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 K116 18WT FUEL INJECTOR NO. 10 DRIVER 2 A142 16DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT FUEL PUMP MODULE (GAS) - LT GRAY 4 WAY CAV CIRCUI

Page 1058 of 2889

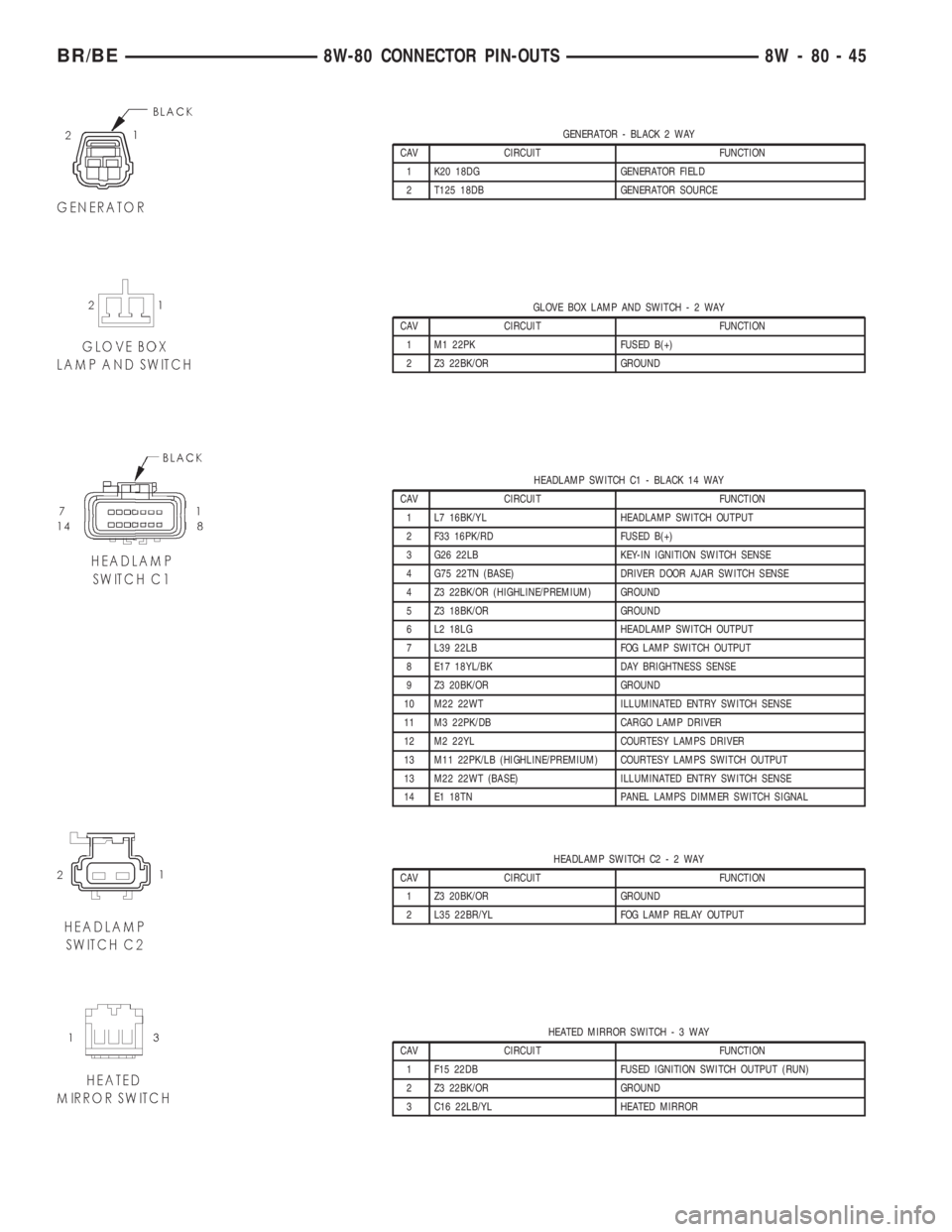

DODGE RAM 2001 Service Repair Manual GENERATOR - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 K20 18DG GENERATOR FIELD 2 T125 18DB GENERATOR SOURCE GLOVE BOX LAMP AND SWITCH-2WAY CAV CIRCUIT FUNCTION 1 M1 22PK FUSED B(+) 2 Z3 22BK/OR GROUND HEADLA

Page 1059 of 2889

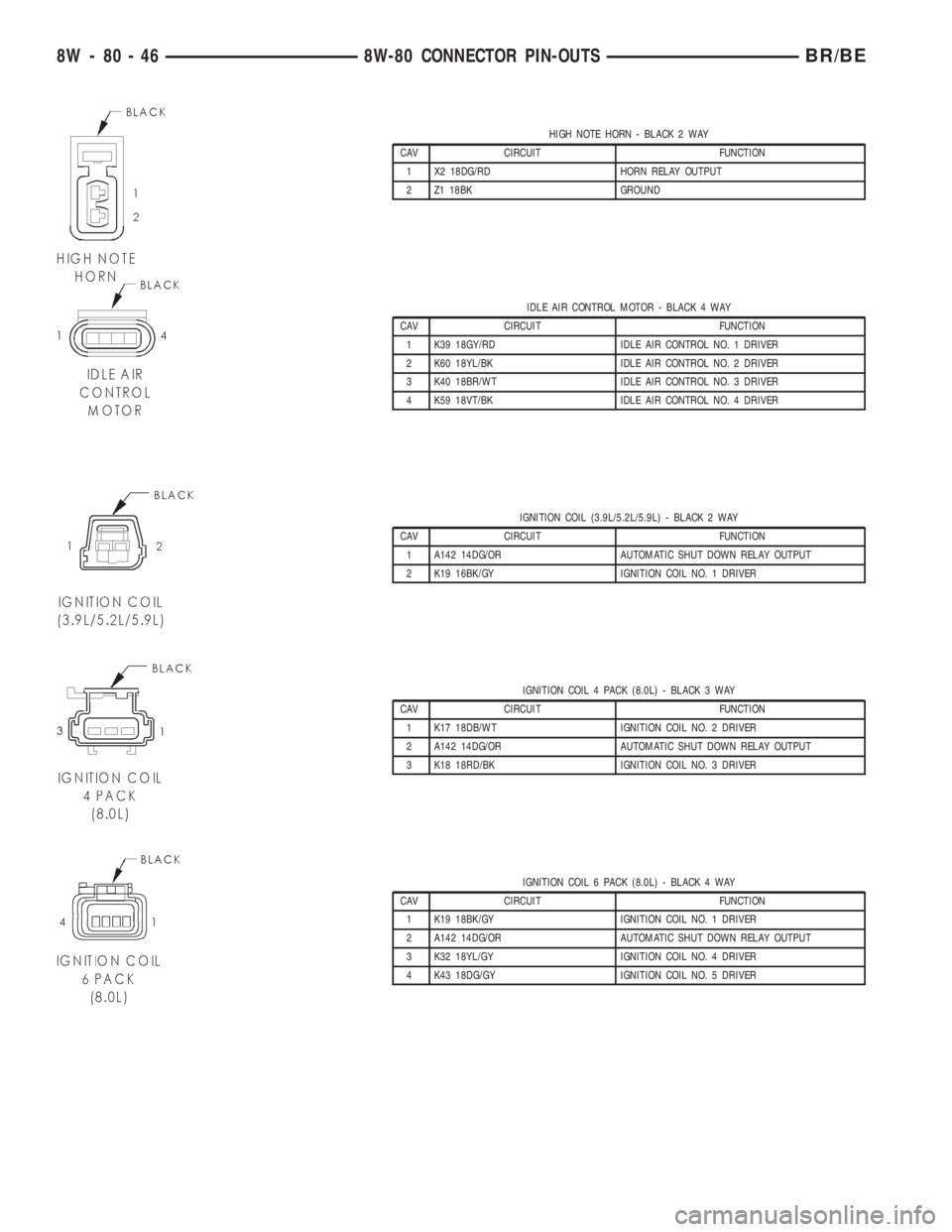

DODGE RAM 2001 Service Repair Manual HIGH NOTE HORN - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 X2 18DG/RD HORN RELAY OUTPUT 2 Z1 18BK GROUND IDLE AIR CONTROL MOTOR - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 K39 18GY/RD IDLE AIR CONTROL NO. 1 DRIVER

Page 1060 of 2889

DODGE RAM 2001 Service Repair Manual IGNITION SWITCH C1 - BLACK 7 WAY CAV CIRCUIT FUNCTION 1 A41 14YL IGNITION SWITCH OUTPUT (START) 2 A21 12DB IGNITION SWITCH OUTPUT (RUN-START) 3- - 4 A2 14PK/BK FUSED B(+) 5 A22 14BK/OR IGNITION SWITCH

Page 1061 of 2889

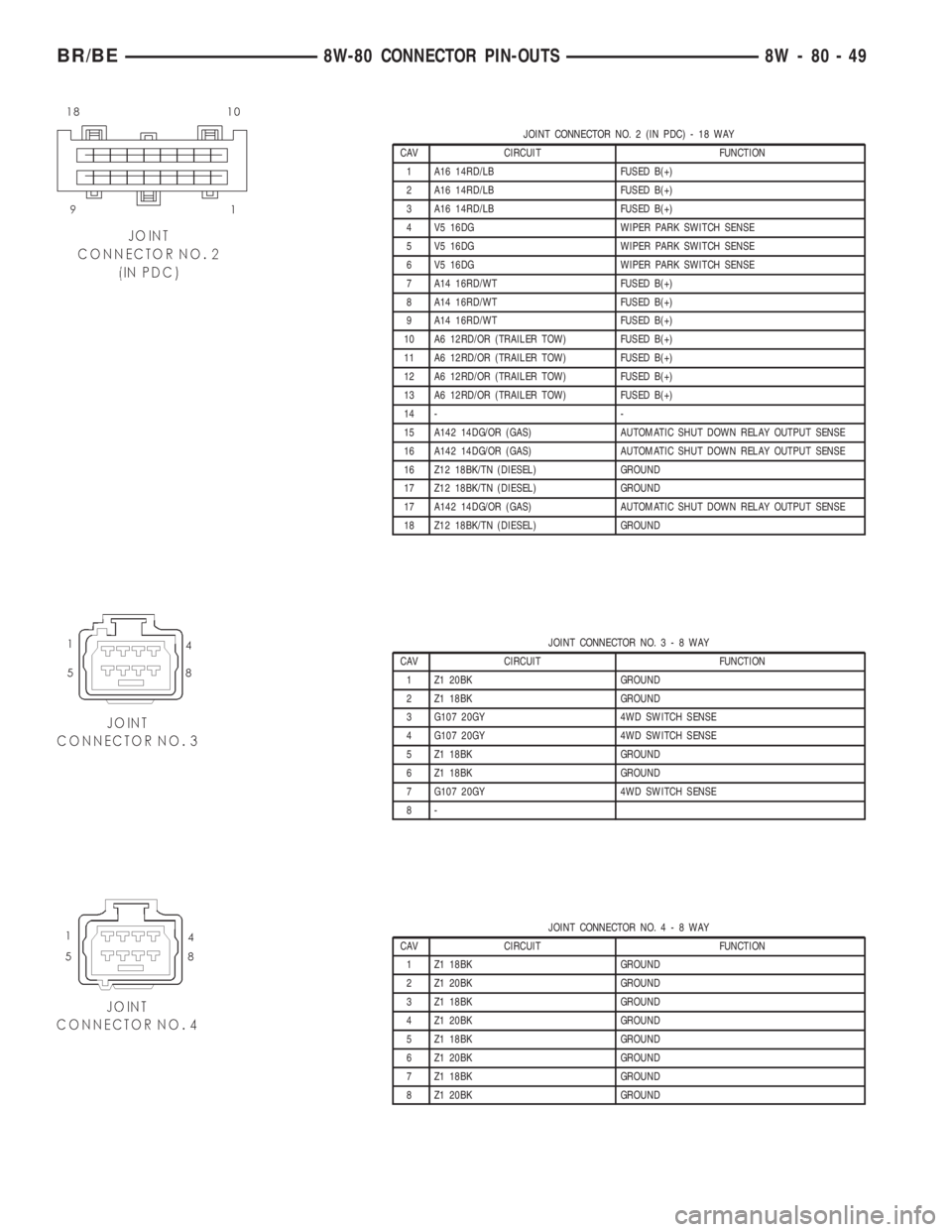

DODGE RAM 2001 Service Repair Manual INTAKE AIR TEMPERATURE SENSOR (DIESEL)-2WAY CAV CIRCUIT FUNCTION A K104 18BK/LB SENSOR GROUND B K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL INTAKE AIR TEMPERATURE SENSOR (GAS) - BLACK 2 WAY CAV C

Page 1062 of 2889

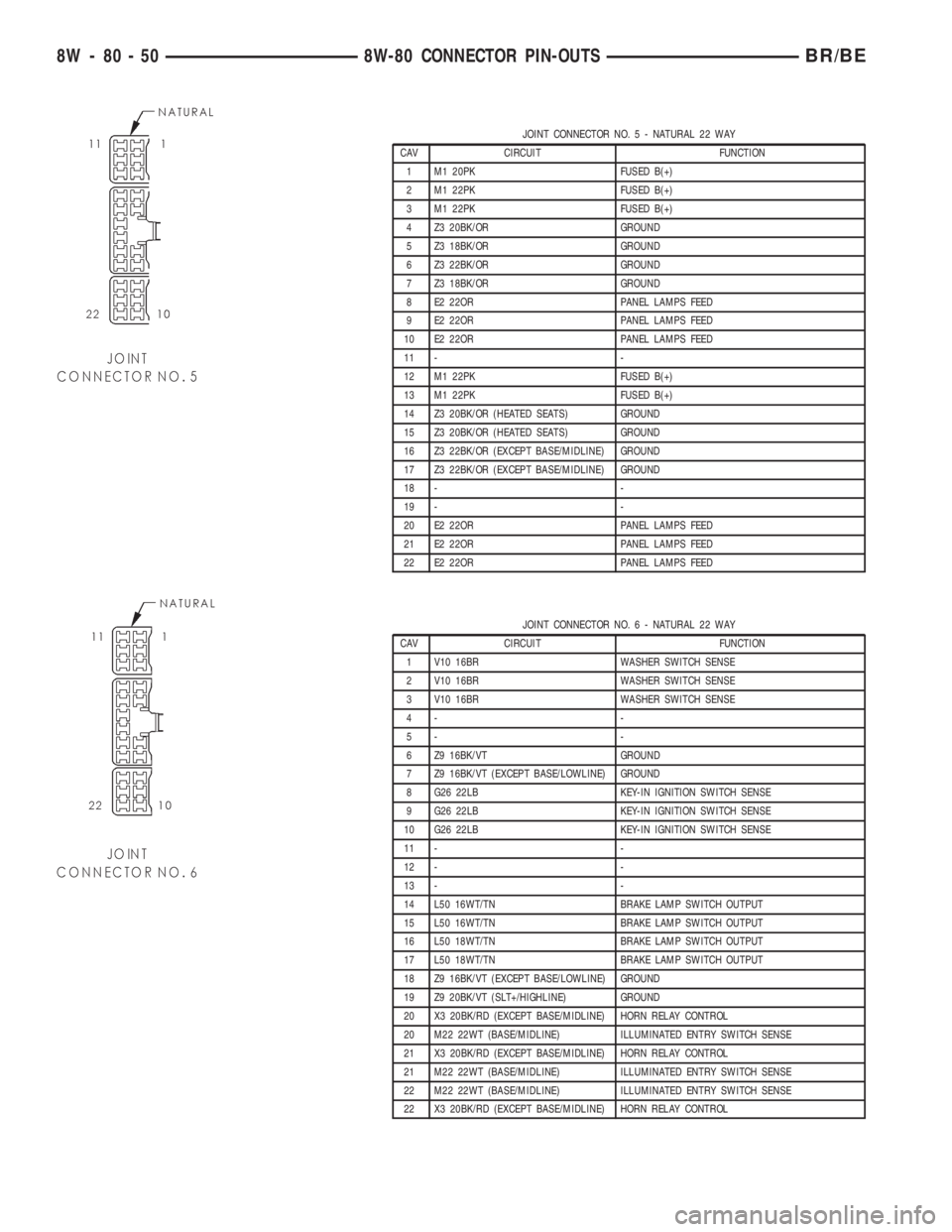

DODGE RAM 2001 Service Repair Manual JOINT CONNECTOR NO. 2 (IN PDC) - 18 WAY CAV CIRCUIT FUNCTION 1 A16 14RD/LB FUSED B(+) 2 A16 14RD/LB FUSED B(+) 3 A16 14RD/LB FUSED B(+) 4 V5 16DG WIPER PARK SWITCH SENSE 5 V5 16DG WIPER PARK SWITCH SE

Page 1063 of 2889

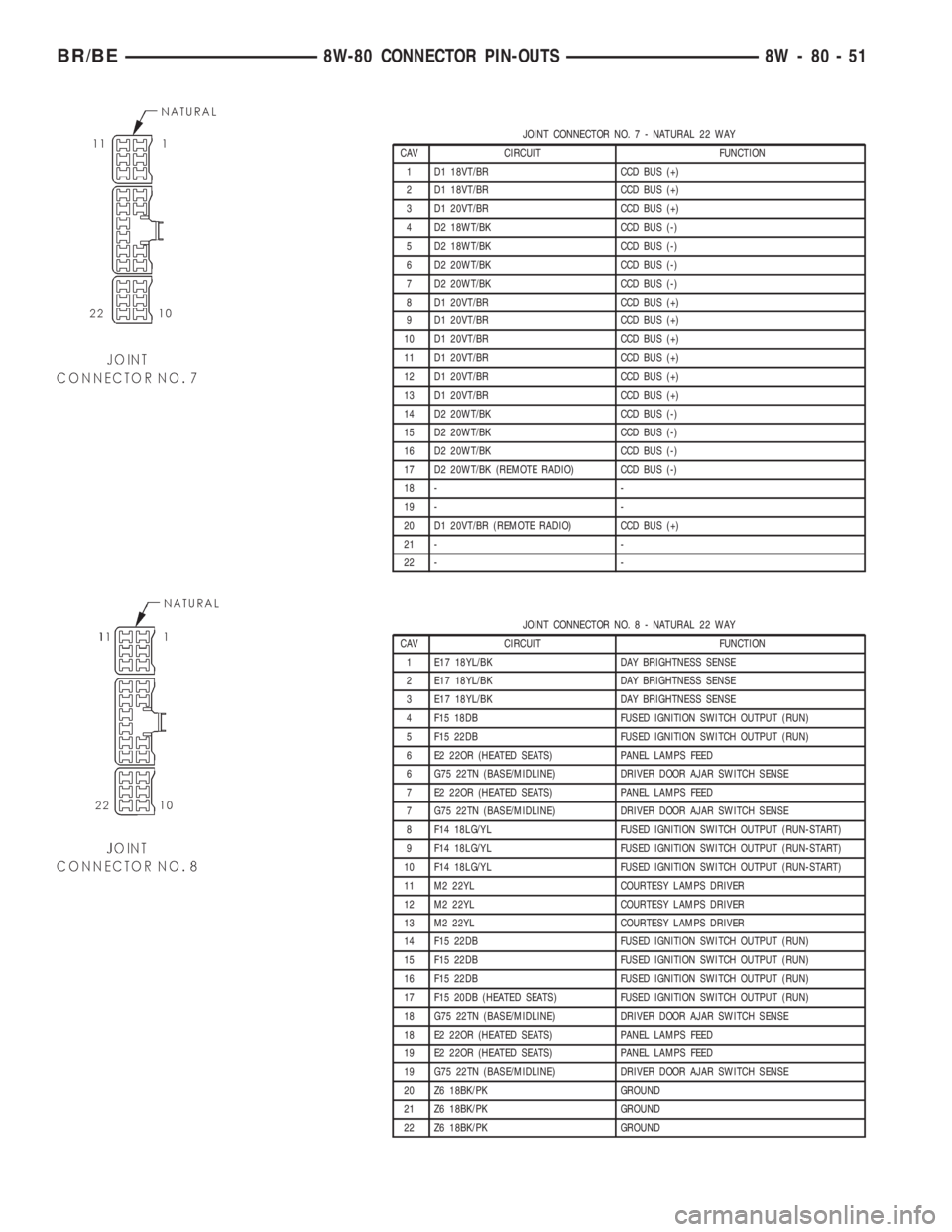

DODGE RAM 2001 Service Repair Manual JOINT CONNECTOR NO.5-NATURAL 22 WAY CAV CIRCUIT FUNCTION 1 M1 20PK FUSED B(+) 2 M1 22PK FUSED B(+) 3 M1 22PK FUSED B(+) 4 Z3 20BK/OR GROUND 5 Z3 18BK/OR GROUND 6 Z3 22BK/OR GROUND 7 Z3 18BK/OR GROUND

Page 1064 of 2889

DODGE RAM 2001 Service Repair Manual JOINT CONNECTOR NO.7-NATURAL 22 WAY CAV CIRCUIT FUNCTION 1 D1 18VT/BR CCD BUS (+) 2 D1 18VT/BR CCD BUS (+) 3 D1 20VT/BR CCD BUS (+) 4 D2 18WT/BK CCD BUS (-) 5 D2 18WT/BK CCD BUS (-) 6 D2 20WT/BK CCD B
