DODGE RAM 2001 Service Repair Manual OVERRUNNING CLUTCH CAM/OVERDRIVE
PISTON RETAINER
DESCRIPTION..........................580
OPERATION............................580
DISASSEMBLY..........................580
CLEANING....................

OVERRUNNING CLUTCH CAM/OVERDRIVE
PISTON RETAINER
DESCRIPTION..........................580
OPERATION............................580
DISASSEMBLY..........................580
CLEANING.............................580
INSPECTION...........................580
ASSEMBLY............................581
PARK/NEUTRAL POSITION SWITCH
DIAGNOSIS AND TESTING................583
PARK/NEUTRAL POSITION SWITCH.......583
REMOVAL.............................583
INSTALLATION..........................583
PISTONS
DESCRIPTION..........................584
OPERATION............................584
PLANETARY GEARTRAIN/OUTPUT SHAFT
DESCRIPTION..........................585
OPERATION............................585
DISASSEMBLY..........................586
INSPECTION...........................587
ASSEMBLY............................588
REAR CLUTCH
DESCRIPTION..........................591
OPERATION............................592
DISASSEMBLY..........................592
CLEANING.............................593
INSPECTION...........................593
ASSEMBLY............................593
REAR SERVO
DESCRIPTION..........................594
OPERATION............................594
DISASSEMBLY..........................594
CLEANING.............................594
ASSEMBLY............................595
SHIFT MECHANISM
DESCRIPTION..........................595OPERATION............................595
ADJUSTMENTS.........................596
SOLENOID
DESCRIPTION..........................596
OPERATION............................597
SPEED SENSOR
DESCRIPTION..........................597
OPERATION............................597
THROTTLE VALVE CABLE
DESCRIPTION..........................597
ADJUSTMENTS.........................598
TORQUE CONVERTER
DESCRIPTION..........................600
OPERATION............................604
REMOVAL.............................605
INSTALLATION..........................605
TORQUE CONVERTER DRAINBACK VALVE
DESCRIPTION..........................605
OPERATION............................605
STANDARD PROCEDURE.................606
TORQUE CONVERTER DRAINBACK VALVE . 606
TRANSMISSION TEMPERATURE SENSOR
DESCRIPTION..........................606
OPERATION............................606
VALVE BODY
DESCRIPTION..........................607
OPERATION............................611
REMOVAL.............................625
DISASSEMBLY..........................626
CLEANING.............................637
INSPECTION...........................637
ASSEMBLY............................638
INSTALLATION..........................645
ADJUSTMENTS.........................646
AUTOMATIC TRANSMISSION -
46RE
DESCRIPTION
The 46RE (Fig. 1) is a four speed fully automatic
transmissions with an electronic governor. The 46RE
is equipped with a lock-up clutch in the torque con-
verter. First through third gear ranges are provided
by the clutches, bands, overrunning clutch, and plan-
etary gear sets in the transmission. Fourth gear
range is provided by the overdrive unit that contains
an overdrive clutch, direct clutch, planetary gear set,
and overrunning clutch.
The transmission contains a front, rear, and direct
clutch which function as the input driving compo-
nents. It also contains the kickdown (front) and thelow/reverse (rear) bands which, along with the over-
running clutch and overdrive clutch, serve as the
holding components. The driving and holding compo-
nents combine to select the necessary planetary gear
components, in the front, rear, or overdrive planetary
gear set, transfer the engine power from the input
shaft through to the output shaft.
The valve body is mounted to the lower side of the
transmission and contains the valves to control pres-
sure regulation, fluid flow control, and clutch/band
application. The oil pump is mounted at the front of
the transmission and is driven by the torque con-
verter hub. The pump supplies the oil pressure nec-
essary for clutch/band actuation and transmission
lubrication.
21 - 478 AUTOMATIC TRANSMISSION - 46REBR/BE

Page 2114 of 2889

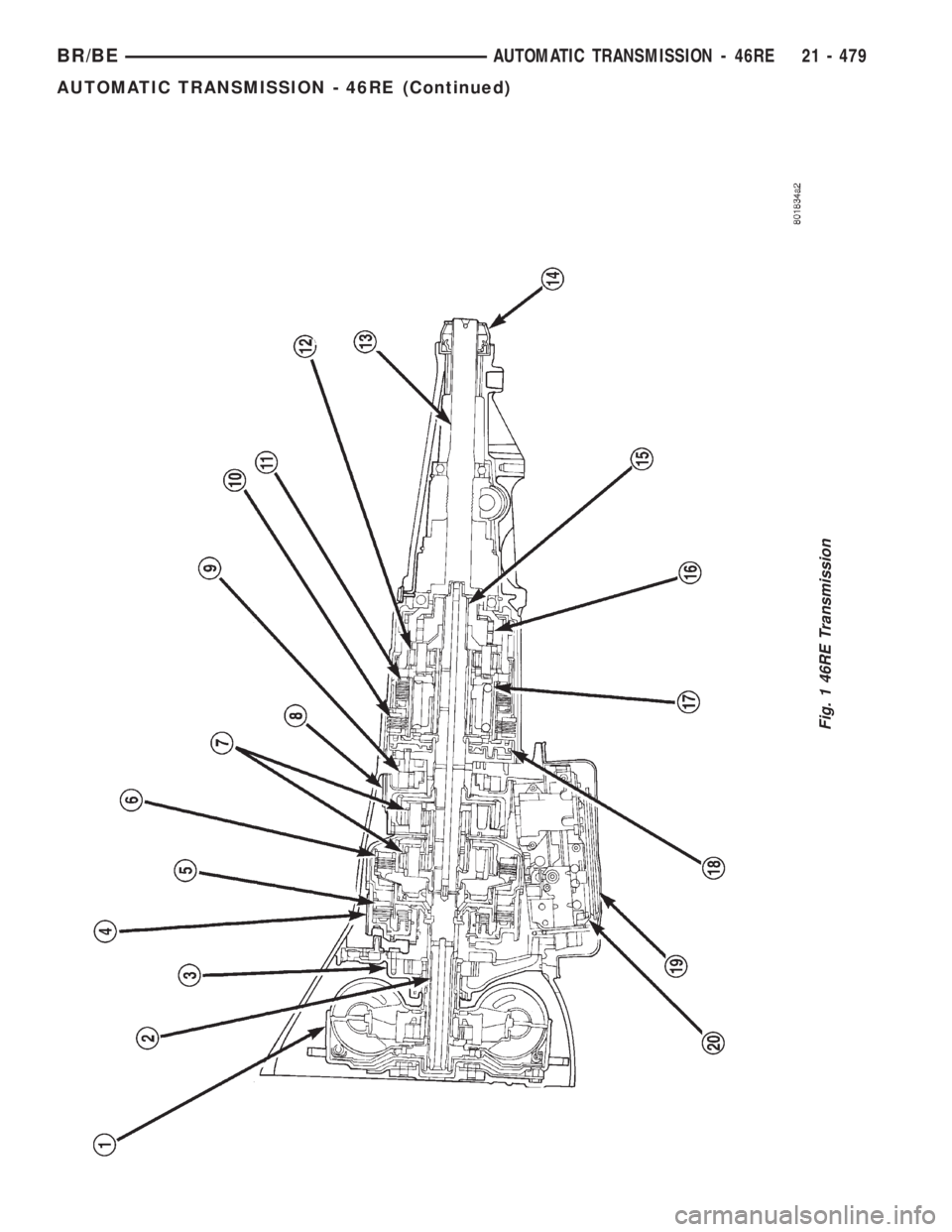

DODGE RAM 2001 Service Repair Manual Fig. 1 46RE Transmission
BR/BEAUTOMATIC TRANSMISSION - 46RE 21 - 479
AUTOMATIC TRANSMISSION - 46RE (Continued)

Page 2115 of 2889

DODGE RAM 2001 Service Repair Manual IDENTIFICATION
Transmission identification numbers are stamped
on the left side of the case just above the oil pan gas-
ket surface (Fig. 2). Refer to this information when
ordering replacement parts.

IDENTIFICATION
Transmission identification numbers are stamped
on the left side of the case just above the oil pan gas-
ket surface (Fig. 2). Refer to this information when
ordering replacement parts.
GEAR RATIOS The 46RE gear ratios are:
1st.................................2.45:1
2nd................................1.45:1
3rd.................................1.00:1
4th.................................0.69:11st.................................2.45:1
Rev..................................2.21
OPERATION
The application of each driving or holding compo-
nent is controlled by the valve body based upon the
manual lever position, throttle pressure, and gover-
nor pressure. The governor pressure is a variable
pressure input to the valve body and is one of the
signals that a shift is necessary. First through fourth
gear are obtained by selectively applying and releas-
ing the different clutches and bands. Engine power is
thereby routed to the various planetary gear assem-
blies which combine with the overrunning clutch
assemblies to generate the different gear ratios. The
torque converter clutch is hydraulically applied and
is released when fluid is vented from the hydraulic
circuit by the torque converter control (TCC) solenoid
on the valve body. The torque converter clutch is con-
trolled by the Powertrain Control Module (PCM). The
torque converter clutch engages in fourth gear, and
in third gear under various conditions, such as when
the O/D switch is OFF, when the vehicle is cruising
on a level surface after the vehicle has warmed up.
The torque converter clutch will disengage momen-
tarily when an increase in engine load is sensed by
the PCM, such as when the vehicle begins to go
uphill or the throttle pressure is increased. The
torque converter clutch feature increases fuel econ-
omy and reduces the transmission fluid temperature.
Since the overdrive clutch is applied in fourth gear
only and the direct clutch is applied in all ranges
except fourth gear, the transmission operation for
park, neutral, and first through third gear will be
described first. Once these powerflows are described,
the third to fourth shift sequence will be described.
1 - TORQUE CONVERTER 11 - DIRECT CLUTCH
2 - INPUT SHAFT 12 - PLANETARY GEAR
3 - OIL PUMP 13 - OUTPUT SHAFT
4 - FRONT BAND 14 - SEAL
5 - FRONT CLUTCH 15 - INTERMEDIATE SHAFT
6 - REAR CLUTCH 16 - OVERDRIVE OVERRUNNING CLUTCH
7 - PLANETARIES 17 - DIRECT CLUTCH SPRING
8 - REAR BAND 18 - OVERDRIVE PISTON RETAINER
9 - OVERRUNNING CLUTCH 19 - FILTER
10 - OVERDRIVE CLUTCH 20 - VALVE BODY

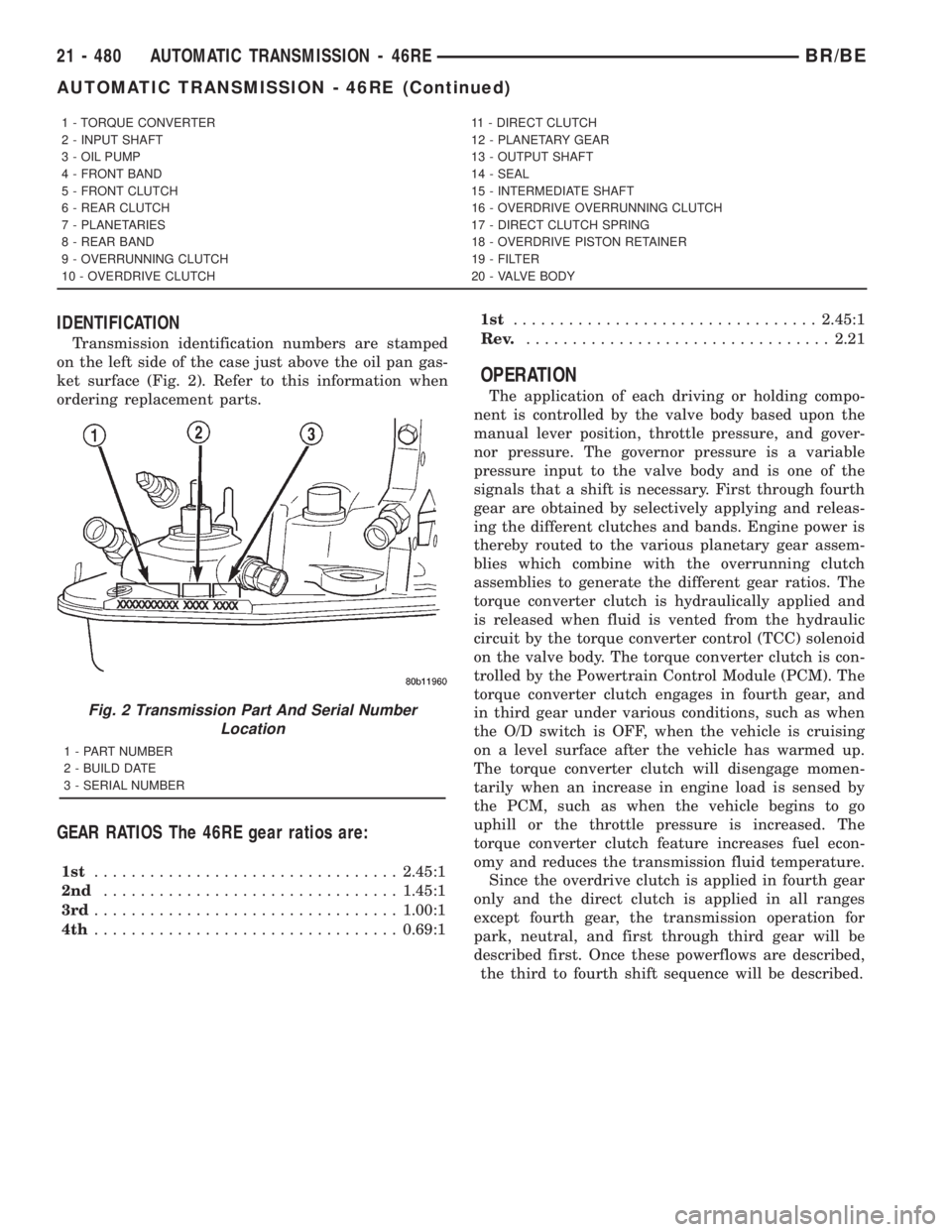

Fig. 2 Transmission Part And Serial Number
Location
1 - PART NUMBER
2 - BUILD DATE
3 - SERIAL NUMBER
21 - 480 AUTOMATIC TRANSMISSION - 46REBR/BE
AUTOMATIC TRANSMISSION - 46RE (Continued)

Page 2116 of 2889

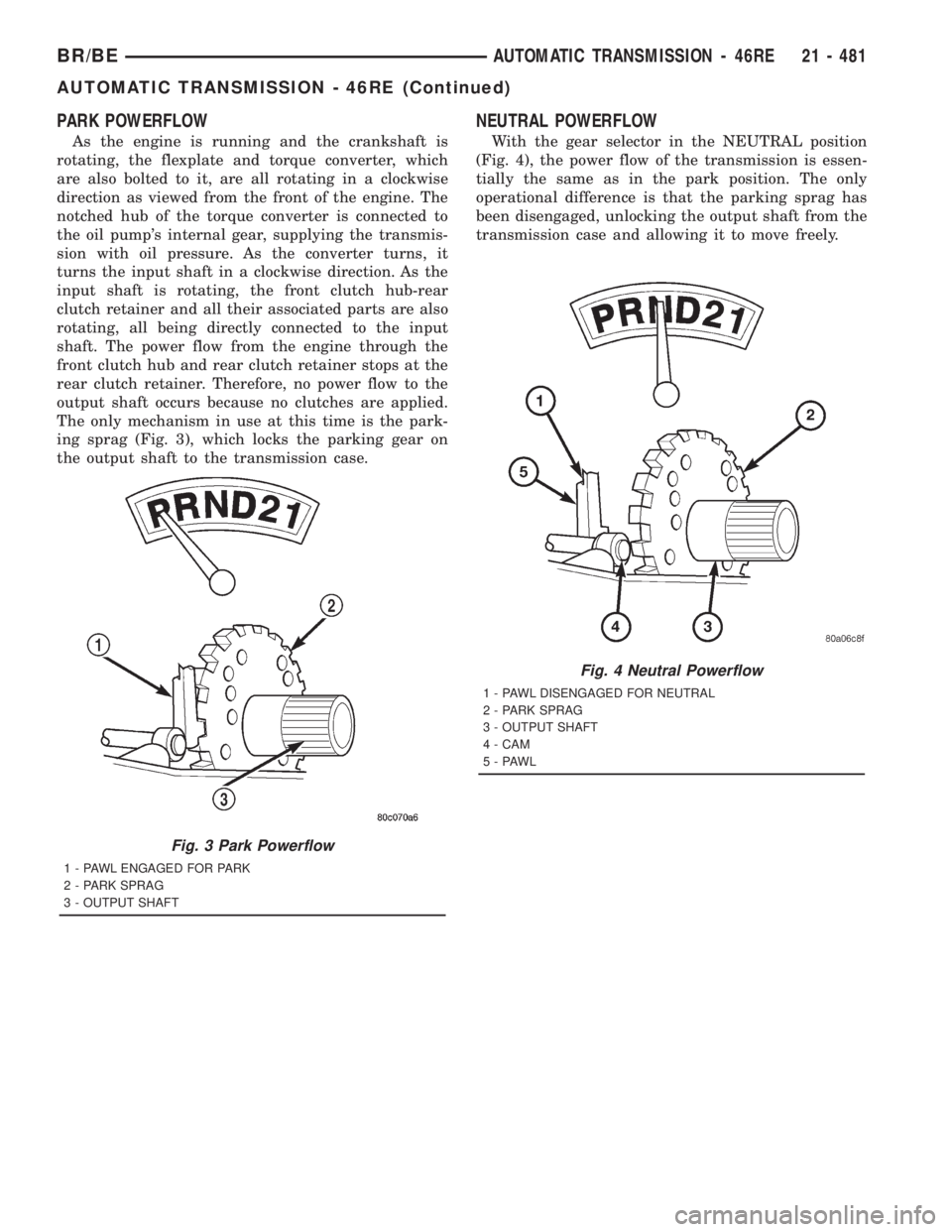

DODGE RAM 2001 Service Repair Manual PARK POWERFLOW
As the engine is running and the crankshaft is
rotating, the flexplate and torque converter, which
are also bolted to it, are all rotating in a clockwise
direction as viewed from the fr

Page 2117 of 2889

DODGE RAM 2001 Service Repair Manual REVERSE POWERFLOW
When the gear selector is moved into the
REVERSE position (Fig. 5), the front clutch and the
rear band are applied. With the application of the
front clutch, engine torque is applied

Page 2118 of 2889

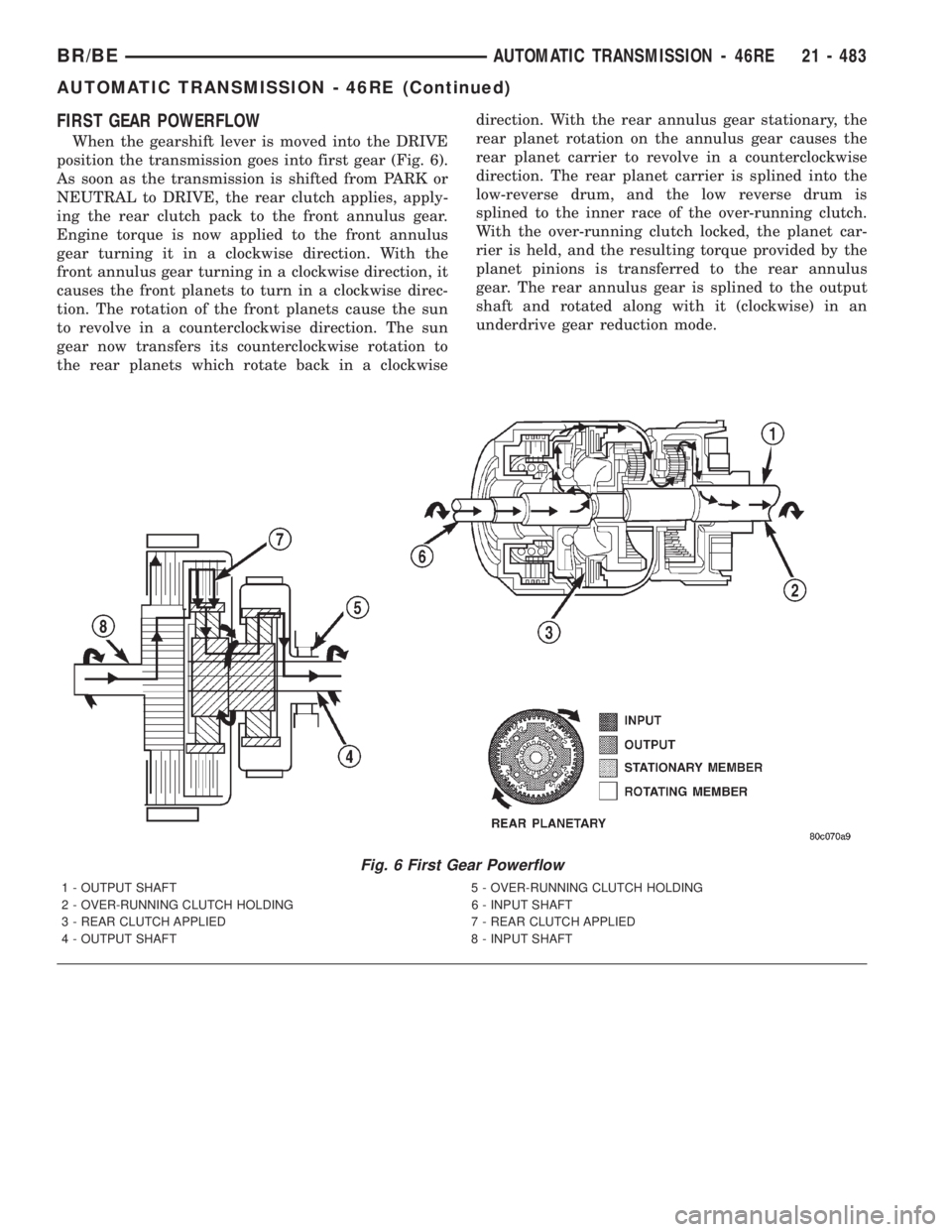

DODGE RAM 2001 Service Repair Manual FIRST GEAR POWERFLOW
When the gearshift lever is moved into the DRIVE
position the transmission goes into first gear (Fig. 6).
As soon as the transmission is shifted from PARK or
NEUTRAL to DRIVE, the

Page 2119 of 2889

DODGE RAM 2001 Service Repair Manual SECOND GEAR POWERFLOW
In DRIVE-SECOND (Fig. 7), the same elements
are applied as in MANUAL-SECOND. Therefore, the
power flow will be the same, and both gears will be
discussed as one in the same. In D

Page 2120 of 2889

DODGE RAM 2001 Service Repair Manual DIRECT DRIVE POWERFLOW
The vehicle has accelerated and reached the shift
point for the 2-3 upshift into direct drive (Fig. 8).
When the shift takes place, the front band is
released, and the front clu
