Page 1817 of 2889

DODGE RAM 2001 Service Repair Manual HYDRAULIC FLOW IN DRIVE FOURTH GEAR (CONVERTER CLUTCH APPLIED) 21 - 182 AUTOMATIC TRANSMISSION - 42REBR/BE AUTOMATIC TRANSMISSION - 42RE (Continued)

Page 1818 of 2889

DODGE RAM 2001 Service Repair Manual HYDRAULIC FLOW IN MANUAL LOW (1) BR/BEAUTOMATIC TRANSMISSION - 42RE 21 - 183 AUTOMATIC TRANSMISSION - 42RE (Continued)

Page 1819 of 2889

DODGE RAM 2001 Service Repair Manual HYDRAULIC FLOW IN MANUAL SECOND (2) 21 - 184 AUTOMATIC TRANSMISSION - 42REBR/BE AUTOMATIC TRANSMISSION - 42RE (Continued)

Page 1820 of 2889

DODGE RAM 2001 Service Repair Manual HYDRAULIC FLOW DURING FULL THROTTLE 3-2 DOWNSHIFT (PASSING BR/BEAUTOMATIC TRANSMISSION - 42RE 21 - 185 AUTOMATIC TRANSMISSION - 42RE (Continued)

Page 1821 of 2889

DODGE RAM 2001 Service Repair Manual SPECIFICATIONS TRANSMISSION GENERAL Component Metric Inch Planetary end play 0.127-1.22 mm0.005-0.048 in. Input shaft end play 0.56-2.31 mm0.022-0.091 in. Clutch pack clearance/ Front.1.70- 3.40mm0.06

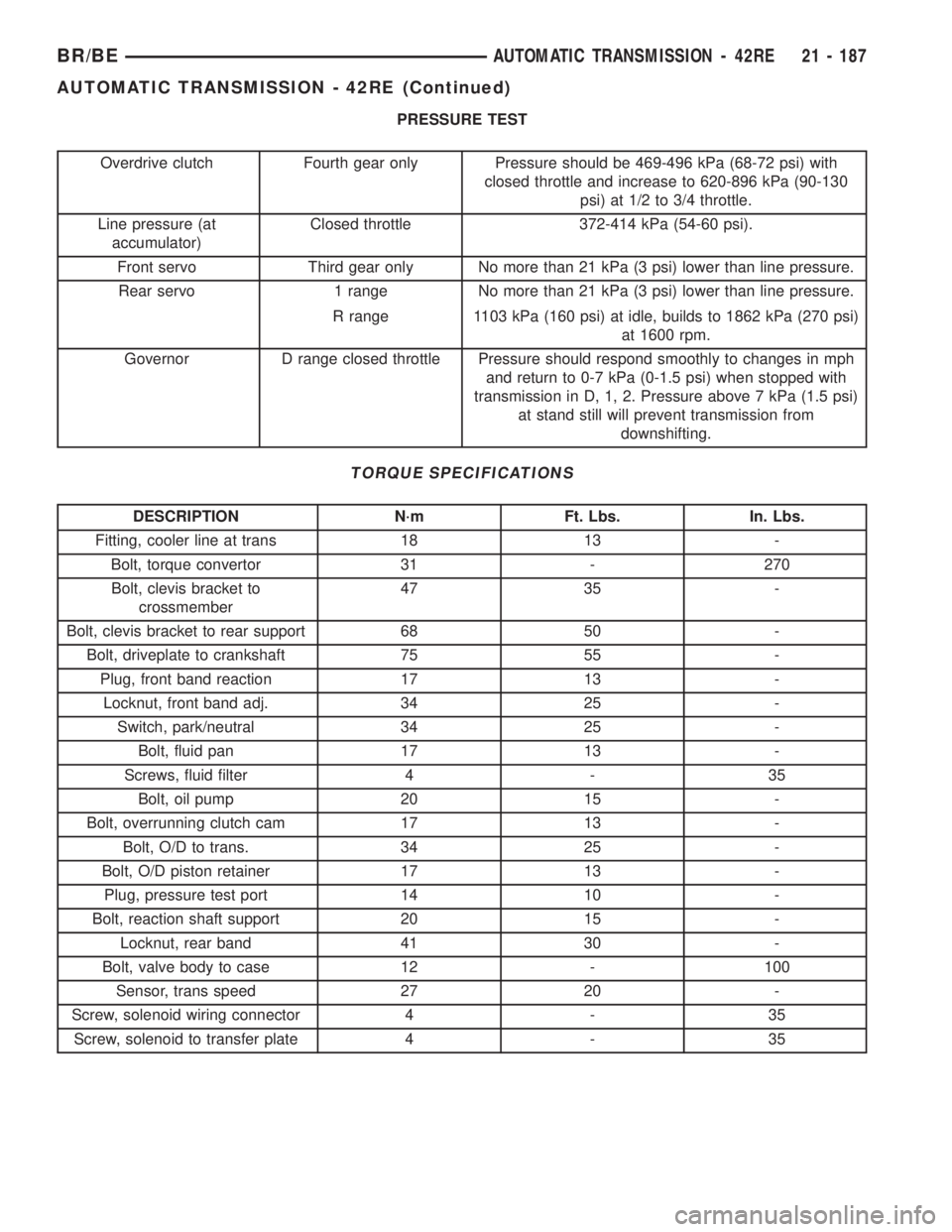

Page 1822 of 2889

DODGE RAM 2001 Service Repair Manual PRESSURE TEST Overdrive clutch Fourth gear only Pressure should be 469-496 kPa (68-72 psi) with closed throttle and increase to 620-896 kPa (90-130 psi) at 1/2 to 3/4 throttle. Line pressure (at accum

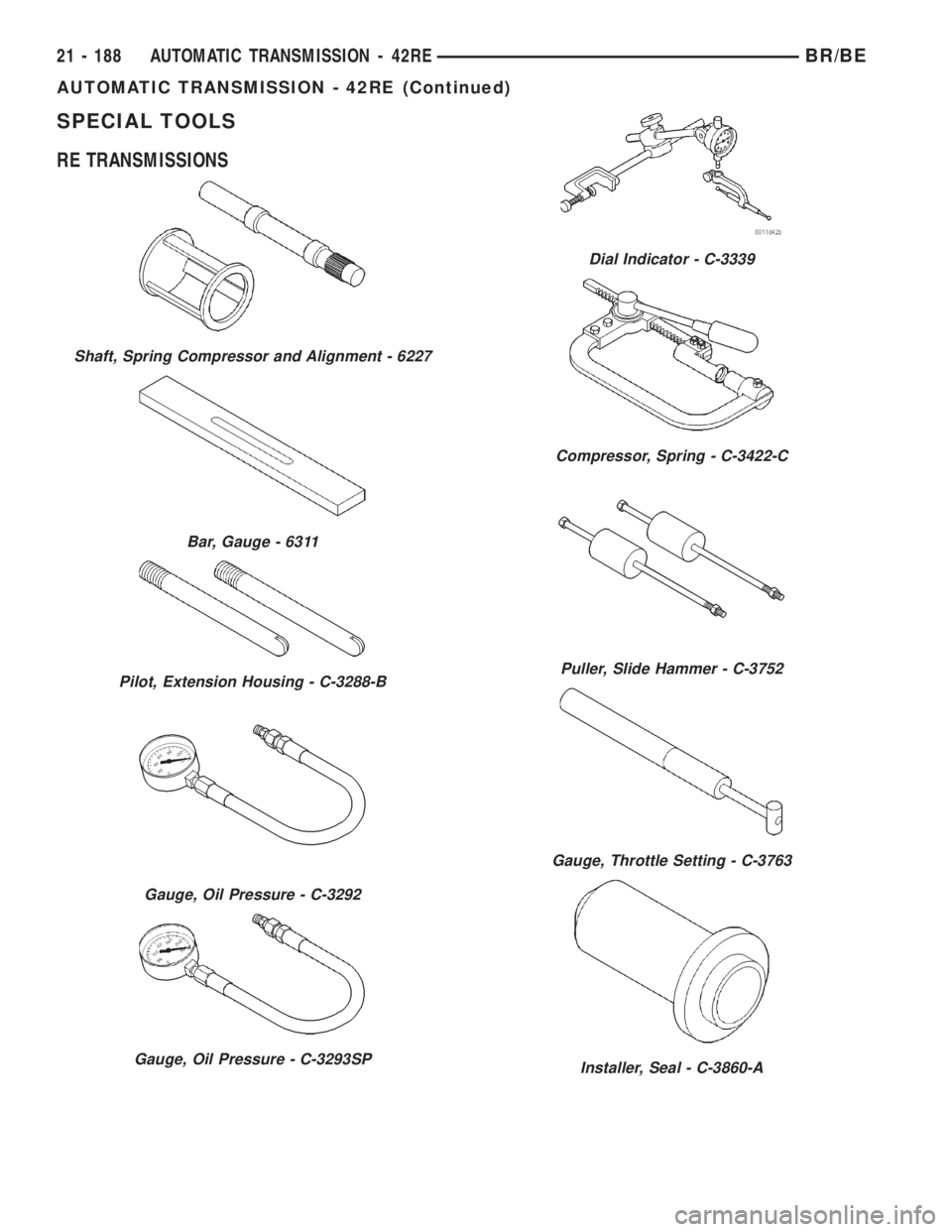

Page 1823 of 2889

DODGE RAM 2001 Service Repair Manual SPECIAL TOOLS RE TRANSMISSIONS Shaft, Spring Compressor and Alignment - 6227 Bar, Gauge - 6311 Pilot, Extension Housing - C-3288-B Gauge, Oil Pressure - C-3292 Gauge, Oil Pressure - C-3293SP Dial Indi

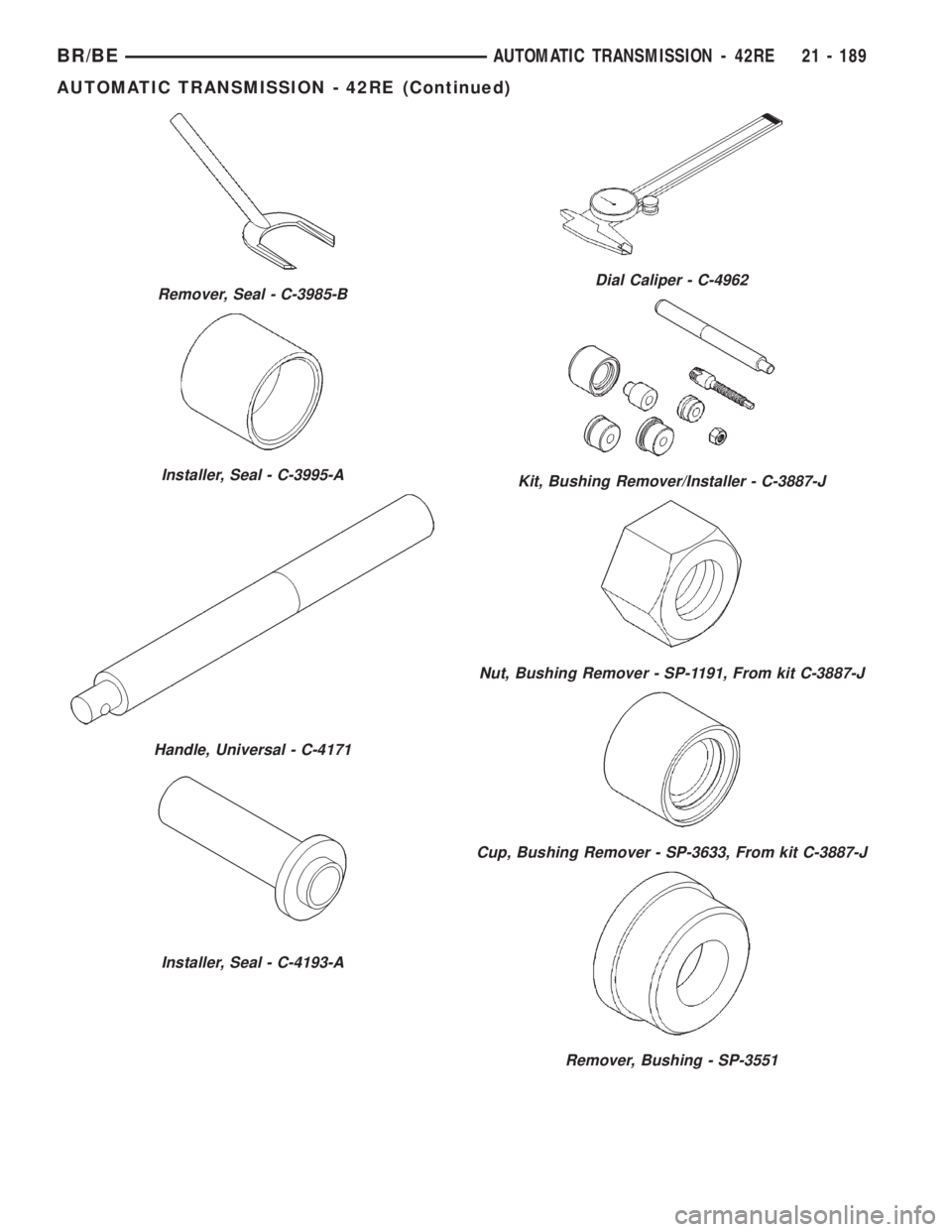

Page 1824 of 2889

DODGE RAM 2001 Service Repair Manual Remover, Seal - C-3985-B Installer, Seal - C-3995-A Handle, Universal - C-4171 Installer, Seal - C-4193-A Dial Caliper - C-4962 Kit, Bushing Remover/Installer - C-3887-J Nut, Bushing Remover - SP-1191
